kfbslide 0.2.0

Pure Python KFB whole-slide image reader with OpenSlide-compatible API

KFBSlide

A pure-Python KFB (KFBio) whole-slide image reader with an OpenSlide-compatible API

English | 简体中文

✨ Features • 📦 Installation • 🚀 Quick Start • 📖 API • ⚡ Performance

---

✨ Features

• 🐍 Pure Python — Zero native dependencies, works out of the box on Windows / macOS / Linux
• 🔄 OpenSlide-Compatible API — Drop-in replacement for openslide-python, no code changes needed
• 🔺 Multi-Level Pyramids — Automatically parses 40× / 20× / 10× / 5× / 2.5× / 1.25× levels inside KFB
• 🖼️ Associated Images — Supports macro, label, and thumbnail
• ⚡ Tile LRU Cache — 10~20× speedup for repeated reads of the same region
• 📊 Full Metadata — MPP, objective power, tile size, and more

---

📦 Installation

Using uv (recommended)

uv pip install kfbslide

Using pip

pip install kfbslide

Only depends on Pillow — installs directly on any platform.

---

🚀 Quick Start

Drop-in replacement for OpenSlide

import kfbslide as openslide

slide = openslide.OpenSlide("path/to/sample.kfb")

print(f"Levels: {slide.level_count}")
print(f"Level 0 dimensions: {slide.dimensions}")
for i in range(slide.level_count):
    print(f"  Level {i}: {slide.level_dimensions[i]} "
          f"downsample={slide.level_downsamples[i]}")

# Read a region (location in level-0 coordinates, returns RGBA)
img = slide.read_region((1000, 2000), 0, (256, 256))
img.save("region.png")

# Thumbnail
thumb = slide.get_thumbnail((512, 512))
thumb.save("thumbnail.png")

# Associated images
macro = slide.associated_images["macro"]
macro.save("macro.png")

# Property access
vendor = slide.properties[openslide.PROPERTY_NAME_VENDOR]
mpp_x = slide.properties[openslide.PROPERTY_NAME_MPP_X]

slide.close()

Context manager

with openslide.OpenSlide("sample.kfb") as slide:
    img = slide.read_region((0, 0), 0, (256, 256))
# Automatically closed

---

📖 API Reference

OpenSlide(filename)

Open a KFB file.

Class methods

Method	Description
OpenSlide.detect_format(filename)	Detect file format, returns "kfbio" or None

Properties

Property	Type	Description
level_count	int	Number of pyramid levels
dimensions	(int, int)	Level 0 dimensions (highest resolution)
level_dimensions	Tuple[(w, h), ...]	Dimensions of each level
level_downsamples	Tuple[float, ...]	Downsample factor for each level
properties	Mapping[str, str]	Metadata properties (read-only mapping)
associated_images	Mapping[str, PIL.Image]	Associated images: macro, label, thumbnail
color_profile	object | None	ICC color profile (currently returns None)

Methods

Method	Description
read_region(location, level, size)	Read a region, returns RGBA image
get_best_level_for_downsample(downsample)	Pick the best pyramid level for a given downsample factor
get_thumbnail(size)	Generate a thumbnail
set_cache(cache)	API-compatible no-op
close()	Close and release resources

Property constants

from kfbslide import (
    PROPERTY_NAME_VENDOR,           # "openslide.vendor"
    PROPERTY_NAME_MPP_X,            # "openslide.mpp-x"
    PROPERTY_NAME_MPP_Y,            # "openslide.mpp-y"
    PROPERTY_NAME_OBJECTIVE_POWER,  # "openslide.objective-power"
)

---

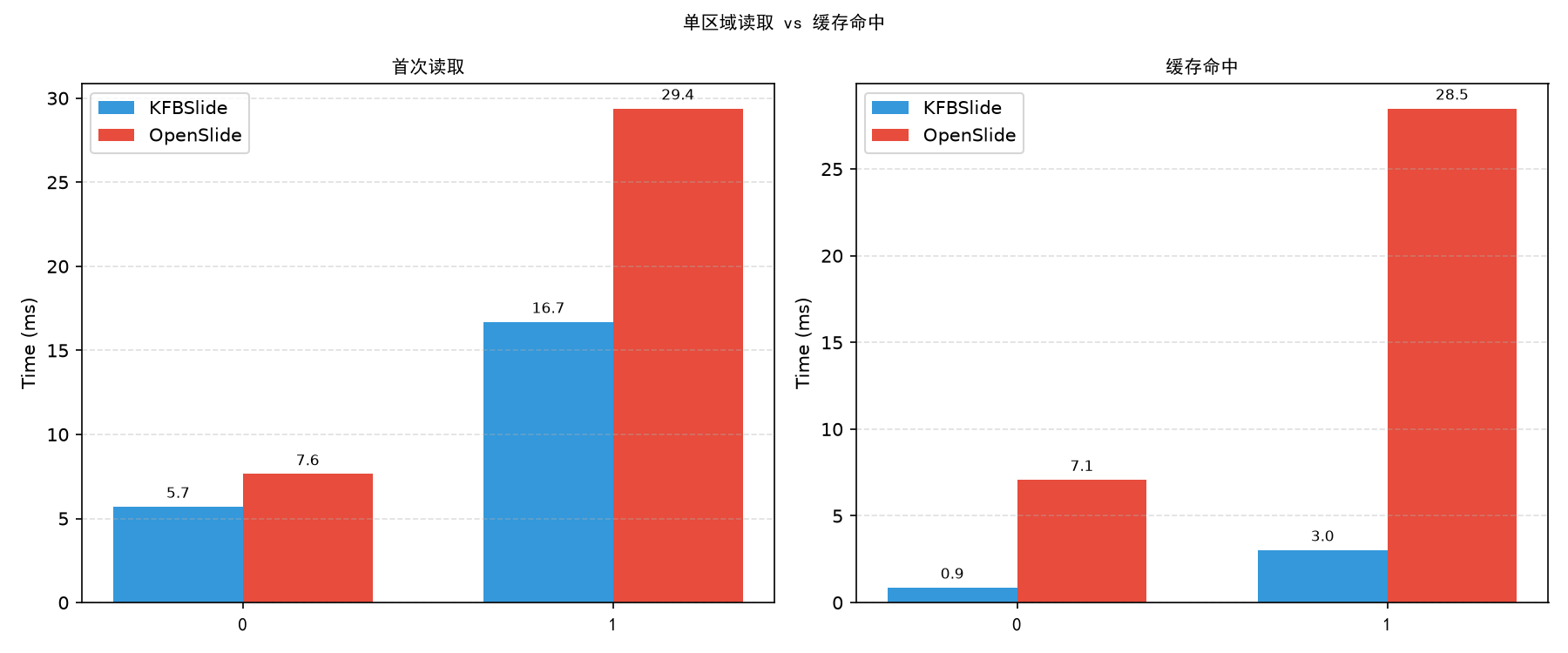

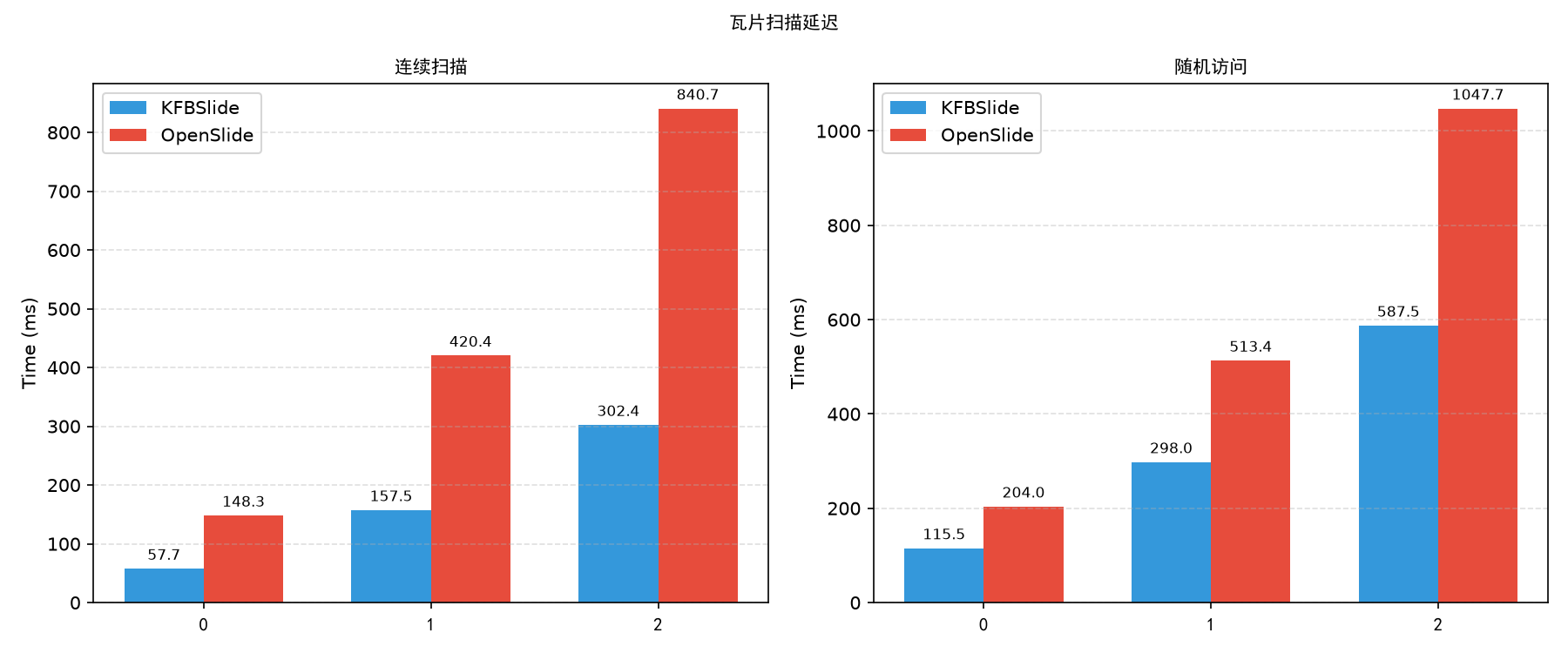

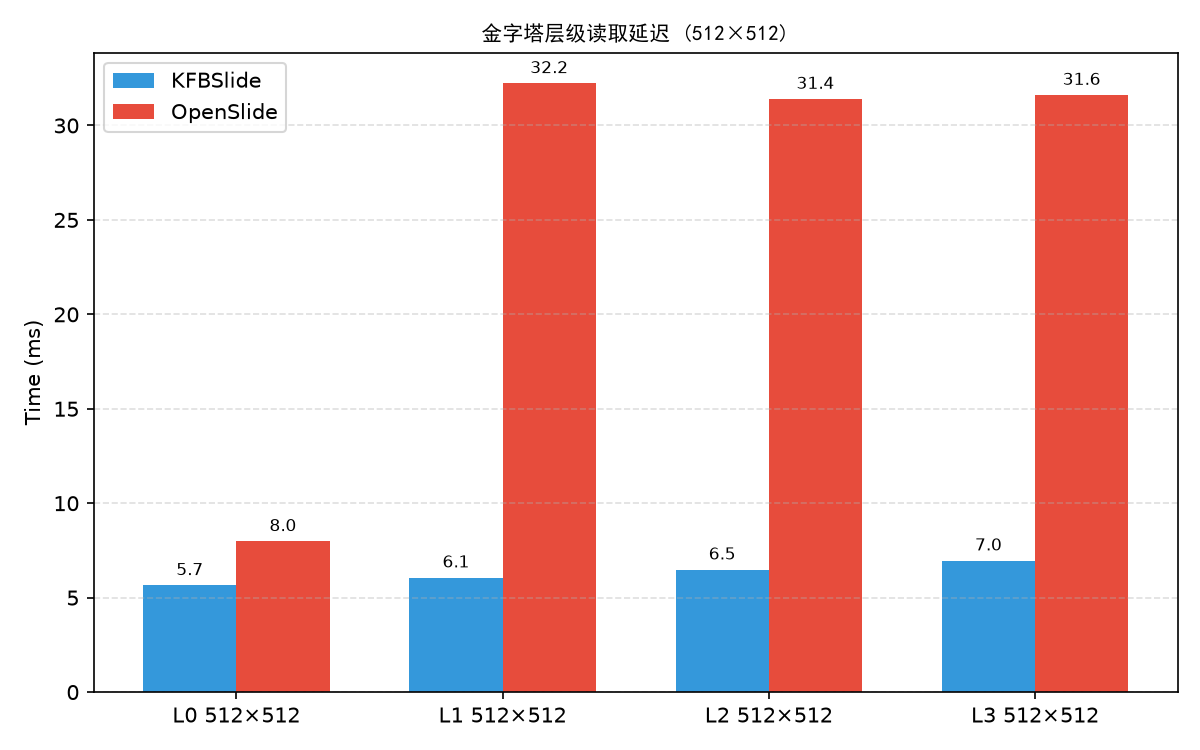

⚡ Performance

Benchmarked on sample.kfb (71,748 × 56,282, 82,595 tiles):

Operation	Time	Note
First read of 256×256 region	~2.1 ms	Pillow backend
Cache-hit read	~0.10 ms	22× faster
Scan 20 adjacent regions (first time)	~33 ms	1.6 ms/region
Scan 20 adjacent regions (cached)	~2.2 ms	0.11 ms/region, 15× faster

Test environment: Python 3.12, Pillow, SSD.

---

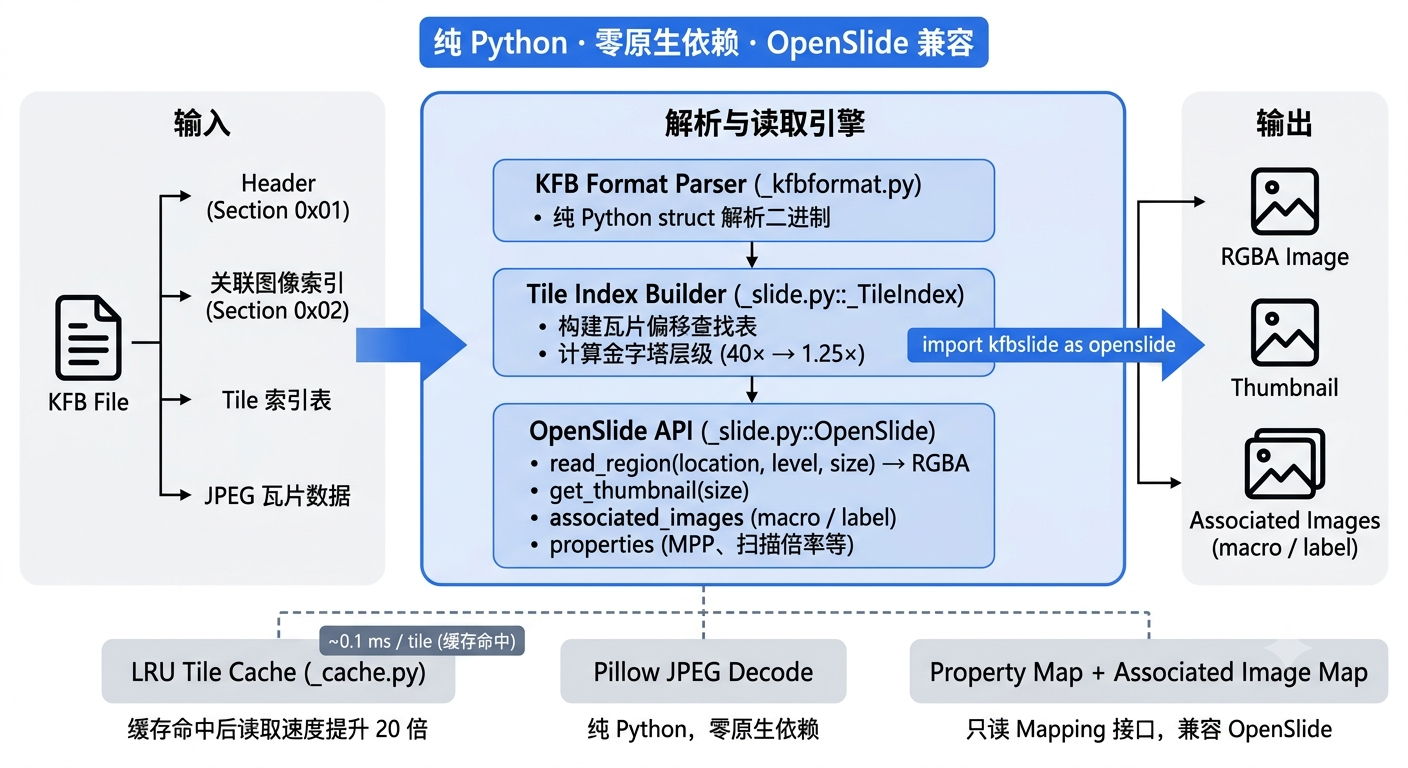

🏗️ Architecture

KFBSlide is implemented entirely in pure Python, reading images by directly parsing the KFB binary format:

• No C/C++ extensions or system dynamic libraries required
• No dependency on OpenSlide, libtiff, libjpeg, or other external libraries
• Single-file deployable, suitable for servers, containers, and embedded environments

---

📁 Project Structure

kfbslide/
├── src/kfbslide/
│   ├── __init__.py          # Package entry point, exports OpenSlide API
│   ├── _slide.py            # OpenSlide main class
│   ├── _kfbformat.py        # KFB binary format parser
│   ├── _cache.py            # LRU tile cache
│   └── _exceptions.py       # OpenSlideError / compatibility exceptions
├── tests/                   # Tests (includes sample.kfb symlink)
├── examples/                # Example scripts
├── docs/                    # Documentation images
├── README.md
├── LICENSE
└── pyproject.toml

---

⚠️ Known Limitations

1. Read-only: Writing to KFB files is not currently supported.
2. KFB v1.6: Verified on version 1.6 files. Other versions may require adaptation.
3. JPEG decoding: Uses Pillow for JPEG decoding, consistent across all platforms.

---

📄 License

MIT

Copyright (c) 2026 Yifan Feng
