kodiag 0.1.5

No project description provided

Python debugging library consisting of decorator trace functions to write code flow in diagram. Supports exporting to Pdf, Markdown, Drawio, Mermaid. It records function calls with arguments, return values, and elapsed time, then generates an HTML page with interactive buttons for exporting the trace. You can use it for your python projects by installing with pip install kodiag.

Installation

pip install kodiag

Usage

kodiag exposes a single decorator, trace, imported directly from the package:

from kodiag import trace

trace must always be called with parentheses before decorating a function — @trace(), not bare @trace — since it takes an optional fileName argument that controls whether calls are logged to the console or recorded into an HTML diagram.

Console tracing — @trace()

Called with no arguments, trace prints each call to stdout as it happens, along with the return value and elapsed time. Nothing is written to disk.

from kodiag import trace

@trace()
def add(a, b):
    return a + b

add(1, 2)

• calling add((1, 2), {}) •
>>> add returned 3 and took 0.0000s <<<

Diagram tracing — @trace("fileName")

Pass a file name to record every call into an in-memory flow that is written out as an HTML diagram when the program exits (via atexit). The .html extension is added automatically if omitted.

from kodiag import trace

@trace("trace_output")
def fetch(user_id):
    ...

@trace("trace_output")
def process(data):
    ...

fetch(42)
process({"a": 1})
# trace_output.html is written on interpreter exit

Every function decorated with the same fileName appends to that file's flow in call order, so you can trace a whole call chain — across multiple functions — into one diagram.

Each recorded call captures:

• function name
• positional args and keyword args
• the return value
• elapsed time (seconds)

Arguments and return values are serialized for the diagram as follows: JSON-safe primitives (str, int, float, bool, None) pass through as-is, tuple/list/dict are serialized recursively, and anything else falls back to repr().

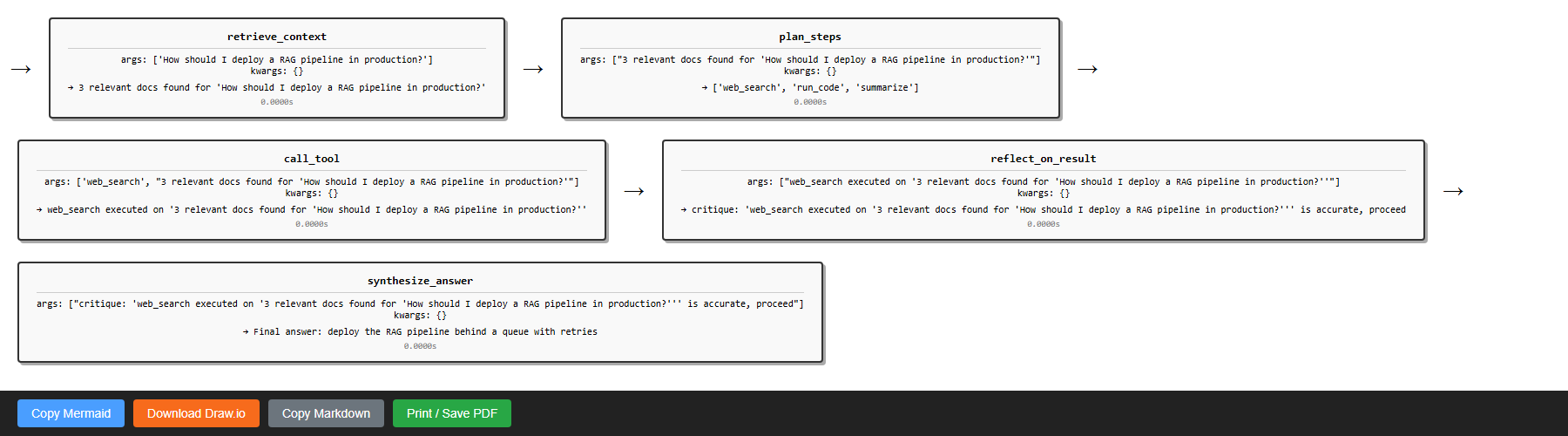

The generated HTML page renders each call as a card connected by arrows in call order, with an export bar at the bottom offering:

• Copy Mermaid — copies a flowchart LR diagram to the clipboard
• Download Draw.io — downloads a .drawio XML file of the flow
• Copy Markdown — copies a Markdown table plus a flow summary
• Print / Save PDF — opens the browser print dialog (the export bar is hidden in print output)
