kolombos 1.5.4

CLI control characters and escape sequences viewer/visualizer

CLI application for visualising usually invisible characters and bytes:

• whitespace characters;
• ASCII control characters;
• ANSI escape sequences;
• UTF-8 encoded characters;
• binary data.

Installation

Via pipx

pipx install kolombos

Without pipx

System-wide install (sudo)

python -m pip install kolombos

User install (no sudo)

python -m pip install --user kolombos
export PATH="${PATH}:${HOME}/.local/bin/"

Usage

Application can be useful for a variety of tasks, e.g. browsing unknown data formats, searching for patterns or debugging combinations of SGR sequences.

USAGE
  kolombos [[--text] | --binary] [<options>] [--demo | <file>]

INPUT
  <file>                  file to read from; if empty or "-", read stdin
                          instead; ignored if --demo is present
  -M, --demo              show output examples and exit; see --legend for the
                          description
OPERATING MODE
  -t, --text              open file in text mode [this is a default]
  -b, --binary            open file in binary mode
  -l, --legend            show annotation symbol list and exit
  -v, --version           show app version and exit
  -h, --help              show this help message and exit

[...]

Text mode and binary mode

kolombos can work in two primary modes: text and binary. The differences between them are line-by-line input reading in text mode vs. fixed size byte chunk reading in binary mode, and extended output in binary mode, which consists of text representation (similar to text mode) and hexademical byte values.

As you can see, some of the settings are shared between both modes, while the others are unique for one or another.

GENERIC OPTIONS
  -f, --buffer <size>     read buffer size, in bytes [default: 4096]
  -L, --max-lines <num>   stop after reading <num> lines [default: no limit]
  -B, --max-bytes <num>   stop after reading <num> bytes [default: no limit]
  -D, --debug             enable debug mode; can be used from 1 to 4 times,
                          each level increases verbosity (-D|DD|DDD|DDDD)
  --color-markers         apply SGR marker format to themselves

TEXT MODE OPTIONS
  -m, --marker <details>  marker details: 0 is none, 1 is brief, 2 is full
                          [default: 0]
  --no-separators         do not print ⢸separators⡇ around escape sequences
  --no-line-numbers       do not print line numbers

BINARY MODE OPTIONS
  -w, --columns <num>     format output as <num>-columns wide table [default: auto]
  -d, --decode            decode valid UTF-8 sequences, print as unicode chars
  --decimal-offsets       output offsets in decimal format [default: hex format]
  --no-offsets            do not print offsets

[...]

Character classes

There are 6 different character classes, and each of those can be displayed normally, highlighted (or focused) or ignored.

output	character class	byte ranges	focus flag	ignore flag	examples
	whitespace	09-0d 20	-s	-S	space, line feed, carriage return
	control char	01-08 0e-1f	-c	-C	null byte, backspace, delete
	printable char	21-7e	-p	-P	ASCII alphanumeric and punctuation characters: A-Z, a-z, 0-9, (), []
	escape sequence	1b[..]	-e	-E	ANSI escape sequences controlling cursor position, color, font styling, and other terminal options
	UTF-8 sequence	various	-u	-U	valid UTF-8 byte sequences that can be decoded into Unicode characters
	binary data	80-ff	-i	-I	standalone non-(7 bit)-ASCII bytes

Examples

Control and whitespace characters

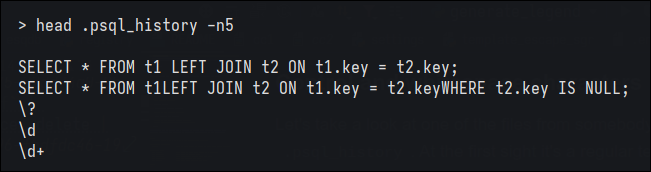

Let's take a look at one of the files from somebody's home directory — .psql_history. At the first sight it's a regular text file:

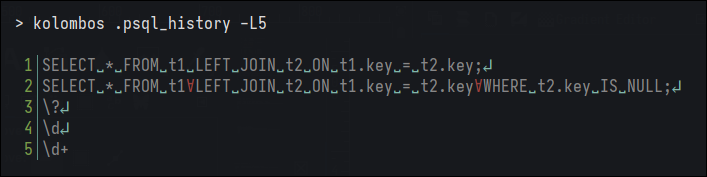

But what if we look a bit more deeper into it?

kolombos shows us hidden until now characters — not only spaces and line breaks, but even more: some control characters, namely 01 START OF HEADING ASCII bytes, which postgresql uses to store multiline queries.

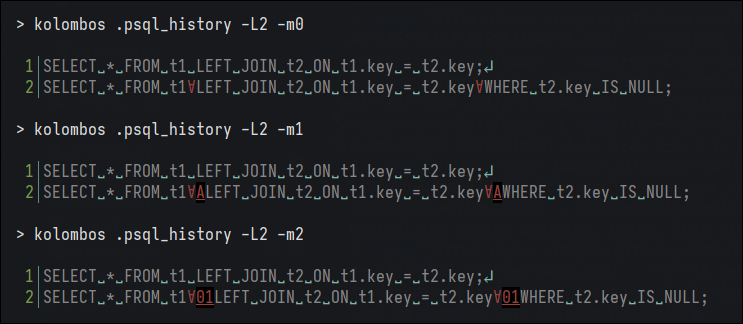

Red symbol is an example of marker — special sigil that indicates invisibile character in the input. Sigils were selected with a focus on dissimilarity and noticeability, which helps to detect them as soon as possible. Control char and escape sequence markers also provide some details about original input byte(s); there are three different levels of these details in text mode.

• Level 0 is no details, just the marker itself.
• Level 1 is medium details (this is a default) — one extra character for control chars and varying amount for escape sequences. For most of the control characters the second char corresponds to their caret notation, e.g. ⱯA should be read as ^A ^[wiki].
• Level 2 is maximuim amount of verbosity. For control chars it's their 2-digit hexademical value. Also note -c option in the last example below — which tells the application to highlight control characters and make them even more noticable.

Some of the control characters has unique sigils — for example, null byte (see Legend).

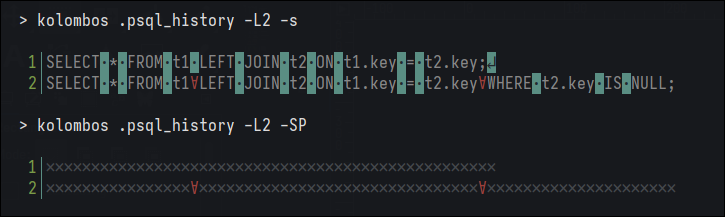

A few more examples of option combinations. First one is --focus-space flag, or -s, which can be useful for a situations where whitespaces are the points of interest, but input is a mess of different character classes.

Second example is a result of running the app with --ignore-space and --ignore-printable options; as you can see, now almost nothing is in the way of observing our precious control characters (if that's what you were after, that is):

ANSI escape sequecnces

Escape sequences and their overlapping combinations were the main reason for me to develop this application. For those who doesn't know much about them here's some comprehensive materials: [one] [two].

kolombos can distiguish a few types of escape sequences, but most interesting and frequent type is SGR sequence, which consists of escape control character 1b, square bracket [, one or more digit params separated by ; and m character (terminator). Let me illustrate.

SGR sequences are used for terminal text coloring and formatting. Consider this command with the following output:

kolombos can show us what exactly is happening out there:

There are 3 different types of markers in the example above:

• ǝ is a sigil for regular SGR sequence (which for example sets the color of the following text to red);
• θ is a reset SGR sequence (ESC[0m) which completely disables all previously set colors and effects;
• Ͻ is CSI sequence (more common sequence class which includes SGRs) — they also begin with ESC[, but have different terminator characters; in general, they control cursor position.
• Other types are listed in Legend section.

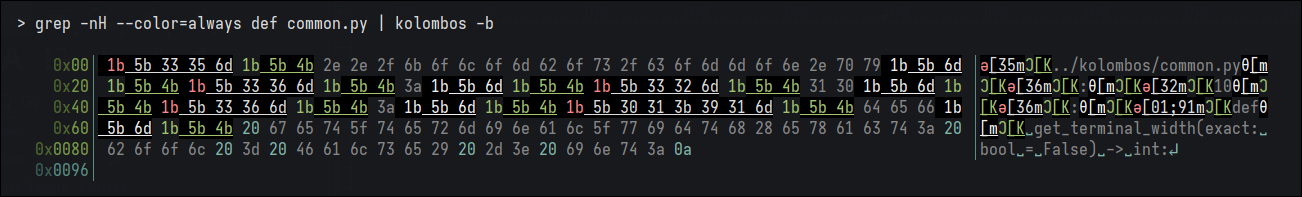

For this example binary more would be more convenient.

As a rule of a thumb, the only underlined bytes in kolombo's output are the bytes that correspond to escape sequences' params, introducers or terminators (but not the 1b|ESC character itself, though).

Now it's clear where and which sequences are located:

• ǝ[35m — SGR that sets text color to magenta;
• Ͻ[K — CSI that erases all characters from cursor to the end of the current line;
• θ[m — SGR that resets, or disables all formatting;
• ǝ[01;91m — SGR that sets text style to bold and text color to bright red, etc.

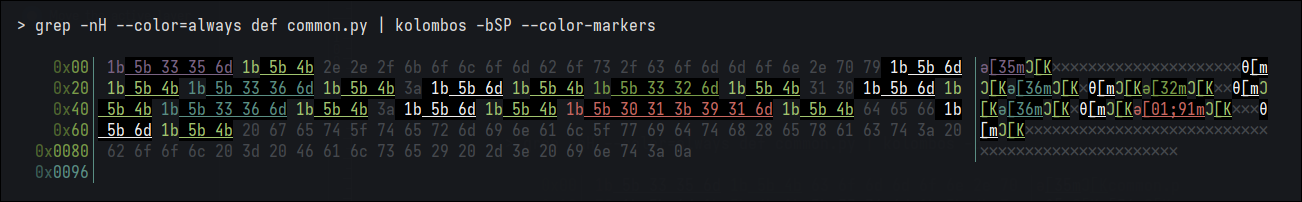

There is an option of highlighting SGR sequences with their own colors: --color-markers, which is disabled by default. In this particular case, even more clear picture can be seen after launching the app with -P option (--ignore-printable):

Also notice that in binary mode each byte of input corresponds strictly to one hex value and one text representation character. That means that option -m is always equal to 2 (maximum verbosity) and cannot be changed.

UTF-8 and binary data

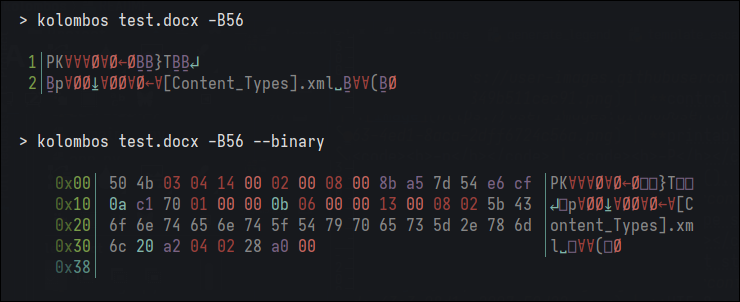

There is no limitation for input bytes range in kolombos text mode — binary data will be displayed with the replacement character -- Ḇ:

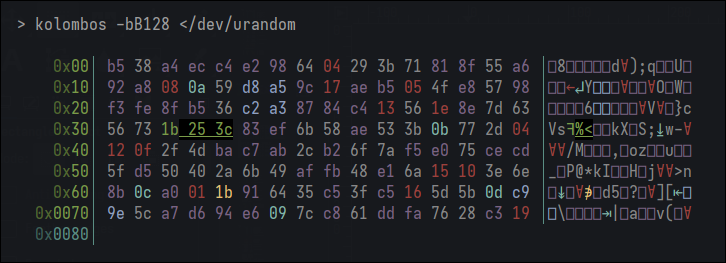

But it's better and faster to work with binary data in binary mode. Valid UTF-8 sequences and escape sequences can be seen even in completely random byte data:

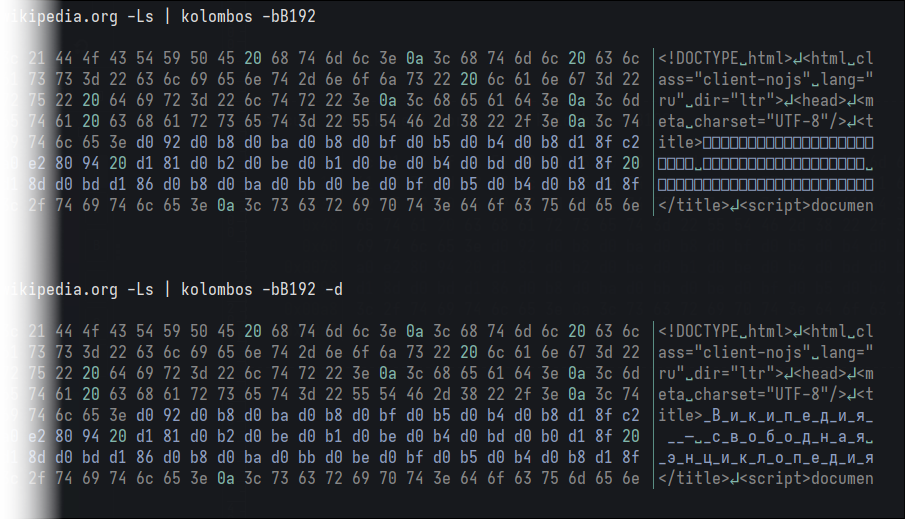

UTF-8 sequences in text mode are automatically decoded and displayed as Unicode characters. In binary mode for faster data processing they are displayed as boxes by default, but still can be decoded with -d|--decode option (note the same requirement as for escape sequence markers — hex value length must always correspond to text representation length):

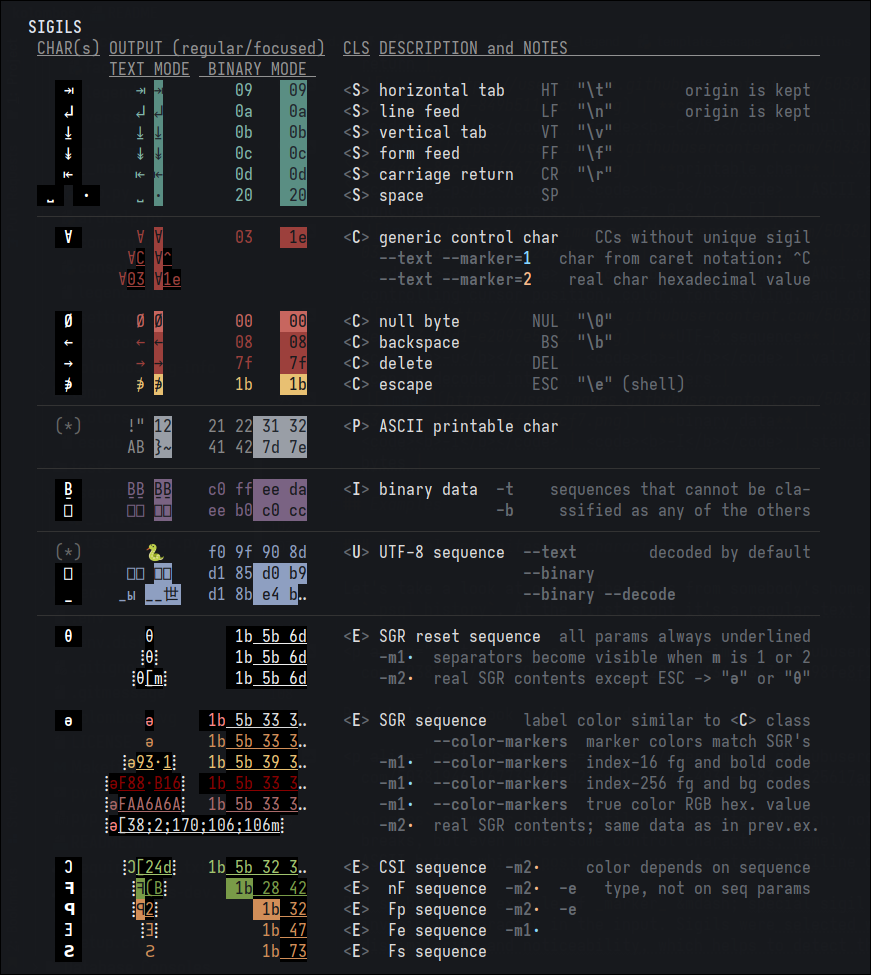

Legend

Even more information can be seen after running kolombos --legend.

Changelog

v1.5.4

• FIX: reverted default column amount in --demo mode

v1.5.3

• FIX: errors while processing SGR with subparams (e.g. 4:3;)

v1.5.2

• UPDATE: icon redraw

v1.5.1

• FIX: packaging assets

v1.5

• NEW: --demo mode

v1.4.1

• Temporarily injected pytermor v2.1

v1.4

• REFACTOR: base colors
• REFACTOR: extended legend
• DOCS: update README and screenshots

v1.3

• Swap -D and -d (debug/decode)
• Make '--marker 0' default (was 1)
• Update legend
• Upgrade pytermor to 2.1

v1.2.1

• Minor update.

v1.2

• Separators additional styling.
• Separators auto-hide from -m0.
• --no-sep[arators] launch option.
• run dev script for quick launch of repo versions.
• Updated output format of SGR color prefixes.
• SGR labels are now getting colored instead of marker details (if -m0 is set).
• Updated legend.

v1.1

• Additional separators around escape seqs (in text mode) for better readability.

v1.0.2

• Added logos.
• Fixed pipy README images.

v1.0.1

• First public version.
