langchain-tool-args-validation-middleware 0.2.0

LangChain agent middleware that validates LLM-generated tool-call arguments against each tool's schema before tool execution / HITL.

langchain-tool-args-validation-middleware

A LangChain agent middleware that validates LLM-generated tool-call arguments against each tool's schema before the tool runs (and before any human-in-the-loop approval step). When arguments are invalid it appends error ToolMessages and re-invokes the model so it can self-correct — all inside the model node, so only the final valid AIMessage ever enters the graph state.

pip install langchain-tool-args-validation-middleware            # Pydantic tools only
pip install "langchain-tool-args-validation-middleware[jsonschema]"  # + MCP / dict-schema tools

Why

LLMs frequently emit malformed tool calls: missing required fields, wrong types, hallucinated empty values, or extra keys. Without validation those reach the tool node and cause runtime errors or silent corruption — and in human-in-the-loop workflows, a human is asked to approve obviously-broken arguments. Catching this at the model boundary lets the agent fix itself in one extra model call instead of a full agent-loop iteration.

It complements, rather than replaces, ToolRetryMiddleware (retries on tool exceptions) and ModelRetryMiddleware (retries on model exceptions): this one retries on schema violations, before execution.

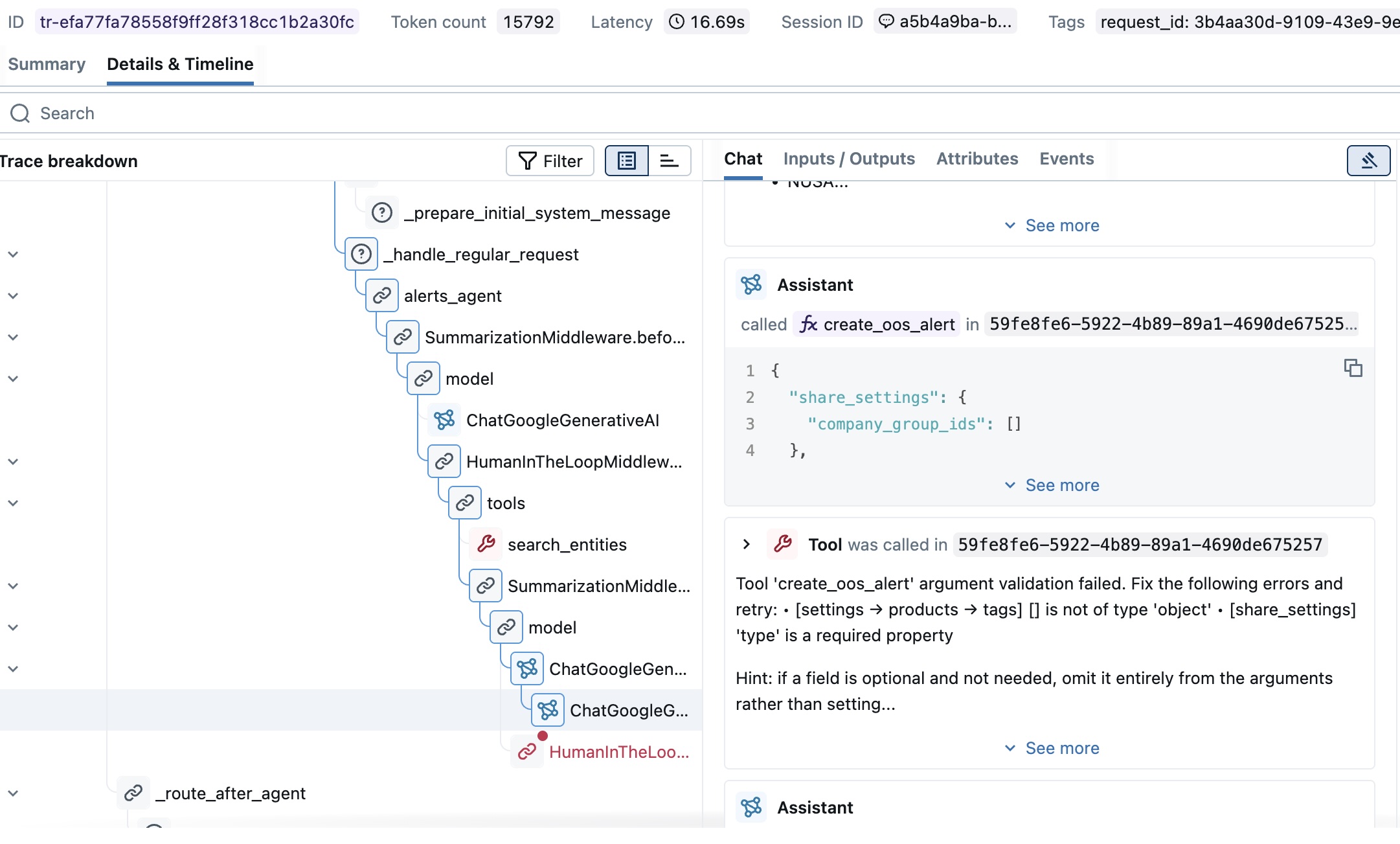

A trace of create_oos_alert: the model emitted arguments that violate the schema, the middleware rejected them with a precise error and a corrective hint, and the model retried — all inside the model node, before the tool ran.

Usage

from langchain.agents import create_agent
from langchain_tool_args_validation_middleware import ToolArgsValidationMiddleware

agent = create_agent(
    model,
    tools=tools,
    middleware=[ToolArgsValidationMiddleware()],  # resolves schemas from the agent's tools
)

Both validation paths are supported automatically:

• Pydantic tools (@tool, or any tool with a BaseModel args_schema) → validated with BaseModel.model_validate.
• MCP / dict-schema tools (args_schema is a raw JSON Schema dict) → validated with jsonschema (soft dependency, Draft7Validator by default).

Unknown tools (no resolvable schema) pass through unvalidated.

Configuration

Parameter	Default	Description
tools	None	Explicit tool list. If omitted, schemas are resolved lazily from request.tools and cached by tool-name set (handles dynamic toolsets).
max_retries	2	Validation-retry cycles per model invocation (up to max_retries + 1 model calls).
strip_empty_values	True	Recursively drop None / {} / [] before validation.
strip_placeholder_strings	False	Also drop placeholder strings like "null". Off by default — see below.
placeholder_strings	conservative set	Set used when string stripping is enabled.
json_schema_validator_class	None	Override the JSON Schema validator class. None → lazy Draft7Validator.
extra_validators	None	Extra (name, args) -> list[str] checks for domain rules.
on_failure	"pass"	After retries are exhausted: "pass" (fail open) or "raise".

Design decisions for the two thorniest cases

Batch (partial) failure

Providers (Anthropic, Gemini, OpenAI) require that every tool_call in an assistant message receive a matching ToolMessage before the next turn. So when a multi-call turn has any invalid call, the middleware emits:

• an error ToolMessage for each invalid call, and
• a "not executed" notice for each valid sibling call (it hasn't run yet — we're still inside the model node — so it can't have a real result), asking the model to re-issue the whole batch with corrected arguments.

The failed AIMessage is placed before these ToolMessages, and failed turns accumulate across retries so the model sees its repeated mistakes.

strip_empty_values and the write-back contract

LLMs (Gemini especially) emit explicit null/{}/[] for optional fields instead of omitting them, causing needless validation failures. When stripping is on, the cleaned arguments replace the originals on the tool call, so what we validate is exactly what executes — no soundness gap between validation and execution.

The trade-off: stripping a value that is meaningfully empty (e.g. tags: [] meaning "clear all tags", or null meaning "explicitly unset") changes behaviour. Container stripping (None/{}/[]) is on by default because it's usually safe. String-placeholder stripping is opt-in only — tokens like "NA" (Namibia's ISO code) are legitimate values and must never be dropped silently. Enable it deliberately with strip_placeholder_strings=True and a set you control.

Fail-open

After max_retries, the default on_failure="pass" returns the last response unchanged — the (still-invalid) args reach the tool node, where normal tool error handling takes over. This makes the middleware best-effort self-correction, not a hard guarantee. Use on_failure="raise" if you'd rather surface a ToolArgsValidationError.

Extra validators

Schema validation catches structural problems (types, required fields, enums). For domain rules — value ranges, allowed IDs, business constraints — pass extra_validators: any number of (tool_name, args) -> list[str] callables that run alongside schema checks and feed the same self-correcting retry loop. They run even on tools with no resolvable schema.

A bundled example flags LangChain internal message IDs (lc_<uuid>) that LLMs sometimes mistake for real data identifiers:

from langchain_tool_args_validation_middleware import detect_langchain_internal_ids

ToolArgsValidationMiddleware(extra_validators=[detect_langchain_internal_ids])

Declarative field rules

For the common case — "the value at this field must satisfy this condition" — FieldRule is a structured builder so you don't hand-roll path walking, list iteration or tool targeting. It captures the three parts of a rule: where (path), what must hold (check), and what to say (error). A FieldRule is an extra_validators callable, so it drops straight into the same list.

from langchain_tool_args_validation_middleware import FieldRule

ToolArgsValidationMiddleware(
    extra_validators=[
        FieldRule(
            path="numbers.*",  # each element of the `numbers` list
            check=lambda v: isinstance(v, int) and 0 < v < 100,
            error=lambda v: f"value {v!r} is out of range (allowed: > 0 and < 100)",
            tools=["my_tool"],  # restrict to this tool; omit for all tools
        ),
    ],
)

If the model emits {"numbers": [50, -1, 100]}, it gets back a precise, per-element error — argument 'numbers[1]': value -1 is out of range — and retries with corrected values.

Path syntax. Dotted keys, with * to fan out over a list's elements or a dict's values:

path	Matches
"numbers"	the numbers value itself (e.g. validate list length)
"numbers.*"	each element of the numbers list
"config.thresholds.*"	each element nested under config.thresholds
"scores.*"	each value of the scores dict

* on a non-iterable matches nothing (type errors are the schema's job).

Parameter	Default	Description
path	—	Dotted path into args; * fans out over list elements / dict values.
check	—	Predicate on each resolved value; return True for valid.
error	—	Message when check fails — a string, or a callable taking the value. Rendered with the tool name and resolved location prepended.
tools	None	Tool names this rule applies to. None = all tools.
when_missing	"skip"	When path resolves to nothing: "skip" (let the schema's required own presence) or "error".

For cross-field or conditional logic (if X then Y), drop down to a plain (name, args) -> list[str] callable — FieldRule deliberately covers only the field-scoped case.

License

MIT
