lastcode-tui 0.1.2

An interactive Terminal User Interface (TUI) for real-time algorithm and data structure visualization

🌌 lastcode

A sleek, terminal-based interactive visualizer for tree, graph, grid, and array algorithms. Built with Python and the Textual framework.

lastcode allows you to trace, step-through, and animate classic coding interview problems directly in your terminal with beautiful ANSI visuals, real-time variable inspection, a code stepper, and step-by-step explanations.

---

✨ Features

• Interactive ASCII Renderers: Visualized trees, grids, and arrays respond dynamically as the algorithm executes.
• Trace-Driven Replay: Leverages Python's execution tracing (sys.settrace) to record and reconstruct step-by-step algorithm states.
• Variable Inspector & Legend Panel: Keeps track of current variables, recursions, pointers, and color-coded state transitions.
• Integrated Code Stepper: Highlights the exact line of Python code running at each step of execution.
• Custom Input Support: Modify tree structures, grid dimensions, and array contents live in the application using standard format notation.
• Hot-Reloading Dev Runner: Active development watcher watches .py and .css files and restarts the TUI instantly on change.

---

🎨 Color Palette & Themes

The visualizer runs a sleek, modern Tokyonight-inspired aesthetic:

• 🌌 Background: #252836 & #1E2230
• ⚡ Accent Blue: #7AA2F7
• 🌿 Success Green: #9ECE6A
• 🔸 Warning/Pointer Yellow: #E0AF68
• 🌹 Critical/Path Red: #F7768E

---

🚀 Installation & Getting Started

Prerequisites

• Python: >=3.11
• Package Manager: brew, pipx, pip, or uv

Option 1: macOS Homebrew (Recommended)

The cleanest way to install on macOS without interacting with system Python environments or virtual environments.

# 1. Tap the repository
brew tap sunil-kumarr/tap

# 2. Install the application cleanly
brew install lastcode-tui

Option 2: via PyPI (pipx or pip)

Because modern operating systems enforce environment protections (PEP 668), installing standalone global terminal applications via standard pip install will often fail. Use pipx to run the tool in an isolated sandbox.

# Recommended for global installation:
pipx install lastcode-tui

# Alternatively, run instantly using uv without permanent installation:
uvx lastcode-tui

Option 3: Local Development (Source Build)

If you are planning to contribute or modify the visualizer core:

1. Clone the repository:

   git clone https://github.com/sunil-kumarr/lastcode.git
   cd lastcode


2. Create and activate a virtual environment:

   python3 -m venv .venv
   source .venv/bin/activate


3. Install the package in editable mode:

   pip install -e .


---

🕹️ Usage

Run the Visualizer

Once installed via any option above, start the interactive engine from anywhere in your terminal:

lastcode

For a local source checkout, you can also run the module directly:

python -m lastcode

Hot-Reloading for Development

If you are modifying code, stylesheets, or adding new problems, run the watcher script inside your source directory. It will instantly reload the application in the terminal when changes are saved:

python dev.py

---

🎮 Keybindings & Controls

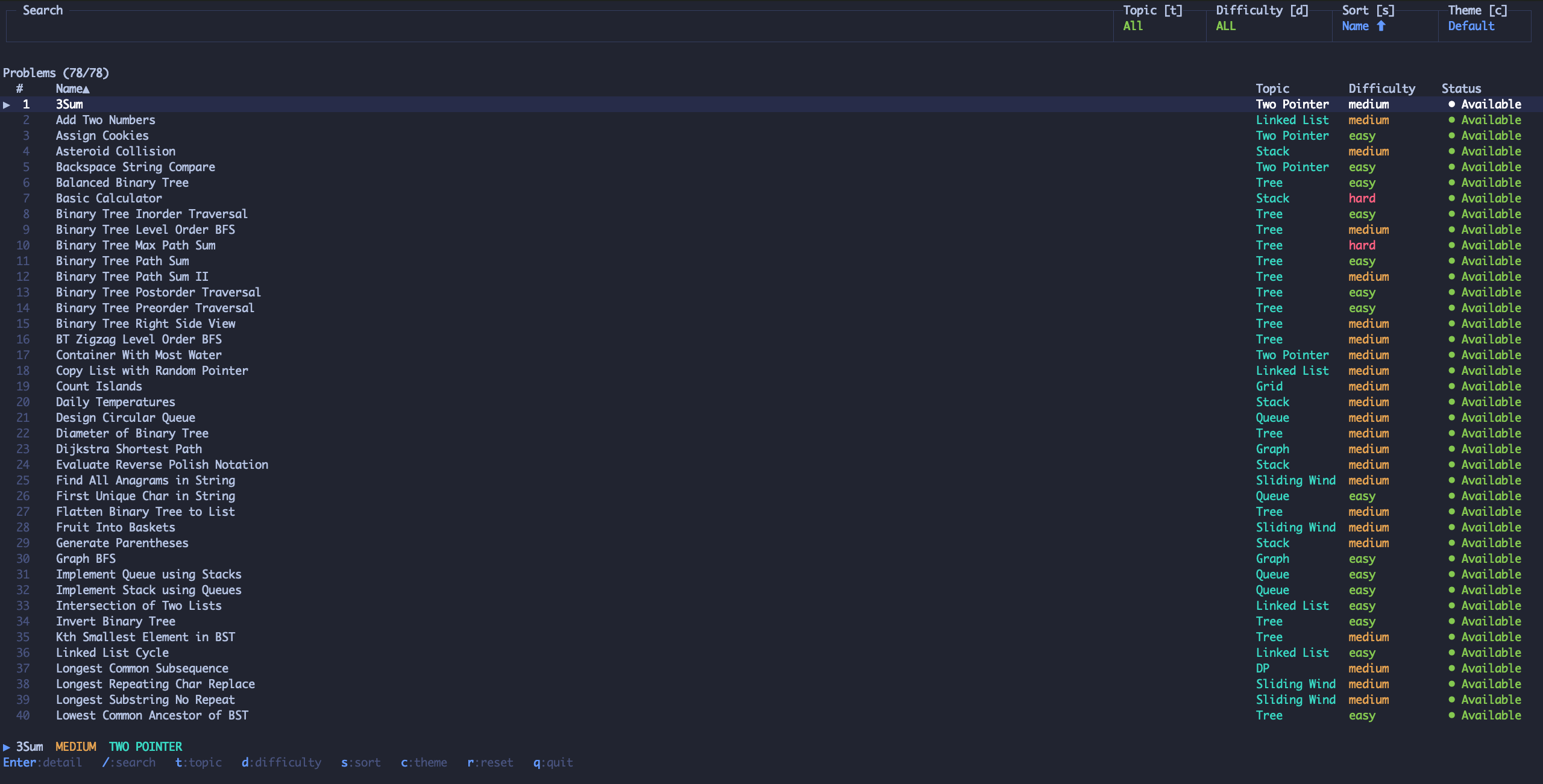

🏠 Home / Menu Screen

Key	Action
↑ / ↓	Navigate the problem list
t	Cycle topic filters (tree, grid, graph, array, string, dp)
d	Cycle difficulty filters (easy, medium, hard)
Enter	Launch the selected visualizer
q	Quit application

🛠️ Visualizer Screen

Key	Action
→ / l	Step Forward to the next execution frame
← / h	Step Backward to the previous execution frame
Space	Play / Pause auto-playback animation
i	Edit Input (Focuses input field to provide custom data structures)
Enter	Submit custom input (Parses, validates, and runs the visualizer on your input)
Escape	Home / Cancel input edit and return to main menu
q	Quit application

---

🎛️ Custom Input Formats

You can press i on any visualization screen to customize the input. Values are parsed securely using Python's ast.literal_eval.

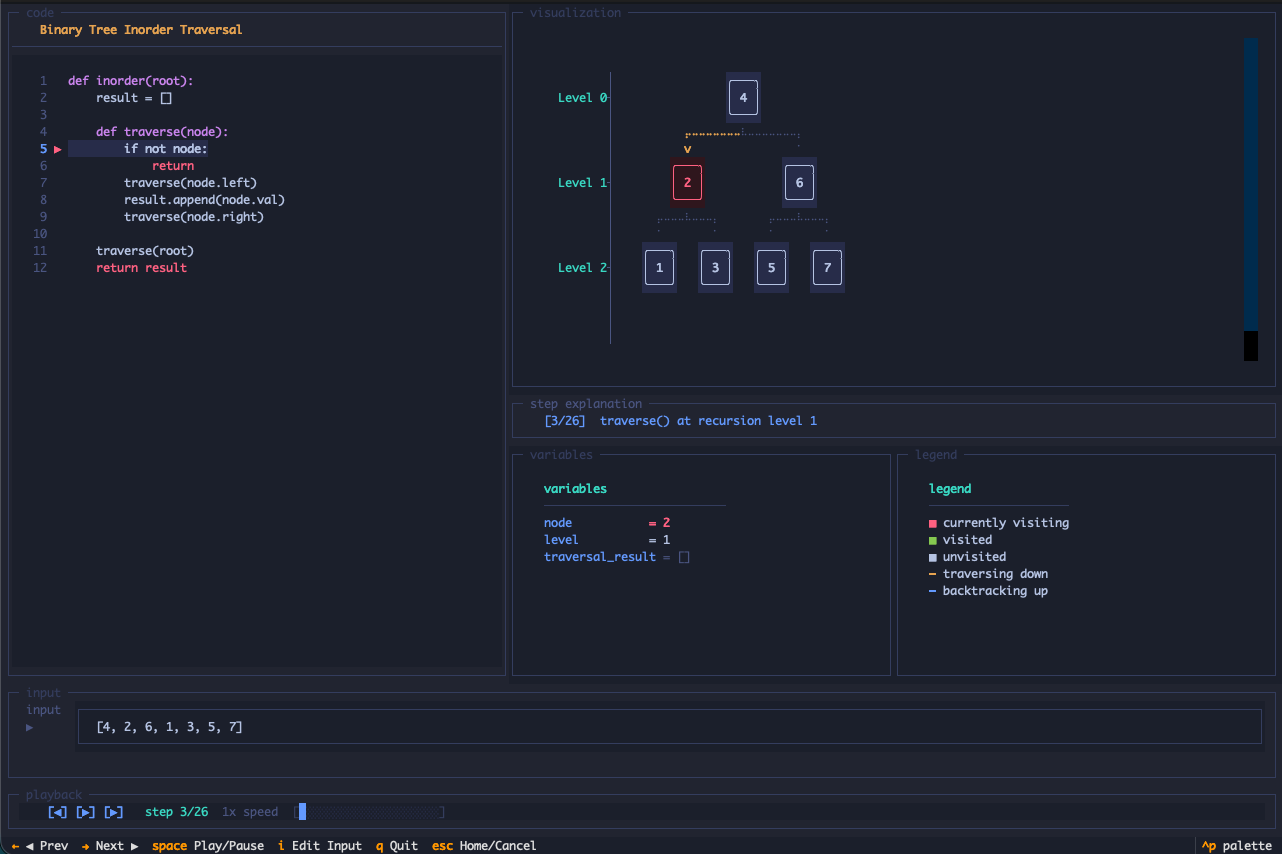

🌳 Binary Trees

Binary trees are represented using level-order lists.

• Simple Binary Tree: [1, 2, 3, None, 4] (representing a tree with root 1, children 2 and 3, and leaf 4 on the right of 2).
• Path-Sum Tree Problems: ([1, 2, 3], 4) (a tuple containing the tree array and target integer).
• Note: Maximum tree size supported is 31 nodes.

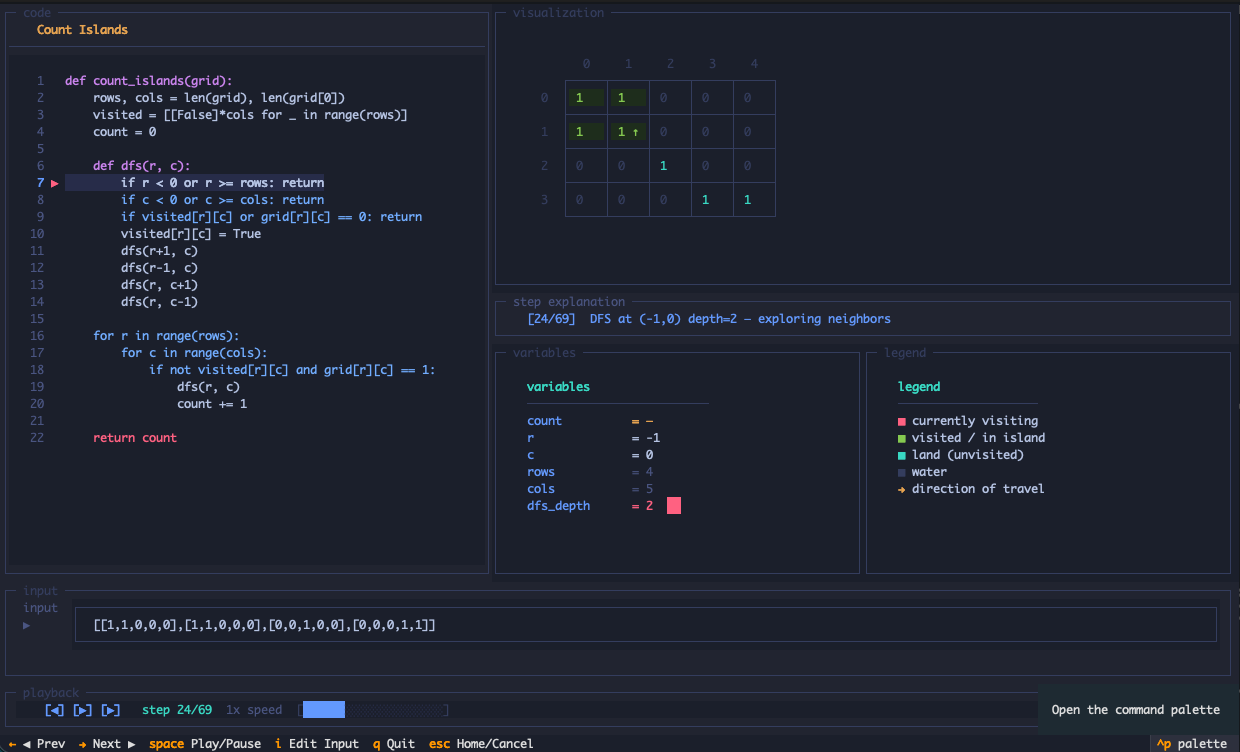

🗺️ Grids (Count Islands)

Grids are parsed as 2D lists of 0s (water) and 1s (land).

• Format: [[1, 1, 0], [0, 1, 0], [1, 0, 1]] (all rows must have equal width).

🔢 Arrays & Strings

• Two Sum: [2, 7, 11, 15], 9 (the array part, followed by a comma and target sum).
• Valid Parentheses: (){}[] (a simple string of bracket characters).

---

📂 Project Structure

lastcode/
├── dev.py                    # Hot-reloading watcher script
├── pyproject.toml            # Project dependencies and script endpoints
├── lastcode/
│   ├── main.py               # Main entrypoint
│   ├── app.py                # Main visualizer screens and layout controllers
│   ├── home.py               # Home screen widgetry and filters
│   ├── recorder.py           # Core logic tracer (tracks call frames and values)
│   ├── theme.py              # Central design-system colors
│   ├── problems/             # Interactive problems repository
│   │   ├── registry.py       # Problem metadata & path registration
│   │   ├── bt_inorder.py     # Binary Tree Inorder Traversal
│   │   ├── count_islands.py  # Count Islands
│   │   └── ... (20+ algorithm modules)
│   ├── renderers/            # UI renderers
│   │   ├── base.py           # Renderer protocol definitions
│   │   ├── tree.py           # Tree structure layout & animation renderer
│   │   ├── grid.py           # 2D Grid DFS/BFS layout renderer
│   │   └── array.py          # 1D Array tracker & stack renderer
│   └── widgets/              # Reusable textual widgets
│       └── ...               # Scrubber bars, Legend keys, variable drawers

---

📝 License

This project is licensed under the MIT License.
