latextable-lite 0.0.4

Create simple Latex tables

latextable-lite

Latextable-lite is a Python package that can create simple Latex tables. It is heavily based on Latextable, but removes latextable's dependency on Texttable.

Features

• Draws a table in a Latex format using tabularx formatting.
• The output is correctly indented for directly copying into Latex.
• Supports multiple header rows and multi-column header rows.

Installation

pip install latextable-lite

Usage

The single function latextable_lite.utils.draw_latex returns a formatted Latex string based on the provided table. Aside from rows, all arguments are optional.

def draw_latex(rows,
            num_headers=1,
            multi_column_size=None,
            caption=None,
            caption_above=False,
            label=None,
            c_line=False):
    """
    :param rows: 2d list containing all entries of the table in row-first format
    :param num_headers: Number of header rows
    :param multi_column_size: List describing how many columns correspond to each entry in the first header row
    :param caption: A string that adds a caption to the Latex formatting
    :param caption_above: Boolean indicating if caption is above the table
    :param label: A string that adds a referencing label to the Latex formatting
    :param c_line: Boolean; if true, cmidrules are drawn for every other row

    :return: The formatted Latex table returned as a single string.
    """

Examples

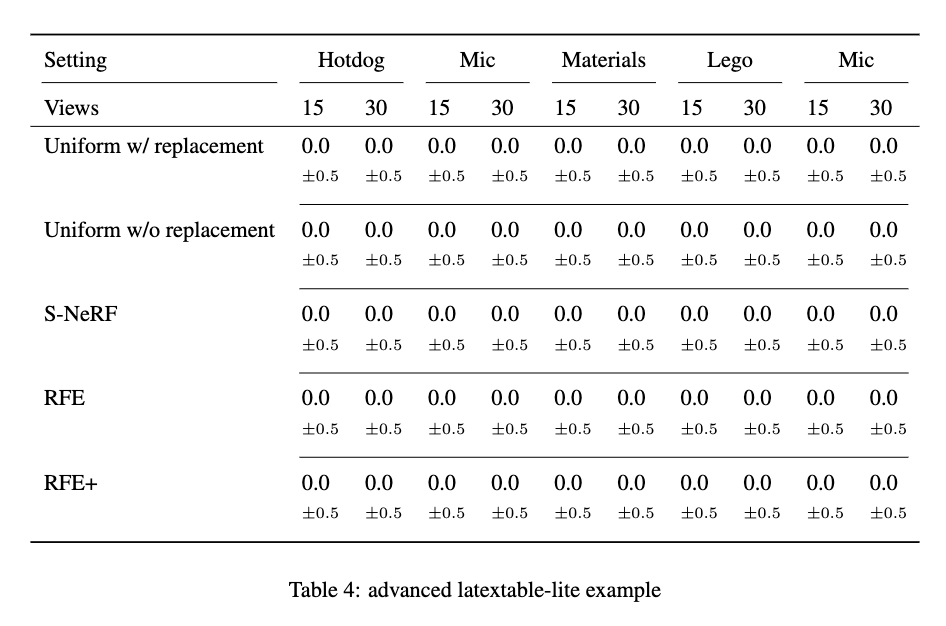

A basic example is given below. For more see the examples directory.

Code:

from latextable_lite import utils

if __name__ == "__main__":
    rows = [["Name", "Age", "Sex", "Nickname", "Occupation", "Marital Status"],
            ["Xavier", "32", "M", "Xav'", "Doctor", "Married"],
            ["Baptiste", "1", "F", "Baby", "Baby", "Single"],
            ["Louise", "28", "M", "Lou/Loue", "Engineer", "Single"]]
    print(utils.draw_latex(rows))

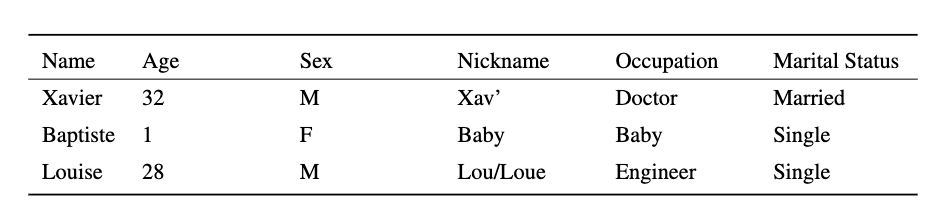

Output:

\begin{table}[ht]
        \centering
        \renewcommand{\arraystretch}{1.5}
        \begin{tabularx}{\textwidth}{lXXXXXX}
                \toprule
                        Name & Age & Sex & Nickname & Occupation & Marital Status\\
                        \hline
                        Xavier & 32 & M & Xav' & Doctor & Married \\
                        Baptiste & 1 & F & Baby & Baby & Single \\
                        Louise & 28 & M & Lou/Loue & Engineer & Single \\
                \bottomrule \\
        \end{tabularx}
\end{table}
