lerobot_env_so101

A standalone SO-101 (SO-ARM101) pick-cube MuJoCo environment, packaged as a lerobot_env_* plugin (auto-detected by lerobot v0.6.0+ via @EnvConfig.register_subclass, see lerobot#3823) and usable standalone as a plain gymnasium environment.

Documentation — getting started, action space, API reference.

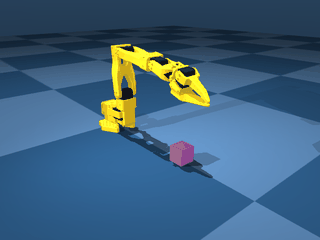

A hand-written controller driving a reach→gripper-close motion — not a successful pick-and-lift. A top-down grasp is not yet reachable with the position-only IK; see Known limitations.

Installation

pip install lerobot-env-so101

Or from a checkout of the parent repo, for development:

pip install -e packages/lerobot_env_so101

Usage

Standalone (plain gymnasium)

Works without lerobot installed — only mujoco, gymnasium, and numpy:

import gymnasium as gym
import numpy as np

import lerobot_env_so101  # registers the env

env = gym.make("lerobot_env_so101/SO101PickCube-v0", render_mode="rgb_array")
obs, info = env.reset(seed=0)
for _ in range(100):
    action = env.action_space.sample() * 0.1  # keep deltas small, see Known limitations
    obs, reward, terminated, truncated, info = env.step(action)
    if terminated or truncated:
        obs, info = env.reset()
env.close()

gym.make kwargs: image_obs (add a pixels.front camera view to the observation), reward_type ("sparse" or "dense"), and random_block_position.

With lerobot (v0.6.0+)

Installing the package is all the wiring you need. lerobot's register_third_party_plugins() discovers any installed lerobot_env_* distribution at startup and imports it, which registers the env config under the type name so101:

pip install lerobot lerobot-env-so101

lerobot-eval --policy.path=<your_policy> --env.type=so101

Config fields (--env.<field> on the CLI) are defined in configuration_so101.py: task (default SO101PickCube-v0), fps (10, matching the env's 0.1 s control step), episode_length (100), image_obs, reward_type, random_block_position.

Driving it from 7-dim teleop tooling

import gymnasium as gym

import lerobot_env_so101
from lerobot_env_so101.wrappers import SevenDofToFourDofAdapter

env = SevenDofToFourDofAdapter(gym.make("lerobot_env_so101/SO101PickCube-v0"))
# env now accepts [dx, dy, dz, drx, dry, drz, grasp]; drx/dry/drz are
# explicitly discarded (documented in the class docstring, not silent).

Action space

The native action space is 4-dim: [dx, dy, dz, grasp].

• dx, dy, dz (bounds [-1, 1]): end-effector position deltas, scaled by action_scale (see Known limitations below).
• grasp (bounds [0, 1]): an absolute gripper target, not a delta — 0 = fully closed, 1 = fully open, written directly to the gripper actuator each step (gripper.normalized_to_ctrl). Since v0.2.0; before that it was a normalized increment added to the current position each step.

SO-101's arm has 5 DOF (6 joints, one of which is the gripper), and the IK controller in this package only solves for end-effector position. A 6-dim Cartesian pose target (position + orientation) is not something this robot/controller pair can track, so orientation deltas are not part of the action space at all — there is no dead dimension to silently ignore. This was verified with sim/check_dead_action_dims.py in the parent repo: all 4 dims move the state (0/4 dead).

Contrast with the upstream gym-hil design this was ported from, which kept the Panda-derived 7-dim [dx,dy,dz,drx,dry,drz,grasp] action space and silently dropped drx,dry,drz inside the IK solver — 3 of 7 dimensions were dead, meaning a policy could learn to depend on inputs that had zero effect on the simulation.

7-dim adapter

Teleop devices and HIL tooling written against the 7-dim Panda convention can still be used via lerobot_env_so101.wrappers.SevenDofToFourDofAdapter, which wraps a native env and accepts 7-dim actions, explicitly discarding drx, dry, drz (see the class docstring — the discard is documented, not silent).

What changed vs. the upstream port

Ported from lohpaul9/gym-hil SO-101 branch (Apache-2.0), submitted upstream as huggingface/gym-hil#36 / #37 and self-closed by the author without review. Authored by Paul Loh (github.com/lohpaul9). See the parent repo's README.md and notes/references.md for the full context on why this became a standalone package instead of an upstream PR.

• Action space narrowed from 7-dim to native 4-dim (see above). The 7→4 adapter (wrappers.py) is new.
• FrankaGymEnv and the RobotGymEnv abstract base were dropped. RobotGymEnv only ever had one concrete subclass (SO101GymEnv), so it added an abstraction layer without abstracting anything; SO101GymEnv now inherits directly from MujocoGymEnv. No Panda/Franka code is present in this package.
• Fixed: dead mocap body. Upstream's SO101GymEnv.reset_robot() wrote mocap_pos/mocap_quat, but apply_action() never read them — the IK controller tracks its target in a plain Python attribute (self._target_ee_pos), not a MuJoCo mocap body. This package removes the mocap writes from reset_robot() and removes the corresponding unused mocap="true" target body from pick_scene.xml.
• Fixed (v0.2.0): gripper is now an absolute, normalized command. The grasp action is a normalized [0, 1] (0=closed, 1=open) absolute target, mapped to the gripper actuator's native radian ctrlrange by gripper.normalized_to_ctrl — see Action space above. Breaking change: before v0.2.0, grasp was a normalized increment added to the current gripper position each step, so grasp=0 meant "no change"; as of v0.2.0 it means "fully closed". This does not by itself make LeRobot policy training pick up the new convention — see Known limitations below.
• Fixed (v0.3.0): arm ctrl now carries IK target joint angles. The arm actuators are declared <position> in the MJCF, so their ctrl is a target angle; upstream wrote a joint-space PD torque (plus gravity compensation) into it, which drove the command far outside each joint's ctrlrange and saturated the actuators into bang-bang tracking. solve_ik (renamed from ik_control) now returns the target joint angles and the environment writes them to ctrl, leaving the proportional position tracking (kp only; damping comes from the passive joint damping) to the <position> actuators. The IK is also solved once per control step rather than once per physics substep, since the target angle is held across the substeps.
• Fixed (v0.4.0): the gripper polarity was inverted. grasp=1 ("open") closed the jaw and grasp=0 ("closed") opened it, because the gripper joint closes at its lower limit and the mapping assumed the opposite. Breaking change: grasp now does what the action space documents, and gripper_pose in the observation is -1 when closed and +1 when open, the reverse of v0.3.0. A policy trained on v0.3.0 or earlier has to be retrained.
• Not fixed, inherited as-is: unverified motor parameters. damping / frictionloss / armature for the STS3215 servos are carried over unchanged from the upstream MJCF, which itself adapted them from the Open Duck Mini project rather than measuring the actual SO-101. See the parent repo's notes/references.md for the cross-check against mujoco_menagerie/robotstudio_so101 (same values, same unverified lineage). System identification is out of scope for this package (see the parent repo's Phase 2 notes).
• Not fixed: the arm settles below its target under gravity. The proportional-only <position> actuators leave a steady-state gap under gravity load (about 17 mm at the end-effector in the home pose). See the parent repo's docs/limitations.md.
• Dropped: teleop/gamepad/keyboard wrappers, PassiveViewerWrapper, GripperPenaltyWrapper, ResetDelayWrapper, EEActionWrapper, InputsControlWrapper, and the wrap_env/make_env factory. These are HIL-teleop infrastructure orthogonal to the environment itself and out of scope for this package; only the base env, the pick-cube task, and the 7→4 action adapter were ported.
• Dropped: joints_properties.xml. Its contents are already inlined into so101_new_calib.xml upstream (see the comment there) and no MJCF file <include>s it separately — it was dead weight in the source repo.
• mujoco>=3.0.0,<4.0.0 (same major-version bump the upstream fork made from vanilla gym-hil's <3.0.0). Verified working against MuJoCo 3.10.0.
• Fixed: sparse-mode success no longer ignores the gripper. Upstream gym-hil (both its Panda environments and the SO-101 port) computes a strict success check and then discards it in sparse mode, replacing it with a lift-only test — so a block knocked upward without ever being grasped terminates the episode as a success. Measured on this environment before the fix: gripper 0.092 m from the block (threshold 0.05 m) with the block lifted 0.20 m still reported success. Sparse mode now also requires the gripper to be near the block.

Known limitations

• Action deltas default to unscaled metres. With the default action_scale=1.0, an action component of magnitude 1.0 is added directly to the end-effector target as 1.0 metres, while the reachable workspace spans at most 0.6 m — over most of the declared [-1, 1] range the action behaves closer to bang-bang than to a proportional delta. This default is inherited from gym-hil, where actions come from human teleoperation and are naturally small. Since v0.1.1, pass action_scale (metres per unit action; position deltas only, grasp is absolute and unaffected) to make the full [-1, 1] range meaningful for an RL policy:

  env = gym.make("lerobot_env_so101/SO101PickCube-v0", action_scale=0.025)
  # or on the lerobot CLI: --env.type=so101 --env.action_scale=0.025


• SO101GymEnv is a base class, not a usable environment. It implements robot control but not step()/reset(); instantiate SO101PickCubeGymEnv (or gym.make("lerobot_env_so101/SO101PickCube-v0")) instead.

• Top-down grasp is not reachable with the default IK. The gripper's fixed jaw (including the wrist_roll_follower mesh in the wrist servo bracket) hits the block's top face before the moving jaw can descend far enough to straddle it. A correct grasp pose — approaching vertically, gripper straddling the block — does exist kinematically, but the default position-only IK tracks a continuous Cartesian path from the HOME pose and converges monotonically onto a different solution branch (approach axis tilted roughly 36° from vertical) instead. top_down_ik=True (set by lerobot_env_so101/SO101PickPlace-v0) adds an approach-axis constraint that reaches the vertical branch; SO101PickCube-v0 does not use it.

• SO101PickPlace-v0 grasps with collision pads the real gripper does not have. MuJoCo collides the jaw meshes as convex hulls, which touch the block at a point or two each and let it pivot out during the lift. jaw_pads=True (set by that environment) enables an invisible box pad on each fingertip, roughly 5 to 7 mm proud of the mesh. Block and goal are sampled from x = 0.15 to 0.30 m; farther out the gripper can no longer be held vertical. See the parent repo's docs/limitations.md.

• LeRobot policy training does not automatically pick up the new grasp convention. LeRobot's policy eval does not read a gym env's action_space bounds; it scales actions using the training dataset's own normalization statistics. Making grasp absolute and [0, 1] (this section, above) is correct for this package as a plain gym/RL environment, but a LeRobot policy will only actually train against this convention if its dataset was collected/labeled that way.

Policies

Scripted reach-and-close and the BC policy

lerobot_env_so101.scripted.scripted_reach_close is a hand-written controller that moves the end effector over the block, descends onto it, and closes the gripper. It is reach-and-close, not a pick: the position-only IK cannot reach a vertical straddling approach (see "Top-down grasp is not reachable with the default IK" above), so the block is never lifted. The end effector settles about 0.027 m above the block's centre, where the fixed jaw contacts its top face.

The controller is a pure function of the flattened 17-dim state observation (agent_pos 14 + environment_state 3), which makes it usable directly as a behaviour-cloning label. sim/ trains a 2×128 MLP on those labels and exports it to ONNX for the browser viewer; lerobot_env_so101.policy holds the observation layout, the model, and the export. The exported graph applies the normalization and output squashing internally, so it maps a raw observation to a ready-to-execute [dx, dy, dz, grasp] action.

Reproduce (needs the train extra: pip install -e "packages/lerobot_env_so101[train]"):

python sim/collect_demos.py --episodes 300 --out sim/data/reach_close_demos.npz
python sim/train_bc.py sim/data/reach_close_demos.npz --out sim/data/bc_reach_close.pt
python sim/export_onnx.py sim/data/bc_reach_close.pt --out web/assets/policies/reach_close.onnx
python sim/eval_reachclose_policy.py web/assets/policies/reach_close.onnx --episodes 100 --update-manifest

Demonstrations are collected DART-style: the stored label is the noise-free scripted action, while the executed action carries Gaussian noise on the position deltas, so the dataset covers the states an imperfect policy visits. The close phase is exempt — it depends on an exactly-zero position delta to trigger the environment's hold-position lock.

Measured success (gripper commanded closed within 0.05 m of the block, 100-step episodes, random_block_position=True, action_scale=0.025):

The BC policy's mean final end-effector-to-block distance is 0.032 m.

Attribution

• SO-101 MJCF/URDF and control code: ported from lohpaul9/gym-hil (Apache-2.0), authored by Paul Loh (github.com/lohpaul9).
• Base gym-hil project structure and license headers: Copyright 2024 The HuggingFace Inc. team (Apache-2.0).
• Asset provenance (CAD source, motor parameters): see lerobot_env_so101/assets/README.md.

Licensed under Apache-2.0 — see LICENSE.

Testing

pip install -e "packages/lerobot_env_so101[test]"
pytest packages/lerobot_env_so101/tests -q
