Linux Hardware Monitor

A comprehensive Python-based system monitoring tool for Linux that provides real-time hardware metrics similar to hwinfo64. Features both text-based and graphical interfaces for monitoring CPU, GPU, memory, disk, and network usage.

Features

Real-time Monitoring

• CPU Information: Model name, core count, frequency, per-core usage, and temperature
• GPU Support: NVIDIA and AMD GPU detection with utilization, memory, temperature, and power draw
• Memory Monitoring: System RAM usage with detailed statistics
• Disk I/O: Real-time disk usage, I/O statistics, and filesystem information
• Network: Upload/download bandwidth, total and per interface (physical interfaces only, so docker/bridge/VPN traffic isn't double counted)
• Historical Data: 2-minute rolling history for all metrics

Display Modes

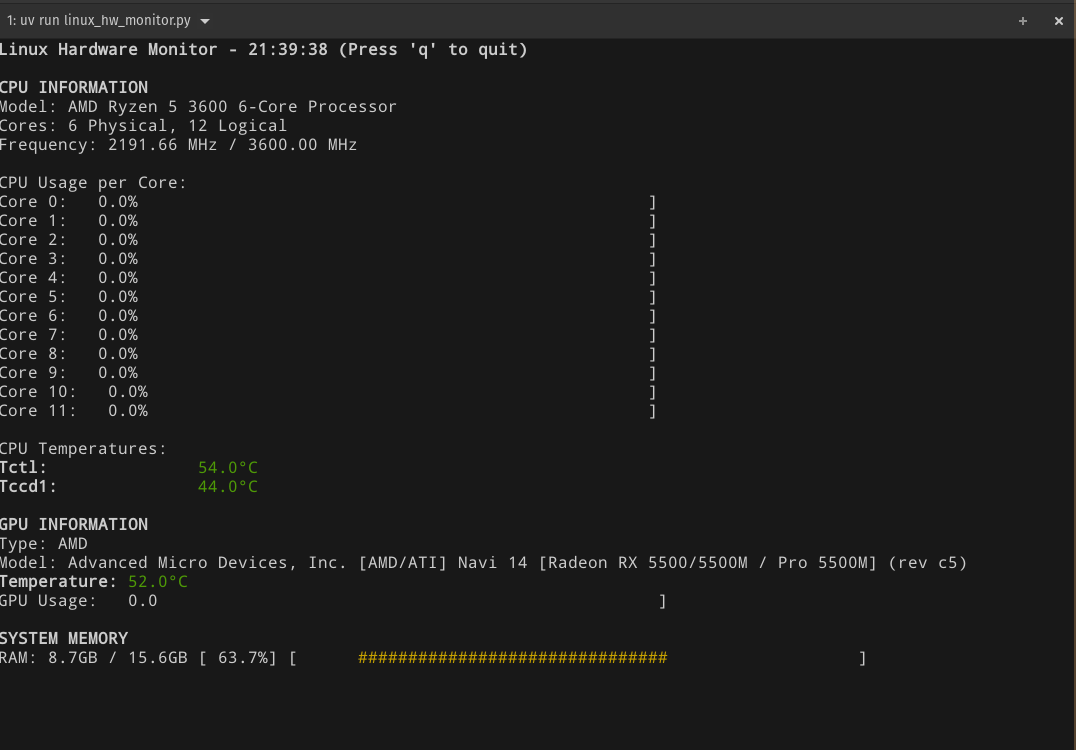

• Standard Mode: Detailed text-based display with color-coded usage bars
• Graph Mode: Real-time line graphs showing metric trends over time
• Neofetch Mode: System information display in neofetch-like format
• CSV Recording: Export metrics to CSV files for analysis

Advanced GPU Detection

• NVIDIA: Full support via nvidia-smi with temperature, utilization, memory, and power
• AMD: Multi-layer detection system:
  • Vendor ID checking via /sys/class/drm/card*/device/vendor
  • lspci fallback detection
  • Reads VRAM usage, temperature, power, fan speed and core clock straight from the amdgpu driver's sysfs files, no extra tools needed
  • ROCm (rocm-smi) as a fallback for VRAM usage
  • Sysfs fallback for basic utilization

Installation

Install from PyPI as a standalone tool:

pipx install linux-hwinfo64     # or: uv tool install linux-hwinfo64
linux-hwinfo64 --graph

Requirements

Core Dependencies

• Python 3.10+ with psutil and distro

GPU Support (Optional)

• NVIDIA GPUs: nvidia-smi command-line tool
• AMD GPUs: Nothing extra with the amdgpu driver. rocm-smi is only used as a fallback for VRAM usage

Usage

Running the Application

From an installed package, use the linux-hwinfo64 command with the same arguments. From a source checkout:

uv run main.py                   # Standard monitoring mode
uv run main.py --graph           # Graph mode with historical data
uv run main.py --neofetch        # Display system info in neofetch-like format
uv run main.py --record          # Record metrics to CSV
uv run main.py --output file.csv # Custom CSV output file

CLI Arguments

• --graph or -g: Run in graph mode with historical charts
• --neofetch or -n: Display system information in neofetch-like format
• --record or -r: Record metrics to CSV file for analysis
• --output or -o: Specify output CSV filename (default: hw_metrics.csv)

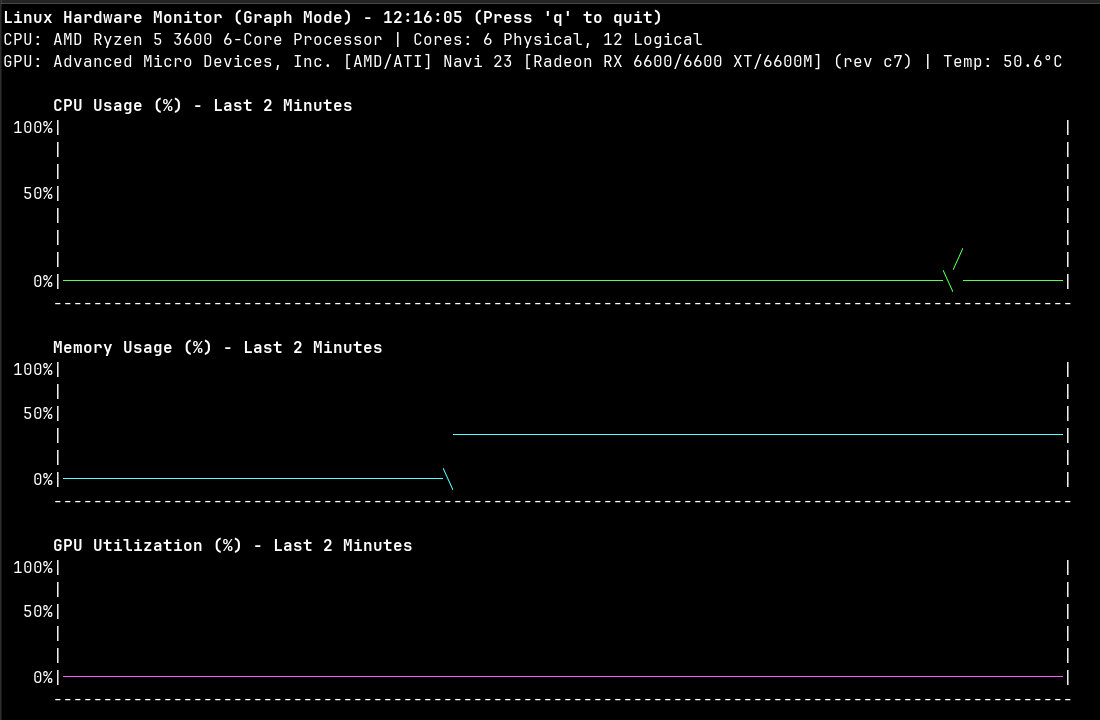

Graph Mode Features

Real-time line graphs showing 2-minute historical data:

• CPU usage trends
• Memory usage patterns
• GPU utilization history (if available)
• GPU memory usage trends (if available)
• Disk usage monitoring
• Network upload and download bandwidth (MB/s, auto-scaled)

Technical Implementation

Architecture

• SystemMonitor Class: Core hardware detection and metrics collection
• Caching System: 60-second GPU detection cache to minimize system calls
• Graceful Degradation: Missing GPU tools don't crash the application
• Multi-source Data: Combines multiple system interfaces for comprehensive metrics

GPU Detection Logic

1. NVIDIA Detection: Uses nvidia-smi for comprehensive metrics
2. AMD Detection: Multi-layered approach:
   • Primary: Vendor ID verification via sysfs
   • Secondary: lspci parsing for device identification
   • Metrics: amdgpu sysfs files (mem_info_vram_*, gpu_busy_percent, the card's hwmon sensors), rocm-smi fallback for VRAM

Performance Features

• Efficient Polling: 1-second refresh rate with minimal system impact
• Terminal Safety: Automatic bounds checking and resize handling
• Memory Efficient: Rolling deque for historical data storage

Development

Code Quality

uv sync                 # Install dependencies, including the dev group (ruff)
uv run ruff check .     # Lint code
uv run ruff format .    # Format code

Releasing

CI (.github/workflows/python-package.yml) lints, smoke-tests and build-checks every push and PR to main. Publishing to PyPI is handled by .github/workflows/python-publish.yml:

1. Bump version in pyproject.toml and merge to main
2. Create a GitHub Release with a tag matching that version (e.g. v0.1.4)
3. The workflow builds the package, verifies it installs, and uploads it to PyPI via Trusted Publishing

Logging

The application logs GPU detection issues and errors to ~/.local/state/linux-hwinfo64/hw_monitor.log (or $XDG_STATE_HOME/linux-hwinfo64/ if set) for debugging. --help shows the exact path.

Compatibility Notes

AMD GPU Support

AMD GPU metrics availability depends on your specific hardware and drivers:

• Temperature: Varies by card model and hwmon support
• Memory Usage: Read from mem_info_vram_used/mem_info_vram_total, falls back to ROCm tools if those aren't available
• Power, Fan, Clock: Read from the card's hwmon sensors, availability varies by card and kernel version
• GPU Utilization: May not be available on older cards/drivers
• Device Detection: Automatically handles multiple GPU cards

System Requirements

• Minimum Terminal: 80x25 for standard mode, 100x35 for graph mode. Standard mode cuts off sections that don't fit and shows how many lines are hidden (around 50 rows shows everything on a 12-thread CPU). Graph mode skips graphs that don't fit, so all of them (including network) need roughly 60-70 rows depending on which GPU metrics are available
• Permissions: Some GPU metrics may require elevated permissions
• Dependencies: Works with standard Linux utilities, enhanced with GPU tools

Links

• ROCm Installation Guide
• NVIDIA Driver Installation
