live_plotter

Plot live data that updates in real time using matplotlib backend

Installing

Install:

pip install live_plotter

Usage

In this library, we have two axes of variation:

• The first axis of variation is using either LivePlotter or LiveImagePlotter. LivePlotter create line plots. LiveImagePlotter creates image plots.

• The second axis of variation is using either LivePlotter or FastLivePlotter. LivePlotter is more flexible and dynamic, but this results in slower updates. FastLivePlotter requires that the user specify the number of plots in the figure from the beginning, but this allows it to update faster by modifying an existing plot rather than creating a new plot from scratch.

Additionally, we have a wrapper SeparateProcessLivePlotter that takes in any of the above plotters and creates a separate process to update the plot. The above plotters run on the same process as the main process, but SeparateProcessLivePlotter is run on another process so there is much less performance overhead on the main process from plotting. Plotting takes time, so running the plotting code in the same process as the main process can significantly slow things down, especially as plots get larger. This must be done on a new process instead of a new thread because the GUI does not work on non-main threads.

Please refer to the associated example code for more details.

Options:

• LivePlotter

• FastLivePlotter

• LiveImagePlotter

• FastLiveImagePlotter

• SeparateProcessLivePlotter

TODO: Compare with https://igitugraz.github.io/live-plotter/liveplotter.html

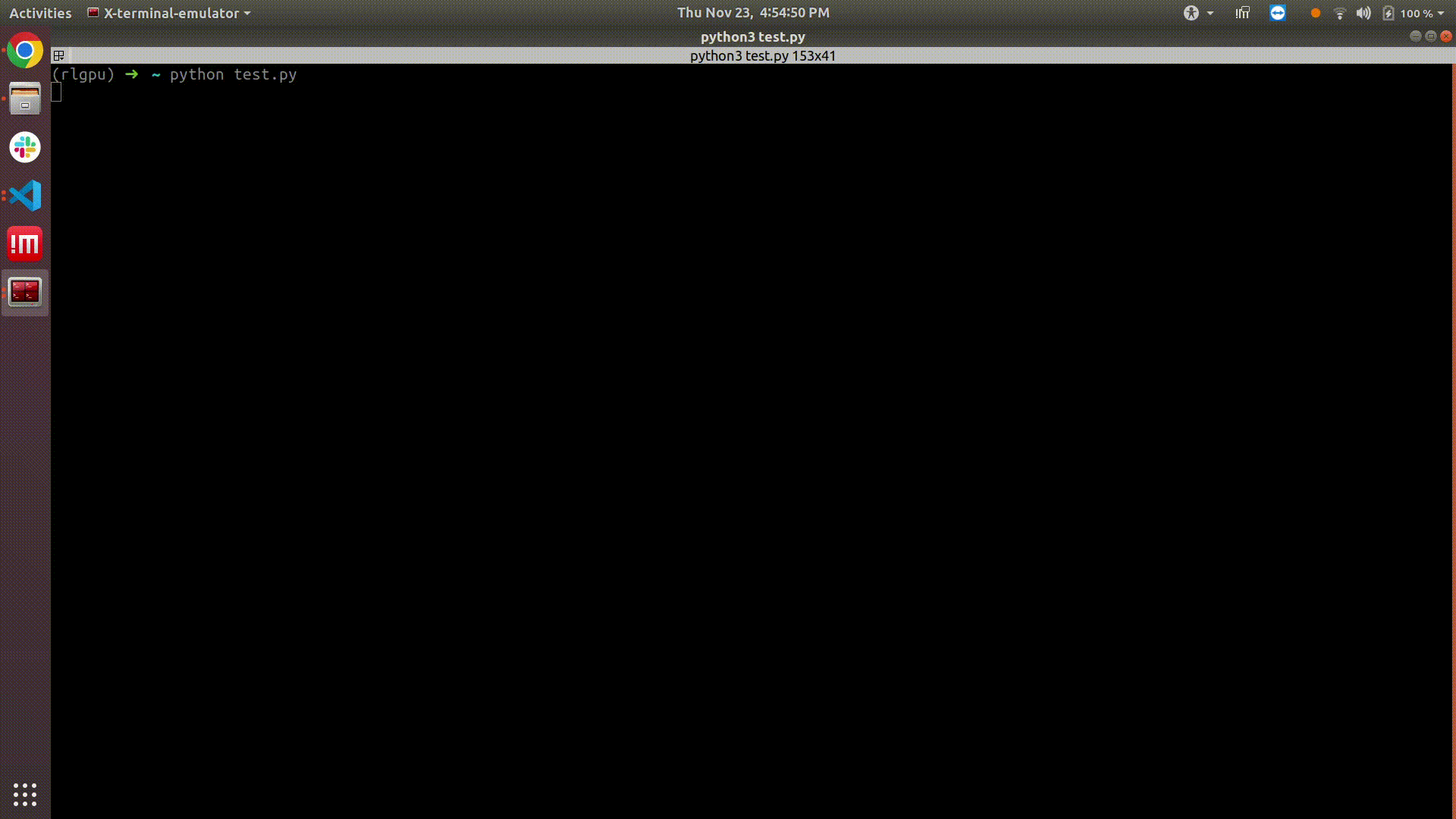

Live Plotter

Fast Live Plotter

Live Image Plotter

Example Usage of LivePlotter

import numpy as np
from live_plotter import LivePlotter

live_plotter = LivePlotter()
x_data = []
for i in range(25):
    x_data.append(i)
    live_plotter.plot(
        y_data_list=[np.sin(x_data), np.cos(x_data)],
        titles=["sin", "cos"],
    )

Example Usage of LivePlotter (mult-line plot)

import numpy as np
from live_plotter import LivePlotter

live_plotter = LivePlotter()

new_x_data = []
for i in range(25):
    new_x_data.append(i)
    y_data = np.stack([np.sin(new_x_data), np.cos(new_x_data)], axis=1)
    live_plotter.plot(
        y_data_list=[y_data],
        titles=["sin and cos"],
        xlabels=["x"],
        ylabels=["y"],
        ylims=[(-2, 2)],
        legends=[["sin", "cos"]],
    )

Example Usage of FastLivePlotter

import numpy as np
from live_plotter import FastLivePlotter

live_plotter = FastLivePlotter(titles=["sin", "cos"], n_plots=2, n_rows=2, n_cols=1)
x_data = []
for i in range(25):
    x_data.append(i)
    live_plotter.plot(
        y_data_list=[np.sin(x_data), np.cos(x_data)],
    )

Example Usage of FastLivePlotter (multi-line plot)

import numpy as np

from live_plotter import FastLivePlotter

new_x_data = []
live_plotter = FastLivePlotter(
    n_plots=1,
    titles=["sin and cos"],
    xlabels=["x"],
    ylabels=["y"],
    ylims=[(-2, 2)],
    legends=[["sin", "cos"]],
)
for i in range(25):
    new_x_data.append(i)
    y_data = np.stack([np.sin(new_x_data), np.cos(new_x_data)], axis=1)
    live_plotter.plot(
        y_data_list=[y_data],
    )

Example Usage of FastLivePlotter (complex example)

import numpy as np

from live_plotter import FastLivePlotter

y_data_dict = {
    "exp(-x/10)": [],
    "ln(x + 1)": [],
    "x^2": [],
    "4x^4": [],
    "ln(2^x)": [],
}
plot_names = list(y_data_dict.keys())
live_plotter = FastLivePlotter(
    titles=plot_names, n_plots=len(plot_names)
)
for i in range(25):
    y_data_dict["exp(-x/10)"].append(np.exp(-i / 10))
    y_data_dict["ln(x + 1)"].append(np.log(i + 1))
    y_data_dict["x^2"].append(np.power(i, 2))
    y_data_dict["4x^4"].append(4 * np.power(i, 4))
    y_data_dict["ln(2^x)"].append(np.log(np.power(2, i)))

    live_plotter.plot(
        y_data_list=[np.array(y_data_dict[plot_name]) for plot_name in plot_names],
    )

Example Usage of SeparateProcessLivePlotter (recommended method to minimize plotting time impacting main code performance)

import numpy as np
import time

from live_plotter import SeparateProcessLivePlotter, FastLivePlotter

N_ITERS = 100
SIMULATED_COMPUTATION_TIME_S = 0.1
OPTIMAL_TIME_S = N_ITERS * SIMULATED_COMPUTATION_TIME_S

# Slower when plotting is on same process
live_plotter = FastLivePlotter(
    n_plots=2, titles=["sin", "cos"]
)
x_data = []
start_time_same_process = time.time()
for i in range(N_ITERS):
    x_data.append(i)
    time.sleep(SIMULATED_COMPUTATION_TIME_S)
    live_plotter.plot(
        y_data_list=[np.sin(x_data), np.cos(x_data)],
    )
time_taken_same_process = time.time() - start_time_same_process

# Faster when plotting is on separate process
live_plotter_separate_process = SeparateProcessLivePlotter(
    live_plotter=live_plotter, plot_names=["sin", "cos"]
)
live_plotter_separate_process.start()
start_time_separate_process = time.time()
for i in range(N_ITERS):
    time.sleep(SIMULATED_COMPUTATION_TIME_S)
    live_plotter_separate_process.data_dict["sin"].append(np.sin(i))
    live_plotter_separate_process.data_dict["cos"].append(np.cos(i))
    live_plotter_separate_process.update()
time_taken_separate_process = time.time() - start_time_separate_process

print(f"Time taken same process: {round(time_taken_same_process, 1)} s")
print(f"Time taken separate process: {round(time_taken_separate_process, 1)} s")
print(f"OPTIMAL_TIME_S: {round(OPTIMAL_TIME_S, 1)} s")

assert time_taken_separate_process < time_taken_same_process

Output:

Time taken same process: 19.0 s
Time taken separate process: 10.4 s
OPTIMAL_TIME_S: 10.0 s

Note how this runs much faster than the same process code

Example Usage of LiveImagePlotter

Note:

• images must be (M, N) or (M, N, 3) or (M, N, 4)

• Typically images must either be floats in [0, 1] or ints in [0, 255]. If not in this range, we will automatically scale it and print a warning. We recommend using the scale_image function as shown below.

import numpy as np
from live_plotter import LiveImagePlotter, scale_image

N = 25
DEFAULT_IMAGE_HEIGHT = 100
DEFAULT_IMAGE_WIDTH = 100

live_plotter = LiveImagePlotter()

x_data = []
for i in range(N):
    x_data.append(0.5 * i)
    image_data = (
        np.sin(x_data)[None, ...]
        .repeat(DEFAULT_IMAGE_HEIGHT, 0)
        .repeat(DEFAULT_IMAGE_WIDTH // N, 1)
    )
    live_plotter.plot(image_data_list=[scale_image(image_data, min_val=-1.0, max_val=1.0)])

Example Usage of FastLiveImagePlotter

import numpy as np
from live_plotter import FastLiveImagePlotter, scale_image

N = 25
DEFAULT_IMAGE_HEIGHT = 100
DEFAULT_IMAGE_WIDTH = 100

live_plotter = FastLiveImagePlotter(
    titles=["sin", "cos"], n_plots=2, n_rows=2, n_cols=1
)
x_data = []
for i in range(N):
    x_data.append(i)
    image_data_1 = (
        np.sin(x_data)[None, ...]
        .repeat(DEFAULT_IMAGE_HEIGHT, 0)
        .repeat(DEFAULT_IMAGE_WIDTH // N, 1)
    )
    image_data_2 = (
        np.cos(x_data)[None, ...]
        .repeat(DEFAULT_IMAGE_HEIGHT, 0)
        .repeat(DEFAULT_IMAGE_WIDTH // N, 1)
    )
    live_plotter.plot(
        image_data_list=[
            scale_image(image_data_1, min_val=-1.0, max_val=1.0),
            scale_image(image_data_2),
        ],
    )
