livekit-wakeword 0.2.0

Wake word detection for voice-enabled applications

livekit-wakeword

An open-source wake word library for creating voice-enabled applications. Based on openWakeWord with streamlined training: generate synthetic data, augment, train, and export from a single YAML config.

Features:

• Conv-Attention classifier: 1D temporal convolutions + multi-head self-attention replace openWakeWord's flat DNN head, preserving temporal structure across the 16-frame embedding window for better accuracy and fewer false positives (see comparison below)
• Backward compatible with openWakeWord models and library
• Multilingual support: over 30 languages via VoxCPM synthetic data generation
• Train anywhere: local machine, cloud, or spawn SkyPilot jobs
• Zero dependency headaches: uv handles everything

Quick Links:

• Why livekit-wakeword
• Using a Pre-trained Model
• Training a Custom Wake Word
• Multilingual Support
• Python API
• Example: Wake Word–Triggered Agent

Why livekit-wakeword

Both livekit-wakeword and openWakeWord share the same audio front-end: mel spectrograms are fed through frozen Google speech embedding and openWakeWord embedding models to produce a (16, 96) feature matrix (16 timesteps × 96-dim embeddings). The difference is the classification head that sits on top.

Architecture

openWakeWord flattens the (16, 96) matrix into a 1536-d vector and feeds it through a small fully-connected DNN:

Flatten(16×96=1536) → Dense → Dense → Sigmoid

While the positional information is technically still present in the flattened vector, the dense layer has no inductive bias for temporal structure and must learn any sequential patterns from scratch.

livekit-wakeword introduces a Conv-Attention (conv_attention) classifier:

Conv1D blocks → MultiheadAttention → Mean pool → Linear(1) → Sigmoid

1. 1D Convolutions (kernel size 3) slide across the 16 timesteps, capturing local temporal patterns (e.g., syllable transitions).
2. Multi-Head Self-Attention models long-range dependencies across the full temporal window, letting the model learn which timestep relationships matter.
3. Mean pooling aggregates attended features into a fixed-size vector for the final sigmoid output.

Results

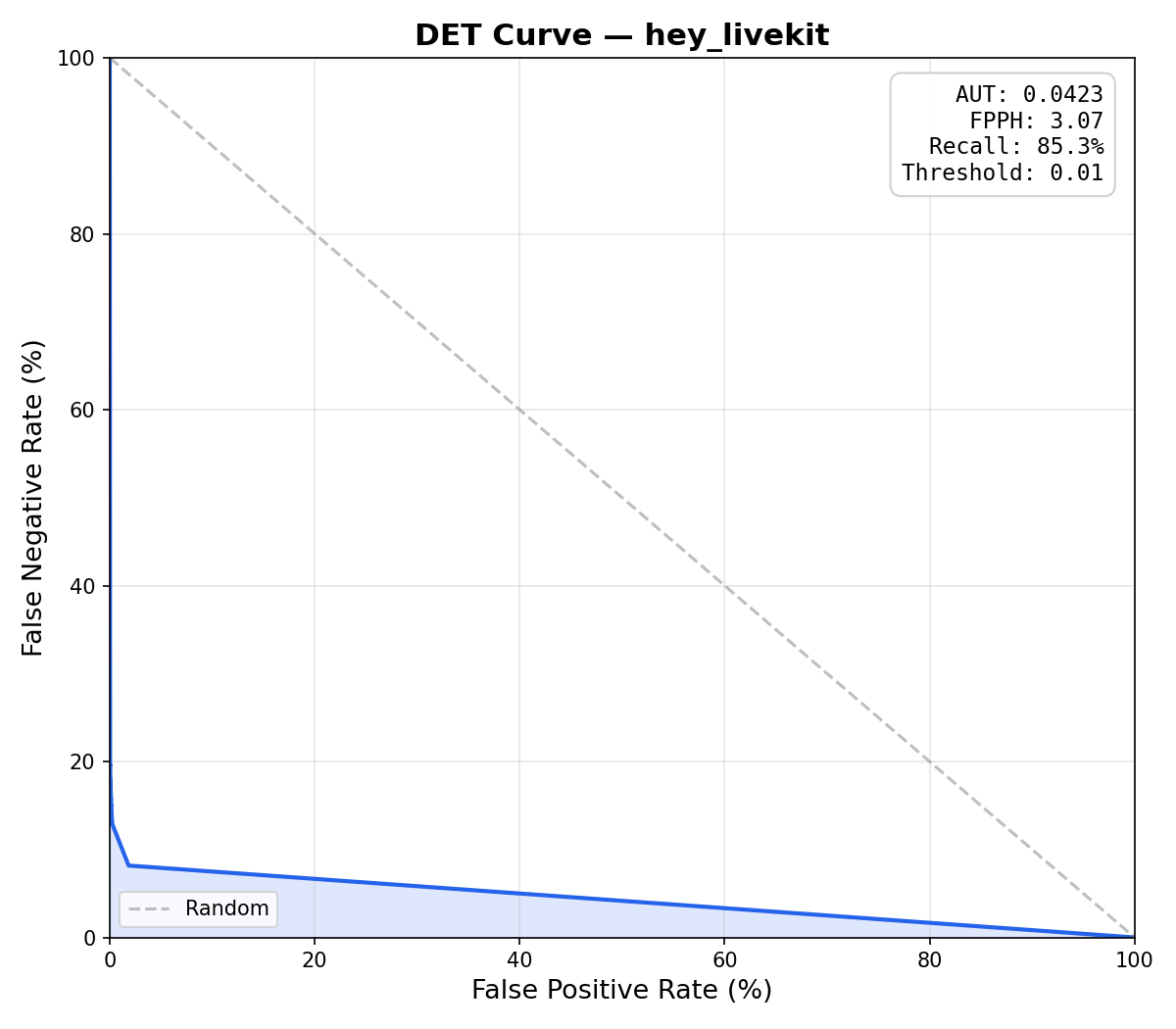

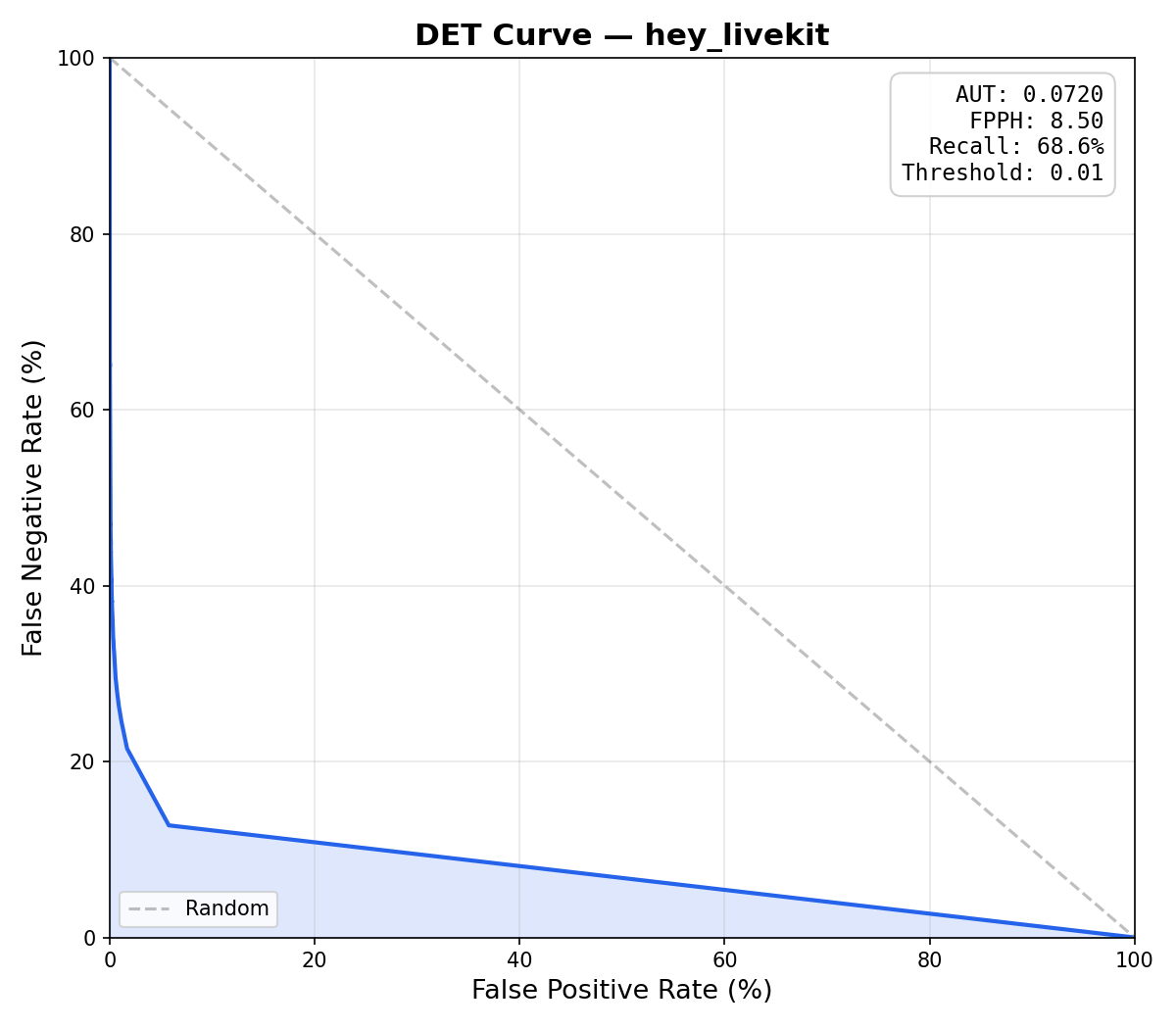

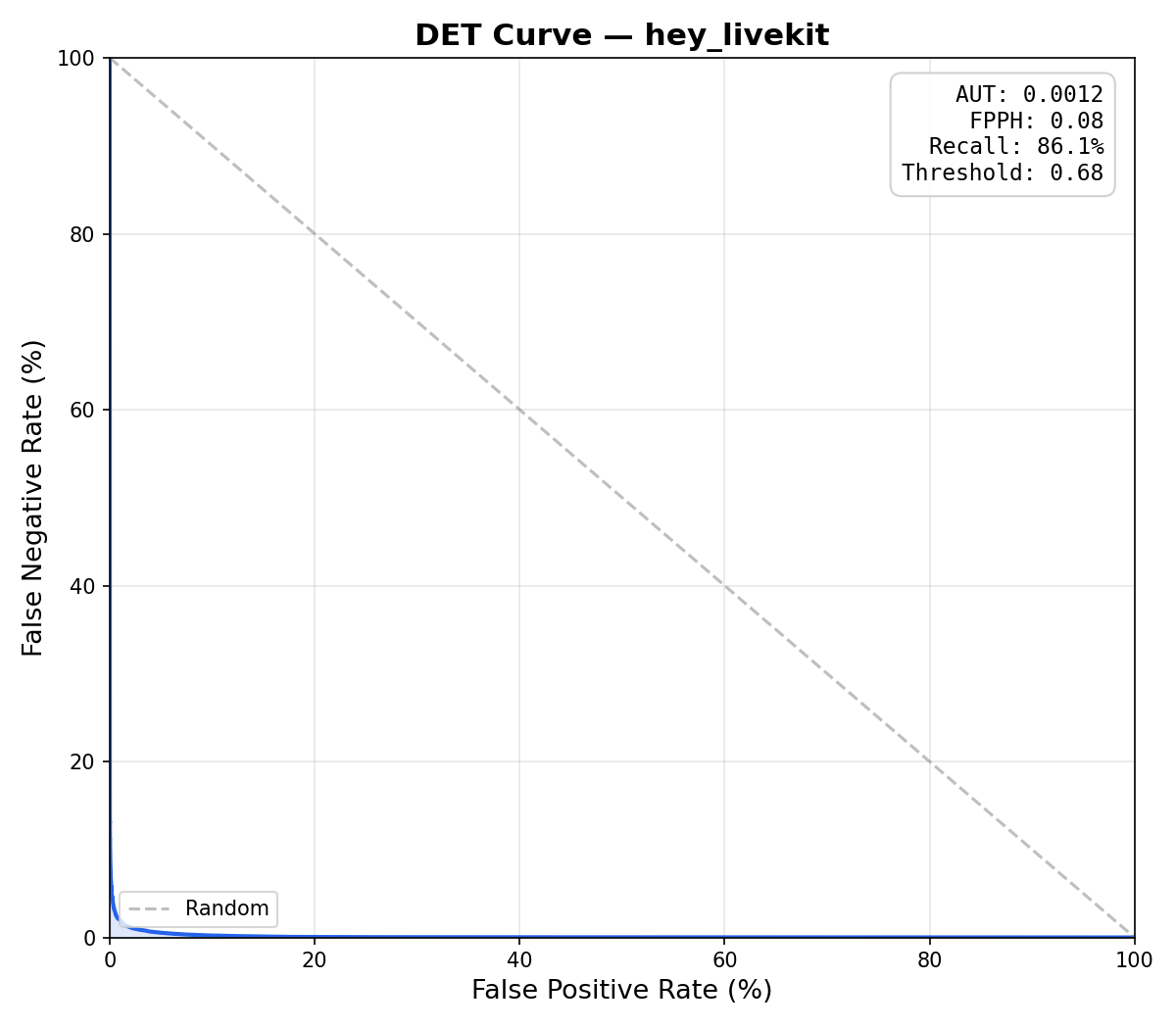

To compare, we evaluated an openWakeWord DNN, a livekit-wakeword DNN (same architecture, better training pipeline), and a livekit-wakeword conv-attention model on the same "hey livekit" validation set (15,000 positive clips, 45,084 negative clips, 25 hours of audio). The livekit-wakeword models were trained with the prod config.

Metric	openWakeWord (DNN)	livekit-wakeword (DNN)	livekit-wakeword (conv-attention)
AUT*	0.0720	0.0423	0.0012
FPPH*	8.50	3.07	0.08
Recall*	68.6%	85.3%	86.1%
Optimal Threshold*	0.01	0.01	0.68

openWakeWord (DNN)	livekit-wakeword (DNN)	livekit-wakeword (conv-attention)

The livekit-wakeword DNN already outperforms openWakeWord's DNN thanks to the improved training pipeline (focal loss, embedding mixup, 3-phase training, checkpoint averaging). However, both DNN models fail to meet the FPPH target: their optimal thresholds fall to 0.01, meaning no operating point can keep false positives low enough.

The conv-attention head is what unlocks the low false positive rate: 60x lower AUT and 100x fewer false positives per hour than openWakeWord, while detecting 17% more wake words.

*AUT (Area Under the DET curve): summarizes the full DET (Detection Error Tradeoff) curve, which plots false positive rate vs false negative rate across all thresholds. Lower is better (0 = perfect). A DET curve that hugs the bottom-left corner indicates strong separation between wake words and non-wake-words.

*FPPH (False Positives Per Hour): how many times the model falsely triggers per hour of non-wake-word audio. Lower is better. For production use, < 0.5 FPPH is typical.

*Recall: the percentage of actual wake words correctly detected. Higher is better.

*Optimal Threshold: the detection threshold that maximizes recall while keeping FPPH at or below the target (configurable, default 0.1). A threshold of 0.01 indicates no threshold could meet the FPPH target; the evaluator fell back to the highest balanced accuracy.

Why conv-attention wins

• Temporal awareness: the conv-attention model sees the order of speech events, not just their presence, reducing false triggers from phonetically similar but differently ordered phrases.
• Better accuracy at the same model size: attention lets a small model selectively focus on discriminative time regions rather than learning dense connections over the full flattened input.
• Lower false-positive rates: temporal structure helps reject partial or reordered matches that a flat DNN would accept.

The conv-attention head is the default. You can switch to the original DNN or an RNN head via model_type in your config:

model:
  model_type: conv_attention # conv_attention (default) | dnn | rnn
  model_size: small # tiny, small, medium, large

Using a Pre-trained Model

Python

System dependencies (for microphone listener):

# macOS
brew install portaudio

# Ubuntu/Debian
sudo apt install portaudio19-dev

Installation:

pip install livekit-wakeword
# or
uv add livekit-wakeword

For microphone listening, install with the listener extra:

pip install livekit-wakeword[listener]

Basic inference:

from livekit.wakeword import WakeWordModel

model = WakeWordModel(models=["hey_livekit.onnx"])

# Feed audio frames (16kHz, int16 or float32)
scores = model.predict(audio_frame)
if scores["hey_livekit"] > 0.5:
    print("Wake word detected!")

Async listener with microphone:

import asyncio
from livekit.wakeword import WakeWordModel, WakeWordListener

model = WakeWordModel(models=["hey_livekit.onnx"])

async def main():
    async with WakeWordListener(model, threshold=0.5, debounce=2.0) as listener:
        while True:
            detection = await listener.wait_for_detection()
            print(f"Detected {detection.name}! ({detection.confidence:.2f})")

asyncio.run(main())

Rust

For Rust applications, use the livekit-wakeword crate:

[dependencies]
livekit-wakeword = "0.1"

use livekit_wakeword::WakeWordModel;

let mut model = WakeWordModel::new(&["hey_livekit.onnx"], 16000)?;

// Feed ~2s PCM audio chunks (i16, at configured sample rate)
let scores = model.predict(&audio_chunk)?;
if scores["hey_livekit"] > 0.5 {
    println!("Wake word detected!");
}

The mel spectrogram and speech embedding models are compiled into the binary; only the wake word classifier ONNX file is loaded at runtime. Audio at supported sample rates (22050–384000 Hz) is automatically resampled to 16 kHz.

Training a Custom Wake Word

CLI quick start

System dependencies:

# macOS
brew install espeak-ng ffmpeg portaudio

# Ubuntu/Debian
sudo apt install espeak-ng libsndfile1 ffmpeg sox portaudio19-dev

Installation (with pip):

pip install livekit-wakeword[train,eval,export]

Installation (with uv):

uv tool install livekit-wakeword[train,eval,export]

Installation (from source):

# Install uv (if you don't have it)
curl -LsSf https://astral.sh/uv/install.sh | sh

# Clone and install
git clone https://github.com/livekit/livekit-wakeword
cd livekit-wakeword
uv sync --all-extras

Download models and data:

livekit-wakeword setup --config configs/prod.yaml

Train a wake word:

livekit-wakeword run configs/prod.yaml

Or run stages individually:

livekit-wakeword generate configs/prod.yaml  # TTS synthesis + adversarial negatives
livekit-wakeword augment configs/prod.yaml   # Augment + extract features
livekit-wakeword train configs/prod.yaml     # 3-phase adaptive training
livekit-wakeword export configs/prod.yaml    # Export to ONNX
livekit-wakeword eval configs/prod.yaml      # Evaluate model (DET curve, AUT, FPPH)

You can also evaluate any compatible ONNX model (e.g., one trained with openWakeWord):

livekit-wakeword eval configs/prod.yaml -m /path/to/other_model.onnx

Eval produces a DET curve plot and metrics JSON in the output directory. See Evaluation for details.

Configuration

The full pipeline runs based on a single YAML configuration file. Example configs:

Config	Wake word	Use
configs/prod.yaml	"hey livekit"	Production-scale for English with Piper TTS backbone
configs/test.yaml	"hey livekit"	Small end-to-end test run with Piper TTS backbone
configs/prod_voxcpm.yaml	"你好 livekit"	Production-scale multilingual with VoxCPM backbone
configs/test_voxcpm.yaml	"你好 livekit"	Small end-to-end test run with VoxCPM backbone

The bare minimum configuration required is as follows:

model_name: hey_livekit
target_phrases:
  - "hey livekit"

n_samples: 10000 # training samples per class
model:
  model_type: conv_attention # conv_attention, dnn, or rnn
  model_size: small # tiny, small, medium, large
steps: 50000
target_fp_per_hour: 0.2

Multilingual

We support training wake words in 30 languages with VoxCPM2 TTS synthetic data generation:

Arabic, Burmese, Chinese, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew, Hindi, Indonesian, Italian, Japanese, Khmer, Korean, Lao, Malay, Norwegian, Polish, Portuguese, Russian, Spanish, Swahili, Swedish, Tagalog, Thai, Turkish, Vietnamese

Chinese Dialect: 四川话, 粤语, 吴语, 东北话, 河南话, 陕西话, 山东话, 天津话, 闽南话

To use this, add tts_backend in your configuration YAML:

tts_backend: voxcpm

And install livekit-wakeword with the voxcpm optional dependency:

pip install livekit-wakeword[train,eval,export,voxcpm]

More detail: docs/data-generation.md (Piper, VoxCPM, setup).

Python API

The full training pipeline is available as a Python API, so you can import and drive it from your own code instead of using the CLI:

from livekit.wakeword import (
    WakeWordConfig,
    load_config,
    run_generate,
    run_augment,
    run_extraction,
    run_train,
    run_export,
    run_eval,
)

# Load from YAML or construct directly
config = load_config("configs/prod.yaml")

# Or build a config programmatically
config = WakeWordConfig(
    model_name="hey_robot",
    target_phrases=["hey robot"],
    n_samples=5000,
    steps=30000,
)

# Run individual stages
run_generate(config)     # TTS synthesis + adversarial negatives
run_augment(config)      # Add noise, reverb, pitch shifts
run_extraction(config)   # Extract mel spectrograms + speech embeddings → .npy
run_train(config)        # 3-phase adaptive training
onnx_path = run_export(config)       # Export to ONNX

# Evaluate the exported model
results = run_eval(config, onnx_path)
print(f"AUT={results['aut']:.4f}  FPPH={results['fpph']:.2f}  Recall={results['recall']:.1%}")

This is useful for integrating wake word training into larger pipelines, automating model iteration, or building custom tooling on top of the data generation and training stages.

Cloud GPUs with SkyPilot

See skypilot/train.yaml for an example training job on Nebius.

sky launch skypilot/train.yaml

Further Reading

• Architecture Overview: system design and data flow
• Data Generation: TTS synthesis and adversarial negatives
• Augmentation: audio transforms and alignment
• Feature Extraction: mel spectrograms and embeddings
• Training: 3-phase training and checkpoint averaging
• Export & Inference: ONNX export and Python API
• Evaluation: DET curves, AUT, and model comparison

License

This project is licensed under the Apache License 2.0. See the LICENSE file for details.
