log-ui

A self-hosted, wandb-style dashboard for experiments logged with trackio. One Python process serves a read-only JSON API over trackio's sqlite store and a prebuilt React app. No Node at runtime, no accounts, no cloud.

Site: https://aadityasalgarkar.github.io/log-ui/ · For LLMs: llms.txt

Install and run

uvx log-ui                          # run it without installing; serves ~/.cache/huggingface/trackio at http://127.0.0.1:8765
uvx log-ui --dir /path/to/store --project my-project --open

uv tool install log-ui              # or install the `log-ui` command (pip install log-ui works too)
uv run --with log-ui log-ui         # or run it from a throwaway environment next to your project

The latest code from main: uvx --from git+https://github.com/AadityaSalgarkar/log-ui log-ui.

No runs of your own yet? Write a synthetic store with a small learning-rate sweep and open it:

git clone https://github.com/AadityaSalgarkar/log-ui && cd log-ui && uv sync
uv run python scripts/demo_store.py /tmp/log-ui-demo
uv run log-ui --dir /tmp/log-ui-demo --project lm-sweep

Docker

A prebuilt image (linux/amd64 and linux/arm64) is published from this repository's CI:

docker run --rm -p 127.0.0.1:8765:8765 ghcr.io/aadityasalgarkar/log-ui      # bundled demo store

docker run --rm -p 127.0.0.1:8765:8765 \
  -v ~/.cache/huggingface/trackio:/data:ro \
  --read-only --tmpfs /tmp --cap-drop ALL --security-opt no-new-privileges \
  ghcr.io/aadityasalgarkar/log-ui                                         # your runs, read-only

Check it was built by this repository's workflow (signed SLSA provenance; an SBOM is attached too), or skip the registry and build it yourself from source:

gh attestation verify oci://ghcr.io/aadityasalgarkar/log-ui:latest --owner AadityaSalgarkar
docker build -t log-ui https://github.com/AadityaSalgarkar/log-ui.git     # then run `log-ui` instead

Or, from a clone, docker compose up (store path via TRACKIO_STORE, port via LOG_UI_PORT). What the container can do, by construction:

• Read your store, never write it. It is mounted :ro. A store on a read-only mount is read through a private snapshot in the container's /tmp, so rows still in trackio's WAL file are included.
• Nothing else on disk. With --read-only (the default in compose.yaml) the root filesystem is immutable; only an in-memory /tmp is writable.
• Minimal surface. Alpine plus a Python virtualenv: no compilers, no Node, no shell tools beyond BusyBox. Always runs as an unprivileged user (uid 10001); --cap-drop ALL (default in compose.yaml) removes every Linux capability.
• Local only. The examples publish the port on 127.0.0.1; log-ui makes no outbound connections.

What you get

• Projects: every trackio project in the store with its run count and last write.

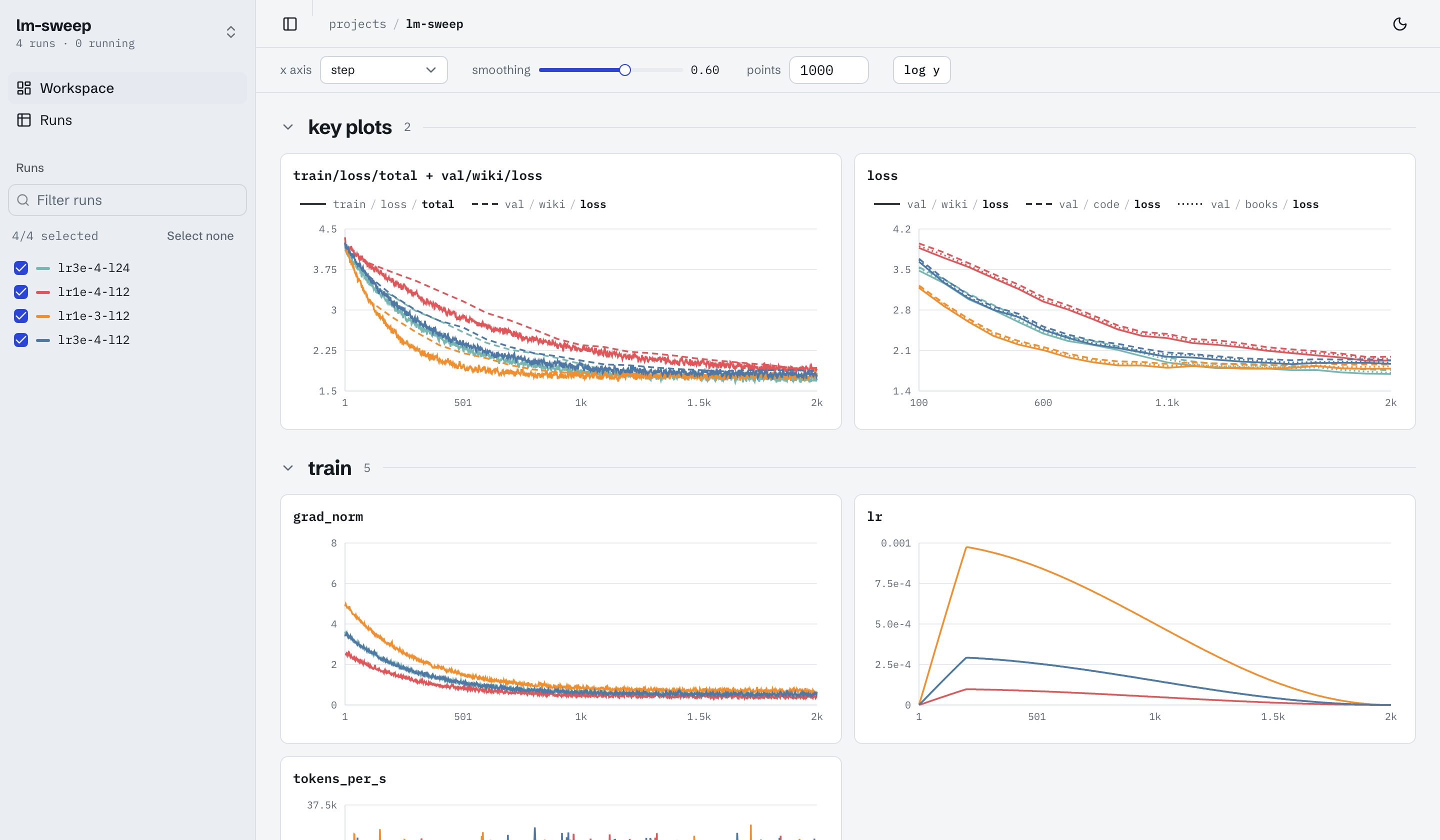

• Workspace: pick runs in the sidebar; every logged key gets a chart, nested by its path in collapsible groups (loss/train/xent sits in a "train" box inside "loss"; open/closed state is remembered). Global smoothing (EMA), step / relative / wall-clock x-axis, log y, and a free-form point budget per series.
• Key plots: charts at the top that overlay several metrics on one y axis, e.g. train/loss with val/loss. Add a metric from any chart's pin menu or a plot's + picker; a metric can be in any number of key plots (A+B, A+C and A+D at once). Colour is the run; each metric gets its own line style (dash, marker, thickness), assigned automatically and changeable from the plot's legend. Shown on the workspace and run pages.
• Per-chart settings: a mean ± std or min–max band over a trailing window of N raw points (never looks ahead), and fixed x/y limits. Settings persist per project in the browser. The window counts logged points, so a metric logged every 100 steps gets a band 100× wider in steps than one logged every step.
• Charts: a synced cursor across charts, a tooltip on the chart under the mouse (every line's nearest logged value, so metrics logged at different steps still show), and a full-screen view with a range brush.
• Runs table: status, steps, duration, the config columns that differ between runs, sorting, filtering and multi-select.
• Run page: charts, flattened config, last value of every key, and system metrics when logged.
• Views: declarative panels (ladder, heatmap, table, line grid, stats) contributed by plugins, for project-specific comparisons.
• Refreshes when a selected run logs new rows; dark and light themes; page state lives in the URL.

The trackio contract

log-ui is read-only and does not import trackio. Its only I/O with trackio is the on-disk sqlite store, and all of that access lives in one module, log_ui/contract.py, which declares:

• the files it reads: <store>/<project>.db for canonical project names ([A-Za-z0-9_-]+), excluding trackio's registry-* databases;
• the tables and columns it reads (configs, metrics, system_metrics) and how their values are encoded;
• the trackio versions it is verified against (TRACKIO_VERSIONS, currently >=0.38,<0.40).

Connections are opened with mode=ro, and each one's schema is checked when it opens. If a store lacks a declared column, log-ui returns an unsupported trackio store error instead of guessing. On a read-only filesystem, where SQLite cannot create the -shm file a WAL database needs, log-ui reads a snapshot of the database and its WAL from the temp directory instead. To delete, rename or move runs, use trackio (trackio.Api().runs(project)); log-ui picks up the change on its next read.

Configuration

Flags override environment variables. The server binds to localhost by default; to reach it on a remote machine, forward the port (ssh -L 8765:localhost:8765 box) rather than binding to 0.0.0.0.

API

All endpoints are read-only, return JSON under /api, and are documented interactively at /docs.

Views (plugins)

A view provider is a function provide(project, runs) -> list[ViewSpec]. Register it under the entry-point group log_ui.views in your package, or pass --views my_module:provide. runs carries each run's flattened config and summary, so a provider can derive categories from the config (datasets, species, seeds) and map them to metric keys with templates like val/{category}/{metric}. Panel types: ladder (one line per run across ordered categories), heatmap (runs × categories), table, lines (small multiples over steps) and stats. See log_ui/views.py for the dataclasses.

Development

uv sync                                  # backend + test deps (tests write real stores with trackio)
uv run pytest
uv run --with ruff ruff check log_ui tests && uv run --with ruff ruff format --check log_ui tests

cd web
npm ci
npm run dev                              # Vite on :5173, proxies /api to http://127.0.0.1:8765
npm run lint && npm run typecheck && npm test
npm run build                            # writes ../log_ui/static (committed, shipped in the wheel)

The built app in log_ui/static is committed so that installing needs no Node; CI checks it matches the sources. The project site lives in docs/ and is published with GitHub Pages.

Versions

Releases follow semantic versioning; see CHANGELOG.md and GitHub Releases. Pin a version with uvx log-ui@0.3.1, uv tool install log-ui==0.3.1 or ghcr.io/aadityasalgarkar/log-ui:0.3.1 (:0.3 follows the latest patch, :latest follows main).

To release: set __version__ in log_ui/__init__.py, move the Unreleased notes in CHANGELOG.md under the new version, commit, then git tag vX.Y.Z && git push origin vX.Y.Z. CI checks the tag matches __version__, creates the GitHub Release with the wheel and sdist, publishes to PyPI (trusted publishing, no stored token) and publishes the image.

Roadmap

Media and table panels, artifacts, traces, alerts, sweep pages, run tags and notes, parameter importance, report authoring.

License

MIT.
