Lythos Pile

Axial capacity, group action and settlement of piles in layered ground, and the length of a rock socket, driven from your browser. A circular or square pile — bored, or driven with a small or a large displacement — alone or in a rectangular group under a cap, is checked by every method an engineer is likely to be asked for, side by side:

1. Shaft friction in clay by the α methods of API RP 2A, Kulhawy & Phoon and Sladen, the β method (Burland) and the λ method (Vijayvergiya & Focht); in sand by K·σ′v·tan δ, with Meyerhof's critical depth; and Meyerhof's SPT rule.
2. Base resistance by Meyerhof, Vesić (rigidity index) and Janbu; 9·cu, Vesić's and Janbu's Nc* in clay; Meyerhof's SPT rule.
3. The pile's weight — buoyant below the water table — taken off the ultimate capacity: Qult,net = Qs + Qb − W, Qall = Qult,net / FS. All stresses are effective.
4. Group action — the efficiency of Converse–Labarre, Los Angeles Group, Seiler–Keeney and Feld, and block failure; the group capacity is the smaller.
5. Required length — the shortest pile that passes both the single-pile and the group check, with the capacity drawn against the length.
6. Settlement — a single pile by Vesić; the group by the equivalent raft at 2/3·L (clays consolidate with Cc, Cr, e0 and OCR, the rest compress elastically), by Vesić's √(Bg/D) rule and by Meyerhof's SPT rule.
7. Rock-socketed piles, on their own — the unit side shear of twelve published correlations (Rosenberg & Journeaux, Horvath & Kenney, Meigh & Wolski, Williams et al., Reynolds & Kaderabek, Gupton & Logan, Rowe & Armitage, Carter & Kulhawy, Toh et al., Zhang & Einstein, O'Neill & Reese / AASHTO, Kulhawy et al.), the base resistance of six more, the socket length each of them needs, a design length from their mean, median, bounds or any one of them, and the elastic settlement of the socket by Randolph & Wroth (with and without the base) and by Vesić.

On top of it, a parametric or reliability study sweeps any input — a range, or a distribution — and reports sensitivities and the probability that the pile, the group or the settlement fails, with a confidence interval and the reliability index β.

The whole program — every label, result text, figure and report — is bilingual in English and Turkish, switchable while it runs.

The interface is a small HTTP server on your own machine, driven from a browser. That keeps the program usable over a remote session or inside a container, where a desktop toolkit would need a display it does not have, and it costs no dependency beyond the standard library.

This is the sibling of LythosFEA, Lythos Bearing, Lythos Settle, Lythos MSEW, Lythos Kinematic, Lythos SPWA and LythosLE, and follows the same architecture, theme and fonts.

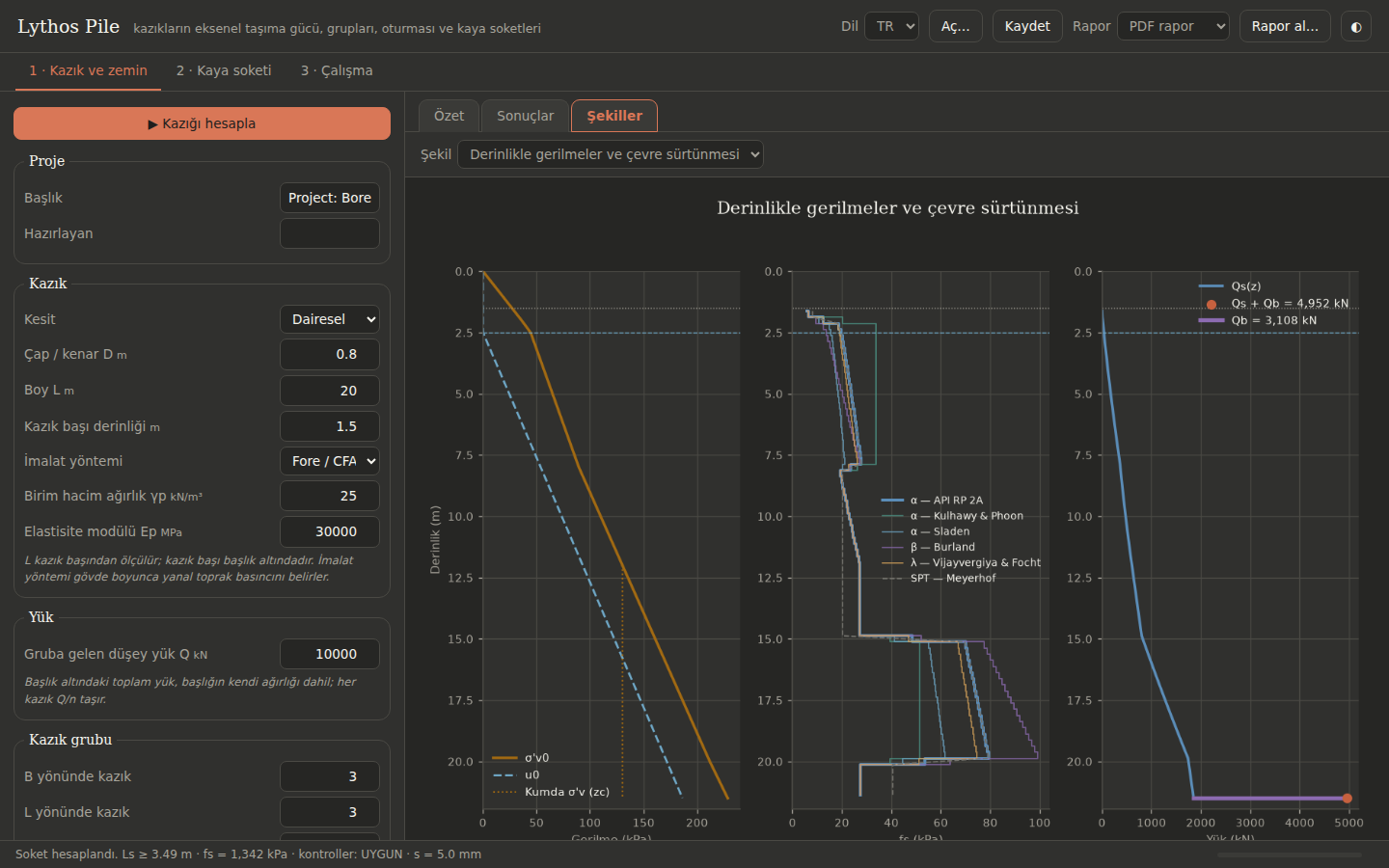

Screenshots

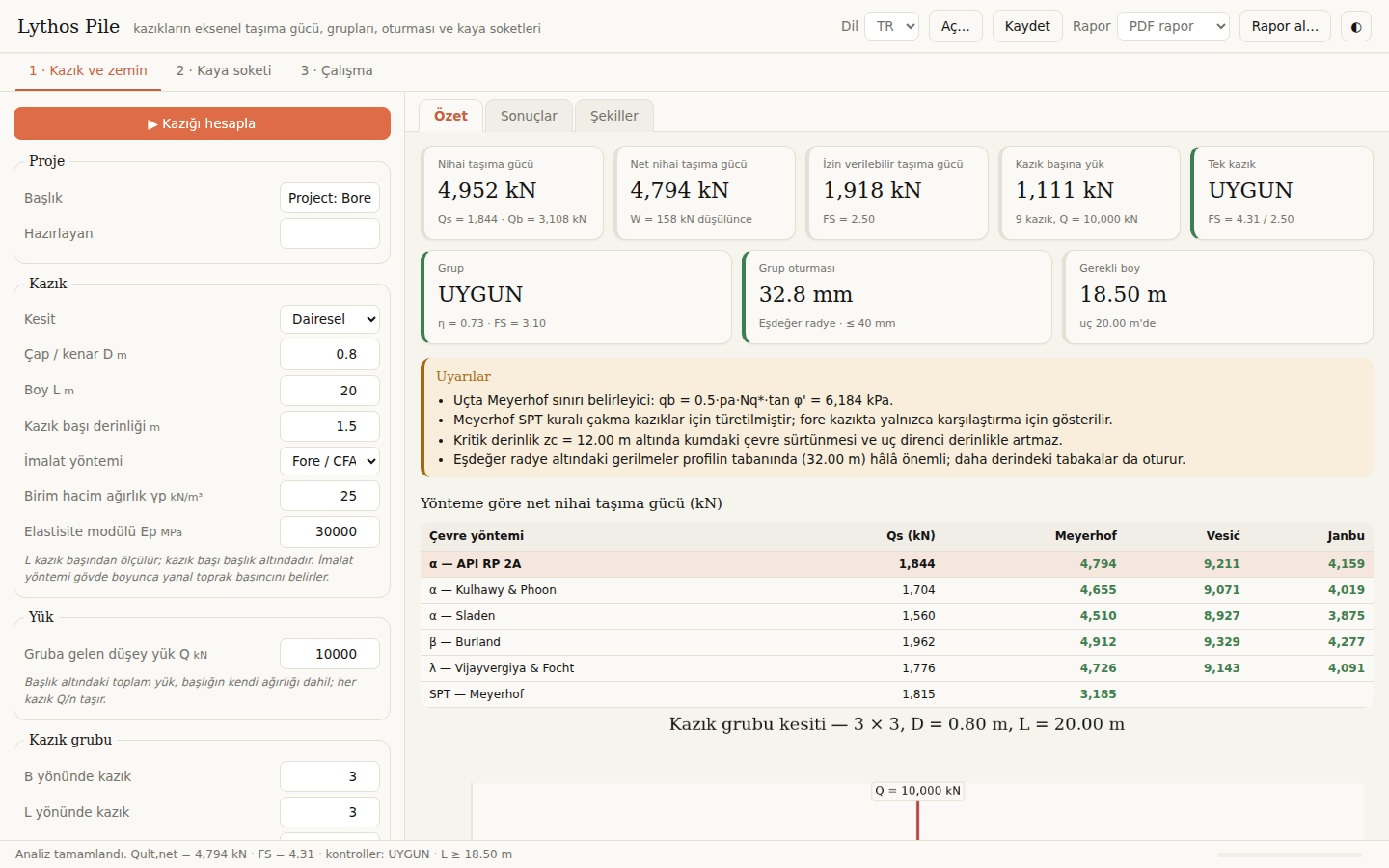

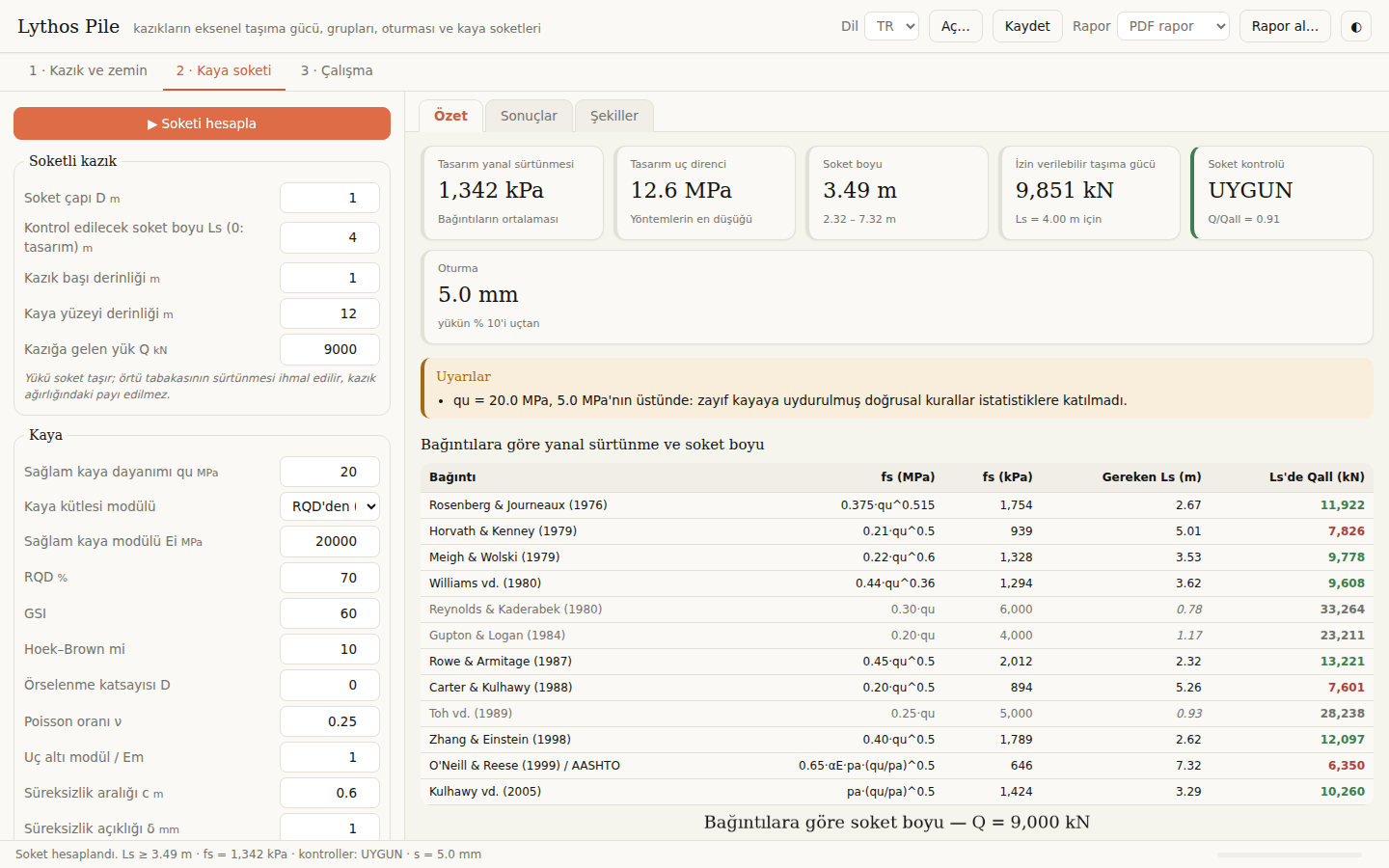

Pile group, summary	Rock socket, summary

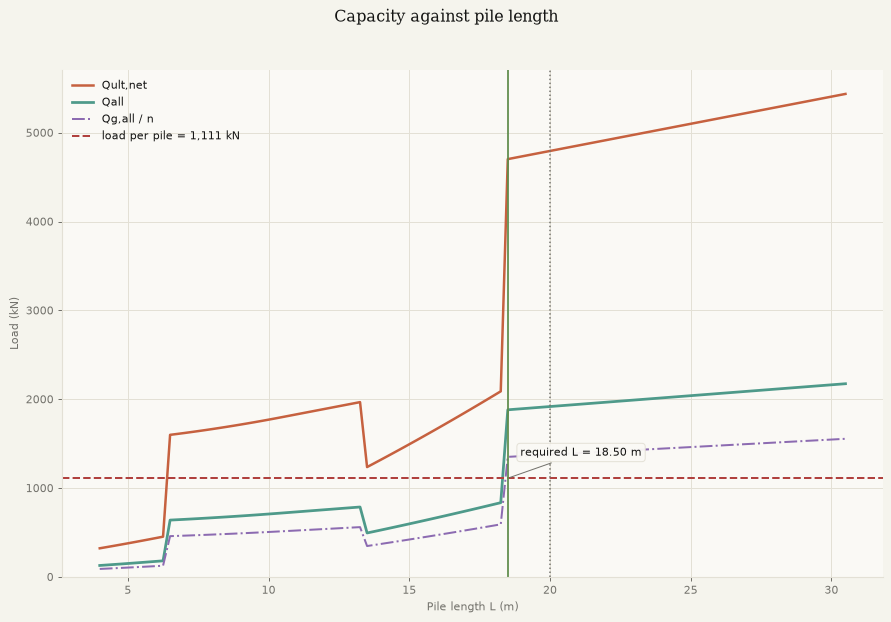

Stresses and shaft friction, dark theme, Turkish	Capacity against length

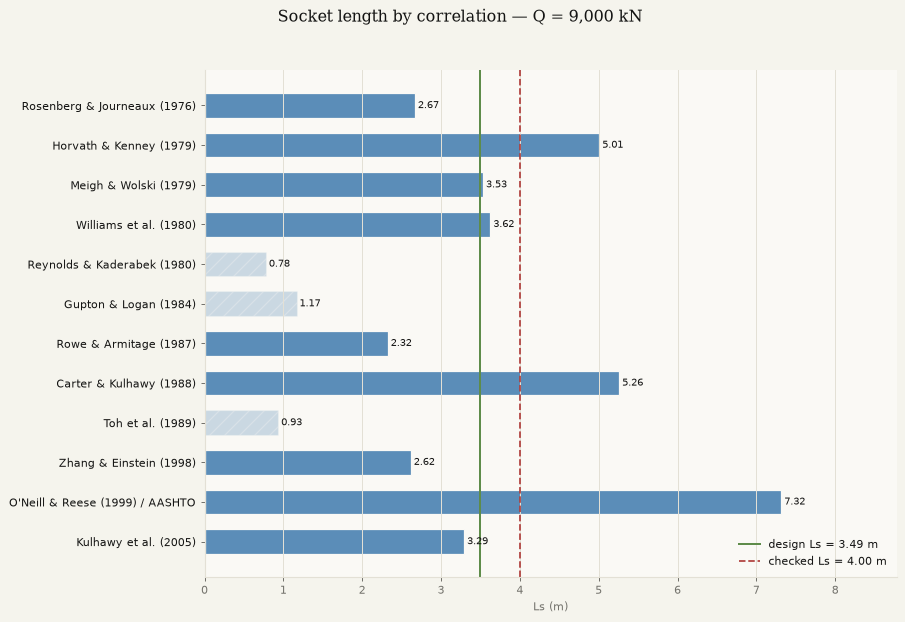

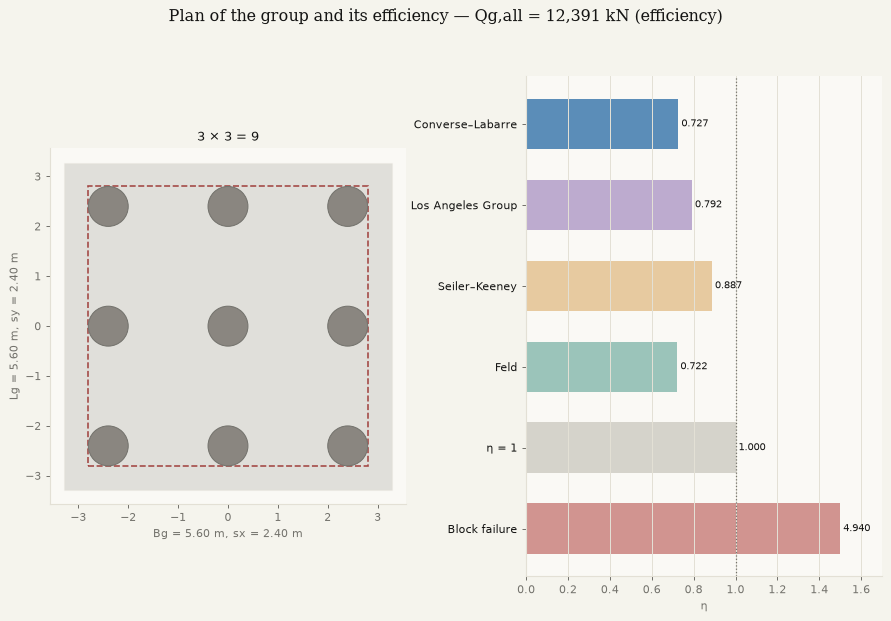

Group plan and efficiency	Socket length by correlation
