magtrack 0.7.7

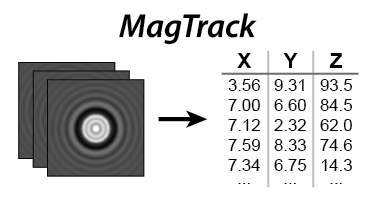

Convert images of beads into XYZ positions

MagTrack is a free open-source Python library for tracking symmetric beads in single-molecule magnetic tweezers experiments.

• Sub-pixel XYZ coordinates
• GPU accelerated (optional, requires a CUDA-capable GPU)
• Python notebook included with examples
• Documented, tested, and benchmarked
• Only depends on NumPy, SciPy, and CuPy
• Runs on Windows, macOS, and Linux
• Easy installation with pip

Try a demo in a Google Colab notebook

⏳ Install

Get started with MagTrack by following the installation instructions.

⚒ Usage

import magtrack

# Run the full default XYZ pipeline
x, y, z, profiles = magtrack.stack_to_xyzp(stack)

# Or make your own pipeline from algorithms you prefer
x, y = magtrack.center_of_mass(stack)
x, y = magtrack.auto_conv_sub_pixel(stack, x, y)
profiles = magtrack.fft_profile(stack)
...

More Examples

You can see more examples of how to use MagTrack in this notebook. Try it out with Google Colab. Or you can download it and run it on your computer with Jupyter Notebook.

📖 Documentation

View the full guide to MagTrack at magtrack.readthedocs.io

🔬 Live Microscope Control and Acquisition

You can use MagTrack for live video processes using our sister project MagScope.

💬 Support

Report issues and make requests on the GitHub issue tracker.

Having trouble? Need help? Have suggestions? Want to contribute?
Email us at [e-mail]
