Materialite (Alpha Release)

Streamlined Microstructure Modeling for Materials Science and Mechanics

Overview

Materialite is a Python package that aims to integrate the fragmented landscape of microstructure modeling tools into a unified framework for materials science and mechanics research.

Purpose

Researchers in computational materials science currently rely on a patchwork of disconnected tools—MATLAB scripts, Fortran codes, C++ solvers, and various Python libraries—that are often not user-friendly and don't communicate well with each other. Entirely written in Python, Materialite provides:

• Unified data structure that works across different modeling approaches
• Streamlined workflows from manufacturing processes to microstructure formation to mechanical properties
• Simplified interfaces for complex operations like tensor math and crystallography
• Data exchange with established tools (e.g. DREAM.3D, EVP-FFT)

Current Models

• Process Models: Grain coarsening, laser heating temperature fields, microstructure evolution from laser melting
• Mechanical Solvers: Taylor model and small-strain FFT (Fast Fourier Transform) solver for crystal elasticity and plasticity
• Constitutive Models: Elasticity, rate-independent plasticity, elasto-viscoplasticity with multiple hardening laws

Documentation

Documentation, demos, and examples are available at https://nasa.github.io/materialite.

Installation

⚠️ ALPHA RELEASE: This package is under active development. APIs and interfaces are subject to breaking changes without notice. Not recommended for production use.

Clone and cd into the repository

git clone https://github.com/nasa/materialite.git

cd materialite

Create and activate conda environment

conda env create -f environment.yml

conda activate materialite

Future releases will be available on conda-forge and PyPI.

Simple Example

Run a basic process-structure-property simulation using Materialite.

Import the core Material object, some models, and other required objects for model inputs.

from materialite import Material, Order4SymmetricTensor
from materialite.models import GrainCoarseningModel
from materialite.models.small_strain_fft import SmallStrainFFT, Elastic, LoadSchedule

Create a default material (generates a 16 x 16 x 16 point grid).

material = Material()

Create a model for grain coarsening (GrainCoarseningModel is a Potts Monte Carlo-based model).

grain_coarsening_model = GrainCoarseningModel(num_flip_attempts=10**5)

Run the grain coarsening model, and assign random orientations to the grains in the Material that is returned by the model.

material = grain_coarsening_model(material)
material = material.assign_random_orientations(region_label="grain")

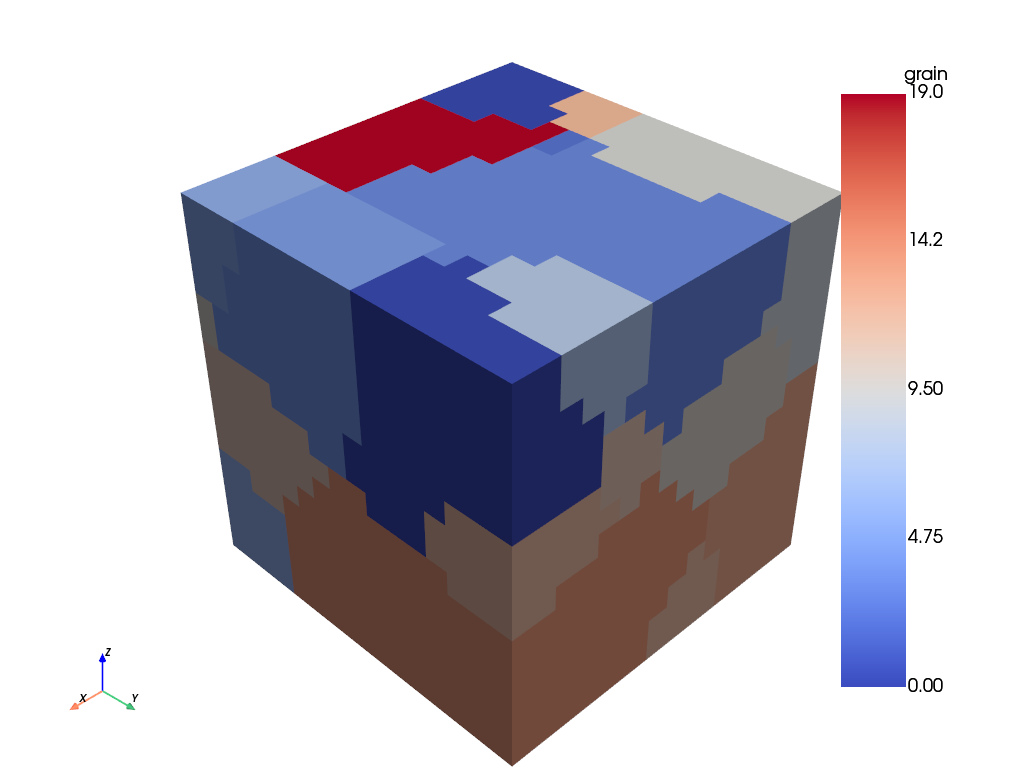

Plot the grain ID values.

material.plot("grain")

Create a model that will simulate uniaxial tension (SmallStrainFFT is an FFT-based full-field mechanical simulation).

stiffness = Order4SymmetricTensor.from_cubic_constants(C11=250, C12=150, C44=120)
constant_strain_rate = LoadSchedule.from_constant_uniaxial_strain_rate(
    magnitude=0.001, direction="x"
)
mechanical_model = SmallStrainFFT(
    load_schedule=constant_strain_rate, constitutive_model=Elastic(stiffness=stiffness)
)

Run the model.

material = mechanical_model(material)

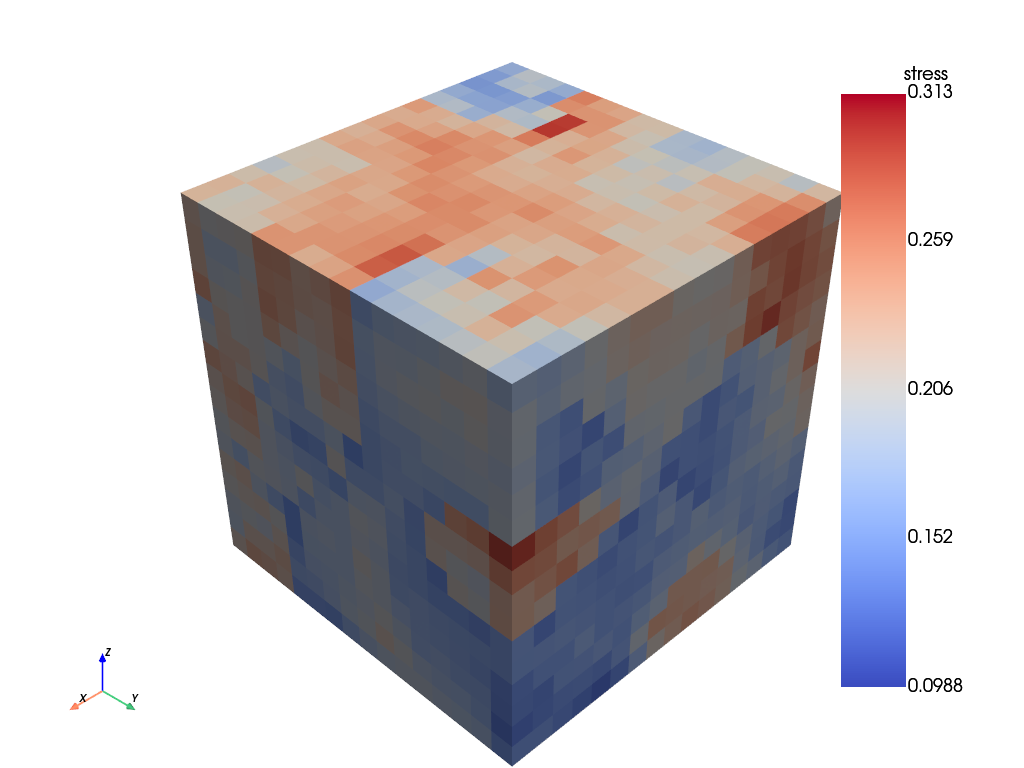

Plot the stress field in the loading direction.

material.plot("stress", component=0)

Development Status

This alpha release provides basic functionality for microstructure modeling workflows. Internally at NASA, further capabilities exist in the pipeline for release. Development and release priorities depend on community needs and contributor availability.
