MatVu is an automatic viewpoint optimization and visualization toolkit for materials structures. Give it a structure file (a POSCAR to start with) and it works out a clear, publication-ready viewing direction on its own — no manual rotating, zooming and re-rendering until the figure looks right.

At the core of MatVu is a viewpoint search that treats the camera angle as an optimization problem. It scores hundreds of candidate directions by projected atom overlap, bond foreshortening and framing, keeps a comfortable above-horizon elevation band, and then picks the view that spreads the atoms out most evenly (maximin projected dispersion). Built-in conventions make series of figures consistent: every cubic crystal shares one fixed three-quarter view, layered 2D materials are shown at a ~30° tilt, and flat molecules keep their face-on view.

Rendering is handled by pluggable backends: a tracer backend that performs analytic ray casting in pure NumPy (exact sphere/stick occlusion, no OpenGL/VTK, works headless) and a fast matplotlib preview backend. Three look presets — 3d, toon (animation/cel style) and flat — share the same geometry, and a theme system lets you design your own element colours and atom radii in a small TOML file.

MatVu handles periodic crystals, 2D materials and finite molecules through one uniform Structure model, draws symmetric unit-cell figures with mirrored boundary atoms, and writes transparent PNG/PDF/SVG by default.

• Core Features
• Quick Start
  • Installation
  • Basic Usage
  • Rendering Styles
  • Gallery
  • Uniform-Scale Series
  • Batch Rendering and Animations
• Themes
• Citation
• Application Scenarios
• Contributing
• License
• Support & Contact

Core Features

• Automatic Viewpoint Optimization: Scores hundreds of candidate directions (Fibonacci sampling plus high-symmetry directions) for occlusion, bond foreshortening and framing, then selects the most evenly spread view; cubic lattices share one fixed three-quarter convention.

• Publication-Ready Output: Transparent PNG/TIFF/WebP and PDF/SVG by default, strict atom radii (display sizes proportional to covalent radii), designed element palettes and symmetric unit-cell frames (--cell auto|always|never, decoupled from the viewpoint choice).

• Multiple Rendering Backends: An analytic ray-casting tracer (pure NumPy, exact occlusion, supersampling, orthographic or perspective) and a fast matplotlib preview backend — more backends can be registered.

• Look Presets and Themes: 3d, toon (cel shading) and flat styles; three official palettes (matvu, jmol, pastel) plus user-editable TOML themes covering colours, radii and any style parameter.

• Works for Crystals, 2D Materials and Molecules: One Structure model for periodic cells (with mirrored boundary atoms), layered slabs (automatic tilted views) and finite molecules (face-on views), driven by a plugin reader registry — POSCAR/CONTCAR, CIF (with symmetry expansion) and XYZ/extxyz are built in.

• Project-Scale Workflows: matvu batch renders every structure of a project tree (DeepH-style dft/**/POSCAR out of the box, in place or mirrored to a figure directory) and matvu animate exports 360° orbit GIF/WebP animations from the automatic view.

Quick Start

Installation

Publish version:

pip install matvu

Development version:

git clone https://github.com/kYangLi/MatVu
cd MatVu
uv venv
uv pip install -e ".[dev]"
pytest

Basic Usage

One line is enough — the view is chosen automatically:

from matvu import render, render_array, render_batch, render_orbit

render("POSCAR", view="auto")            # -> POSCAR_view.png (transparent)
render("POSCAR", style="toon", view="a") # explicit style and view

image = render_array("POSCAR", view="auto")     # (H, W, 4) float RGBA in memory
render_batch("dft/", "figures/", jobs=0)        # every dft/**/POSCAR
render_orbit("POSCAR", "spin.gif", frames=72)   # 360 deg orbit animation

Command line:

matvu render POSCAR --style toon -o figure.png   # animation-style figure
matvu render POSCAR --force-cell -o fig.png      # force the unit-cell frame
matvu render POSCAR --canvas 12 12 -o fig.png   # uniform scale across figures
matvu candidates POSCAR -n 12 -o candidates.png # ranked viewpoint contact sheet
matvu batch dft/ -o figures/ -j 0               # every dft/**/POSCAR (mirrored)
matvu animate POSCAR --frames 72 -o spin.gif    # 360 deg orbit animation
matvu info POSCAR                               # composition, cell, volume
matvu theme list                                # built-in themes and palettes

Rendering Styles

All presets share the same automatic viewpoint; toon and flat add an aerial-perspective depth fade.

Gallery

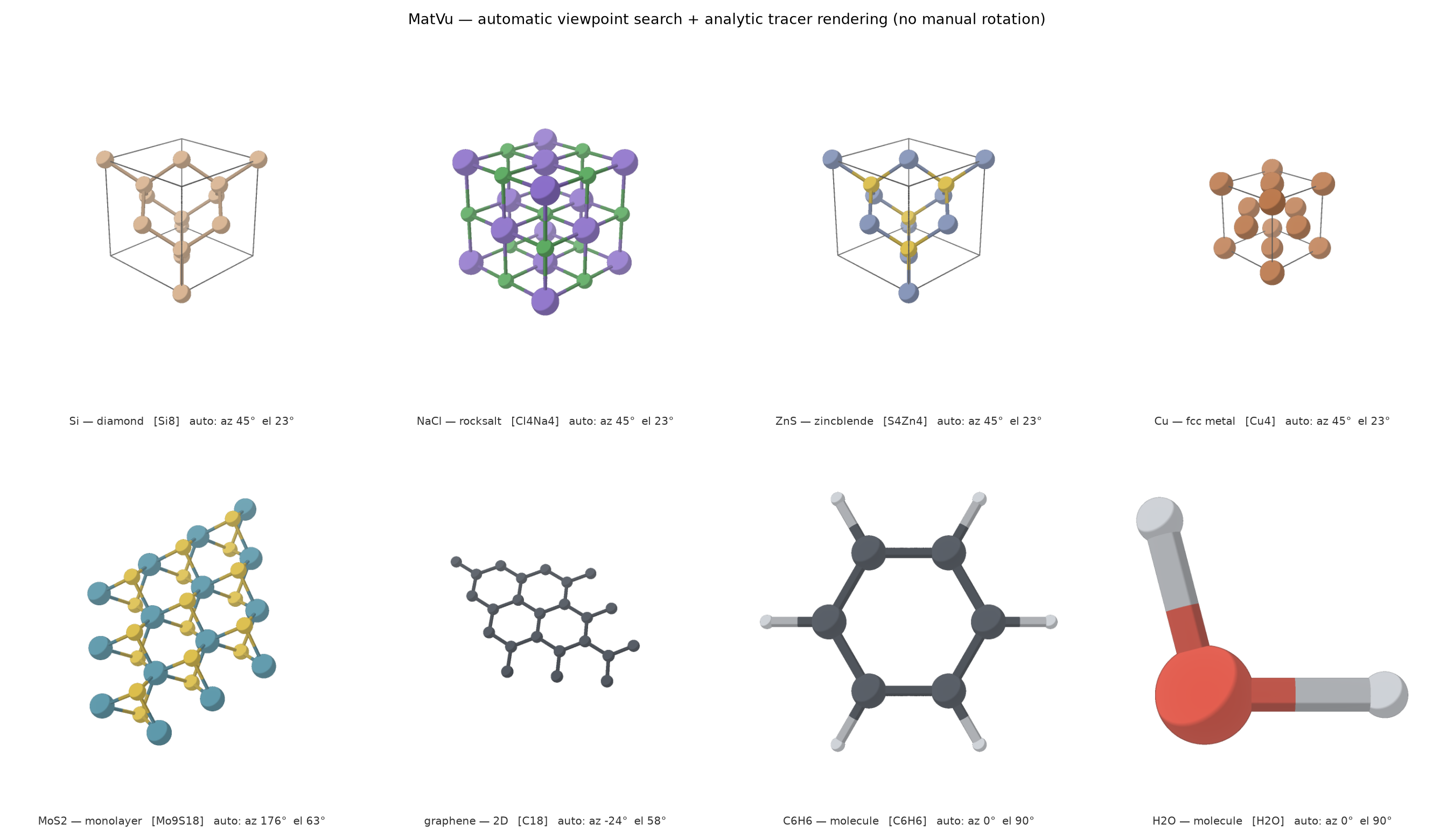

Every figure is rendered with a completely automatic viewpoint — no manual rotation. Ready-made images live in examples/figures/; regenerate them with python examples/showcase.py --style <preset>.

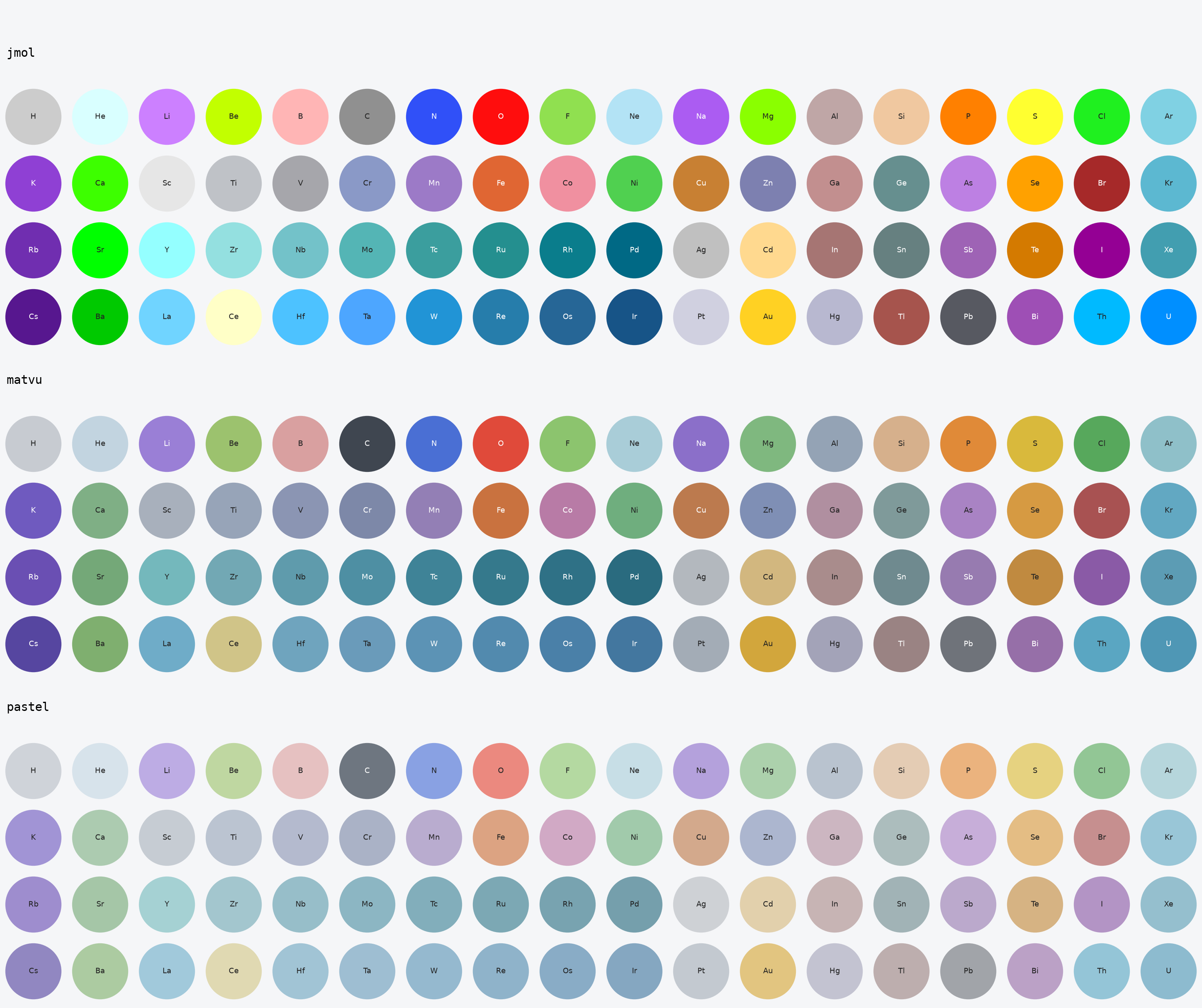

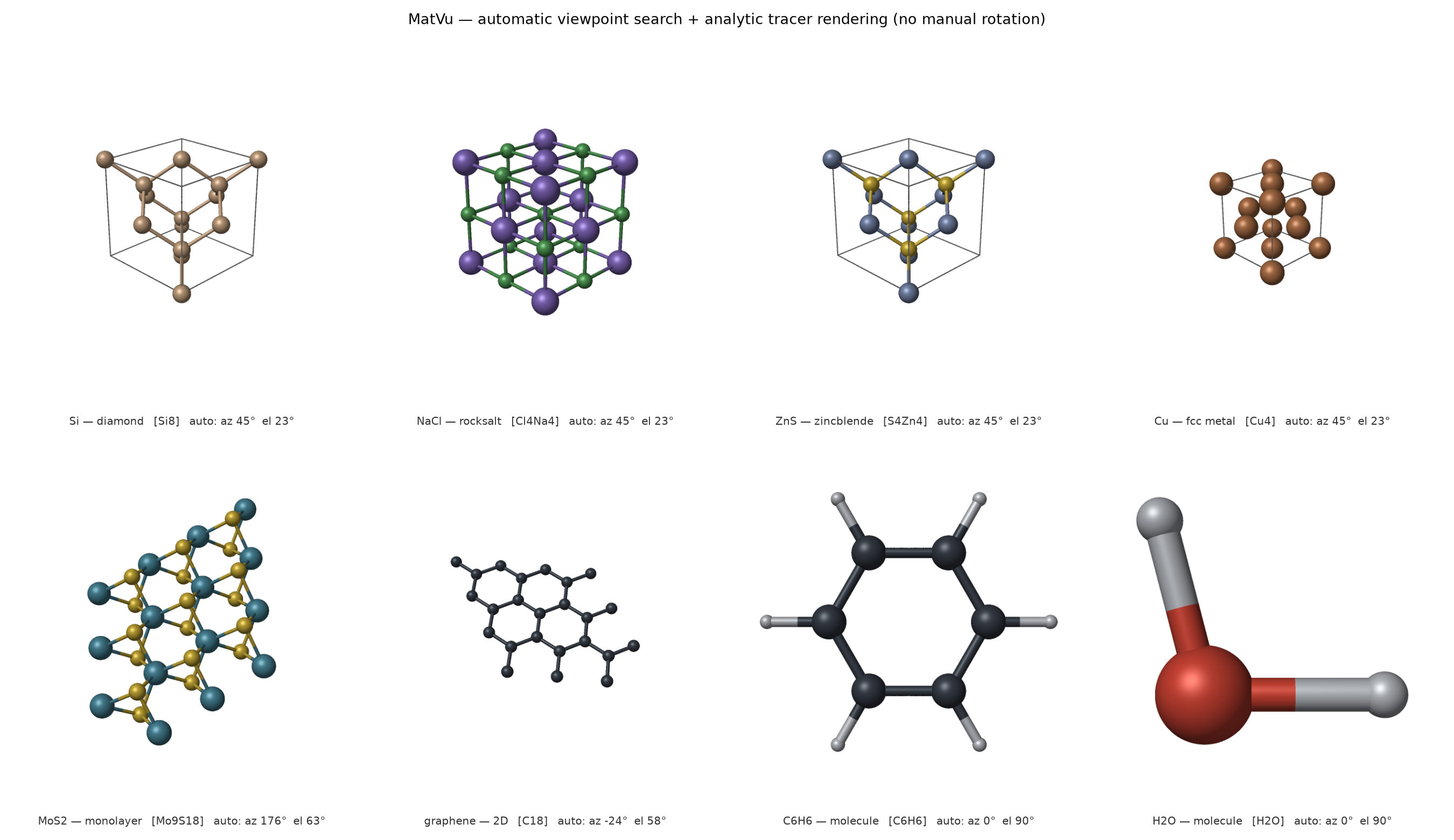

Other ready-made figures: 3d · flat · palette sheet palettes.png

Uniform-Scale Series

By default every figure is fitted to its own structure. For a series of comparable figures, pass the same canvas:

matvu render POSCAR --canvas 18 18 -o fig.png

The canvas is a minimum size: if a structure does not fit, the image expands instead of clipping, so atoms keep exactly the same size across the series.

Batch Rendering and Animations

matvu batch walks a project tree and renders every structure it finds — a DeepH-style layout needs no arguments beyond the root directory:

matvu batch dft/                         # every dft/**/POSCAR -> POSCAR_view.png beside it
matvu batch dft/ -o figures/             # mirror the tree under figures/ instead
matvu batch dft/ --format pdf,png -j 0   # vector + raster, all cores
matvu batch dft/ --pattern "POSCAR,CONTCAR,*.vasp,*.cif" --skip-existing

It defaults to png — transparent, previewable right next to the calculation and consistent with matvu render; pass --format pdf (or pdf,png) for vector figures. --skip-existing makes re-runs incremental and -j 0 uses every core.

matvu animate turns the automatic view into a looping 360° orbit:

matvu animate POSCAR --frames 72 -o spin.gif          # GIF (flat background)
matvu animate POSCAR --frames 72 -o spin.webp         # animated WebP (keeps transparency)
matvu animate POSCAR --frames 72 --frames-dir frames/ # transparent PNG frames

--axis auto (the default) picks the world axis most perpendicular to the view, so the camera is guaranteed to move; --axis x|y|z pins it to a fixed axis.

Themes

Colours and sizes live in a theme: a small TOML file with a palette, atom radii and optional style overrides. Three carefully designed palettes ship with MatVu — matvu (default: modern, muted, family-coherent), jmol (classic CPK) and pastel (soft variant):

matvu render POSCAR --style toon --palette pastel -o fig.png
matvu theme export matvu -o my-theme.toml     # full default theme to edit
matvu render POSCAR --theme my-theme.toml -o fig.png

name = "lab-theme"
description = "our group colours"
palette = "matvu"          # base palette: matvu | jmol | pastel

[radii]
atom_scale = 0.40          # display radius = covalent radius * scale
min_radius = 0.0
unbonded_scale = 0.45      # bond-free structures (bulk metals)
bond_radius = 0.09
bond_tolerance = 1.20

[colors]                   # per-element overrides on top of the palette
O = "#FF5A4A"
Fe = "#B87333"

A [style] table can additionally set any Style field (depth_cue, background, shading, ...).

Citation

Any and all use of this software, in whole or in part, should clearly acknowledge and link to this repository.

If you use MatVu in academic work, please cite the software using the metadata in CITATION.cff (GitHub's Cite this repository button uses the same file). A methods paper is in preparation.

Application Scenarios

• Paper and thesis figures: one command per structure, consistent viewpoints across a series, vector and transparent output ready for LaTeX/slides
• Teaching and presentations: quick, readable ball-and-stick figures in toon/flat styles without a GUI
• High-throughput screening: batch-render large structure sets with fixed palettes, radii and camera conventions
• Method development: the viewpoint scoring, palettes and backends are modular and fully unit-tested (119 tests) — easy to extend and compare

Contributing

Contributions are welcome. The workflow is short:

1. Fork the repository and create a feature branch.
2. Set up the development environment (uv venv && uv pip install -e ".[dev]").
3. Add tests for new behaviour and run the full suite: pytest.
4. Open a pull request; the tests workflow runs on Python 3.10–3.13 for every push and PR.

See docs/design.md for the architecture and the viewpoint scoring model, and docs/releasing.md for the release process.

License

GPL-3.0-or-later. See the LICENSE file for details.

Support & Contact

• 🐛 Issue Reporting: GitHub Issues
• 📦 Package: pypi.org/project/matvu
• 📖 Design Notes: docs/design.md · docs/roadmap.md

MatVu is research software: viewpoints are chosen automatically, but the judgement of a good figure stays with you — feedback and issues are always welcome.
