Maxwell Bloch Studio

A PySide6 desktop application for simulating, visualizing, and fitting one-dimensional Maxwell-Bloch models to astronomical maser light-curve data. The application combines an interactive Qt interface, configurable physical and numerical parameters, Numba-accelerated time evolution, and publication-oriented plotting/export tools.

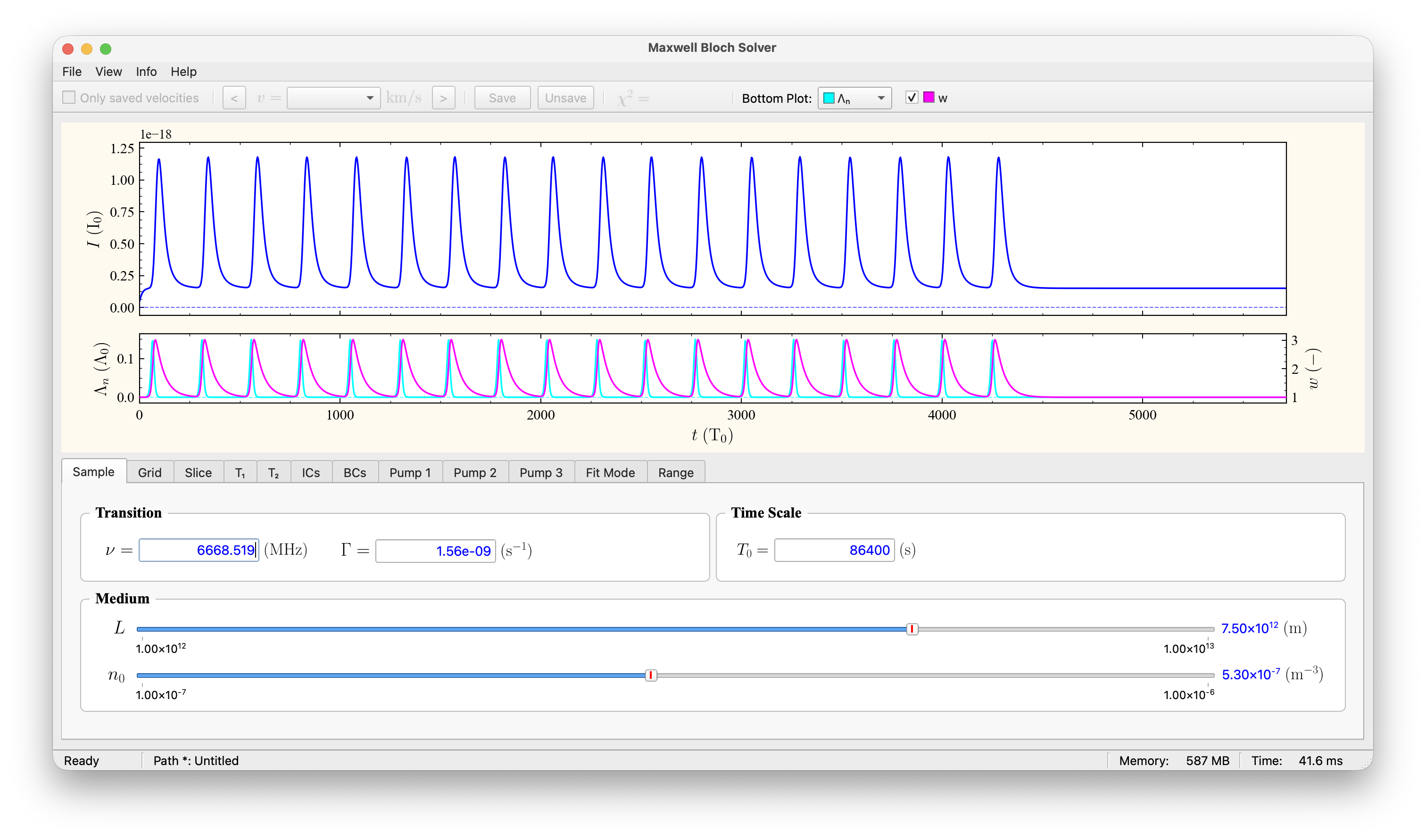

Screenshot

Features

• Interactive GUI for Maxwell-Bloch model configuration and visualization.
• Numba-accelerated numerical solver using Runge-Kutta time stepping, from the mbsolver package.
• Interface built with sciwidgets (sliders, parameter panels, plot canvas).
• Light-curve import from velocity-tagged text files.
• Support for period-tagged source folders, e.g. multiple folded periods for the same source.
• Adjustable source, sample, initial-condition, pump-profile, and plotting parameters.
• Built-in visualization of fitted flux, inversion/population, pump terms, and other solver quantities.
• Parameter saving/loading using JSON files.
• Export to PDF, PNG, or SVG, with PDF exports including metadata and parameter reports.
• Local user guide and equations reference.

Installation

The app needs Python 3.10 or newer. The easiest way is pipx, which installs the app in its own environment and puts the command on your path:

pipx install maxwell-bloch-studio

If you work in a conda or virtual environment, install it there with pip instead:

pip install maxwell-bloch-studio

Running the application

maxwell-bloch-studio

(mbstudio is a shorter name for the same command, and python -m mbstudio works too.) Use the menu bar to load data folders, adjust parameters, run the solver and export plots.

Updating

The app tells you when a new version is available. To update:

pipx upgrade maxwell-bloch-studio

or pip install -U maxwell-bloch-studio in the environment where you installed it.

Using the solver from Python

Parameter files saved by the app can be solved in your own scripts. Install the app with pip in the Python you run the script with (a pipx install is kept separate from your own Python):

import mbstudio

f = mbstudio.ParamsFile("run_1.json")       # File → Save Parameters As…
params = f.params()                          # a fresh dict, safe to change
params["solve.sample"]["l"] = 1.0e13         # change anything
res = mbstudio.solve(params)                 # same numbers as the app

res["time"]             # time grid
res["intensity"][-1]    # intensity at the exit of the medium

For the parameter file of a data folder, f.velocities lists the velocity components and f.params(12.3) picks one. f.metadata and f.app_version tell who saved the file, when, and with which version.

params is a plain dictionary keyed by the names the app uses ("solve.grid.nt", "solve.sample", "solve.pump.pulse1", …). η and θ₀ are computed from the sample values (ν, Γ, T₀, L, n₀), as in the app; mbstudio.scaling(nu=…, gamma=…, t0=…, l=…, n0=…) returns them and the other derived quantities. The result holds time, intensity and w (one row per stored z plane), lambda_n (pump), A0 (boundary field), t1 and t2, in the solver's dimensionless units; the app's flux scaling and offsets are not applied.

A commented example script listing all keys ships with the app: open Help → Use from Python… to copy or save it, or read example_script.py. To build the parameters in code instead, use the mbsolver package directly.

Input data format

The application expects light-curve files as plain text files with at least two whitespace-separated columns:

time flux

Blank lines and lines beginning with # are ignored.

Supported file-name patterns are:

Source_v=12.3.txt
Source_p1_v=12.3.txt

where:

• Source is the source name,
• p1, p2, etc. are optional period labels,
• v=12.3 is the velocity-component label.

Matching parameter files can be stored as:

Source_params.json
Source_p1_params.json

When period-tagged files are present, the application lets the user select the period set to load.

Exporting results

Plots can be exported from the GUI as:

• PDF
• PNG
• SVG

PDF exports include the plot plus a report page containing metadata and the current parameter state.

Documentation

The user guide and the equations reference (PDF) are installed with the app; open them from the Help and Info menus.

Development

git clone https://github.com/vahid-anari/maxwell-bloch-studio.git
cd maxwell-bloch-studio
pip install -e .
mbstudio

python main.py in the repository root also starts the app from the source folder. The code lives in src/mbstudio/:

src/mbstudio/
├── main.py           # application entry point
├── app/              # main window, plotting, solver controller, update pipeline
├── ui/               # physics parameter widgets, dialogs, splash screen, step viewer
├── io/               # data and parameter import/export
├── config/           # app metadata, style and UI defaults
├── utils/            # units, constants, helper functions
└── resources/        # settings.json, icons, user guide and equations PDFs

The numerical solver is the mbsolver package; the widgets come from sciwidgets.

Earlier name

Up to version 9.1 the app was called Maxwell Bloch Solver (pip install maxwell-bloch-solver, command mbsolver). The name mbsolver now belongs to the solver package. To move over:

pipx uninstall maxwell-bloch-solver
pipx install maxwell-bloch-studio

(with pip: pip uninstall maxwell-bloch-solver, then pip install maxwell-bloch-studio). Saved settings and parameter files carry over; in scripts, change import mbsolver to import mbstudio.

License

This project is released under the MIT License. See LICENSE for details.
