MeerK40t Barcode Extension

meerk40t-barcodes

MeerK40t 0.8+ Barcode extension.

Barcode-Extension

• Registers the console command: qrcode which will generate a qrcode

Usage: qrcode x_pos y_pos dim code

Arguments:

x_pos          X-position of qr-code
y_pos          Y-position of qr-code
dim            Width/length of qr-code
code           Text to create qr-code from

Options:

--boxsize  (-x)      Boxsize (default 10)
--border   (-b)      Border around qr-code (default 4)
--version  (-v)      size (1..40)
--errcorr  (-e)      error correction, one of L (7%), M (15%), Q (25%), H (30%)

• Registers the console command: barcode which will generate a barcode

Usage: barcode x_pos y_pos dimx dimy btype code

Arguments:

x_pos     X-Position of barcode
y_pos     Y-Position of barcode
dim       Width of barcode, may be 'auto' to keep native width
dimy      Height of barcode, may be 'auto' to keep native height
btype     Barcode type
code      The code to process

Options:

--notext (-n) suppress text display

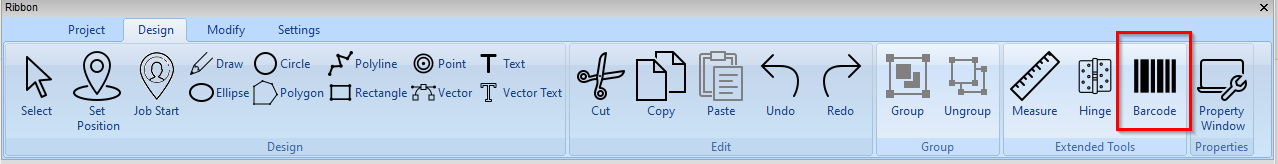

• GUI-Support The installation of this tool will register a new button in the Design section of MeerK40t:

If you click on it then a dialog will pop up allowing you to design a qr-code / a barcode:

This will create an element in Meerk40t that can be treated like any other regular path, but which will allow post-creation change of the underlying code (ie the barcode will be regenerated based on the new input).

Installing

• pip install meerk40t-barcodes Or
• Download into a directory:
• $ pip install .

Development

• If you are developing your own extension for meerk40t you will want to use:
• $ pip install -e . this installs the python module in edit mode which allows you to easily see and experience your changes. Without reinstalling your module.

Acknowledgements

• This MeerK40t extension uses the work of two great libraries to create barcodes & QR codes:

• The python-barcode library (https://github.com/WhyNotHugo/python-barcode)
• The qrcode library (https://github.com/lincolnloop/python-qrcode)
