mermaid-term 0.1.0

Render Mermaid diagrams as Unicode box-drawing art in the terminal

mermaid-term

[!WARNING] This is a vibe-coded port: the Claude Fable 5 AI model translated the upstream Rust module to Python with minimal human review. The ported test suite passes, but read the code with that in mind.

Render Mermaid diagrams as Unicode box-drawing art in your terminal. No browser, no Node, no image files.

This is a Python port of the terminal Mermaid renderer from xai-org/grok-build (crates/codegen/xai-grok-markdown/src/mermaid.rs), including its test suite.

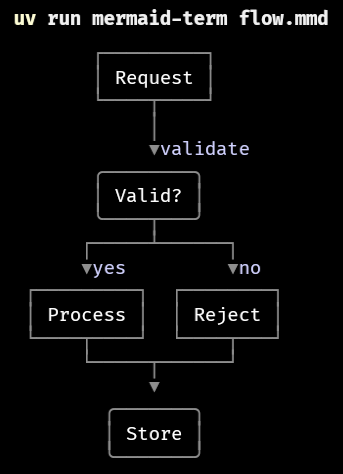

The diagram source for this demo is in docs/flow.mmd.

Supported diagram types

• graph / flowchart (all directions, subgraphs, & fan-out, edge labels, dotted/thick lines, circle/cross/arrow heads, self-loops)
• stateDiagram / stateDiagram-v2
• classDiagram (compartments, annotations, generics, cardinalities)
• erDiagram (attributes, cardinalities)
• sequenceDiagram (notes, dividers, autonumber, self-messages)

Anything else (gantt, pie, ...) renders as the raw source in a framed box.

Install / run

Run without installing, via uv:

uvx mermaid-term diagram.mmd

Or install as a persistent tool:

uv tool install mermaid-term

Works on Windows, macOS, and Linux (pure Python, one small dependency).

Usage

mermaid-term diagram.mmd          # render a file
cat diagram.mmd | mermaid-term    # or read stdin
mermaid-term --markdown README.md # render every ```mermaid fence in a Markdown file
mermaid-term -w 60 diagram.mmd    # cap the diagram width at 60 columns
mermaid-term -w 0 diagram.mmd     # no width limit
mermaid-term --color always diagram.mmd | less -R

• --width defaults to the terminal width when stdout is a terminal and unlimited otherwise. Diagrams that exceed the width limit fall back to the framed source with a hint.
• --color is auto by default: ANSI styling on a terminal, plain text when piped. NO_COLOR is respected.

Library use

from mermaid_term import render, MermaidStyles

art = render("graph TD\n A --> B", MermaidStyles.plain(), max_width=80)
print("\n".join(art.plain_lines))          # plain text
print("\n".join(l.to_ansi() for l in art.styled_lines))  # ANSI-styled

render returns None for blank input. Unsupported or oversized diagrams return the framed-source fallback rather than raising.

Development

uv sync
uv run pytest

The test suite is ported from the upstream Rust module and pins parser behavior and rendered output; new rendering changes should keep it green.

License

Apache-2.0, the same license as the upstream project this is ported from.
