meshed

Link functions up into callable objects (DAGs)

To install: pip install meshed

Documentation

Quick Start

from meshed import DAG

def this(a, b=1):
    return a + b
def that(x, b=1):
    return x * b
def combine(this, that):
    return (this, that)

dag = DAG((this, that, combine))
print(dag.synopsis_string())
x,b -> that_ -> that
a,b -> this_ -> this
this,that -> combine_ -> combine

But what does it do?

It's a callable, with a signature:

from inspect import signature
signature(dag)
<Signature (x, a, b=1)>

And when you call it, it executes the dag from the root values you give it and returns the leaf output values.

dag(1, 2, 3)  # (a+b,x*b) == (2+3,1*3) == (5, 3)
(5, 3)
dag(1, 2)  # (a+b,x*b) == (2+1,1*1) == (3, 1)
(3, 1)

You can see (and save image, or ascii art) the dag:

dag.dot_digraph()

You can extend a dag

dag2 = DAG([*dag, lambda this, a: this + a])
dag2.dot_digraph()

You can get a sub-dag by specifying desired input(s) and outputs.

dag2[['that', 'this'], 'combine'].dot_digraph()

Note on flexibility

The above DAG was created straight from the functions, using only the names of the functions and their parameters to define how to hook the network up.

But if you didn't write those functions specifically for that purpose, or you want to use someone else's functions, one would need to specify the relation between parameters, inputs and outputs.

For that purpose, functions can be adapted using the class FuncNode. The class allows you to essentially rename each of the parameters and also specify which output should be used as an argument for any other functions.

Let us consider the example below.

def f(a, b):
    return a + b

def g(a_plus_b, d):
    return a_plus_b * d

Say we want the output of f to become the value of the parameter a_plus_b. We can do that by assigning the string 'a_plus_b' to the out parameter of a FuncNode representing the function f:

f_node = FuncNode(func=f, out="a_plus_b")

We can now create a dag using our f_node instead of f:

dag = DAG((f_node, g))

Our dag behaves as wanted:

dag(a=1, b=2, d=3)
9

Now say we would also like for the value given to b to be also given to d. We can achieve that by binding d to b in the bind parameter of a FuncNode representing g:

g_node = FuncNode(func=g, bind={"d": "b"})

The dag created with f_node and g_node has only two parameters, namely a and b:

dag = DAG((f_node, g_node))
dag(a=1, b=2)
6

Sub-DAGs

dag[input_nodes:output_nodes] is the sub-dag made of intersection of all descendants of input_nodes (inclusive) and ancestors of output_nodes (inclusive), where additionally, when a func node is contained, it takes with it the input and output nodes it needs.

from meshed import DAG

def f(a): ...
def g(f): ...
def h(g): ...
def i(h): ...

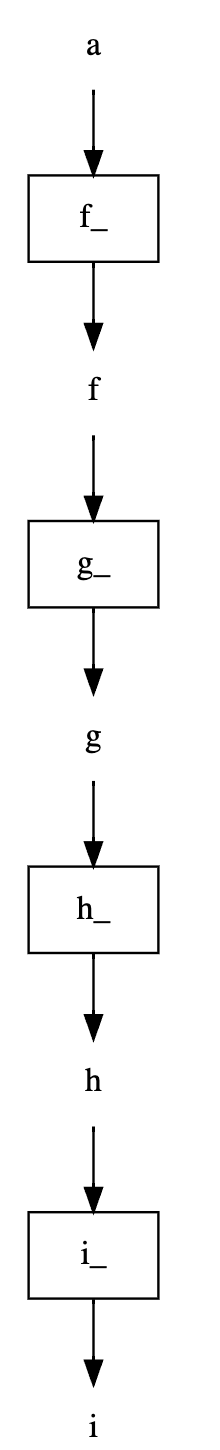

dag = DAG([f, g, h, i])

dag.dot_digraph()

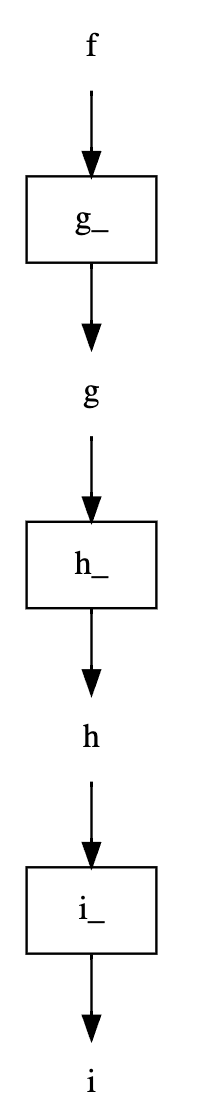

Get a subdag from g_ (indicates the function here) to the end of dag

subdag = dag['g_',:]
subdag.dot_digraph()

From the beginning to h_

dag[:, 'h_'].dot_digraph()

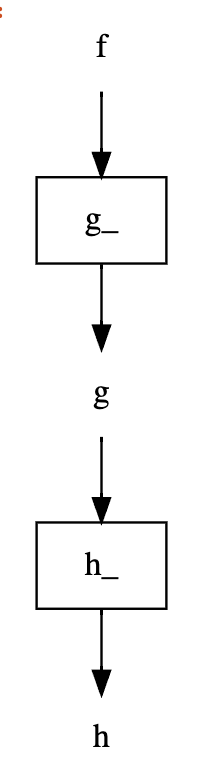

From g_ to h_ (both inclusive)

dag['g_', 'h_'].dot_digraph()

Above we used function (node names) to specify what we wanted, but we can also use names of input/output var-nodes. Do note the difference though. The nodes you specify to get a sub-dag are INCLUSIVE, but when you specify function nodes, you also get the input and output nodes of these functions.

The dag['g_', 'h_'] give us a sub-dag starting at f (the input node), but when we ask dag['g', 'h_'] instead, g being the output node of function node g_, we only get g -> h_ -> h:

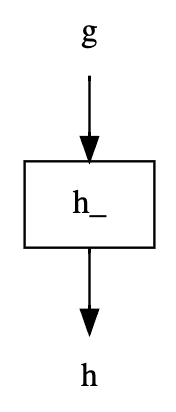

dag['g', 'h'].dot_digraph()

If we wanted to include f we'd have to specify it:

dag['f', 'h'].dot_digraph()

Those were for simple pipelines, but let's now look at a more complex dag.

Note the definition: dag[input_nodes:output_nodes] is the sub-dag made of intersection of all descendants of input_nodes (inclusive) and ancestors of output_nodes (inclusive), where additionally, when a func node is contained, it takes with it the input and output nodes it needs.

We'll let the following examples self-comment:

from meshed import DAG


def f(u, v): ...

def g(f): ...

def h(f, w): ...

def i(g, h): ...

def j(h, x): ...

def k(i): ...

def l(i, j): ...

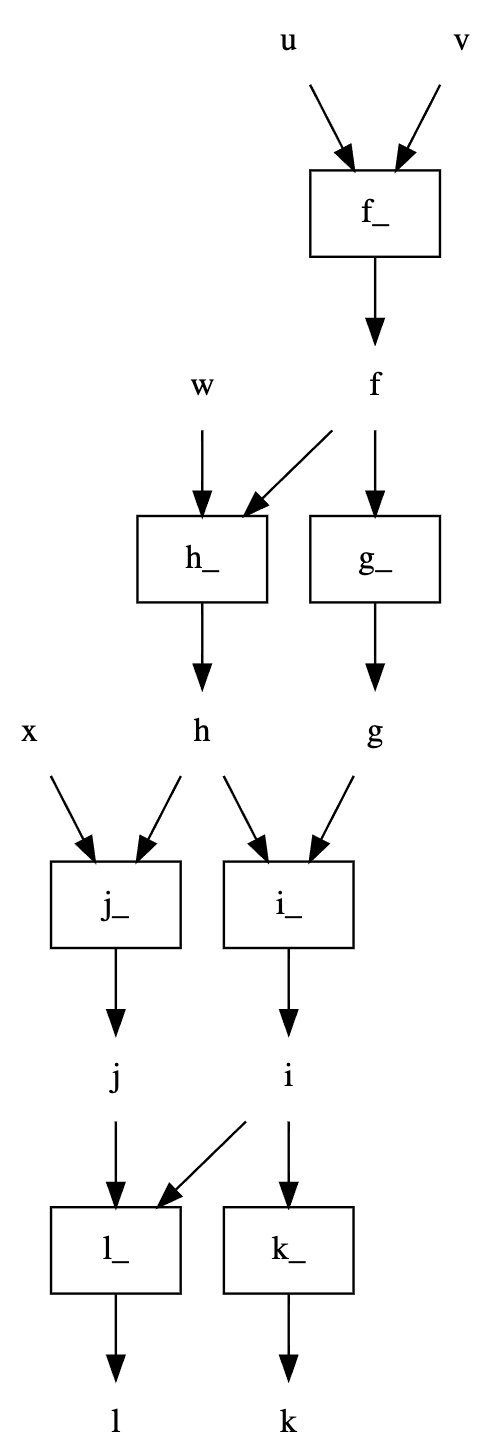

dag = DAG([f, g, h, i, j, k, l])

dag.dot_digraph()

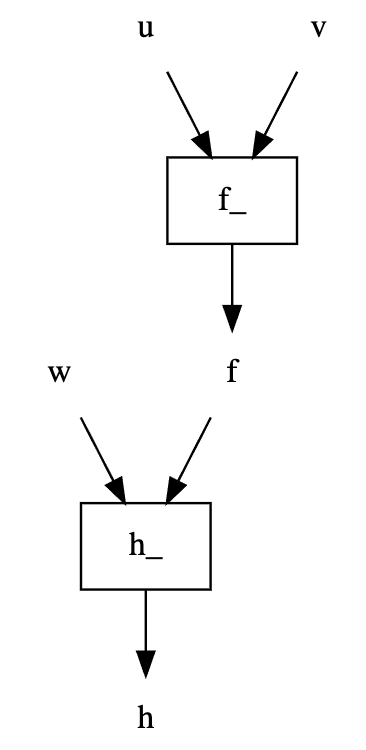

dag[['u', 'f'], 'h'].dot_digraph()

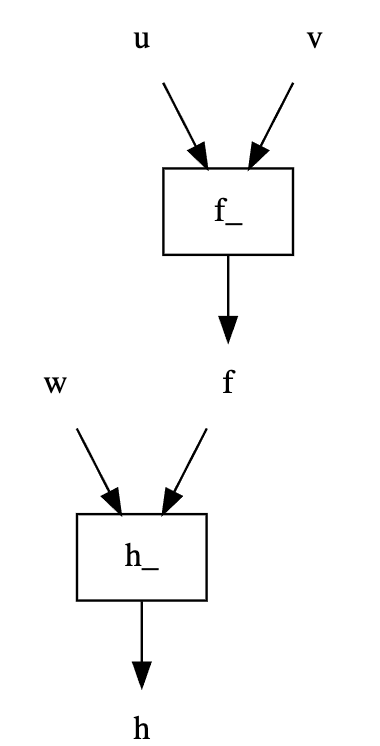

dag['u', 'h'].dot_digraph()

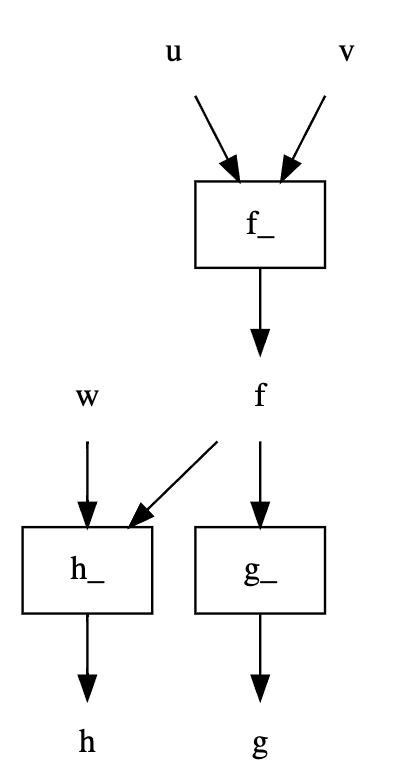

dag[['u', 'f'], ['h', 'g']].dot_digraph()

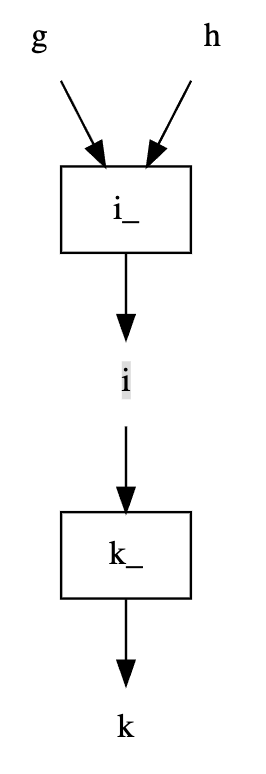

dag[['x', 'g'], 'k'].dot_digraph()

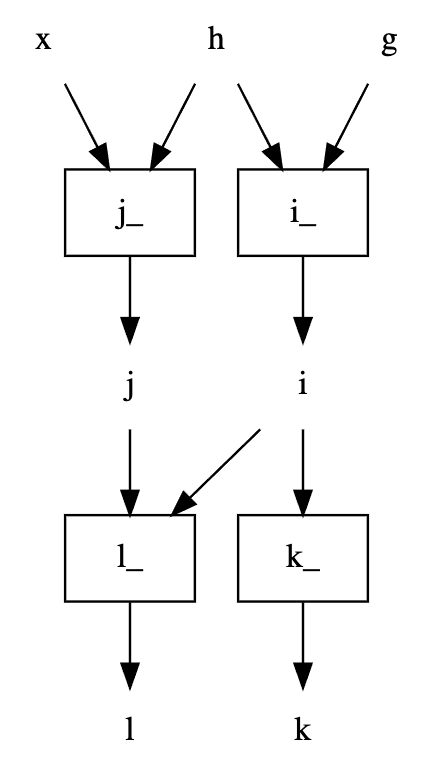

dag[['x', 'g'], ['l', 'k']].dot_digraph()

Examples

A train/test ML pipeline

Consider a simple train/test ML pipeline that looks like this.


With this, we might decide we want to give the user control over how to do train_test_split and learner, so we offer this interface to the user:


With that, the user can just bring its own train_test_split and learner functions, and as long as it satisfied the expected (and even better; declared and validatable) protocol, things will work.

In some situations we'd like to fix some of how train_test_split and learner work, allowing the user to control only some aspects of them. This function would look like this:


And inside, it does:


meshed allows us to easily manipulate such functional structures to adapt them to our needs.

itools module

Tools that enable operations on graphs where graphs are represented by an adjacency Mapping.

Again.

Graphs: You know them. Networks. Nodes and edges, and the ecosystem descriptive or transformative functions surrounding these. Few languages have builtin support for the graph data structure, but all have their libraries to compensate.

The one you're looking at focuses on the representation of a graph as Mapping encoding its adjacency list. That is, a dictionary-like interface that specifies the graph by specifying for each node what nodes it's adjacent to:

assert graph[source_node] == iterator_of_nodes_that_source_node_has_edges_to

We emphasize that there is no specific graph instance that you need to squeeze your graph into to be able to use the functions of meshed. Suffices that your graph's structure is expressed by that dict-like interface -- which grown-ups call Mapping (see the collections.abc or typing standard libs for more information).

You'll find a lot of Mappings around pythons. And if the object you want to work with doesn't have that interface, you can easily create one using one of the many tools of py2store meant exactly for that purpose.

Examples

>>> from meshed.itools import edges, nodes, isolated_nodes
>>> graph = dict(a='c', b='ce', c='abde', d='c', e=['c', 'b'], f={})
>>> sorted(edges(graph))
[('a', 'c'), ('b', 'c'), ('b', 'e'), ('c', 'a'), ('c', 'b'), ('c', 'd'), ('c', 'e'), ('d', 'c'), ('e', 'b'), ('e', 'c')]
>>> sorted(nodes(graph))
['a', 'b', 'c', 'd', 'e', 'f']
>>> set(isolated_nodes(graph))
{'f'}
>>>
>>> from meshed.makers import edge_reversed_graph
>>> g = dict(a='c', b='cd', c='abd', e='')
>>> assert edge_reversed_graph(g) == {'c': ['a', 'b'], 'd': ['b', 'c'], 'a': ['c'], 'b': ['c'], 'e': []}
>>> reverse_g_with_sets = edge_reversed_graph(g, set, set.add)
>>> assert reverse_g_with_sets == {'c': {'a', 'b'}, 'd': {'b', 'c'}, 'a': {'c'}, 'b': {'c'}, 'e': set([])}
