metarag-sdk 0.3.9

📌 Table of Contents

• Why MetaRAG
• Architecture
• Components
• Quickstart
• Pipeline Selection
• Evaluation
• Supported Models
• Roadmap
• Routing in Practice
• Future Scope
• Project Structure
• Contributing
• Full Documentation — installation, quickstart, architecture, and the complete API references

---

🤔 Why MetaRAG

Every team building a RAG system faces the same unsolved problem:

Which chunking strategy should I use?
Which retrieval method works best for my documents?
How do I know if my pipeline is actually good?
What happens when a different query type breaks everything?

Current tools make you answer these questions manually — every time, for every project.

Tool	Build RAG	Evaluate	Compare	Auto-Select	Learn
LangChain	✅	❌	❌	❌	❌
LlamaIndex	✅	❌	❌	❌	❌
RAGAS	❌	✅	❌	❌	❌
MetaRAG	✅	✅	✅	✅	✅

MetaRAG owns the entire RAG workflow — from raw documents to evaluated, auto-selected, continuously improving answers. No LangChain dependency in the core — the retrieval and chunking logic is hand-built on top of numpy, pandas, and rank-bm25 only.

---

🏗 Architecture

                        ┌─────────────────────────────────────────┐
                        │              USER INTERFACE              │
                        │   MetaRAG(docs, embeddings, generator)   │
                        │            .fit()  .ask()                │
                        └─────────────────┬─────────────────────────┘
                                          │
                 ┌────────────────────────▼────────────────────────┐
                 │                    METARAG CORE                  │
                 │                                                  │
                 │   ┌──────────┐    ┌──────────┐   ┌───────────┐   │
    Documents ──►│   │  Loader  │───►│ Chunker  │──►│ Embeddings│   │
                 │   └──────────┘    └──────────┘   └─────┬─────┘   │
                 │                                        │         │
                 │                              ┌─────────▼──────┐  │
                 │                              │  Vector Database│ │
                 │                              │ InMemory│Chroma │ │
                 │                              │      │ FAISS   │ │
                 │                              └─────────┬──────┘  │
                 │                                        │         │
                 │                              ┌─────────▼──────┐  │
                 │                              │   Retrievers   │  │
                 │                              │ BM25 │ Dense   │  │
                 │                              │ Hybrid │ MMR   │  │
                 │                              └─────────┬──────┘  │
                 │                                        │         │
    Query ──────►│   ┌──────────┐               ┌────────▼──────┐  │
                 │   │  Router  │──────────────► │   Pipelines  │   │
                 │   │ (cold-   │               │Straight│MQuery│   │
                 │   │  start → │               │Reranked│Full  │   │
                 │   │  learned)│               └────────┬──────┘   │
                 │   └────▲─────┘                        │          │
                 │        │                     ┌────────▼──────┐   │
                 │        │                     │   Evaluator   │   │
                 │        │                     │  (5 metrics)  │   │
                 │        │                     └────────┬──────┘   │
                 │        │                              │          │
                 │        └────────── benchmark() ───────┘          │
                 │              trains router from win-rates        │
                 └───────────────────────────────────────┬──────────┘
                                                          │
                                                    ┌─────▼──────┐
                                                    │   Answer   │
                                                    │text│score  │
                                                    │pipeline│ms │
                                                    └────────────┘

---

🧩 Components

Every stage below is swappable — full options, defaults, and signatures live in docs/api.md.

from metarag import DocumentLoader, Chunker, InMemoryVectorDB, HybridRetriever, OllamaGenerator, Evaluator, Router

docs      = DocumentLoader("./data").load()                          # PDF, DOCX, HTML, CSV, JSON, MD, TXT
chunks    = Chunker(strategy="recursive").chunk_documents(docs)      # 6 strategies
db        = InMemoryVectorDB()                                       # or ChromaVectorDB / FAISSVectorDB
retriever = HybridRetriever(chunks, embeddings, db, alpha=0.5)        # or BM25 / Dense / MMR
generator = OllamaGenerator(model="mistral")                          # or bring your own .generate(prompt)
evaluator = Evaluator(embedding_model=embeddings, preset="balanced")  # 5 metrics, zero LLM calls
router    = Router()                                                  # cold-start rules → win-rate thresholds

fit() wires all of this together automatically and builds five pipelines — straight, multiquery, hyde, reranked, full — inspectable via rag.pipeline_graph().

---

⚡ Quickstart

Installation

pip install metarag-sdk

Optional components install on top as needed — see docs/installation.md for the full list ([pdf], [chroma], [faiss], [nltk], [rerank], [ollama], or [all]).

Setup Ollama (free, local — optional)

# install from ollama.com, then pull models
ollama pull mistral             # generation
ollama pull nomic-embed-text    # embeddings

Build and Ask

from metarag import MetaRAG, CachedEmbeddings, OllamaGenerator

embeddings = CachedEmbeddings(...)

rag = MetaRAG(
    docs="./data",
    embeddings=embeddings,
    generator=OllamaGenerator(model="mistral"),
)

rag.fit()

Example output

Files Loaded        : 8
Documents Extracted : 101
Chunks Generated     : 333
Vector Index Built
Pipelines Built      : 7

answer = rag.ask("What is the main topic of this document?")
print(answer.text)

Benchmark Every Pipeline

queries = [
    "Summarize the document.",
    "What are the key findings?",
    "List important numbers.",
]

results = rag.benchmark(queries, retrieval_only=True)

Example output

Benchmark Rows      : 595
Benchmark CSV Saved
Router Thresholds Saved

rag.leaderboard()
rag.dashboard()
rag.report()

Example output

=========================================================================================
PIPELINE       PREC   COVER  REDUND  SCORE    LATENCY
=========================================================================================
reranked        0.84   0.79   0.12    0.84      1240ms
multiquery      0.81   0.76   0.15    0.82       890ms
hybrid          0.74   0.71   0.18    0.76       340ms
mmr             0.71   0.69   0.09    0.73       290ms
dense           0.69   0.65   0.21    0.68       230ms
bm25            0.63   0.60   0.24    0.61       120ms
straight        0.60   0.58   0.26    0.58       110ms
=========================================================================================

🏆 Best pipeline: reranked (score=0.84)
🔀 Router would pick: reranked

rag.save()

---

🔁 Pipeline Selection

MetaRAG does not commit to one pipeline. Every query gets routed to whichever configuration actually performs best on your data.

User asks a question
        │
        ▼
Router extracts features
  (corpus profile + query profile + one cheap probe retrieval)
        │
        ▼
   ┌────────────────────────────────────────┐
   │  Trained?                               │
   │   NO  → cold-start rule-based routing    │
   │   YES → win-rate-driven learned routing  │
   └────────────────────────────────────────┘
        │
        ▼
  Selected pipeline retrieves chunks
        │
        ▼
  Generator produces Answer
        │
        ▼
  Evaluator scores it (composite)
        │
        ▼
  benchmark() → train() feeds the router real win-rate evidence over time

---

📐 Evaluation

MetaRAG uses a single fast, zero-LLM-call evaluation tier by default — every metric is either embedding cosine similarity or lexical overlap, so it costs milliseconds regardless of which embedding model you're using.

Faithfulness   →  cosine(answer, retrieved context) — is it grounded?
Relevancy      →  cosine(query, answer) — does it address the question?
Precision      →  cosine(query, each chunk) — max / avg / std
Coverage       →  query-term overlap inside the retrieved chunks
Redundancy     →  avg pairwise chunk similarity (lower is better)
Composite      →  preset-weighted combination — drives the router

Three built-in presets weight these differently:

Preset	Best for
balanced	General RAG, internal docs
precision	Security logs, anomaly detection — penalizes redundancy and latency harder
recall	Research and summarization — weights coverage highest

No OpenAI. No cloud API. Runs entirely on your own embedding model.

---

🤖 Supported Models

MetaRAG doesn't hardcode any specific model — any object satisfying EmbeddingInterface (.embed_query() / .embed_documents()) or GeneratorInterface (.generate()) works. These are the options most commonly used in testing:

Embeddings

Model	Provider	Cost
nomic-embed-text	Ollama (local)	Free
all-MiniLM-L6-v2	HuggingFace	Free
BAAI/bge-small-en	HuggingFace	Free
text-embedding-3-small	OpenAI	Paid

Generation

Model	Provider	Cost
mistral	Ollama (local)	Free
llama3	Ollama (local)	Free
llama3-8b-8192	Groq API	Free tier
gpt-4o-mini	OpenAI	Paid

CachedEmbeddings wraps any embedding model with a local disk cache automatically — repeat runs against the same corpus skip re-embedding entirely.

---

🗺 Roadmap

v0.1 — Foundation ✅

• Document loader — PDF, HTML, DOCX, CSV, JSON, Markdown
• 6 chunking strategies with a unified interface
• Vector database — InMemory, Chroma, FAISS
• 4 retrieval strategies — BM25, Dense, Hybrid, hand-coded MMR
• Pipeline composition — MultiQuery, Reranker, Full
• 5-metric evaluator with preset weighting

v0.2 — Intelligence ✅

• MetaRAG top-level class — fit(), ask(), benchmark(), leaderboard()
• Backend-agnostic core — LangChain removed, hard deps reduced to numpy / pandas / rank-bm25
• Corpus / Query / Probe profilers feeding a merged router feature dict
• Trained router — cold-start rules → win-rate-driven learned thresholds
• benchmark() — per-query winners across every built pipeline

v0.3 — Toolkit & Observability (current)

• Observability suite — pipeline_graph(), dashboard(), report(), inspect(), trace()
• Router persistence — save() / load() / update_router_thresholds()
• defaults.py single-source-of-truth config, with sweep-ready list values
• SklearnRouterAdapter — plug in any .predict()-style model as the router
• Comprehensive test suite
• pip install metarag-sdk — packaged release
• RAGTuner — automated hyperparameter sweep across DEFAULTS list values
• CLI — metarag fit ./data, metarag ask "question"
• Experiment-tracking view — compare runs beyond raw benchmark.csv

---

📊 Routing in Practice

Example Routing Results

Query	Selected Pipeline	Composite Score	Latency
Where is build_prompt() defined?	MMR	0.535	9.03 s
BM25 scoring formula	Dense	0.623	8.16 s
Design an end-to-end RAG pipeline	BM25	0.562	8.61 s
Chunking → Embeddings → Retrieval → Hallucinations	MMR	0.600	9.06 s
How do I make search better?	Dense	0.548	30.56 s
Database migration causing duplicate answers	BM25	0.449	7.31 s

These results were produced automatically by MetaRAG's learned router without manually specifying a retrieval strategy.

---

Example Router Decisions

The learned router predicts a probability distribution over all available retrieval pipelines before execution.

Query	Router Confidence

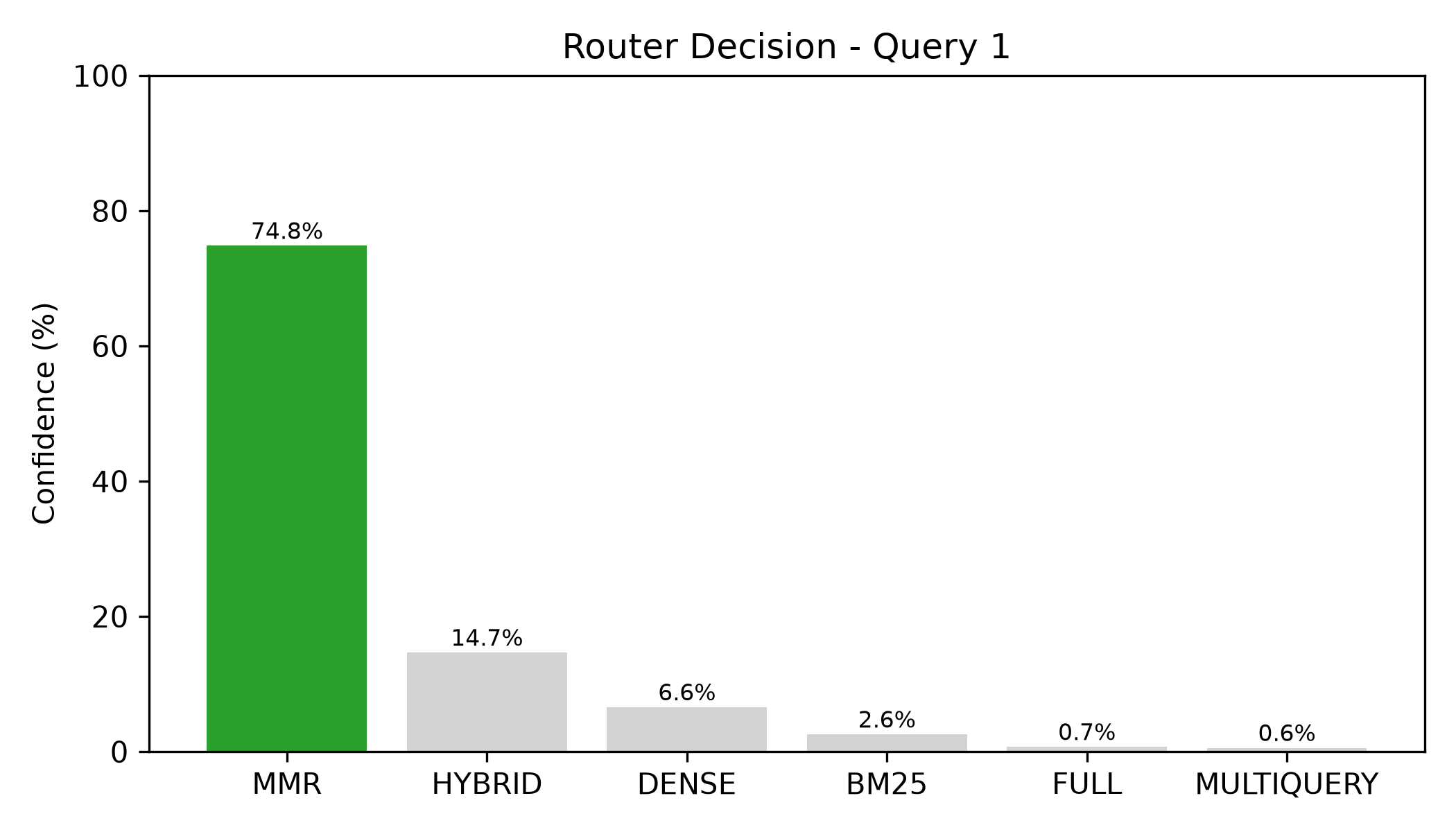

Where is build_prompt() defined? (MMR Selected)

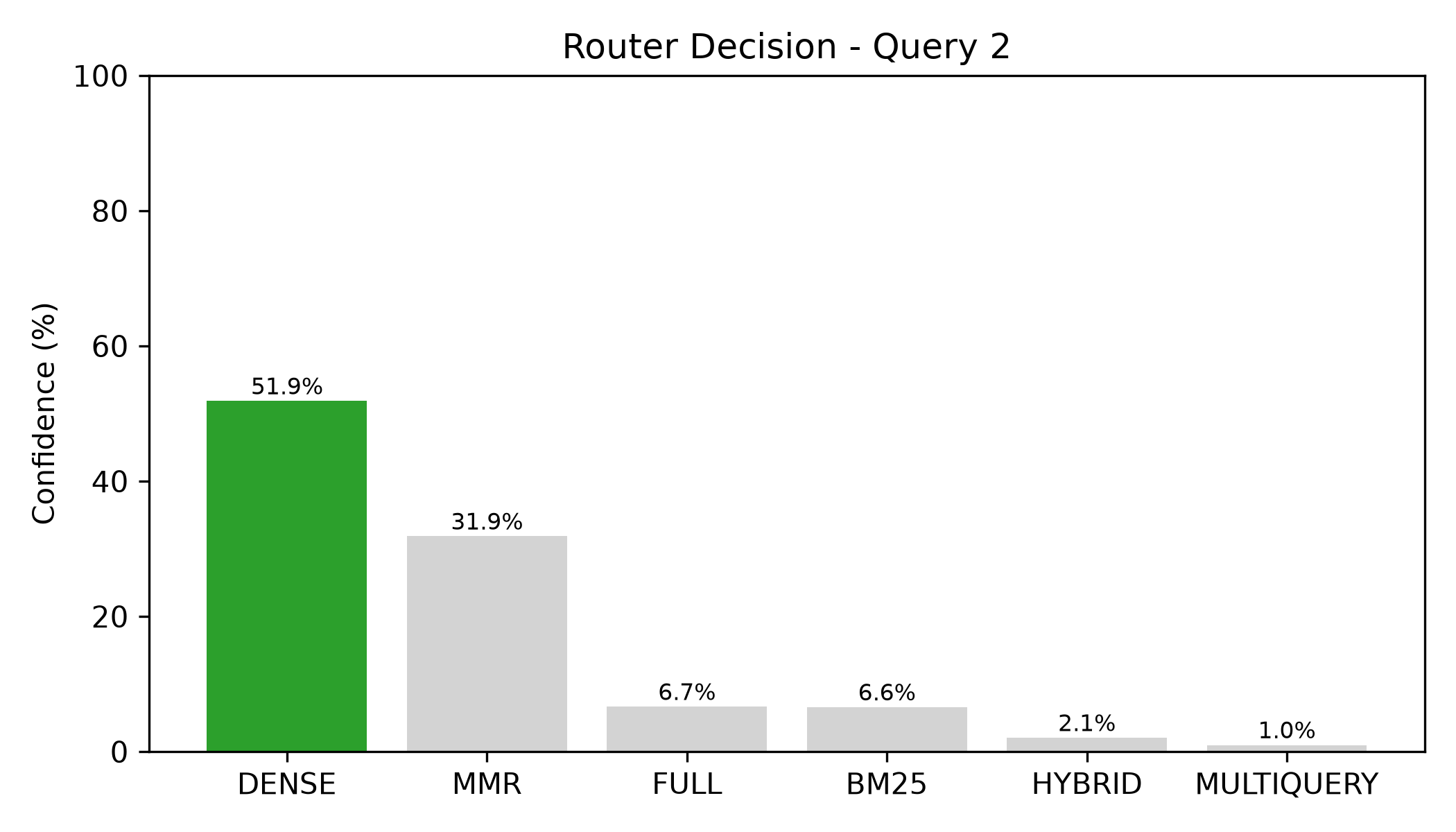

BM25 scoring formula (Dense Selected)

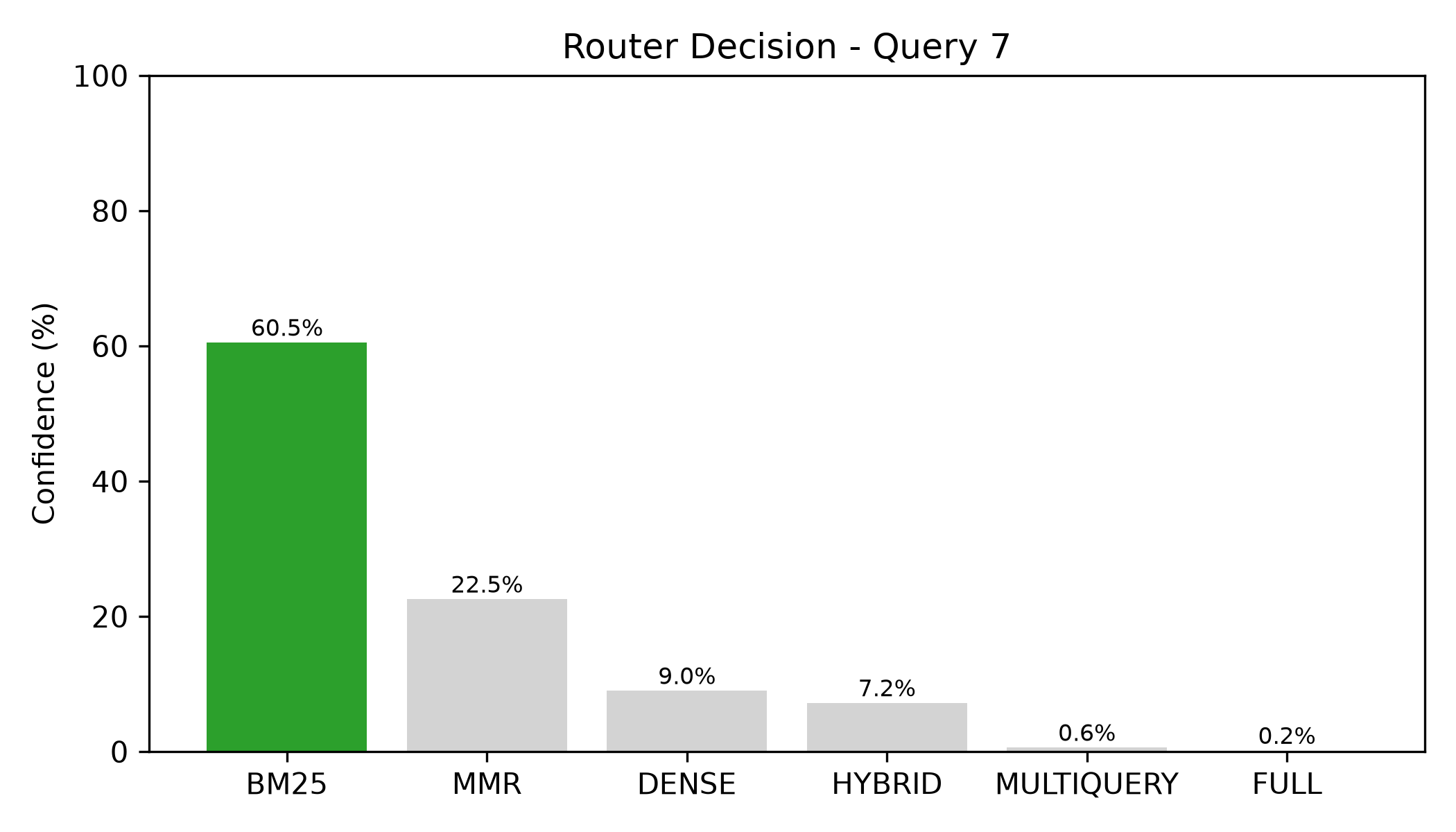

Design an end-to-end RAG pipeline (BM25 Selected)

Each graph represents the router's confidence distribution across every available pipeline, making routing decisions transparent and explainable.

---

Lazy Pipeline Loading

Pipelines are instantiated only when selected.

Loaded Pipelines
----------------
['bm25', 'dense', 'mmr']

Unused pipelines are never initialized, reducing startup overhead and memory usage while preserving completely dynamic routing.

---

Pipeline Usage During Evaluation

Across the evaluation suite, MetaRAG automatically distributed queries across multiple retrieval strategies instead of relying on a single fixed pipeline.

This behavior emerges entirely from the learned router and requires no manual pipeline selection.

---

Why Routing Matters

Instead of forcing every query through the same retrieval pipeline, MetaRAG adapts retrieval strategy to the characteristics of each incoming query.

✔ Query-aware pipeline selection

✔ Explainable routing probabilities

✔ Dynamic lazy pipeline initialization

✔ Pluggable routing engines (Rule-based or Machine Learning)

✔ Automatic benchmarking and evaluation

✔ Framework-first architecture with interchangeable retrieval components

🔭 Future Scope

🤖 Agentic Workflow (v1.0)

MetaRAG will support agentic execution — where the system can loop, retry with a different pipeline if confidence is low, and handle multi-hop questions that require multiple retrieval steps.

query → retrieve → evaluate
                      │
               score < 0.6?
                      │
              retry with different pipeline
                      │
               score >= 0.6?
                      │
                return answer

This turns MetaRAG from a pipeline selector into a self-correcting retrieval agent.

🌐 REST API (v1.5)

A FastAPI layer that exposes MetaRAG over HTTP — enabling any platform or language to use it.

POST /upload       # index a document set
POST /ask          # get an answer
GET  /leaderboard  # pipeline scores
GET  /history       # query history

Designed for organisations that cannot install Python directly — they just call the API.

🏢 Platform Integrations (v2.0)

Native integrations with where organisations actually work:

MetaRAG for Notion       →  query your Notion workspace
MetaRAG for Confluence   →  search your team's knowledge base
MetaRAG for SharePoint   →  enterprise document intelligence
MetaRAG for Slack        →  answer questions from channel history

🧠 Continuous Learning (v2.5)

A full training pipeline that learns from real usage:

Every ask() + score  →  training data
Periodic retraining   →  smarter router
Domain adaptation     →  legal, medical, code — tuned per org
Human feedback loop    →  thumbs up/down improves quality

The router goes from cold-start rules → win-rate thresholds → sklearn classifier → fine-tuned model, automatically, as data accumulates.

☁️ MetaRAG Cloud (v3.0)

A hosted layer for organisations that don't want to manage infrastructure — upload documents, ask questions via a chat interface, see the pipeline leaderboard, no terminal or Python setup required.

---

📁 Project Structure

metarag/
│
├── metarag.py            High-level framework — MetaRAG class
├── defaults.py           Shared, single-source-of-truth configuration
│
├── core/
│   ├── loader.py
│   ├── chunking.py
│   ├── embeddings.py
│   ├── vector_db.py
│   └── retriever.py
│
├── pipelines/
│   ├── generator.py
│   └── pipeline.py
│
├── Evaluator/
│   ├── evaluator.py
│   ├── scorer.py
│   └── metrics.py
│
├── router/
│   ├── router.py
│   ├── router_interface.py
│   ├── query_profiler.py
│   ├── corpus_profiler.py
│   └── probe_profiler.py
│
├── examples/
│   ├── loader_demo.py
│   ├── chunker_demo.py
│   ├── embeddings_demo.py
│   ├── retriever_demo.py
│   ├── vector_db_demo.py
│   ├── pipeline_demo.py
│   └── metarag_demo.py
│
├── tests/
│
├── docs/
│   ├── index.md
│   ├── installation.md
│   ├── quickstart.md
│   ├── architecture.md
│   ├── api.md
│   ├── contracts.md
│   ├── data_types.md
│   └── examples.md
│
├── assets/
├── README.md
├── LICENSE
├── pyproject.toml
└── requirements-dev.txt

---

🤝 Contributing

MetaRAG is in active development. Contributions welcome in any of these areas:

• New retrieval strategies
• New chunking strategies
• New evaluation metrics
• RAGTuner — hyperparameter sweep implementation
• CLI tool
• Integration connectors (Notion, Confluence, Slack)
• Documentation and examples

git clone https://github.com/AnkitKumarxcodes/metarag-sdk.git
cd metarag-sdk

python -m venv .venv
source .venv/bin/activate      # Windows: .venv\Scripts\activate

pip install -e .
pip install -r requirements-dev.txt

Run the test suite before opening a PR:

pytest

---

📄 License

MIT License — free to use, modify, and distribute.

---
