metemcyber 0.6.0

Decentralized Cyber Threat Intelligence Kaizen Framework.

Metemcyber

Decentralized Cyber Threat Intelligence Kaizen Framework. https://www.metemcyber.ntt.com

Pricom Mainnet (rpc.metemcyber.ntt.com)

Contract Name	Address
CTICatalog	0xBcb4b84cdaB65C6e6Efe1697CC41a46D0AEaCA61
CTIBroker	0xC1814B834E1be7DeE7611fD5F747535369B8683e
CTIOperator	0x35b3fbeABB802E9477b17a63073ABe874A386E25
metemcyber_util (placeholder)	0x0e5EECFF51a3ab2221fF6bBd240B20E8933ff28A __$47ceb01e1c551398bb2e8f2c8232f40551$__

💡 Overview

Metemcyber™ enables security collaboration and assessment all across the organization through the intelligence cycle.

• 📖 Metemcyber User Documentation

✨ Features

Anyone can make a successful intelligence cycle.

• Content-oriented Workflow
• Comparable Data Analysis Process
• Fault-tolerant Collaboration
• Disclosure Control of CTIs
• Measuring the Cost-Effectiveness of CTIs
• Transparency for Trust
  • Monitoring the trading activity of CTIs
  • Unlocking achievements based on your contribution.
• MISP-friendly 🤗

🚅 QuickStart

This exercise will be performed on the test environment.

apt install build-essential python3-dev
pip install -U pip
pip install -U 'metemcyber[cli]'

Check the current configuration:

metemctl config show

🔑 Create a new account

Create a new account if no keyfile available:

metemctl account create

Display your account details you are currently using:

metemctl account show

⚠️ You must agree to the terms of service. This is an experimental project on the enterprise ethereum of NTT Communications. You will get a promo code if you agree to these terms.

Get a promo code via email, and airdrop yourself some ETH to get started:

metemctl account airdrop $PROMOTE_CODE_IN_THE_CONFIRMATION_MAIL

🛒 Collect CTIs

Search for the CTI token you want to buy (e.g. OSINT)

metemctl ix search 'OSINT'

Enter the index number of the CTI token to be purchased. The CTI token address can also be accepted.

metemctl ix buy $TOKEN_INDEX_OR_ADDRESS

⚠️ You need an account to use ngrok. Setup a local ngrok environment. Download ngrok and extract it. Open the application directory to put the ngrok executable file there:

metemctl open-app-dir

$ ls "$(metemctl open-app-dir --print-only)"
external-links.json             metemctl.ini                    ngrok                           ...

Ngrok need to connect your ngrok account. Make sure the ngrok authtoken exists after ngrok setup:

cat ~/.ngrok2/ngrok.yml

Start a daemon to receive data using ngrok:

metemctl seeker start --ngrok
metemctl seeker status

Use CTI token to receive the MISP object on your public URL of the ngrok.

metemctl ix use $TOKEN_INDEX_OR_ADDRESS

♻️ Run the Intelligence Cycle

In this section, you will run the intelligence cycle using the exercise ir-exercise for Incident Response.

⚠️ You need to enable the test catalog as primary catalog. Enable the test catalog & Disable the production catalog:

metemctl ix catalog enable 0x168DD95472cEaF5c28447C8b07A593e205E92A12 # test
metemctl ix catalog disable 0xBcb4b84cdaB65C6e6Efe1697CC41a46D0AEaCA61 # production

Check your catalog settings:

$ metemctl ix catalog show
Catalogs *:active
 *1 0x168DD95472cEaF5c28447C8b07A593e205E92A12 # test
  2 0xBcb4b84cdaB65C6e6Efe1697CC41a46D0AEaCA61 # production

🤖 Create a new workflow

Metemcyber can be used not only for CTI dissemination but also CTI creation.

metemctl new　--starter=ir-exercise

Implement the analysis process into your workflow by selecting the event ID (In many cases, the same as the UUID of MISP object), the category of CTI (Fraud, Incident Response, Risk Analysis, Security Operations, Security Leadership, Vulnerability Management), and the content(IOCs, TTPs, etc.) you want to include in the CTI.

This is an important piece of evidence to check the "Direction" step in the intelligence cycle.

Select Intelligence Category (Fraud, IR, RA, SecOps, SecLead, Vuln) [IR]:
Input a new event_id(UUID) [70be8ba5-fa7f-4b8e-aa04-dc76e0fa8c42]:
0: IOC
1: TTP
2: Workflow
Choose contents to be include [0,1]:
================================================================
Event ID: 70be8ba5-fa7f-4b8e-aa04-dc76e0fa8c42
Category: Incident Response
Contents: ['TTPs', 'IOCs']
================================================================
Are you sure you want to create it? [y/N]:

📝 Summarize the data analysis process

⚠️ Make sure Seeker is running to receive the data.

metemctl seeker status

You need to use Kedro to summarize your data analysis process into a workflow.

In practice, it is difficult to clearly separate the steps of "Collection", "Processing" and "Analysis" in the intelligence cycle, which makes the data analysis process look complicated.

Please keep the following two points to make the data analysis process more maintainable.

• Using the Kedro pipeline to describe Analysis Strategy
• Using the Kedro nodes to describe Analysis Method

These are important pieces of evidence to check the "Processing" and "Analysis" step in the intelligence cycle.

For the success of the intelligence cycle, we are more focused on evaluating the data analysis process than on automating the CTI consumption process.

Get data for the exercise ir-exercise:

metemctl ix search '[ir-exercise]'
metemctl ix buy $TOKEN_INDEX_OR_ADDRESS
metemctl ix use $TOKEN_INDEX_OR_ADDRESS
metemctl ix extract $TOKEN_INDEX_OR_ADDRESS

Run the ir-exercise workflow:

metemctl run --setup

Check the contents of your CTI product and the workflow:

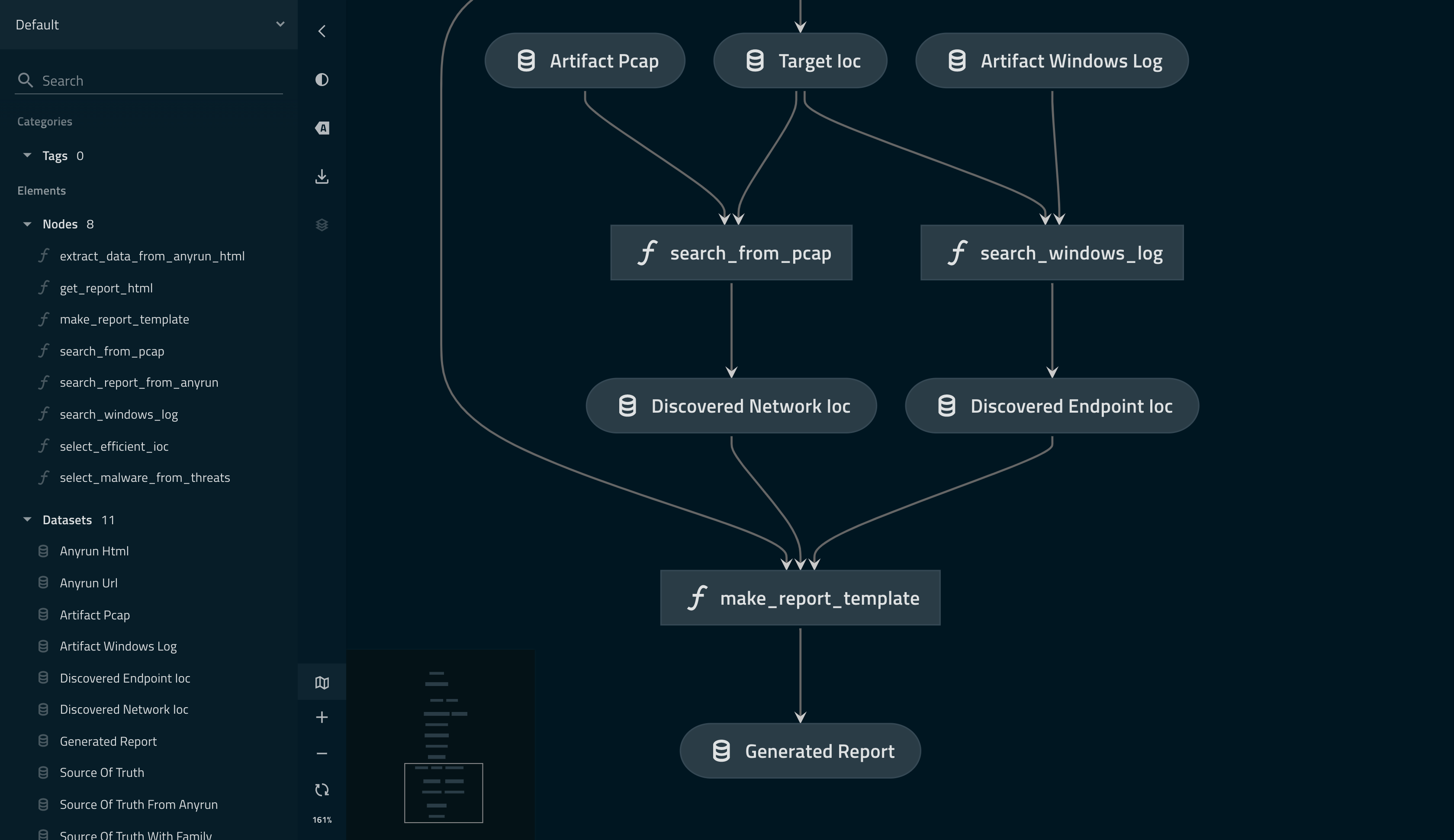

metemctl check --viz

The --viz option allows you to visualize your data analysis process described by the workflow. (the same as kedro viz)

🚀 Disseminate your CTI products to everyone:

⚠️ Solver must be running to send the data to token holders.

metemctl solver start --enable

MISP objects can be distributed when Solver is working properly.

$ metemctl solver status
Solver running with operator you configured(0xe889b84a209719B8f0272376dB49946DbD177aE6).

metemctl publish

🎉🎉🎉 Welcome to Metemcyber! 🎉🎉🎉

📖 Documentation

For more information see the documentation.
