Python interface to Miller SRL 2018 Alaska Moho model - requires stripy, numpy

Project description

Miller & Moresi - Alaska Moho Model with Notebooks

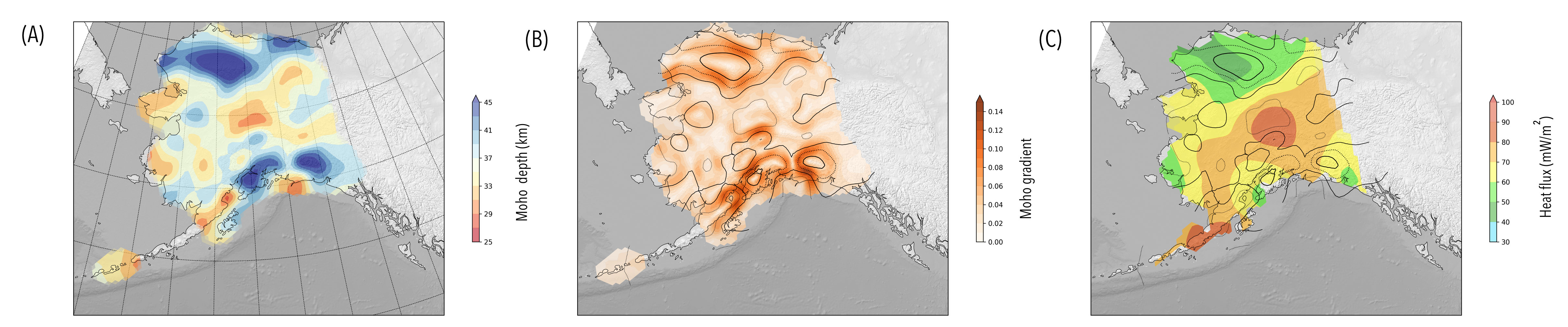

Image showing map of results

Preferred model, gradient and a comparison to heat flow data. The maps were produced using the cartopy package. Instructions for reproducing these maps are in the notebooks supplied with this package

This package is a self-consistent packaging of the Miller & Moresi Alaska Moho model. There are many ways to access this package.

It contains

  • This information
  • Scripts to install documentation and examples
  • Jupyter notebooks for manipulating the data
  • Jupyter notebooks for recreating our work

A demo is available on - open the notebook A0-Index.ipynb to begin. The 'current' version with any updates / errata is here:


This is exactly the published version (1.0), warts and all.


Site Map

The jupyter notebooks provided as examples are given below

  • A1: Raw data, convert and save
  • A2: Raw data - plot quality information
  • A3: Triangulating and interpolating raw data
  • A4: Plotting moho and moho slope
  • A5: Interactive 3D plot
  • A6: Convert Models to Regular XYZ grid

There are further notebooks that allow you to reproduce our work in creating the prefered model and these can be browsed in the ModelConstruction directory

Image showing quality scores on a map

We constructed our model by fitting surfaces to the observed points and recording the capacity of the model to predict information at points not included in the model construction. The quality of the model at each point was given an integer score and this was used to weight information in the final fitting process


The package can be installed standalone using pip or it can be run through docker without needing specific installation.

These notebooks can be viewed with jupyter but will only run if all the software dependencies have been installed (see Installation through pip below.

In nearly every instance we recommend using the (self-contained) docker version. We have provided some useful bash shortcuts that make the docker commands easier to remember (see Installation through docker below).

Installation through docker

First it is necessary to install the free docker, community edition from the docker store for your platform.

# Download the image with the scripts and data
docker pull lmoresi/docker-miller-moho:latest

That's it !

To test the installation, try the following

Command line docker examples

This help message

# print help message (i.e. usage)
docker run --rm lmoresi/docker-miller-moho:latest help

Install the bash helpers in the current directory

# print help message (i.e. usage)
docker run --rm lmoresi/docker-miller-moho:latest bash_utils >

Install the documentation / scripts and notebooks in the current directory

# print help message (i.e. usage)
msmoho-docker-sh install_examples

Run a local python script

# run with python in the docker container

Installation through pip (or conda)

The installation of the python package is straightforward but there is a dependency on numpy and on stripy which may require an installed fortran compiler. If this proves problematic, the docker version may simply be the best choice.

   #! /bin/env bash
   # install the main package
   # stripy and numpy are installed as dependencies by pip
   # but we can do this explicitly to manage versions and
   # check for errors

   pip install numpy
   pip install stripy

   # stripy and numpy
   # as they embed fortran and C packages
   # miller_alaskamoho_srl2018 itself is pure python

   pip install miller_alaskamoho_srl2018

The following script tests the installation:

    #! /bin/env python
    import numpy as np
        import miller_alaskamoho_srl2018 as alaskamoho
    except ImportError:
        print ("Problem importing the alaska moho package")

    # Check the data files exist / can be read
    # [('lon', '<f8'), ('lat', '<f8'), ('moh', '<f8') ... etc
    # [-174.197495 -171.703506 -170.247696 -168.854996 -168.161896]
    # [43.61043017 34.75098075 37.34819411]

    mohoraw = alaskamoho.MohoErr

    # Check to see if the interpolator works
    # [43.61043017 34.75098075 37.34819411]

    moho_model = alaskamoho.MohoModel_opt
    lons = np.array([-150, -155, -160])
    lats = np.array([60, 65, 70])
    print(moho_model.value_at_lonlat_degrees(lons, lats, order=1))

    # install documentation in user-specified location
    # Should install in the current directory as AlaskaMohoExamples


If you install the documentation in the form of jupyter notebooks, then to view them, you also need to install some dependencies. Specifically:

   # The jupyter notebook system (and dependencies)
   pip install jupyter

   # scipy is used in some examples
   pip install scipy

   # cartopy is used to plot examples
   # (may be necessary to install the shapely package first)

   pip install --no-binary :all: shapely
   pip install cartopy

   # We need litho1pt0 to re-build the model files

   pip install litho1pt0

   # We use lavavu for the interactive visualisation of the surfaces

   pip install lavavu

   # pip install gdal is optional: it is used for shaded relief images of the
   # maps and also requires a download of the relevant image file.

   pip install gdal

If you only wish to browse the documentation / examples or see how we built the model, why not use the docker version !
