MIPY: Missing-data Imputation in Python

MIPY finds out which imputation method works best on your data, fills in the missing values with it, and gives you the tables, figures and a report to show for it. It is built for high-dimensional longitudinal data: many variables (for example hundreds of proteins) measured repeatedly on the same patients, as in the serum proteomics series GSE65622.

import mipy
res = mipy.analyze("my_data.csv")      # one line: benchmark, impute, figures, report

That call:

1. reads the table and works out which column is the patient ID, which is the visit, which are features, clinical covariates and survival times (and tells you, so you can correct it);
2. hides 20% of the values you do have, under three assumptions about why values go missing (completely at random, depending on visit and clinical data, or because they are low), repeats this three times, and asks every method to fill them in;
3. scores each method against the hidden true values (nRMSE within each feature; 1.00 = filling in the feature's mean), with Monte Carlo standard errors, the share of features where the method beats the mean, whether each patient's visit-to-visit variation is kept, and, for multiple imputation, whether the 95% intervals are honest;
4. fills in your real missing values with the best method (and gives m completed tables from the best multiple-imputation method);
5. runs an exploratory survival screen when the table has a survival time and an event column;
6. writes everything into one folder, with an HTML report that explains each result in plain language.

Install

pip install mipy-impute

Python 3.9 or newer, on Windows, macOS or Linux. Optional extras add methods:

pip install "mipy-impute[ml]"        # miceforest (LightGBM)
pip install "mipy-impute[automl]"    # HyperImpute and GAIN (needs PyTorch)
pip install "mipy-impute[bigdata]"   # polars and DuckDB for very large tables

Methods whose package is missing are skipped with a message that says what to install; nothing fails.

Try it in one minute

import mipy

df = mipy.example_cohort()             # synthetic cohort laid out like GSE65622
res = mipy.analyze(df, out="example_results", methods="quick", repeats=1)
res.show()                             # tables and figures; inline in Jupyter

Or from a terminal (Command Prompt, PowerShell, or a shell):

mipy example example.csv
mipy analyze example.csv --methods quick --repeats 1 --open

Your own data

One row per patient visit, like this (any column names work):

Patient_ID	sampling_point	EN-RAGE	GDF-15	...	RFS	event	trg_score
1	1	59.08	1203.4	...	2727	0	4
1	2	52.19		...	2697	0	4
2	1		980.1	...	1579	1	2

• an ID column and a visit column (optional, but needed by the longitudinal methods),
• many numeric feature columns with empty cells where values are missing (NA, n/a, <LOD, ND and similar entries are read as missing),
• optional clinical columns (few distinct values: stage, grade, batch),
• optional survival columns (a time and a 0/1 event).

CSV, Excel, TSV and Parquet files work, and so do pandas DataFrames. Check how MIPY reads a file before running anything:

mipy check my_data.csv

If a column is detected wrongly, say which is which:

res = mipy.analyze("my_data.xlsx", id_col="Patient_ID", time_col="sampling_point",
                   features="EN-RAGE:Prot_496",            # a range of columns, or a list
                   clinical=["trg_score", "ypn_stage"], survival=("RFS", "event"),
                   out="my_results")

More in docs/your_data.md.

What you get

my_results/
  report.html            all results, figures embedded, with explanations
  figures/               fig01_missingness ... fig09_survival  (PNG and PDF)
  tables/                accuracy_summary.csv, decision.csv, ... and mipy_results.xlsx
  completed_data/        completed_<best method>.csv and completed_<MI method>_draw1..5.csv
  run_log.txt            every step, warnings and error details

Figure	Shows
missingness	where values are missing, and whether low-level features miss more often
masking	which values each masking design hid

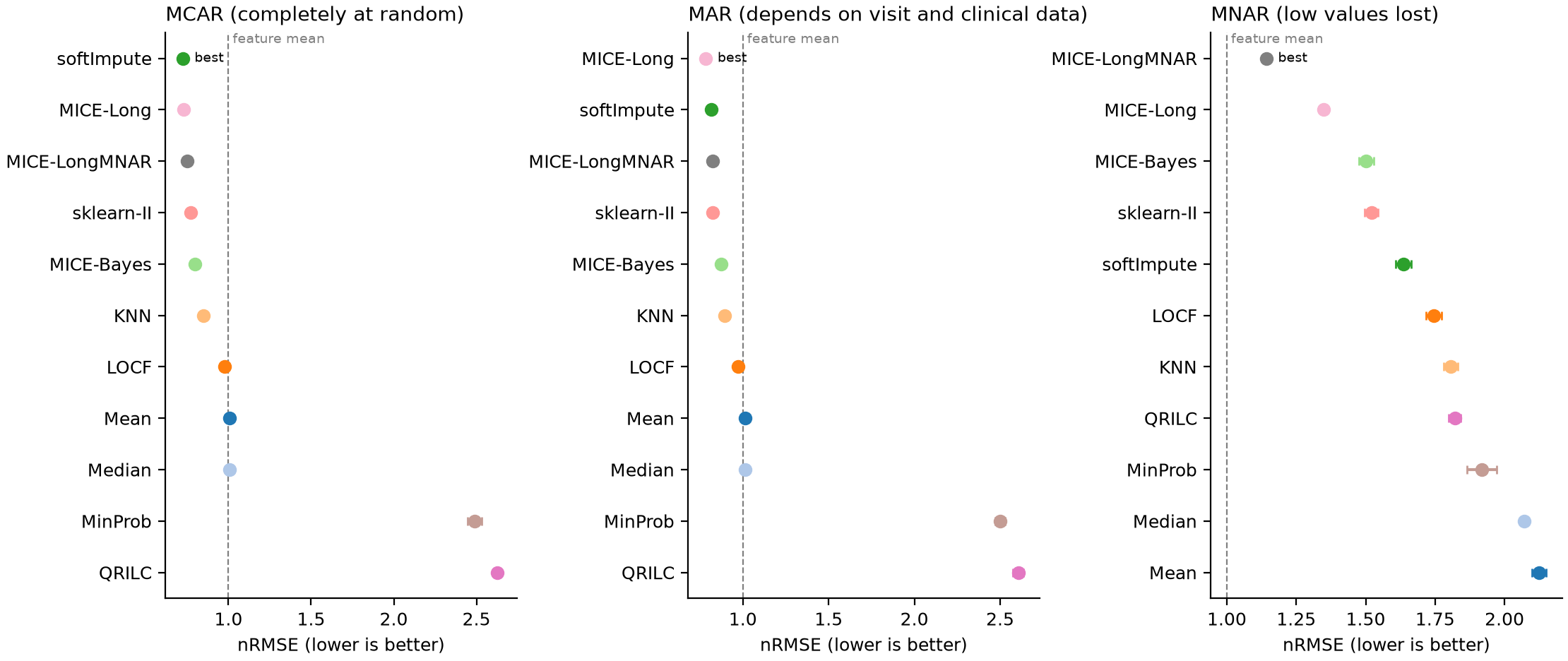

accuracy	nRMSE of every method under every mechanism, with Monte Carlo intervals
nrmse_per_feature	the spread of the error across features
sd_ratio	whether each patient's visit-to-visit variation is kept
coverage	calibration of multiple imputation (95% intervals)
runtime	seconds per run
imputed_vs_observed	your real missing values as filled in, against the observed values
survival	exploratory Cox screen (when survival columns exist)

In Python, res holds the same results: res.summary, res.decision, res.completed, res.completed_draws, res.survival, res.tables, res.figures, res.warnings.

Choosing methods

methods=	Methods	Time on 288 visits x 507 proteins, 9 maskings*
"quick"	Mean, LOCF, KNN, softImpute, MinProb, QRILC, MICE-Long	about 5 min
"standard" (default)	quick + Median, MICE-Bayes, sklearn-II, MICE-LongMNAR	10 to 20 min
"complete"	standard + missForest, miceforest, HyperImpute, GAIN	2 h or more
"all"	complete + the multiple-imputation versions and the exact imputeLCMD variants	longer

*one process on a 2-core machine; the example cohort takes about 3 minutes with "standard". n_workers="auto" runs several methods at once, and runs already finished are reused if you stop and start again.

Method	Family	Multiple imputation	Uses patients	Peer-reviewed description
Mean, Median	naive	no	no	no
LOCF	longitudinal rule	no	yes	no
KNN	neighbour	no	no	yes (Troyanskaya et al. 2001)
softImpute	low-rank	no	no	yes (Mazumder et al. 2010)
MICE-Bayes	chained equations	yes	no	yes (van Buuren & Groothuis-Oudshoorn 2011)
missForest	chained equations	no	no	yes (Stekhoven & Buhlmann 2012)
sklearn-II	chained equations	no	no	no (scikit-learn IterativeImputer)
miceforest	chained equations	no	no	no
HyperImpute	AutoML	no	no	yes (Jarrett et al. 2022)
GAIN	generative	no	no	yes (Yoon et al. 2018)
MinProb, QRILC	left-censored	no	no	yes (Lazar et al. 2016)
MICE-Long	longitudinal chained	yes	yes	new in MIPY
MICE-LongMNAR	selection-model MNAR	yes	yes	new in MIPY
softImpute-MI, missForest-MI, miceforest-MI	MI versions	yes	no	new in MIPY

• MICE-Long: chained equations that use each patient's previous visit, next visit and own mean, with a patient-level bootstrap (proper multiple imputation).
• MICE-LongMNAR: the same with selection-model draws for values lost below a detection limit; settings={"gamma": ...} sets the sensitivity parameter.
• softImpute, missForest, mice's norm.boot and imputeLCMD's MinProb and QRILC are implemented in Python and checked against the R packages (identical parameters; cell-level agreement r > 0.99 for softImpute).

Lower-level functions

done  = mipy.impute(df, method="softImpute", id_col="Patient_ID", time_col="sampling_point", log2=True)
draws = mipy.impute(df, method="MICE-Long", id_col="Patient_ID", time_col="sampling_point", m=5, log2=True)
bench = mipy.benchmark(df, methods=["Mean", "softImpute", "MICE-Long"], id_col="Patient_ID",
                       time_col="sampling_point", log2=True, mechanisms=("MCAR", "MNAR"), repeats=3)

from mipy.mi import pool_estimates      # Rubin's rules over the m completions
pooled = pool_estimates(estimates, by="term")   # columns: draw, term, beta, se

mipy.list_methods() lists every method with the function it calls and its evidence; mipy.literature() lists 14 Python imputation packages and the publication behind each.

Reproducing the MIPY paper

notebooks/MIPY_v2_pipeline.ipynb runs the full GSE65622 analysis of the paper (all methods, multiple imputation, MNAR sensitivity, agreement with R, data handling up to millions of patients, a synthetic second cohort, the survival screen) and writes every number, table and figure.

Tests

pip install "mipy-impute[all,test]"
pytest

Citation

See CITATION.cff. If you use MIPY, please cite the MIPY paper and the publication of each method you report (mipy.list_methods() gives the reference key).

Licence

MIT
