mlsurv 0.1.0

Low-code machine learning package for survival analysis

mlsurv

Low-code machine learning package for survival analysis

---

Intro to mlsurv

Survival analysis in clinical research typically requires stitching together various software tools for modeling, visualization, tuning, validation, and reporting. mlsurv unifies these processes into a single package: train, tune, and validate 10 survival models, generate publication-ready reports, and test on independent cohorts — all in under 10 lines of code.

Quick Start

from mlsurv import SurvivalLearner
from mlsurv.utils import load_survival_data

# Load data (pandas DataFrame + structured array with 'event' and 'time' fields)
X, y = load_survival_data('data.csv', time_col='OS_MONTHS', event_col='OS_STATUS')

# Train, tune, evaluate, and bootstrap all models
learner = SurvivalLearner(X, y)
learner.setup(random_state=42)
learner.run()

# Generate a publication-ready interactive HTML report
learner.generate_report('report.html')

See Vignette 01 for a complete walkthrough.

Accessing results and saving your analysis

The learner stores every result internally, so you don't need to capture what run() returns. Reach any result through these read-only accessors at any time, including after a reload:

result   = learner.models['coxph']      # ModelResult: .evaluation, .bootstrap, .model, .coefficients
best     = learner.best_model           # winning ModelResult
eval_all = learner.evaluation_result    # combined EvaluationResult (None before evaluate())
boot_all = learner.bootstrap_result     # combined BootstrapResult (None before bootstrap())

Export the result tables, or save and reload the whole session:

# Export all result tables to a single Excel workbook (or CSVs with format='csv')
learner.export_results('results.xlsx')

# Save the whole session and reload it later; results survive the round-trip
learner.save_learner('analysis.learner')
from mlsurv import load_learner
learner = load_learner('analysis.learner')
learner.models['coxph']                 # still here after reload

Command-Line Interface

mlsurv also provides a CLI for scripting, HPC pipelines, and quick one-off analyses:

# Full pipeline in one command
mlsurv run data.csv --time-col OS_MONTHS --event-col OS_STATUS --output report.html

# List available models
mlsurv models

# Train and tune a specific model
mlsurv tune data.csv --time-col OS_MONTHS --event-col OS_STATUS --model rsf --n-trials 50

# Validate on an external cohort
mlsurv validate data.csv --time-col OS_MONTHS --event-col OS_STATUS \
    --model coxph --validation-data external.csv \
    --val-time-col OS_MONTHS --val-event-col OS_STATUS

Run mlsurv --help for the full list of 26 subcommands, or see the CLI Guide for detailed documentation and workflows.

Data Format

mlsurv expects a feature matrix X (pandas DataFrame) and a structured survival array y with event (bool) and time (float) fields.

From CSV (recommended):

from mlsurv.utils import load_survival_data

X, y = load_survival_data('data.csv', time_col='OS_MONTHS', event_col='OS_STATUS')

load_survival_data automatically drops the time/event columns from X and converts events to boolean and times to float, following scikit-survival conventions.

From existing DataFrame:

from mlsurv.utils import to_structured_array

y = to_structured_array(times=df['OS_MONTHS'], events=df['OS_STATUS'])
X = df.drop(columns=['OS_MONTHS', 'OS_STATUS'])

From date columns (when your data has diagnosis/follow-up dates instead of pre-computed times):

from mlsurv.utils import compute_survival_time

X, y = compute_survival_time(
    df, start_col='diagnosis_date', end_col='last_followup_date',
    event_col='vital_status', time_unit='months',
    event_values=['deceased'],
)

Missing values are handled automatically via median imputation during preprocessing (configurable via setup(imputer=...)).

Installation

Install from PyPI:

pip install mlsurv

With deep learning support (PyTorch, pycox) for DeepSurv / DeepHit:

pip install "mlsurv[deep]"

macOS note: the XGBoost models (xgbaft, xgbcox) need the OpenMP runtime, which macOS does not ship by default. If you see an error about libomp.dylib failing to load, install it once with Homebrew:

brew install libomp

To install the latest unreleased version from GitHub:

pip install git+https://github.com/goeckslab/mlsurv.git

For development:

git clone https://github.com/goeckslab/mlsurv.git
cd mlsurv
pip install -e ".[dev]"

See CONTRIBUTING.md for the architecture overview, coding rules, and test conventions.

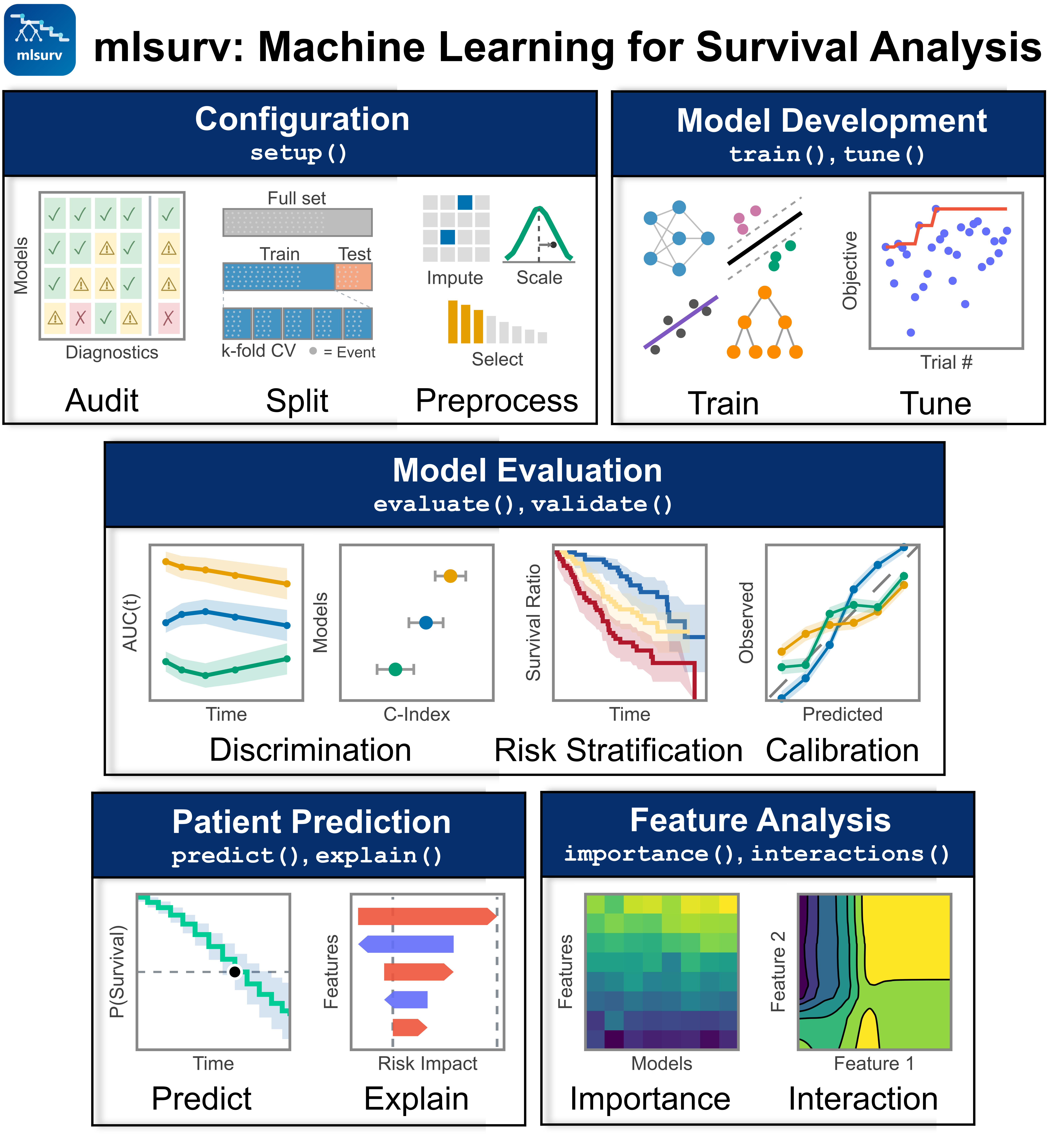

Features

• Low-code interface: setup() / run() / predict() / generate_report() for a full analysis in under 10 lines of code (Architecture)
• 10 survival models across 4 families (linear, ensemble, kernel, neural) with unified interface (Models)
• Configurable preprocessing: Imputation, scaling, and 5 feature selectors with leak-free CV pipelines (Pipeline)
• Automated checks: EPV warnings, leakage detection, PH and linearity testing, model recommendations (Pipeline)
• Optuna tuning: EPV-aware search spaces, auto-trial sizing, convergence detection, study persistence (Evaluation)
• Multi-metric evaluation: Harrell/IPCW/Antolini C-index, Brier/IBS, AUC(t), calibration slope/intercept, GND test (Metrics)
• Multi-scale evaluation: Subpopulation analysis, prospective patient prediction, and single-patient HTML reports with SHAP waterfall + cohort context (Evaluation); feature importance, SHAP, interactions, and individual patient explanations (Feature Analysis)
• External validation & benchmarking: Independent cohort validation, delta-C/NRI/IDI incremental metrics (Validation)
• S(t|x) calibration: Opt-in per-model calibration via train(calibrate=...) (isotonic / lowdof / breslow_slope) fit on leakage-free OOF predictions and applied automatically across evaluate / predict / validate, with a calibration banner in reports (Calibration)
• Automated reporting: 12-section interactive HTML report, 14 limitation flags, TRIPOD+AI compliance checklist (Reporting)
• Parallel computing: One-line n_jobs=-1 setup with smart auto-disable and no oversubscription
• 26 CLI subcommands for scripting and HPC pipelines (CLI Guide)
• Reproducible by default: Single random_state seeds all frameworks (scikit-learn, XGBoost, PyTorch). Bit-exact reproducibility requires n_jobs=1; see Reproducibility

Documentation

Guide	Description
Architecture & Models	Four-stage workflow, 10 survival models, complexity tiers, unified interface
Pipeline Configuration	Data loading, setup(), cross-validation, preprocessing, automated checks
Model Development & Evaluation	Training, tuning, metrics, bootstrap CIs, model comparison, subpopulation analysis, patient prediction
Feature Analysis	Feature importance, SHAP, interactions, individual patient explanations
Validation & Benchmarking	External cohort validation, incremental benchmarking metrics
Reporting & Compliance	Limitation flags, HTML reports, TRIPOD+AI checklist, data export
CLI Guide	26 command-line subcommands for scripting and HPC
Tutorial Vignettes	7 Jupyter notebooks from quickstart to immunotherapy case study

Supported Models

mlsurv includes 10 survival models across 4 categories:

Linear/Parametric (3)

Model	Description
CoxPH	Cox Proportional Hazards
CoxNet	Elastic Net penalized Cox
Weibull AFT	Parametric Weibull Accelerated Failure Time model

Tree-Based Ensemble (4)

Model	Description
RSF	Random Survival Forest
GBSA	Gradient Boosting Survival Analysis
XGBoost-Cox	XGBoost with survival:cox objective
XGBoost AFT	XGBoost with Accelerated Failure Time objective

Support Vector Machine (1)

Model	Description
FSSVM	Fast Survival SVM

Neural Networks (2)

Model	Description
DeepSurv	Continuous-time Cox neural network
DeepHit	Discrete-time neural network (DeepHitSingle)

Note: All 10 models assume a single event type. See Limitations for clinical implications.

Limitations

• Single-event right-censored outcomes only (no competing risks, no time-varying covariates)
• See Reporting & Compliance for the full list of 14 automatically detected limitation flags

Citation

If you use mlsurv in published work, please cite:

mlsurv: Low-code machine learning for survival analysis. Goecks Lab, Moffitt Cancer Center. https://github.com/goeckslab/mlsurv

Changelog

See CHANGELOG.md for the release history.

License

MIT License - see LICENSE

Acknowledgments

mlsurv was built in part with Claude Code, Anthropic's agentic coding tool.
