mlx-taef

Tiny AutoEncoders for diffusion latents on Apple Silicon, in pure MLX.

mlx-taef is the first MLX port of the TAESD family — TAESD (SD1.x), TAESDXL (SDXL), TAEF1 (FLUX.1), TAEF2 (FLUX.2 Klein) — distilled mini-autoencoders that decode diffusion latents to RGB in milliseconds using a few-MB model instead of multi-GB full VAEs.

Use it for:

• Live previews during long generations on Mac — see each step refresh in <100 ms instead of waiting 30 s for the full VAE.
• Low-memory fallbacks when the full VAE OOMs on 16 GB Macs (TAEF2 peaks at ~1 GB for 1024×1024 vs ~9.6 GB for the full Flux VAE).
• Quick latent inspection in notebooks and ML research.

import mlx.core as mx
from mlx_taef import TAEF2

taef = TAEF2.from_pretrained()              # downloads + converts on first call
img = taef.decode(latents)                  # NHWC float in [0, 1]
img_uint8 = taef.decode_image(latents)      # uint8 NHWC ready for PIL

Install

From PyPI:

pip install mlx-taef
# With the mflux preview callback:
pip install "mlx-taef[mflux]"

Or with uv:

uv add mlx-taef
# With mflux:
uv add "mlx-taef[mflux]"

Pin an exact version in a project that needs reproducibility:

pip install "mlx-taef==0.1.0"

Verify the install:

mlx-taef --help

Requires Python ≥ 3.11 and Apple Silicon (mlx itself is Apple-Silicon-only). Runtime install has zero PyTorch dependency — torch is dev-only and used solely for fixture generation in the test suite.

Variants

Variant	latent_channels	For	HF source
TAESD	4	Stable Diffusion 1.x	madebyollin/taesd
TAESDXL	4	Stable Diffusion XL	madebyollin/taesdxl
TAEF1	16	FLUX.1	madebyollin/taef1
TAEF2	32	FLUX.2 Klein	madebyollin/taef2

All four share one API.

Benchmarks (M1 Max, fp16)

Metric	TAEF2 (this library)	Full Flux VAE (reference)	Win
Decode latency 1024×1024	~100 ms	seconds	50–100×
Peak unified memory 1024×1024	~1 GB	~9.6 GB	9.4×
Output cosine sim vs PyTorch reference	> 0.999	—	(parity verified)

Numbers from tests/test_perf.py on M1 Max 32 GB. See notes/phase1-benchmarks.md for details.

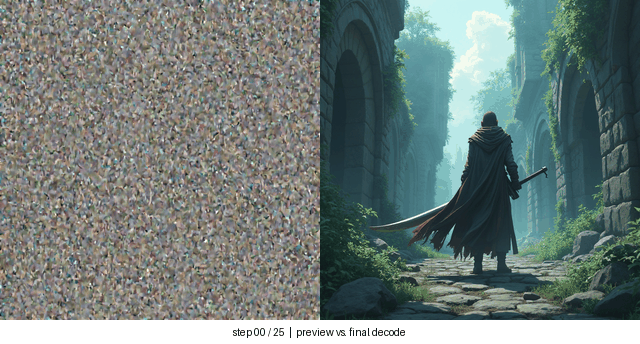

mflux live previews

from mflux.models.flux2 import Flux2Klein
from mlx_taef.integrations.mflux import LivePreviewCallback

model = Flux2Klein.from_pretrained("4bit")
preview = LivePreviewCallback(
    variant="taef2",
    every=5,
    save_to="preview.png",
    latent_height=32,  # 512 / 16
    latent_width=32,
)
model.callbacks.register(preview)
model.generate_image(
    prompt="a red apple on a wooden table",
    num_inference_steps=25,
    width=512,
    height=512,
    seed=42,
)

For exact value-space recovery, also pass bn_mean=flux2_vae.bn.running_mean, bn_var=flux2_vae.bn.running_var to the callback. Without them, previews show correct structure but colors may shift.

See docs/manual-verification.md for the full verification recipe.

Status

• v0.1.0 — initial public release on PyPI (2026-05-13). All four variants, encoder + decoder, mflux integration, CI, 99 % honest coverage.

Track future releases via the PyPI history or gh release list -R IonDen/mlx-taef.

License

MIT. Mirrors upstream madebyollin/taesd license. Pretrained weights belong to their respective authors (madebyollin).

Acknowledgements

• madebyollin for the upstream TAESD-family models and weights.
• Apple ML Explore for MLX.
• filipstrand/mflux for the MLX-native FLUX runner this library integrates with.
