mlx2md 0.1.4

Matlab mlx to Markdown format converter

MATLAB .mlx to Markdown .md Converter

Installation

pip install mlx2md

Usage

python -m mlx2md -i example.mlx

Example Converted Code

MATLAB LIVE SCRIPT

System Definition

clc
clear
syms x1 x2 x3 x4 x5 x6 x7 x8 u_x u_y;

% System's Type
MIMO = 1;

% constants
m = 0.11;
Ib = 1.76e-5;
rb = 0.02;

b = m/ (m + Ib/ rb^2)
g = 9.81;

% Non-linear system's state-space
X = [x1 x2 x3 x4 x5 x6 x7 x8];
U = [u_x u_y];
f =[ x2;
     b*(x1*x4*x4+x4*x5*x8-g*sin(x3));
     x4;
     u_x;
     x6;
     b*(x5*x8*x8+x1*x4*x8-g*sin(x7));
     x8;
     u_y;
    ];

% Linearized system's state-space
As = jacobian(f, X);
A = subs(As, [X,U], [0 0 0 0 0 0 0 0 0 0]);
A = double(A)
n = length(A);

Bs = jacobian(f, U);
B = subs(Bs, [X,U], [0 0 0 0 0 0 0 0 0 0]);
B = double(B)
[~,p] = size(B);

C = [1 0 0 0 0 0 0 0; 0 0 0 0 1 0 0 0]
[l,~] = size(C);

D = zeros(l,p)

sys = ss(A,B,C,D);
G=tf(sys)
Input_1_to_ouput1=G(1,2)
Input_2_to_ouput2=G(2,1)

---

% Input_1_to_ouput1 is equal to Input_2_to_ouput2 so can
% split A into two SISO system
A_X=[0 1 0 0
    0 0 -g*b 0
    0 0 0 1
    0 0 0 0]
B_X=[0; 0; 0 ;1]
C_X=[1 0 0 0]
D_X=[0]

---

rank(obsv(A,C)) % == 8
rank(ctrb(A,B)) % == 8
%% so our system is minimal

---

desired_OS = 10;
Ts=1;
zita = 0.59;
w = 6.77;
sd_1=-zita*w + w * sqrt(zita^2-1)
sd_2=-zita*w - w * sqrt(zita^2-1)
sd_3=-20
sd_4=-30

---

K_X=place(A_X,B_X,[sd_1 sd_2 sd_3 sd_4])
K = [K_X 0 0 0 0;0 0 0 0 K_X]

---

controlled_tf=tf(ss(A_X-B_X*K_X,B_X,C_X,D_X))

---

static_compensator=evalfr(controlled_tf,0)^(-1);

step(static_compensator*controlled_tf);

t = linspace(0, 20, 1000);                         % Time Vector
u = sin(t);                                     % Forcing Function
y = lsim(static_compensator*controlled_tf, u, t);                                % Calculate System Response

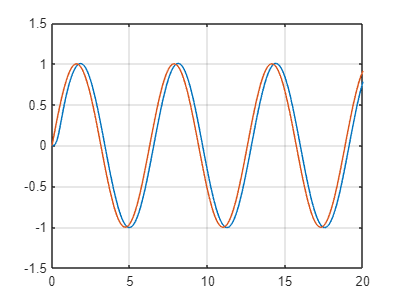

figure(1)
plot(t, y, t, u)
grid

---

A_bar = [A_X zeros(4,1); -C_X zeros(1,1)];
B_bar = [B_X;  zeros(1,1)];
k_new = place(A_bar,B_bar,[sd_1,sd_2,sd_3,sd_4,-40])
k_d = [k_new(1:4) 0 0 0 0; 0 0 0 0 k_new(1:4)]
dynamic_pre_comp = [-k_new(:,5:end) 0; 0 -k_new(:,5:end)]

RESULTS

b (1x1):

0.7143

A (8x8) double:

         0    1.0000         0         0         0         0         0         0
         0         0   -7.0071         0         0         0         0         0
         0         0         0    1.0000         0         0         0         0
         0         0         0         0         0         0         0         0
         0         0         0         0         0    1.0000         0         0
         0         0         0         0         0         0   -7.0071         0
         0         0         0         0         0         0         0    1.0000
         0         0         0         0         0         0         0         0

B (8x2) double:

     0     0
     0     0
     0     0
     1     0
     0     0
     0     0
     0     0
     0     1

C (2x8) double:

     1     0     0     0     0     0     0     0
     0     0     0     0     1     0     0     0

D (2x2) double:

     0     0
     0     0

G =

  From input 1 to output...
       -7.007
   1:  ------
        s^4

   2:  0

  From input 2 to output...
   1:  0

       -7.007
   2:  ------
        s^4

Continuous-time transfer function.

Input_1_to_ouput1 =

  0

Static gain.

Input_2_to_ouput2 =

  0

Static gain.

A_X (4x4) double:

         0    1.0000         0         0
         0         0   -7.0071         0
         0         0         0    1.0000
         0         0         0         0

B_X (4x1) double:

     0
     0
     0
     1

C_X (1x4) double:

     1     0     0     0

D_X (1x1):

0

ans (1x1):

8

ans (1x1):

8

sd_1 (1x1):

-3.9943 + 5.4661i

sd_2 (1x1):

-3.9943 - 5.4661i

sd_3 (1x1):

-20

sd_4 (1x1):

-30

K_X (1x4) double:

	1.0e+03 *

   -3.9245   -1.0111    1.0453    0.0580

K (2x8) double:

	1.0e+03 *

   -3.9245   -1.0111    1.0453    0.0580         0         0         0         0
         0         0         0         0   -3.9245   -1.0111    1.0453    0.0580

controlled_tf =

                     -7.007
  ---------------------------------------------
  s^4 + 57.99 s^3 + 1045 s^2 + 7085 s + 2.75e04

Continuous-time transfer function.

k_new (1x5) double:

	1.0e+05 *

   -0.4437   -0.0698    0.0336    0.0010    1.5698

k_d (2x8) double:

	1.0e+04 *

   -4.4368   -0.6978    0.3365    0.0098         0         0         0         0
         0         0         0         0   -4.4368   -0.6978    0.3365    0.0098

dynamic_pre_comp (2x2) double:

	1.0e+05 *

   -1.5698         0
         0   -1.5698

k_new (1x5) double:

	1.0e+05 *

   -0.4437   -0.0698    0.0336    0.0010    1.5698
