mm-evalkit 0.1.0

Benchmark MuscleMimic policy kinematics, kinetics, and neuromuscular behavior against human data

MM-EvalKit (MuscleMimic Evaluation Kit)

mm-evalkit is the evaluation benchmark for MuscleMimic policies. It compares rollout NPZ files with recorded human data at three physiological levels:

• kinematics: joint-angle RMSE and waveform correlation;
• kinetics: joint-moment and vertical-GRF RMSE and waveform correlation; and
• neuromuscular behavior: muscle-activation correlation and muscle RSA against human EMG.

The benchmark produces population and subject-matched metrics, human reference baselines, statistical reports, figures, and exclusion audits.

Supported datasets

Dataset	Evaluation	Analysis unit
Gait120	Joint angles, joint moments, vertical GRF, muscle activation, and EMG	Subject and gait cycle
Wang	Joint angles, muscle activation, and EMG	Population gait profile
ULTra-MoCap	Arm kinematics, muscle activation, and EMG	Subject, movement, and trial

Gait120 provides all three evaluation levels over one retained subject cohort.

Install

The PyPI distribution is named mm-evalkit; it provides the mm_evalkit Python package and the mm-evalkit command-line interface. Install it with Python 3.11 or newer:

python -m pip install mm-evalkit

Synchronized visualization requires the render extra:

python -m pip install 'mm-evalkit[render]'

Configure data paths

mm-evalkit paths set gait120 /absolute/path/to/Gait120
mm-evalkit paths set wang /absolute/path/to/Wang
mm-evalkit paths set ultra-mocap /absolute/path/to/ULTra-MoCap
mm-evalkit paths show

An explicit --dataset_dir on an evaluation command overrides the saved path.

Define policies

Evaluation commands accept a YAML file containing one or more rollout exports:

policies:
  - id: policy-a
    label: "Policy A"
    trajectory_data_path: trajectory_data/policy-a/episodes.npz
    color: "#2a78d6"
    linestyle: "-"

The rollout motion_group and traj_id values determine subject and trial identity. Compared policies must use the same ordered references.

Evaluate

Gait120

mm-evalkit evaluate gait120 \
  --motion_group GAIT120_TESTING \
  --policy_config_file policies.yaml \
  --plots_dir results/gait120 \
  --kinetics_reference_dir /path/to/gait120-kinetics

--kinetics_reference_dir enables the kinetics layer. The rollout NPZ provides policy joint-force and foot-contact-force signals. Human joint moments come from inverse dynamics; human GRF comes from corrected Gait120 force-plate measurements.

Wang

mm-evalkit evaluate wang \
  --policy_config_file policies.yaml \
  --plots_dir results/wang

ULTra-MoCap

mm-evalkit evaluate ultra-mocap \
  --motion_group ULTRA_MOCAP_BIMANUAL_TESTING_SUBJECTS \
  --policy_config_file policies.yaml \
  --plots_dir results/ultramocap

Each run requires an empty output directory. Dataset-specific options are available through:

mm-evalkit evaluate --list-datasets
mm-evalkit evaluate gait120 --help
mm-evalkit evaluate wang --help
mm-evalkit evaluate ultra-mocap --help

Outputs

Evaluation outputs include:

• population and subject-matched metric tables;
• waveform and summary figures;
• paired Wilcoxon reports with Holm correction;
• retained-subject and exclusion audits; and
• run manifests where the workflow provides them.

Gait120 kinetics writes kinetics_profiles.svg, kinetics_metrics.svg, kinetics_metrics.csv, and kinetics_input_omissions.csv.

Each dataset command documents its complete configuration through --help. Input archives are validated before analysis starts.

Synchronized visualization

Renderers synchronize policy motion with human and artificial muscle signals:

mm-evalkit render gait120 --help
mm-evalkit render ultra-mocap --help

Demos

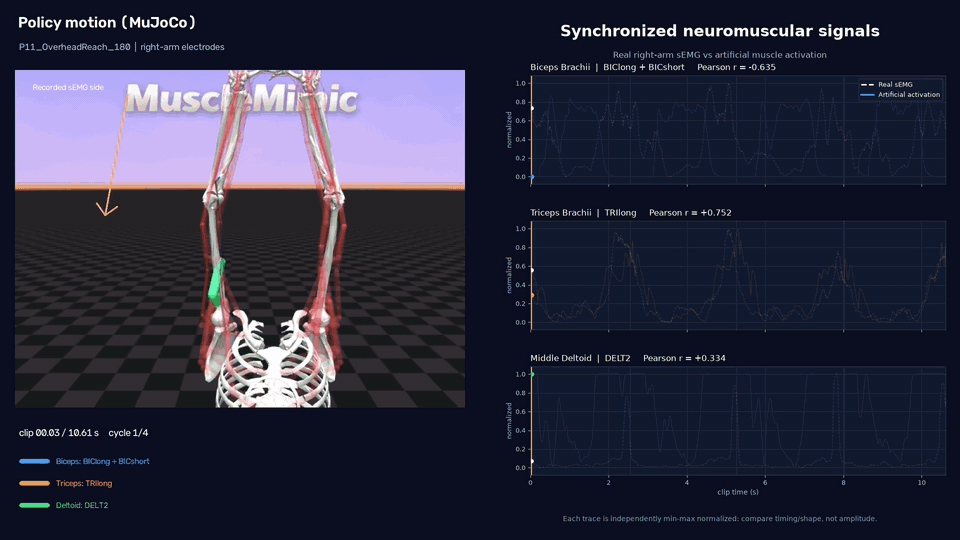

Overhead reach (P11_OverheadReach_180)

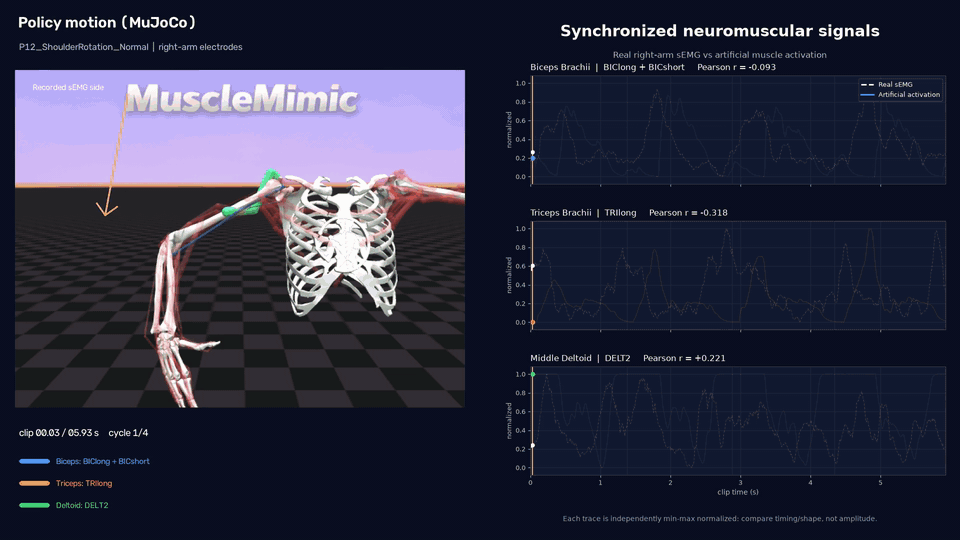

Shoulder rotation (P12_ShoulderRotation_Normal)

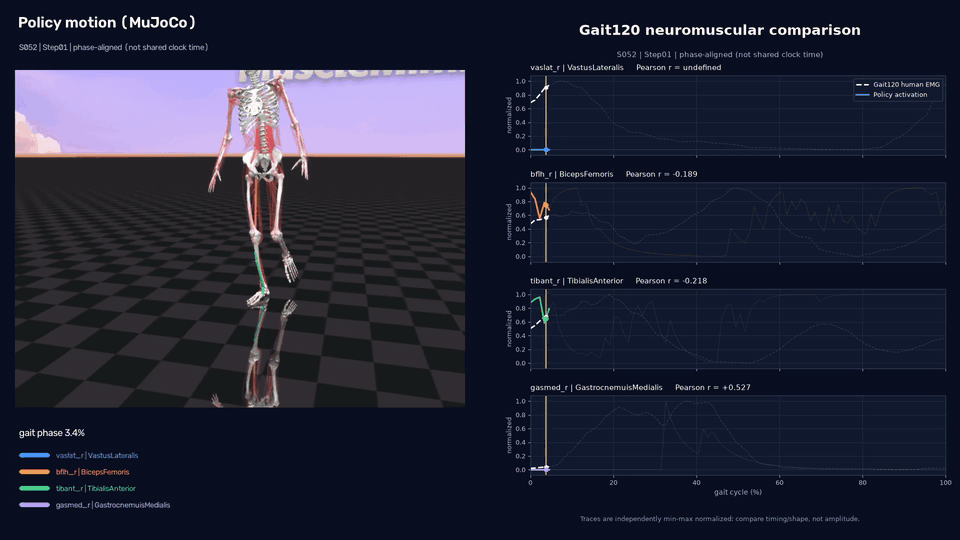

Gait step (S052_step01)

Add a dataset

Dataset adapters declare their source contract, workflow, CLI entrypoint, and tests. Keep dataset files outside the repository and document their license and access requirements.

External packages register adapters in pyproject.toml:

[project.entry-points."mm_evalkit.datasets"]
example = "example_package.cli:main"

[project.entry-points."mm_evalkit.renderers"]
example = "example_package.render:prepare_clip"

Validation should cover a minimal valid dataset, malformed inputs, alignment, normalization, metrics, registry discovery, and an end-to-end run. The architecture guide defines the extension boundaries.

Development

git clone https://github.com/amathislab/mm-evalkit.git
cd mm-evalkit
make install-dev
make format
make lint
make test
make precommit

Ruff and pre-commit cover every Python file in the repository.

See Architecture for data flow, module ownership, input contracts, and public extension points.

Citation

@article{Li2026MuscleMimic,
  title={Towards Embodied AI with MuscleMimic:
    Unlocking full-body musculoskeletal motor learning at scale},
  author={Li, Chengkun and Wang, Cheryl and Ziliotto, Bianca and
    Simos, Merkourios and Kovecses, Jozsef and Durandau, Guillaume and
    Mathis, Alexander},
  journal={arXiv preprint arXiv:2603.25544},
  year={2026}
}
