MohrCirclePlotter

A Python library to plot Mohr's circle

⚠️ Disclaimer

This software is provided for educational and research purposes only. Results produced by this package should not be used as the sole basis for engineering design decisions without independent verification by a qualified professional engineer.

THE AUTHORS AND CONTRIBUTORS ACCEPT NO LIABILITY for any damages, losses, or consequences arising from the use or misuse of this software. See LICENSE for full terms.

Installation

pip install mohrcircleplotter

Documentation

Mohr's circles are plotted on a matplotlib plot. If these circles are stresses at failure, a Mohr-Coulomb failure envelope can be estimated. More details can be found in https://e-mags.github.io/MohrCirclePlotter/

from mohrcircleplotter import MohrPlot

plot = MohrPlot(halfplot=True,show_tension=True, units='MPa')

# Define some circles (sigma_x, sigma_y, tau_xy)
circles = [
    (80, 30, 30),
    (60, 20, 20),
    (40, 10, 10)
]

for sigma_x, sigma_y, tau_xy in circles:
    plot.oriented_circle(sigma_x, sigma_y, tau_xy)

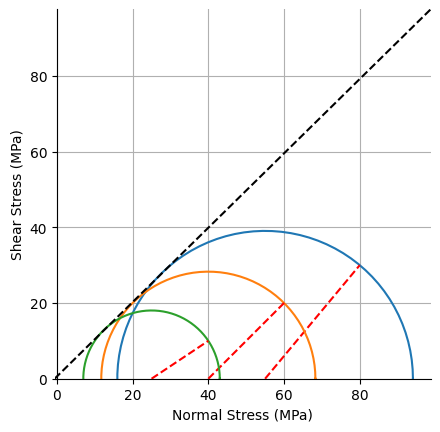

# Estimate and plot the Mohr-Coulomb failure envelope
plot.estimated_mc_envelope()
