mpl-altair 0.1.0

A native matplotlib backend for Altair

mpl-altair

A prototype native matplotlib backend for Altair. It renders Altair charts as real matplotlib Figure/Axes objects, not as an image copy of Vega-Lite's own renderer. That means a chart from mpl-altair is a genuine matplotlib plot: you can theme it with any mpl style, embed it in a subplot grid next to other matplotlib plots, or export it through any matplotlib backend (PDF, SVG, PGF/LaTeX, and so on).

Examples

Each pair shows the same Altair chart rendered by Vega-Lite's own renderer (left) and by mpl-altair (right). The goal is a semantic match, not a pixel match, so tick placement and label formatting differ where matplotlib's own conventions apply.

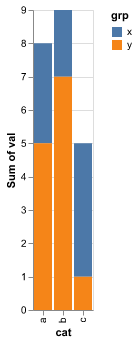

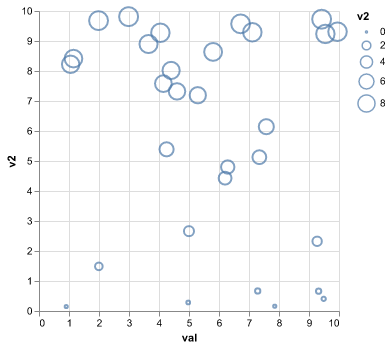

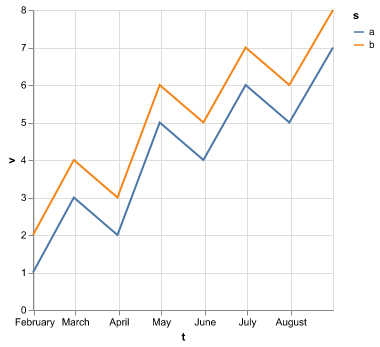

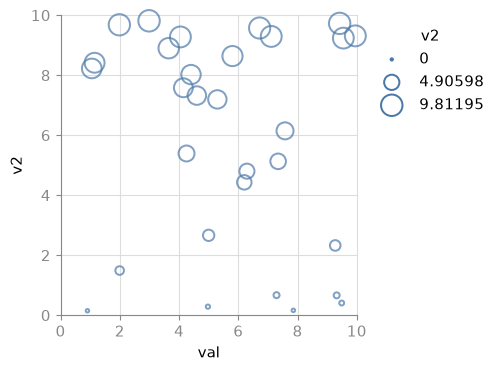

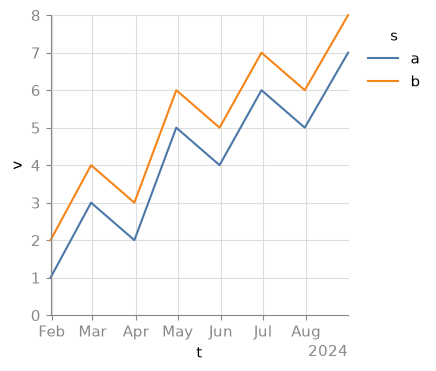

Altair (vl-convert)	mpl-altair

Because the output is a real matplotlib figure, any matplotlib style restyles the whole chart. This is the same stacked bar converted with style="dark_background":

Quickstart

import altair as alt
import pandas as pd
import mplaltair

df = pd.DataFrame({"cat": ["a", "b", "c"], "val": [3, 7, 5]})
chart = alt.Chart(df).mark_bar().encode(x="cat:N", y="val:Q")

fig = mplaltair.convert(chart)
fig.savefig("bar.png")

convert() also accepts a raw Vega-Lite spec dict, an ax= to draw into (for embedding in a subplot grid), and a style= kwarg:

fig, (ax1, ax2) = plt.subplots(1, 2)
mplaltair.convert(chart1, ax=ax1)
mplaltair.convert(chart2, ax=ax2, style="dark_background")

• style="vega-lite" (default): mpl-altair's bundled Vega-Lite-ish style sheet.
• style=None or style="none": no style context is applied; the chart uses whatever mpl style/rcParams are already active in your session.
• Anything else (style="dark_background", style="/path/to/my.mplstyle", ...): passed straight through to plt.style.context(...).

Using it as an Altair renderer

mpl-altair also registers itself as an Altair renderer, so chart objects display as matplotlib-rendered PNGs (for example, in a Jupyter notebook):

import mplaltair
mplaltair.enable()

chart  # displays as a matplotlib PNG instead of the default Vega-Lite renderer

How it works

Altair charts are specified in Vega-Lite, a high-level grammar of graphics. mpl-altair does not reimplement Vega-Lite's semantics. Instead it reuses the real Vega-Lite compiler and the real Vega dataflow engine to do all the hard work, and only translates the fully resolved result into matplotlib calls:

Altair chart (chart.to_dict())
  -> vl-convert: Vega-Lite spec -> Vega spec       (compiles all VL semantics/defaults)
  -> vegafusion: pre_transform_spec()               (evaluates transforms, inlines data)
  -> mpl-altair: reads the resolved scales/marks/axes/legends
  -> matplotlib calls, in data coordinates          (mpl owns axes, ticks, legends, layout)

This is why mpl-altair can support most standard Altair chart types without reimplementing Vega-Lite's scale, stacking, and binning logic from scratch: by the time mpl-altair sees the spec, vl-convert and vegafusion have already resolved it down to concrete rows, scale domains, and per-mark encodings. mpl-altair's job is just to walk that resolved structure and call the matching matplotlib function (ax.bar, ax.scatter, ax.plot, and so on).

Philosophy

matplotlib owns the axes, ticks, legends, and styling. mpl-altair does not chase pixel-for-pixel fidelity with Vega-Lite's own renderer.

Concretely:

• Positions and data extents come from Vega-Lite's resolved scale domains, but tick placement, tick formatting, gridlines, and legend layout are matplotlib's own (AutoLocator, ConciseDateFormatter, ax.legend, fig.colorbar, and so on).
• Colors follow matplotlib style, not Vega-Lite's rendering. A categorical color scale pulls from the active mpl prop_cycle; a continuous color scale pulls from rcParams['image.cmap']; Vega-Lite's compiled-in default mark color resolves to mpl's 'C0' so a plain, uncolored bar or point chart also restyles with the active mpl style.
• The goal is a semantic match: same data extents, same categories, same stacking order, same legend content, same colors-per-series. Not a pixel match against Vega-Lite's SVG/canvas renderer.

If you want the classic Vega-Lite look, that's the default (mplaltair ships a vega-lite mpl style sheet, applied automatically). If you want your own house style, pass any matplotlib style name or your own style sheet, or use style=None to inherit whatever mpl style is already active in your session.

Supported

• Marks: bar (simple, stacked, grouped), histogram (binned bar), point/circle/square (scatter), line (single and multi-series), area (stacked), tick, rule.
• Layered charts (multiple marks sharing one set of scales), through the same code path as a single mark, with no extra handling needed.
• Scales: linear, log, sqrt, time, band, point, ordinal/nominal.
• Encodings: x, y, color (categorical -> mpl prop cycle, continuous -> colormap + colorbar), size (scatter), shape is not yet implemented.
• Legends: categorical color/fill legends, continuous color colorbars, size legends (3-point proxy legend).
• zero/nice domain flags, d3-style binning, temporal axes with mpl's ConciseDateFormatter.

Not supported (prototype scope)

• geoshape, text, and arc marks.
• Independently-resolved dual-axis charts (resolve_scale(y="independent")) -- not handled; each scale/mark is walked independently with no special detection, so results are undefined rather than validated or rejected.
• Exact tick-format fidelity to Vega-Lite's d3-format strings (best-effort translation of trivial cases; mpl's own default formatting otherwise).

Unsupported or unrecognized spec shapes raise a warning and skip the offending piece rather than silently guessing or crashing the whole render. Larger missing pieces and known rendering issues are tracked on the issue tracker: faceting and concat (#1), interactivity and reactive signals (#2), and boundary gridline rendering (#3).

Gallery

scripts/gallery.py renders about a dozen representative charts through both mpl-altair and the reference vl-convert PNG renderer, side by side, into scripts/out/gallery.html, plus one extra row showing a chart re-themed with style="dark_background". Run it and open the HTML file in a browser:

MPLBACKEND=Agg uv run python scripts/gallery.py
open scripts/out/gallery.html

Tests

MPLBACKEND=Agg uv run pytest -q
