mpl-richtext 0.2.0

Rich text rendering for Matplotlib with multi-color and multi-style support

mpl-richtext

Rich text rendering for Matplotlib - Create beautiful multi-color, multi-style text in a single line.

Why mpl-richtext?

Standard Matplotlib only supports single-color text. To create multi-colored text, you need to manually position each piece and calculate spacing - tedious and error-prone!

mpl-richtext solves this by letting you specify colors and styles for each text segment in one simple function call.

Installation

pip install mpl-richtext

Quick Start

import matplotlib.pyplot as plt
from mpl_richtext import richtext

fig, ax = plt.subplots()

# Create multi-colored text in one line!
richtext(0.5, 0.5,
         strings=["hello", ", ", "world"],
         colors=["red", "blue", "green"],
         ax=ax, fontsize=20, transform=ax.transAxes)

plt.show()

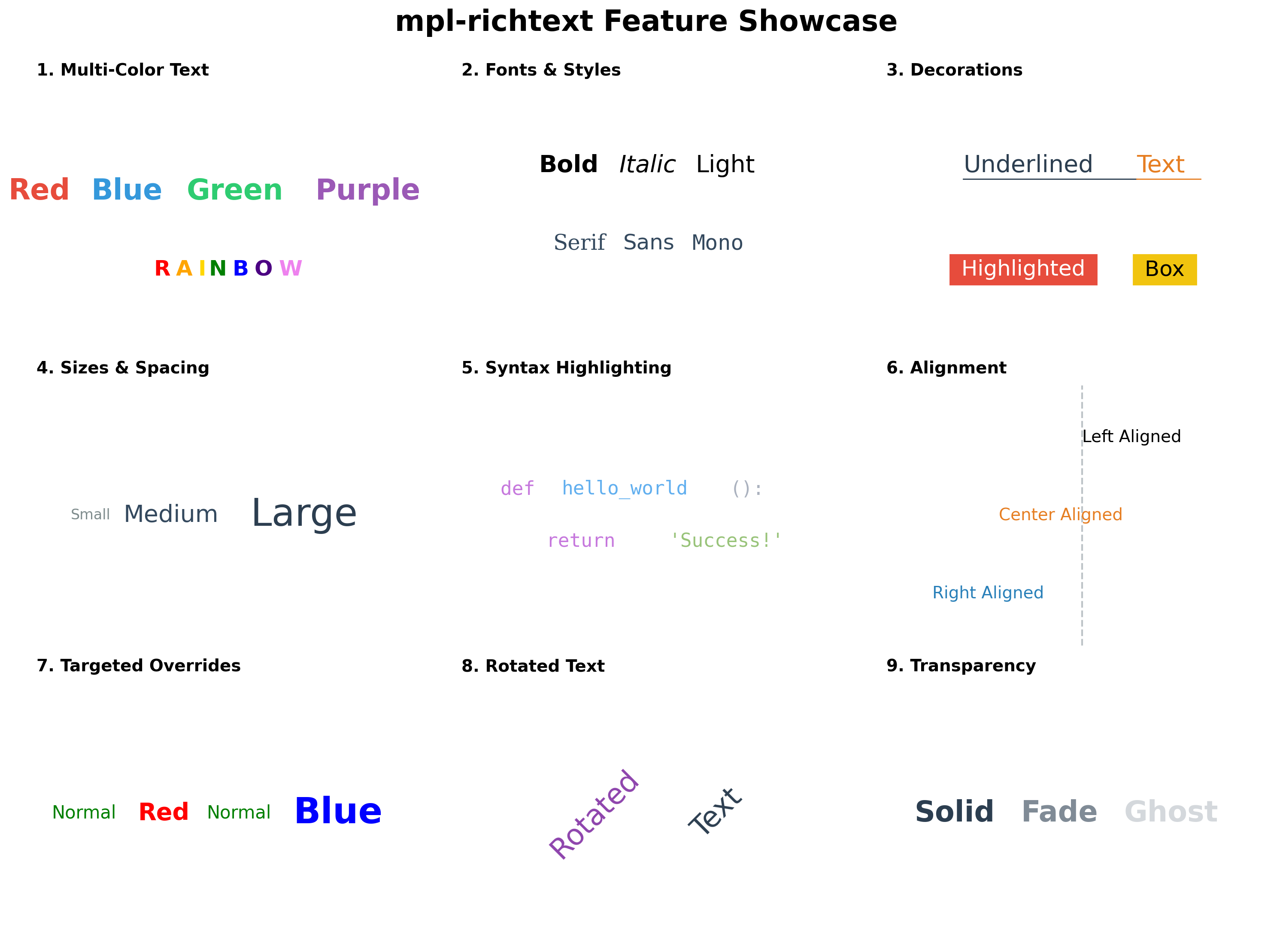

Features

✨ Multi-color text - Different colors for each word or character
🎨 Multi-style text - Mix font sizes, weights, families, and styles (italic/oblique)
🚀 Index-based styling - Cleaner API with property aliases (NEW in v0.2.0)
🇳🇵 Nepali/Devanagari support - Native complex script rendering with HarfBuzz
📦 Flexible input - Lists, dicts, or tuples for colors and properties
📏 Auto word-wrapping - Specify box_width for automatic text wrapping
🎯 Full alignment - Left, center, right horizontal and vertical alignment
✨ Decorations - Support for underlines and background colors
🔄 Transformations - Support for text rotation
👻 Transparency - Support for alpha values per segment
⚡ Easy to use - Simple API, works with any Matplotlib axes

API Reference

richtext(x, y, strings, colors=None, ax=None, **kwargs)

Parameters:

• x, y : float
  Starting position of the text

• strings : list of str
  List of text segments, e.g., ["hello", ", ", "world"]

• colors : str, list, or dict, optional
  Colors for each segment. Can be:

  • Single string: "red" (applies to all)
  • List: ["red", "blue", "green"] (one per segment)
  • Dict: {0: "red", 2: "green"} (specific indices)
  • Tuple keys: {(0, 2): "red"} (multiple indices same color)

• ax : matplotlib.axes.Axes, optional
  Axes to draw on. If None, uses current axes.

• kwargs : Additional properties

  • Global: box_width, linespacing, ha, va, transform, zorder
  • Per-segment: fontsize/fontsizes, fontweight/fontweights, fontfamily/fontfamilies, etc.
  • Any property can be:
    • Single value (applies to all)
    • List (one per segment, auto-extends)
    • Dict (specific indices)

Returns:

• list of Text - List of created matplotlib Text objects

---

✨ Index-Based Styling API (New in v0.2.0)

For complex multi-style text, use the styles parameter for cleaner, more readable code:

Old API (Still Works)

richtext(x, y, ["Company", " (Category)"],
         colors={0: 'blue', 1: 'gray'},
         fontsizes={0: 14, 1: 10},
         fontweights={0: 'bold', 1: 'normal'})

New API (Cleaner)

richtext(x, y, ["Company", " (Category)"],
         {0: {'color': 'blue', 'size': 14, 'weight': 'bold'},
          1: {'color': 'gray', 'size': 10, 'weight': 'normal'}})

Property Aliases

Use friendly short names instead of full matplotlib property names:

Alias	Full Name	Example
size	fontsize	{'size': 20}
weight	fontweight	{'weight': 'bold'}
family	fontfamily	{'family': 'monospace'}
style	fontstyle	{'style': 'italic'}

Flexible Mixing

Combine global defaults, property dicts, and styles dict for maximum flexibility:

richtext(x, y, ["A", "B", "C", "D"],
         fontsize=10,                           # Global default
         colors={1: 'orange'},                  # Target specific segment
         styles={2: {'color': 'purple', 'size': 18, 'weight': 'bold'}},
         ax=ax)

Priority Order: styles dict > individual kwargs > global defaults

Tuple Keys for Multiple Indices

Apply the same styles to multiple indices using tuple keys:

richtext(x, y, ["A", "B", "C", "D", "E"],
         {(0, 2, 4): {'color': 'red', 'size': 20, 'weight': 'bold'},
          (1, 3): {'color': 'blue', 'size': 12}},
         ax=ax)

# Results: A, C, E are red/20/bold
#          B, D are blue/12

This is more concise than repeating the same styles:

# Instead of this verbose version:
{0: {'color': 'red', 'size': 20},
 2: {'color': 'red', 'size': 20},
 4: {'color': 'red', 'size': 20}}

# Use this:
{(0, 2, 4): {'color': 'red', 'size': 20}}

Usage Examples

Title and Subtitle:

richtext(x, y,
         ["Main Title", " (Subtitle)"],
         {0: {'size': 14, 'weight': 'bold', 'color': '#2C4A6E'},
          1: {'size': 10, 'weight': 'normal', 'color': '#556B2F'}},
         ha='center', va='center', ax=ax)

Syntax Highlighting:

richtext(x, y,
         ["def ", "function", "(", "arg", "):"],
         {0: {'color': '#C678DD', 'weight': 'bold'},
          1: {'color': '#61AFEF'},
          2: {'color': '#ABB2BF'},
          3: {'color': '#E06C75'},
          4: {'color': '#ABB2BF'}},
         fontsize=14, family='monospace', ax=ax)

---

🇳🇵 Nepali/Devanagari Support

mpl-richtext provides native support for complex scripts including Nepali, Hindi, Sanskrit, and other Devanagari-based languages through HarfBuzz text shaping.

Why Special Support?

Devanagari script requires complex text shaping where:

• Characters combine and transform based on context
• Ligatures form automatically (e.g., क + ् + ष = क्ष)
• Vowel marks (matras) position correctly
• Rendering order differs from logical order

Standard matplotlib struggles with these complexities. mpl-richtext automatically handles this!

Features

✅ Automatic Detection - Detects Devanagari characters and applies proper shaping
✅ Accurate Metrics - Correct width and height measurements for layout
✅ Font Support - Works with Noto Sans Devanagari, Devanagari fonts
✅ Zero Config - Just use Nepali text, it works automatically!

Usage

import matplotlib.pyplot as plt
from mpl_richtext import richtext
import matplotlib.font_manager as fm

# Set up Nepali font
plt.rcParams['font.family'] = 'sans-serif'
plt.rcParams['font.sans-serif'] = ['Noto Sans Devanagari', 'DejaVu Sans']

fig, ax = plt.subplots()

# Create Nepali text with styling
richtext(0.5, 0.7,
         ["मुख्य शीर्षक", " (उपशीर्षक)"],
         {0: {'size': 14, 'weight': 'bold', 'color': '#2C4A6E'},
          1: {'size': 10, 'weight': 'normal', 'color': '#556B2F'}},
         ha='center', va='center', ax=ax)

plt.show()

Mixed English-Nepali

richtext(0.5, 0.5,
         ["Hello: ", "नमस्ते संसार ", "2082 माघ 24"],
         {0: {'size': 16, 'weight': 'bold', 'color': 'orange'},
          1: {'size': 14, 'weight': 'normal', 'color': 'blue'},
          2: {'size': 14, 'weight': 'bold', 'color': 'green'}},
         ax=ax)

Font Setup for Nepali

Install Noto Sans Devanagari:

# Ubuntu/Debian
sudo apt-get install fonts-noto

# macOS
brew install --cask font-noto-sans-devanagari

# Windows
# Download from Google Fonts: https://fonts.google.com/noto/specimen/Noto+Sans+Devanagari

Using Custom Fonts:

import matplotlib.font_manager as fm

# Load custom Nepali font
nepali_font = fm.FontProperties(fname='/path/to/NepaliFont.ttf')

richtext(x, y, ["नेपाली पाठ"], {},
         fontproperties=nepali_font,
         fontsize=16, ax=ax)

Technical Details

• Shaping Engine: Uses uharfbuzz for OpenType shaping
• Supported Scripts: Devanagari (U+0900–U+097F), Devanagari Extended, Vedic Extensions
• Automatic Fallback: Falls back to native matplotlib if HarfBuzz unavailable
• Performance: Efficient caching and optimized rendering

---

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

1. Fork the repository
2. Create your feature branch (git checkout -b feature/AmazingFeature)
3. Commit your changes (git commit -m 'Add some AmazingFeature')
4. Push to the branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

License

This project is licensed under the MIT License - see the LICENSE file for details.
