MRRpy

Rainfall–runoff and flood routing for any basin on Earth, from a DEM and a storm.

MRRpy, the Multi-Mechanism Runoff and Routing model, is a distributed, physics-based flood model in Python. It traces the drainage network of a DEM, works out how much rain runs off (SCS Curve Number, or Green–Ampt infiltration, saturated source areas (VSA-OPM) and impervious cities in any combination), and routes the water through every grid cell and sub-grid river channel with a kinematic, Muskingum–Cunge or semi-implicit diffusion wave. You get the outlet hydrograph, flood maps and a water-balance check. It runs offline with your own data, or fetches DEMs, NASA IMERG rain, soil and land cover from Google Earth Engine. Set it up in a Jupyter form, a terminal wizard, Python or QGIS; it runs on a CPU or an NVIDIA GPU.

📖 Documentation

Full docs, guides and API reference → mrrpy.readthedocs.io

Learn the science interactively → the MRRpy course

Installation

pip install MRRpy            # core (CPU)
pip install "MRRpy[gpu]"     # + CuPy/CUDA acceleration
pip install "MRRpy[gee]"     # + Google Earth Engine forcing

Quick example

from MRRpy import Config, run_pipeline

cfg = Config(DEM_PATH="dem.tif", OUTPUT_DIR="results/",
             OUTPUT_POINT=(27.632, 85.293),   # (lat, lon) of the outlet
             TARGET_CRS_EPSG="EPSG:32645")    # a projection in metres (UTM zone)
run_pipeline(cfg)                             # → results/hydrograph.csv

Or from the command line:

MRRpy wizard                    # answer a few questions → run.yaml
MRRpy run -c run.yaml           # process_dem + routing

Prefer a form? In Jupyter, MRRpy.ConfigForm() is a step-by-step form like the QGIS plugin (pip install "MRRpy[notebook]"). Prefer a file? MRRpy init-config -o run.yaml writes a commented template, and MRRpy explain <SETTING> explains any setting.

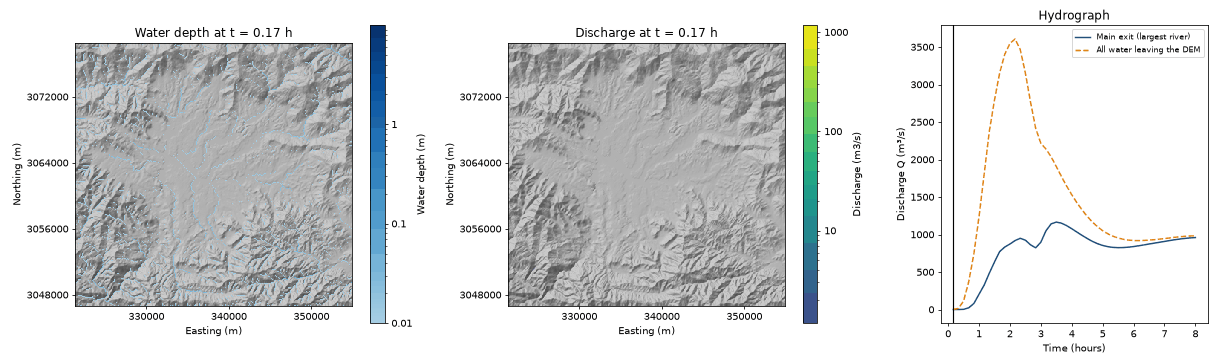

One storm over a whole DEM, animated with MRRpy.animate_fields(out, ["depth", "discharge"]): water depth, river flow drawn wider where it is larger, and the hydrograph.

What it offers

• DEM → watershed — reproject, pit-fill, D8 flow direction/accumulation and delineation (pysheds or pyflwdir) — or route the whole DEM with no outlet (MODEL_AREA="whole_dem").
• Flood maps — save depth/discharge maps over time, then animate the flow spreading (animate_fields) or export peak-depth GeoTIFFs (export_peak_maps).
• Runoff generation — none · coefficient · raster · scs_cn · physical; for physical, VSA saturation-excess + Green-Ampt + impervious as composable mechanisms.
• Flood routing — kinematic wave, Muskingum–Cunge, or a semi-implicit diffusion wave (backwater, flat valleys, large stable steps), with sub-grid river channels sized from the 2-year flood and an always-on water-balance check.
• Satellite forcing — optional DEM download, IMERG rainfall, GCN250 curve numbers, SERVES soil deficit, SoilGrids, HiHydroSoil, LULC/LCZ via Google Earth Engine (every option also works offline with your own files).
• CPU / GPU — one code path (NumPy or CuPy), automatic CPU fallback.
• Interfaces for every taste — Python API, a MRRpy CLI with a question-and-answer wizard, a Jupyter form, and a QGIS plugin, all driven by one Config object.

Links

• Documentation: https://mrrpy.readthedocs.io
• Interactive course: https://sauravbhattarai19.github.io/MRRpy/
• Source & issues: https://github.com/SauravBhattarai19/MRRpy

License

MIT © Saurav Bhattarai.
