Network Discovery and Management Toolkit (``ndmtk``) makes Ansible
"work" for both Traditional and Software-Defined Network (SDN) network
management.

Table of Contents
-----------------

1. `Overview <https://github.com/greenpau/ndmtk#overview>`__
2. `Workflow
Diagram <https://github.com/greenpau/ndmtk#workflow-diagram>`__
3. `Getting
Started <https://github.com/greenpau/ndmtk#getting-started>`__
4. `Documentation <https://github.com/greenpau/ndmtk#documentation>`__
5. `Questions <https://github.com/greenpau/ndmtk#questions>`__
6. `Contribution <https://github.com/greenpau/ndmtk#contribution>`__

Overview
--------

The future of network management lies in the area of Artificial
Intelligence. Any network-enabled device will be able to build
connectivity to a remote peer on-demand, without human intervention. The
restraint on that ability are the AI-enabled systems acting as
gatekeepers. AI is impossible without ongoing data collection, data
analysis, probing, and modeling. As such, networks of the future need
tools to perform the above tasks.

This toolkit is designed to accomplish the data collection piece of the
AI puzzle. Specifically, the toolkit is designed to:

- discover data on network devices and capture the entirety of
available data
- configure network devices via SSH, telnet, console, or terminal
server
- collect, analyze, and store the data via command-line interactions;
it performs data analysisn and, if necessary, it performs additional
data collection and/or device configuration tasks.

The intended audience of this toolkit are system and network engineers
and designers, as well as the researchers dealing with AI.

The toolkit is delivered in a form of an Ansible plugin. However, it
could work well with Chef, or any other orchestration tool. The reason
Ansible became a framework of choice is its modularity. The toolkit
itself is modular. It allows extended existing functionality. For
example, the plugin does not blindly run pre-defined commands. Rather,
it first collects all of the commands forming the understanding of the
function of a particular device in a network. Once the plugin receives
the data, it runs it through its algorithms and determines whether there
are any additional command required to further gather data. That process
continues until the algorithms determine that the collection is
complete.

Importantly, once the plugin completes its tasks it produces a number of
reports in JSON, YAML, and JUnit formats. These reports provide a map of
what was done, where the collected data reside, and what that data is.

The plugin has no required arguments and parameters, because there are a
number of default commands available for various operating systems, e.g.
Cisco Nexus OS, Arista EOS, Linux, etc.

`Back to Top <#table-of-contents>`__

--------------

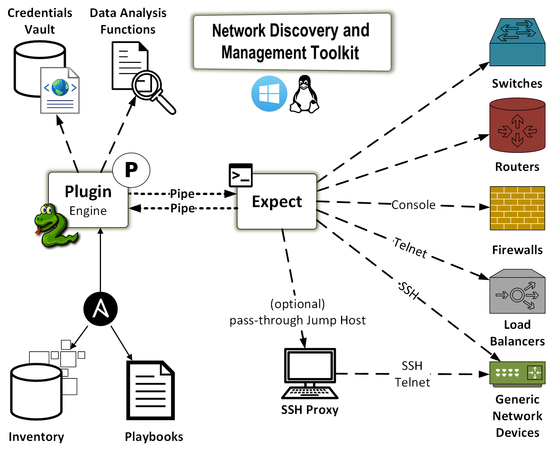

Workflow Diagram
----------------

|Plugin Workflow|

`Back to Top <#table-of-contents>`__

--------------

Getting Started
---------------

First, a user installs ``ndmtk`` with ``pip``:

::

pip install ndmtk

Second, the user creates Ansible playbook, e.g.
``playbooks/collect_all.yml``:

::

---
- name: generic data collection
hosts:
- ny-fw01
- ny-sw01
- ny-sw02
gather_facts: no
tasks:
- name: data collection from three network devices
action: ndmtk output="/tmp/ndmtk-%Y%m%d%H%M%S" debug=no no_host_key_check=yes on_error=continue

The above playbook collect the data from three devices: ``ny-fw01``,
``ny-sw01``, and ``ny-sw02``.

Third, the user must create a hosts file:

::

controller ansible_connection=local

[test:children]
cisco-asa-firewalls
arista-eos-switches

[arista-eos-switches]
ny-sw01 os=arista_eos host_overwrite=localhost host_port=8224
ny-sw02 os=arista_eos host_overwrite=localhost host_port=8225

[cisco-asa-firewalls]
ny-fw01 os=cisco_asa host_overwrite=192.168.1.1

[all:vars]
ansible_connection=local

The switches are Arista vEOS switches running on top of Virtual Box. The
firewall is a physical Cisco ASA 5505.

Additionally, the user must create Ansible configuration file in either:

- ``.ansible.cfg`` in the user's home directory, or
- ``ansible.cfg`` in the user's current directory

The configuration file contains the following directives:

::

[defaults]
inventory = ./hosts
forks = 100
local_tmp = $HOME/.ansible/tmp
retry_files_enabled = True
retry_files_save_path = $HOME/.ansible/retries/
log_path = $HOME/.ansible/log/ansible.log
transport = local

Fourth, the user must create Ansible Vault ``~/.ansible.vault.yml`` and
structure it according to ``ndmtk``'s documentation. Then, for
convinience, the user may store the password to the vault in
``~/.ansible.vault.key`` plain-text file.

For example ``.ansible.vault.key`` has a single line for the password:

::

NX23nKz!

While the vault itself has the following content:

::

--
credentials:
- regex: ny-fw0[1-9]
username: admin
password: 'NX23nKz!'
password_enable: '3nKz!NX2'
priority: 1
description: NY-FW01 password
- default: yes
username: greenpau
password: 'My#DefaultPass'
password_enable: 'Enabled#By$Default'
priority: 1
description: my default password

The toolkit accesses ``ny-fw01`` with the first set of credentials
because its name matches the regular expression in that set. For the
witches, the later, default password is used.

At any point of time, the user could edit or view the vault using the
following commands:

::

ansible-vault edit ~/.ansible.vault.yml --vault-password ~/.ansible.vault.key
ansible-vault view ~/.ansible.vault.yml --vault-password ~/.ansible.vault.key

Finally, the user runs the playbook:

::

ansible-playbook playbooks/collect_all.yml

`Back to Top <#table-of-contents>`__

--------------

Documentation
-------------

Please read the toolkit's documentation at `Read the
Docs <http://ndmtk.readthedocs.io/>`__ and review the
`demo <https://github.com/greenpau/ndmtk/tree/master/demo/firewall>`__
directory containing sample configuration files.

- `User
Guide <https://github.com/greenpau/ndmtk/blob/master/docs/userguide.md>`__
- `Rules
Engine <https://github.com/greenpau/ndmtk/blob/master/docs/rules.md>`__
- `Reports and Structured
Data <https://github.com/greenpau/ndmtk/blob/master/docs/reports.md>`__
- `Access Credentials
Management <https://github.com/greenpau/ndmtk/blob/master/docs/auth.md>`__
- `Frequently Asked
Questions <https://github.com/greenpau/ndmtk/blob/master/docs/faqs.md>`__

`Back to Top <#table-of-contents>`__

--------------

Questions
---------

Please open issues and ask questions in `Github
Issues <https://github.com/greenpau/ndmtk/issues>`__.

`Back to Top <#table-of-contents>`__

--------------

Contribution
------------

Please contribute using the following
`Guidelines <https://github.com/greenpau/ndmtk/tree/master/CONTRIBUTING.md>`__.

`Back to Top <#table-of-contents>`__

--------------
