nethang 0.2.0

A web-based tool for simulating network quality

NetHang is a web-based tool designed to simulate network quality, focusing on the diversity of last-mile network conditions. For modern internet applications and services with high real-time requirements, NetHang offers a stable, reentrant, customizable, and easily extensible network quality simulation system, helping to achieve low-latency and high-quality internet services.

Unlike traditional network impairment tools that target backbone network quality between servers and switches, NetHang is optimized for:

• Simulating network quality from user equipment (UE) to servers, typically traversing:

  • UE <--> Lan (Wi-Fi or Wired) <--> Routers <--> ISP edge nodes <--> APP servers
  • UE <--> Cellular <--> ISP edge nodes <--> APP servers
  • UE <--> Air interface <--> Satellite <--> APP servers

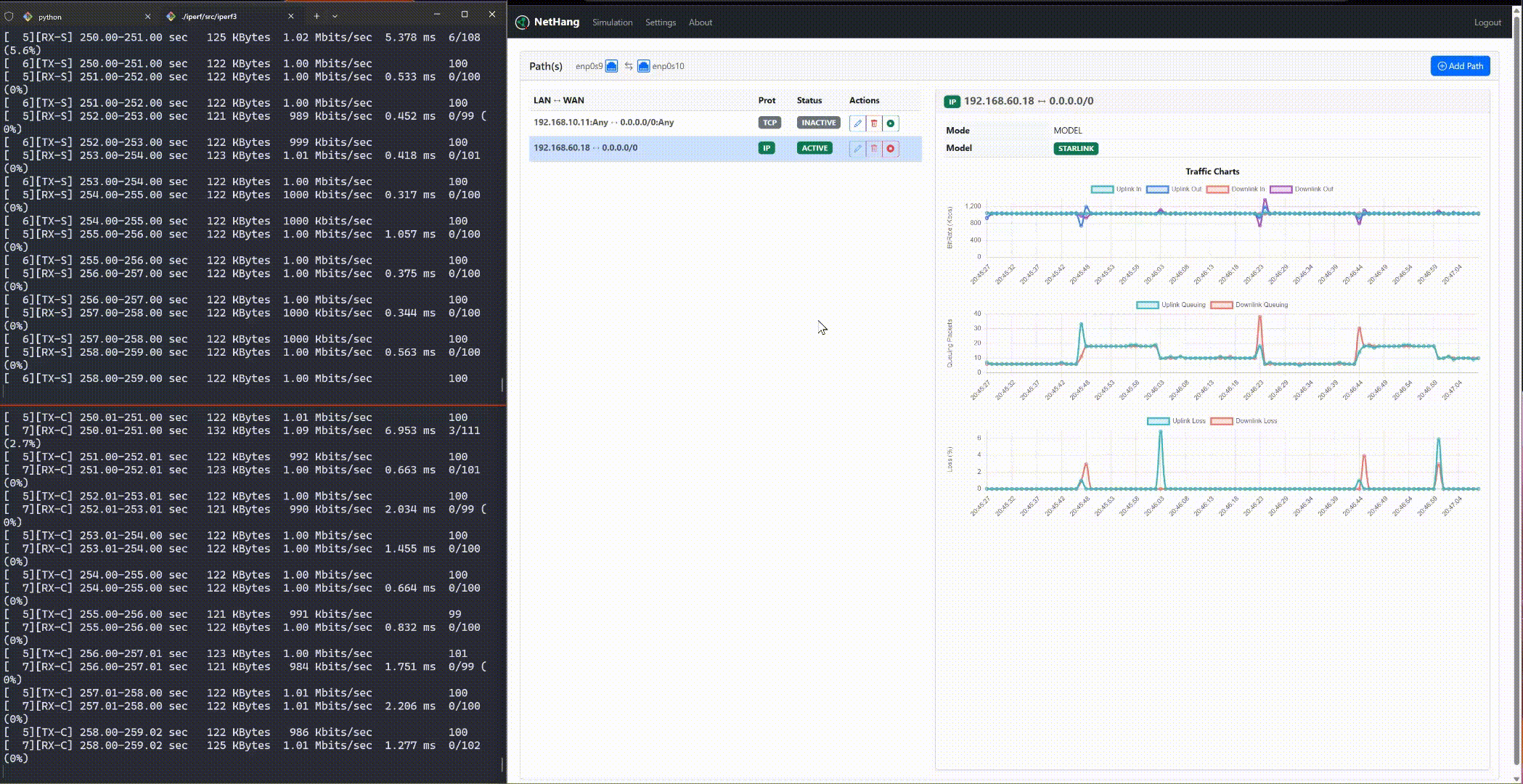

• The current network model is built and simplified based on existing network quality data modeling, while also supporting users to easily customize the network models they need for testing in YAML format. The following image shows the StarLink network simulation ( Queuing changes every 20s - 30s caused by Satellite handover ):

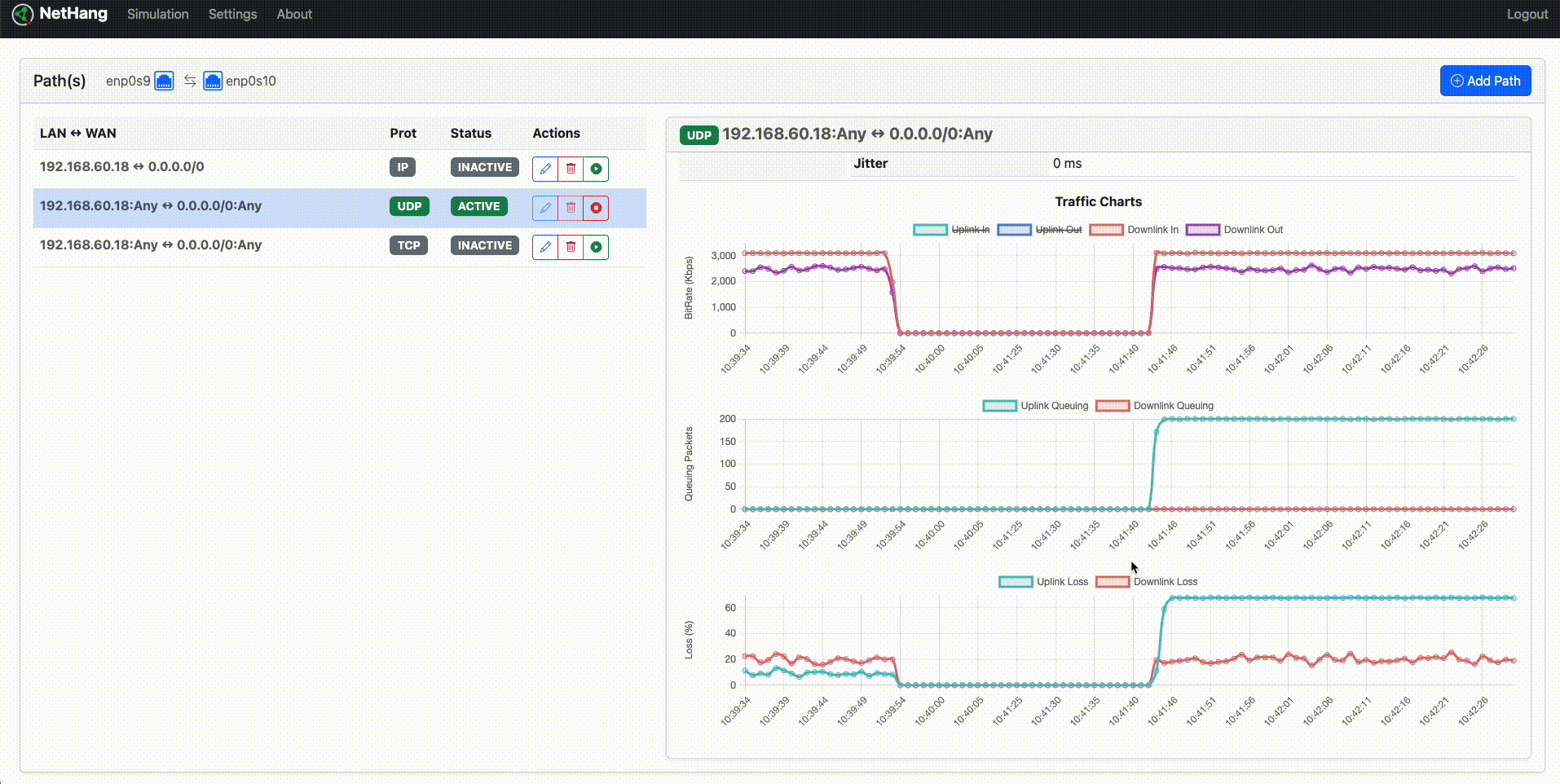

• NetHang clearly displays the differences in data traffic before and after simulation, as well as the state of the simulation conditions.

Features

• Configurable traffic rules and models

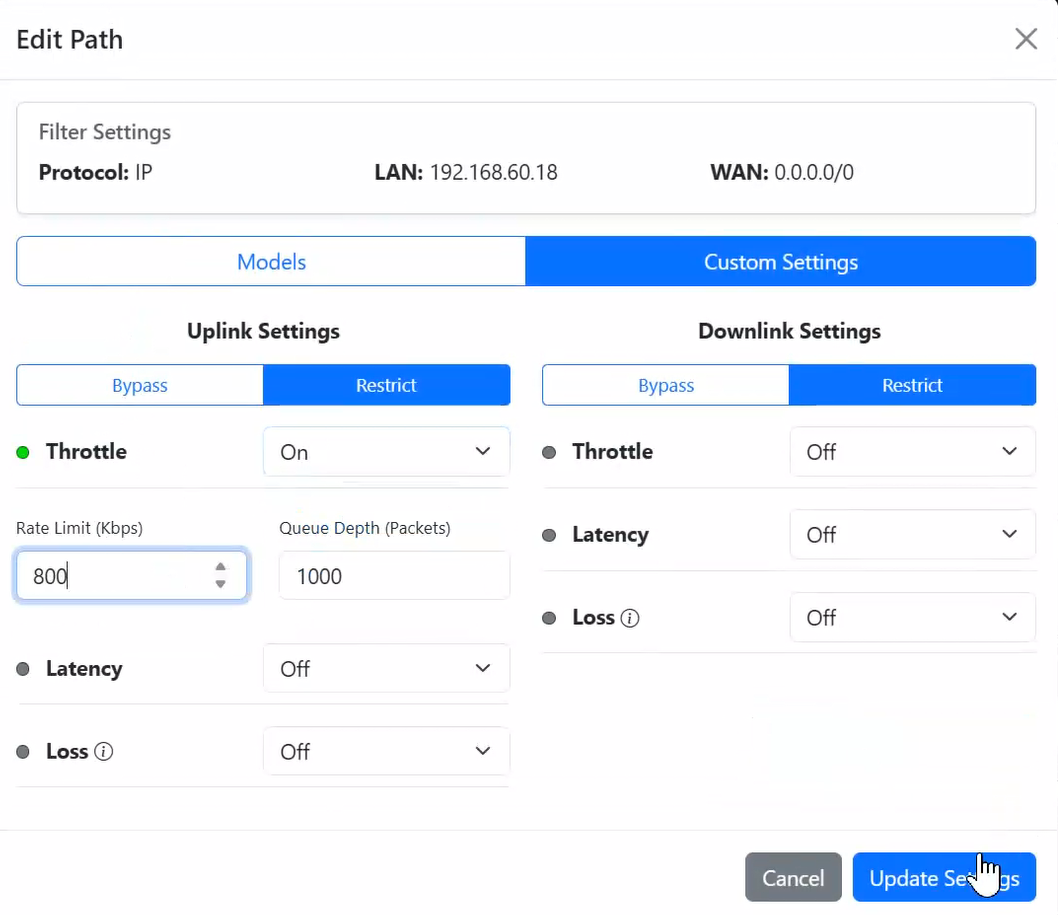

• Traffic rate limiting and shaping
• Throttle queue depth control

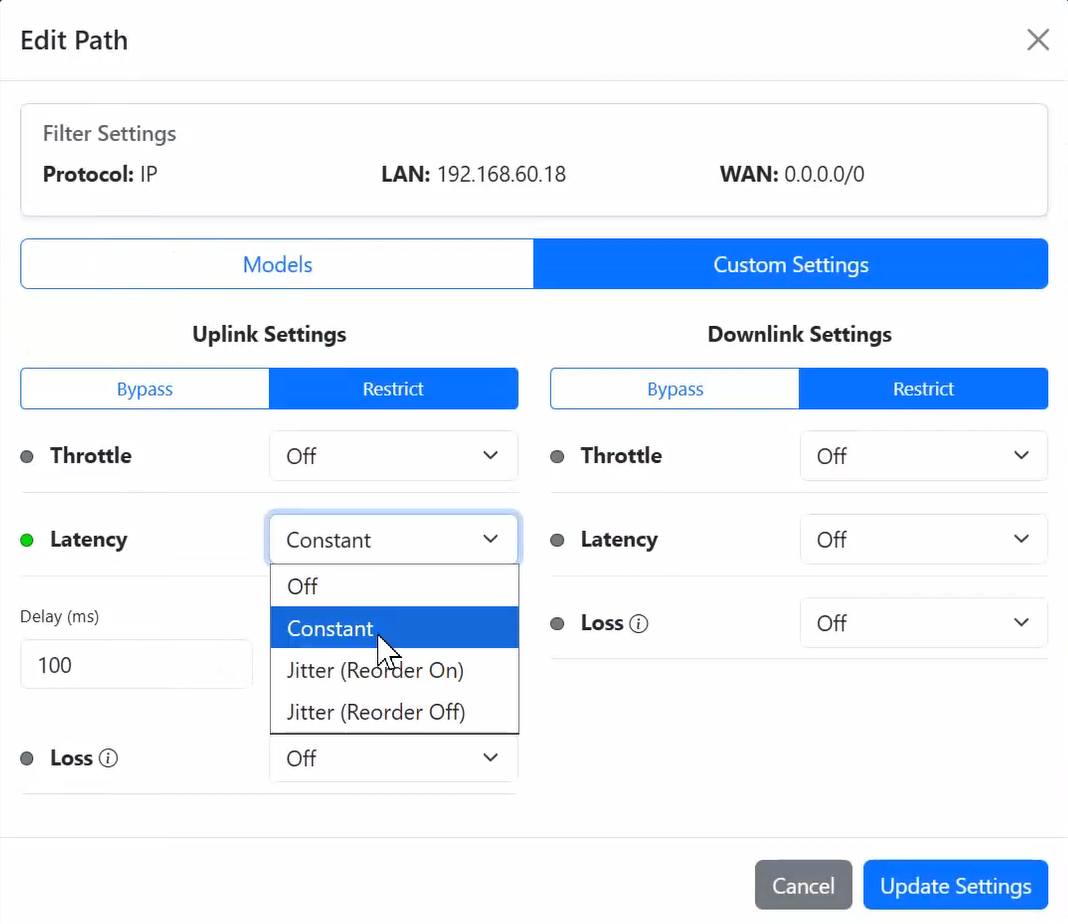

• Network latency and latency variation (Jitter) simulation

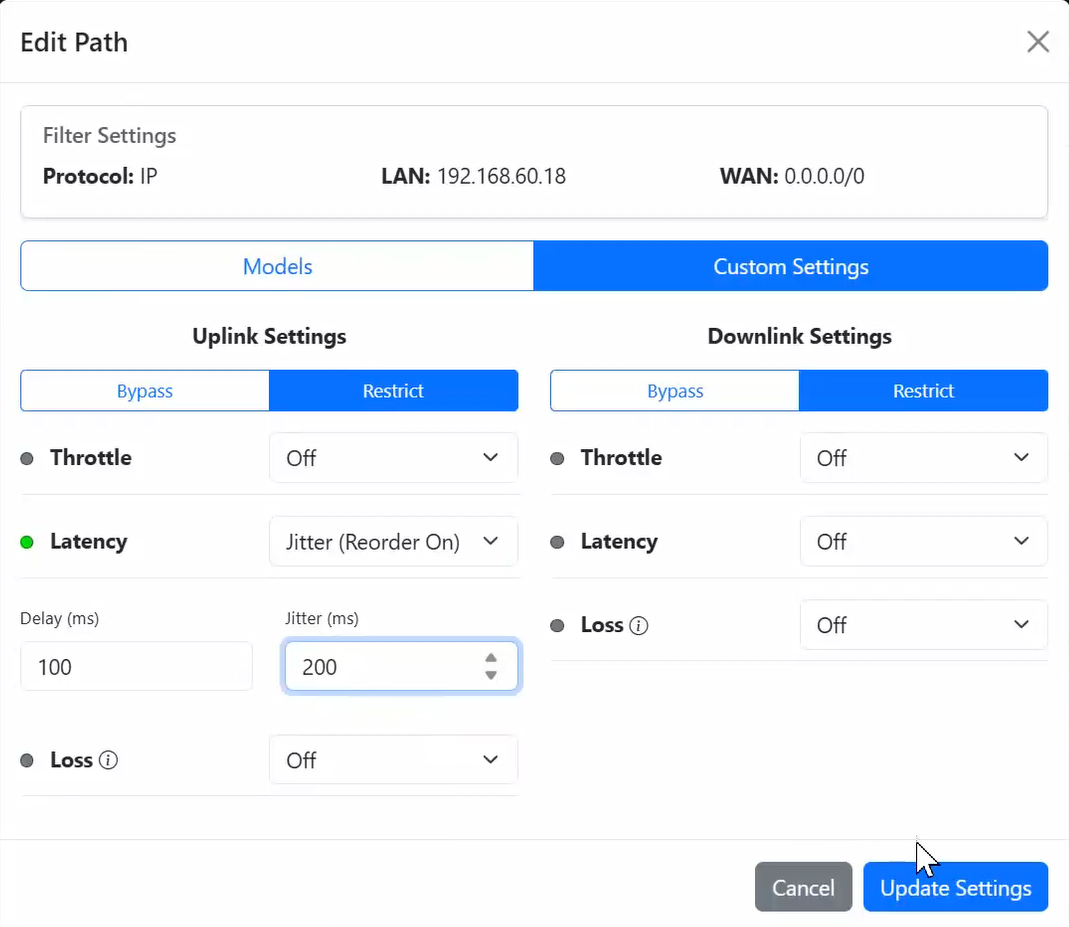

• Jitter simulation with and without reordering allowed

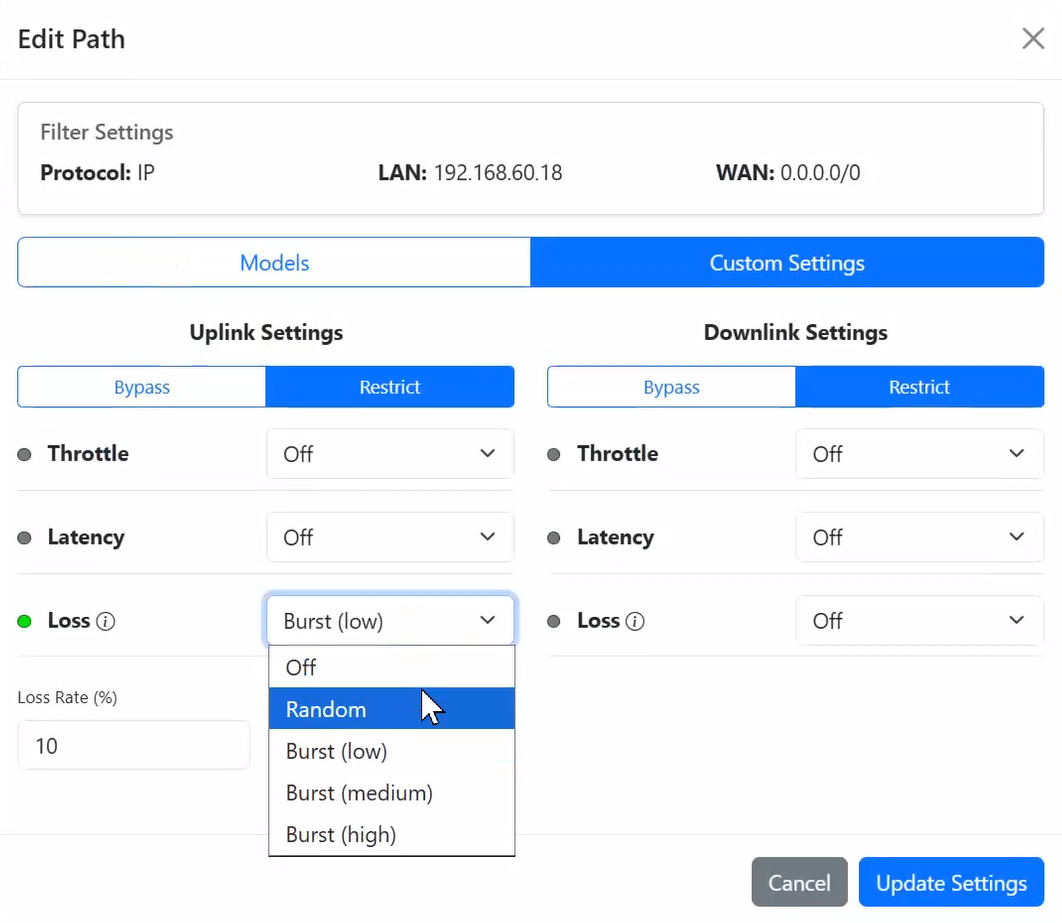

• Packet loss with random and burst support

• Support for both uplink and downlink traffic control
• Real-time traffic statistics display

Requirements

• Python 3.8 or higher
• Linux system with tc and iptables support
• Root privileges for traffic control operations

Installation

From PyPI (Recommended)

You can install NetHang from PyPI using the following command:

pip install nethang

From Source (For Developers)

You can also install NetHang from source by cloning the repository and running the following command:

pip install .
