networkx-arxiv-generators 0.1.1

Advanced NetworkX graph generation models implementing algorithms from mathematical papers.

NetworkX Arxiv Generators

Advanced graph generation models for NetworkX, implementing algorithms from mathematical literature (with arxiv citations), and published in reputable peer-reviewed journals, or presented at established conferences, symposiums and seminars.

Current state

Currently the project is in a scaffolding state, with the first goal of generating uniform power law graphs as in Uniform generation of random graphs with power-law degree sequences. These results were presented at SODA '18: Proceedings of the Twenty-Ninth Annual ACM-SIAM Symposium on Discrete Algorithms .

To begin, this requires results from the seminal paper B.D. McKay and N.C. Wormald, Uniform generation of random regular graphs of moderate degree, J. Algorithms 11 (1990), 52–67.

Currently in progress, located in src/nx_arxivgen/generators/mckay_wormald.py .

Install

Once published:

pip install networkx-arxiv-generators

Quickstart

import networkx as nx
import matplotlib.pyplot as plt
from nx_arxivgen.generators.mckay_wormald import mckay_wormald_simple_graph, mckay_random_graph_encoding

test_deg_seq = [1, 1, 2, 3, 3, 2, 6, 6,7,8,6,1,2,3,4,5,6,7,8,9,10]

test = mckay_wormald_simple_graph(test_deg_seq, debug=True)
nx.draw_spring(test, with_labels=True)
plt.show()

sample_graph = nx.generators.binomial_graph(20, 0.5)

print(mckay_random_graph_encoding(sample_graph))

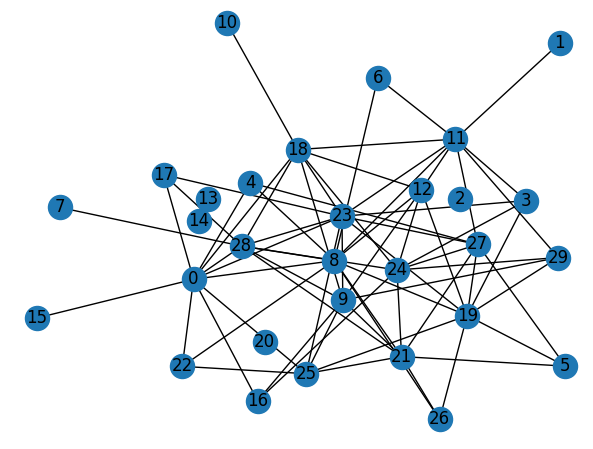

An example of a graph generated this way, with the degree sequence

[10, 1, 0, 4, 3, 3, 2, 1, 10, 8, 1, 9, 6, 0, 0, 1, 3, 3, 8, 9, 0, 8, 3, 10, 8, 6, 3, 7, 9, 4]

The nodes of degree 0 are 2, 13, 14 and 20.

Goals

• Faithful implementations of arxiv models with clear citations, existing in reputable publications.
• Deterministic seeding and reproducibility, wherever relevant by the context of the research paper.
• Tests, docs, and examples for each model.

Citing

If you use this package, please cite it. See CITATION.cff. Each model’s docstring cites its originating paper(s).
