nicegui-rdm 0.1.62

Reactive Data Management for NiceGUI with Tortoise ORM

nicegui-rdm: Reactive Data Management

What is ng_rdm?

ng_rdm (nicegui-rdm on PyPI) is a Python library for building database-backed CRUD applications with NiceGUI. It ships two things you can use together or separately:

1. A reactive store layer. When one browser tab writes to a store, every other tab watching the same data rebuilds its UI automatically — no manual refresh, no websocket plumbing. Imagine two users with the same dashboard open: user A edits a row, and user B's table updates within ~100 ms. That's the core loop, implemented in store/ and models/.

2. A set of composite UI widgets. Tables, dialogs, edit cards, detail cards, view stacks, wizards, tabs, and layout primitives — all written in Python, emitting clean HTML with semantic CSS selectors. Any widget can subclass ObservableRdmComponent to hook into the store layer; the built-in tables do this via auto_observe=True by default.

What it looks like

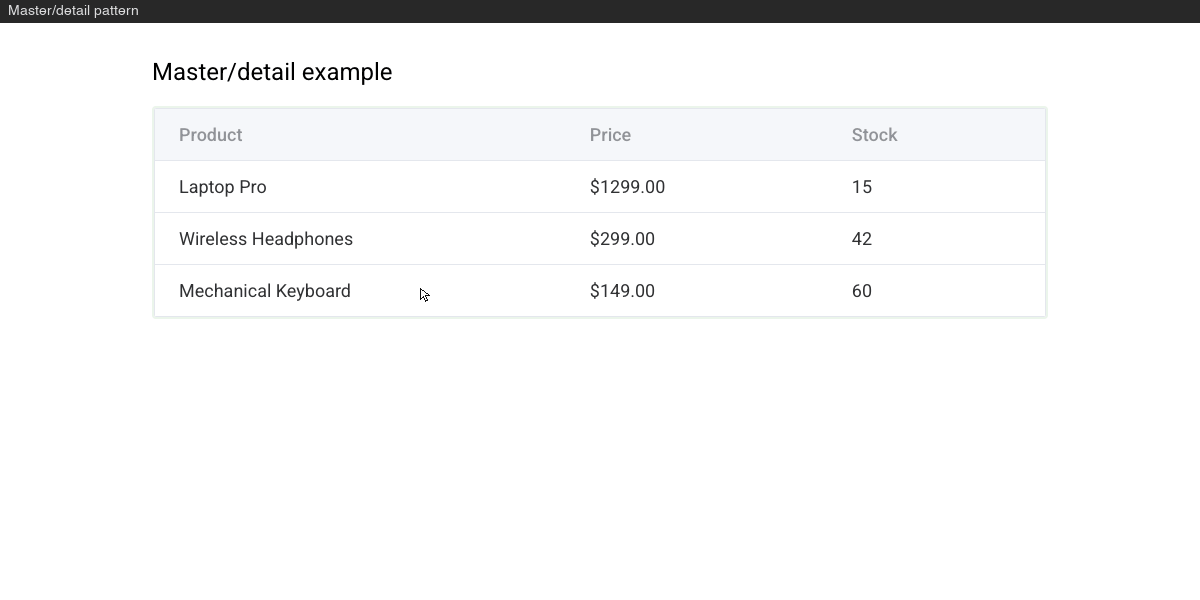

Master/detail using a ListTable, DetailCard, ActionButtonTable and EditDialog - wired together with a ViewStack:

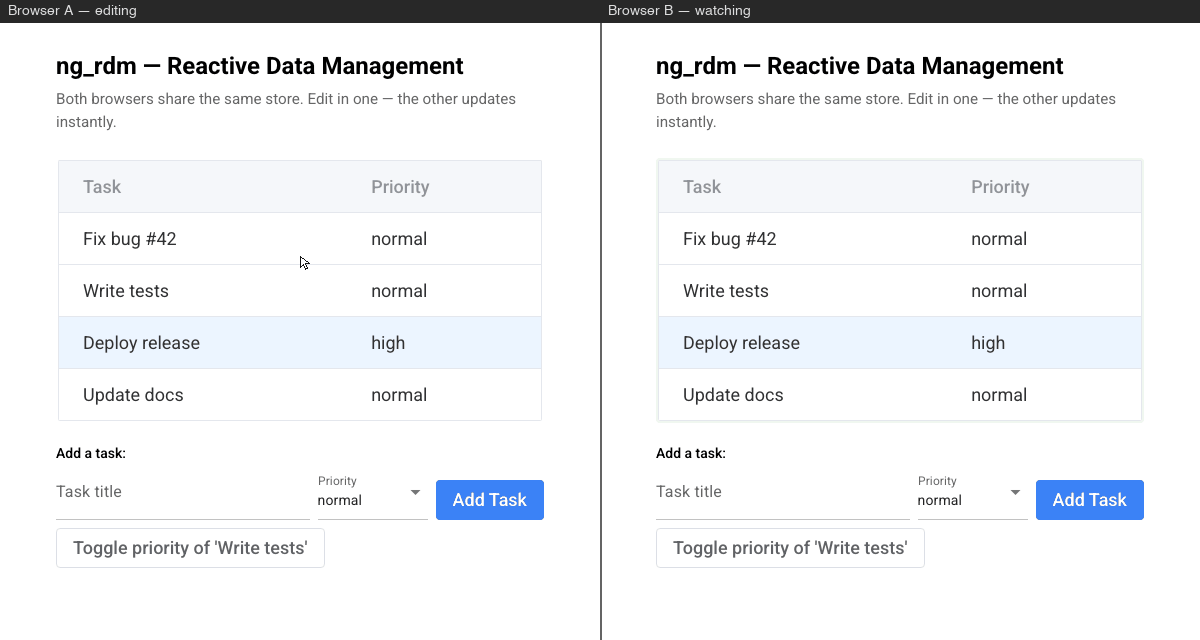

The reactive story in two browser windows — one edits, the other watches:

How it works

┌──────────────────────────────────────────────────────────┐
│  UI Components                                           │
│  ActionButtonTable · ListTable · SelectionTable          │
│  EditDialog · EditCard · DetailCard · ViewStack          │
└──────────────┬─────────────────────────────────┬─────────┘
               │  1. user action                 ▲
               ▼                                 │  6. notify_observers
┌──────────────┴─────────────────────────────────┴─────────┐
│  Store Layer                                             │
│  Store (base) · DictStore · (Multitenant)TortoiseStore   │
│  (Multitenant)StoreRegistry                              │
│  CRUD · validation · observer pattern - EventNotifier    │
└──────────────┬─────────────────────────────────┬─────────┘
               │  2. validate & write            ▲
               ▼                                 │  5. return result
┌──────────────┴─────────────────────────────────┴─────────┐
│  Data Layer                                              │
│  Tortoise ORM · RdmModel / MultitenantRdmModel           │
│  SQLite · PostgreSQL · MySQL                             │
└──────────────────────────────────────────────────────────┘

User actions flow down through the Store layer (which validates and normalizes) to the database. On success, the Store broadcasts a StoreEvent up to all subscribed UI components, which automatically rebuild via @ui.refreshable_method. This is the reactive loop that keeps tables and detail views in sync with the database without manual refresh.

Quick start

Installation

pip install nicegui-rdm

Note: the PyPI package is nicegui-rdm; the import path is ng_rdm.

My first CRUD database app with ng_rdm

from nicegui import app, ui
from tortoise import fields

from ng_rdm import TortoiseStore, init_db, FieldSpec, Validator, store_registry
from ng_rdm.models import RdmModel
from ng_rdm.components import (
    rdm_init, Column, TableConfig, FormConfig,
    ActionButtonTable, EditDialog,
)

# 1. Define a model with validation
class Task(RdmModel):
    id = fields.IntField(pk=True)
    name = fields.CharField(max_length=100)

    field_specs = {
        "name": FieldSpec(validators=[
            Validator("Name is required", lambda v, _: bool(v and v.strip()))
        ])
    }

# 2. Initialize database
init_db(app, "sqlite://tasks.db", modules={"models": [__name__]}, generate_schemas=True)

# 3. Create a store and add it to the registry singleton
store_registry.register_store("task", TortoiseStore(Task))

# 4. Build a page
@ui.page("/")
async def index():

    # 4a. Initialize ng_rdm - required for every page
    rdm_init()

    # 4b. Get the stores you need from the registry
    task_store = store_registry.get_store("task")

    # 4c. Configure the table and form
    columns = [Column("name", "Task name")]
    table_config = TableConfig(columns=columns)
    form_config = FormConfig(columns=columns, title_add="New Task", title_edit="Edit Task")

    # 4d. Create the table & edit components
    dlg = EditDialog(data_source=task_store, config=form_config)

    table = ActionButtonTable(
        # note: the `auto_observe` is default, so the table is refreshed when store data updates
        data_source=task_store, config=table_config,
        on_add=dlg.open_for_new, on_edit=dlg.open_for_edit,
    )
    await table.build()

ui.run()

In practice you will often want to subclass generic stores to enhance/override _read_items or _update_item methods. E.g. class EnrichedTaskStore(TortoiseStore[Task]):...

The example above skips the state= dict for brevity. In a real app most tables and dialogs take one — it's how selected rows, open tabs, and form field values survive a @ui.refreshable_method rebuild. See the catalog example or docs/facts.md for the production pattern.

Widget overview

Tables — ActionButtonTable (CRUD with per-row action buttons), ListTable (read-only clickable rows), SelectionTable (checkbox multi-select)

Forms — EditDialog (modal create/edit), EditCard (inline form)

Navigation — ViewStack (master/detail/edit flow), Tabs (tabbed content)

Display — DetailCard (read-only detail view), Dialog (modal overlay), StepWizard (multi-step form)

Layout — Button, IconButton, Icon, Row, Col, Separator

They're all included in the catalog example.

Examples

After pip install nicegui-rdm, run any example with python -m ng_rdm.examples.<name>.

Example	Description
catalog	Component catalog — showcases all widgets
master_detail	ViewStack master-detail navigation
multitenant	MultitenantTortoiseStore — tenant-isolated stores
chips	Custom cell rendering via Column.render — colored status chips
in_row_editing	Custom ObservableRdmTable subclass with inline per-cell editing
custom_datasource	Build your own store backend
vanilla_store	Use stores with vanilla NiceGUI components
topic_filtering	Topic-based observer filtering

FAQ

Why not simply use ui.table or ui.aggrid?

NiceGUI wraps them in Python, but components like ui.table and ui.aggrid remain complicated beasts that live primarily in JavaScript-space. Quasar components in particular add a lot of divs and obnoxious styles that get in the way of our sanity. More generally, bridging complex Vue/JavaScript components to Python is riddled with limitations and ambiguities. Vue.js slots, anyone?

Much better (at least for 'composite' components such as tables!) to bring them entirely into Python-space. That is what NiceGUI and websockets are there for, right? RdmComponent subclasses build clean html/css scaffolding for atomic-level controls, and these can be either native html (eg, date picker) or NiceGUI/Quasar controls (ui.label, ui.input, etc).

OK, I get the idea behind the tables. But why a new Row/Col/Dialog/Separator when NiceGUI already has ui.row, ui.dialog, ui.separator?

Like with tables, it's nice to have plain HTML with explicit semantic selectors without the spurious divs added by Quasar – enabling straightforward and predictable styling. But they're a convenience, not a crucial part of the library. And Buttons, Icons and IconButtons are still NiceGUI/Quasar native, though neutered via a subclass (as per this comment).

Project structure

src/ng_rdm/
├── __init__.py              — package root (exports Store layer)
├── store/                   — state management & data layer
│   ├── base.py              — Store (add/remove_observer, set_topic_fields), StoreRegistry, store_registry
│   ├── dict_store.py        — DictStore (in-memory store)
│   ├── orm.py               — TortoiseStore (Tortoise ORM integration)
│   ├── multitenancy.py      — MultitenantTortoiseStore, MultitenantStoreRegistry, mt_store_registry
│   └── notifier.py          — EventNotifier (batching, debouncing, topic filtering), StoreEvent
├── models/                  — data model helpers
│   ├── types.py             — Validator, FieldSpec NamedTuples
│   ├── rdm_model.py         — RdmModel (extended Tortoise ORM Model)
│   └── mt_rdm_model.py      — MultitenantRdmModel (tenant-scoped abstract base)
├── components/              — UI components
│   ├── __init__.py          — exports rdm_init(), all components
│   ├── base.py              — ObservableRdmComponent and config helpers
│   ├── protocol.py          — RdmDataSource protocol (structural typing)
│   ├── fields.py            — build_form_field() for forms; build_cell_field() for table cells
│   ├── i18n.py              — localization (currently Dutch/English, easily expandable)
│   ├── ng_rdm.css           — design system stylesheet
│   └── widgets/             — concrete UI widget components
│       ├── action_button_table.py — ActionButtonTable (table with per-row action buttons)
│       ├── list_table.py    — ListTable (read-only with clickable rows)
│       ├── selection_table.py — SelectionTable (checkbox multi-select)
│       ├── dialog.py        — Dialog (positioned card overlay)
│       ├── detail_card.py   — DetailCard (read-only detail view)
│       ├── edit_card.py     — EditCard (in-place editing form, takes FormConfig)
│       ├── edit_dialog.py   — EditDialog (modal editing dialog, takes FormConfig)
│       ├── tabs.py          — Tabs (div-based tab switcher)
│       ├── view_stack.py    — ViewStack (navigation coordinator with render slots)
│       ├── wizard.py        — StepWizard, WizardStep (multi-step form wizard)
│       ├── button.py        — Button, IconButton, Icon
│       └── layout.py        — RdmLayoutElement, Row, Col, Separator
├── utils/                   — utilities
│   ├── helpers.py           — date/time, validation, formatting
│   └── logging.py           — logger setup & configuration
├── debug/                   — developer tooling
│   ├── event_log.py         — EventLog (rotating buffer), EventLogEntry, event_log singleton
│   └── page.py              — enable_debug_page() registers /rdm-debug route
└── examples/
    ├── catalog.py           — component catalog / showcase
    ├── master_detail.py     — master-detail pattern with ViewStack
    ├── multitenant.py       — MultitenantTortoiseStore with two tenant stores, quadrant layout
    ├── in_row_editing.py    — custom ObservableRdmTable subclass with inline per-cell editing
    ├── chips.py             — custom cell rendering via Column.render (colored status chips)
    ├── custom_datasource.py — custom RdmDataSource implementation
    ├── vanilla_store.py     — using a store with standard NiceGUI components
    └── topic_filtering.py   — topic-based filtering demo (advanced)

Details

Configuring tables and forms

Tables and forms share one configuration unit: a list of Column objects. The same list drives an ActionButtonTable (via TableConfig) and the EditDialog that edits rows in it (via FormConfig) — so "customer has a name, an email, and a priority" is declared once:

columns = [
    Column("name",     "Name",     required=True),
    Column("email",    "Email",    ui_type=ui.input),
    Column("priority", "Priority", ui_type=ui.select, parms={"options": ["low", "high"]}),
]

table_config = TableConfig(columns=columns, custom_actions=[RowAction(icon="send", callback=...)])

form_config  = FormConfig(columns=columns, title_edit="Edit customer")

Configuration covers the common case — labels, widths, ui-types, validation, required fields, custom per-row buttons. When you need to step outside it, every column has rendering hooks that take over for that one concern without losing the rest of the config: Column.formatter for simple display transforms, Column.render(row) for fully custom cell HTML (see the chips example), Column.on_click for per-cell interactions, and RowAction / render_toolbar for buttons around the table. The in_row_editing example goes one step further and subclasses ObservableRdmTable for inline per-cell editing while keeping the Column definitions intact.

See docs/api.md for the full API reference.

Multitenancy

The store and model layers have built-in support for a multi-tenant pattern. Subclass MultitenantRdmModel (inherits a tenant varchar field) for your database models and use MultitenantTortoiseStore + mt_store_registry to create a registry indexed by (tenant, store_name).

In your app, call set_valid_tenants(["A", "B"]) at startup, then register one store per tenant per type. See the multitenant.py example for the full pattern, and docs/facts.md for the technical details.

Batching store notifications

Store mutations are debounced by 100 ms by default so that rapid sequences of writes produce a single UI refresh. For explicit multi-step batches use the batch context manager:

async with store.batch():
    await store.create_item(item1)
    await store.create_item(item2)
# single batch notification fires here

Again, technical details in docs/facts.md.

Topic filtering

Observers can subscribe to a specific field value so they are skipped for unrelated events:

store.set_topic_fields(["country"])
store.add_observer(callback, topics={"country": "UK"})

See the topic_filtering.py example, and docs/facts.md for the full batching/topic-filter mechanics (including how batch events interact with topic matching).

Helpers

The library includes a few helpers:

• utils/logging.py: call configure_logging(log_file="app.log", console=True) once in main.py before any other startup code, and all ng_rdm, Tortoise ORM, and uvicorn output goes to that file and/or the console. Without calling it, the library stays silent by default and lets the host app's own logging config take over. Import from ng_rdm import logger to write to the same logger in your own app code.

• components/i18n.py: self-contained translations for the generic CRUD labels used in components (buttons, confirmations, validation messages). Ships with English (default) and Dutch. Pass custom_translations to rdm_init() to add a language or override strings; call set_language('nl_nl') to switch. Intentionally separate from any app-level i18n to keep the package portable.

Styling & theming

The design system lives in a single stylesheet, src/ng_rdm/components/ng_rdm.css, driven by --rdm-* CSS custom properties. To retheme an app, override the variables you care about in your own stylesheet after rdm_init() loads the base:

:root {
    --rdm-primary: #7c3aed;
    --rdm-primary-hover: #8b5cf6;
    --rdm-bg-page: #0f172a;   /* dark page background */
    --rdm-text: #e2e8f0;
    --rdm-border: #334155;
}

The exhaustive list of tokens (semantic colors, spacing, typography, table row states) is at the top of ng_rdm.css. Every widget uses semantic class names (rdm-table, rdm-selected, rdm-table-card, etc.) rather than utility classes, so targeted overrides work reliably.

Show refresh via CSS

If you want to see which tables/components are being refreshed, you can pass show_refresh_transitions = True to the rdm_init call. This adds an animated green border whenever a component is rebuilt – as in the examples.

Other restrictions

The way we use Tortoise ORM assumes every table has an integer primary key called id. It's possible that things will work if you do it differently, but it's quite likely something will break.

Architecture

ng_rdm focuses on back-end reactivity: shared, persistent data/state that multiple users see at once. This is distinct from NiceGUI's front-end reactivity (bindings, Vue/Quasar mechanisms), which handles per-user, transient state. The two are complementary — use both.

When the store notifies a component, @ui.refreshable_method rebuilds the UI with fresh data. Components accept a state dict (owned by the page, persisted in app.storage.user) that survives rebuilds — so selected rows stay selected, open tabs stay open.

For the full architecture, observer pattern, component hierarchy, and data flow, see docs/facts.md.

Caution: scalability

This library is absolutely not intended or suitable for applications with thousands of concurrent users, at least not for fully reactive UI's: a single update of a database table will lead to multiple reads per connected client (refresh -> reread). The typical use case is for dashboard-type apps that have a handful of users; without actually testing it, I'd estimate a practical upper limit to be around ~50-100 concurrent users?

Note that by default, all table classes register as observers to the stores they depend on, for all events. The first step to improve scalability is to set auto_observe=False when instantiating the component – and then to either register your observer with topic filtering or even better, don't register it at all if you don't need reactivity.

Requirements

• Python >= 3.12
• NiceGUI >= 3.0, < 4.0
• Tortoise ORM >= 1.0.0, < 2.0.0
• pytz

For testing:

• pytest>=8.0
• pytest-asyncio>=0.23
• pytest-cov>=5.0
• httpx

License

MIT
