niftimesh 0.1.1

Watertight, smooth STL reconstruction from NIfTI segmentations (boolean-CSG peel or independent organs).

NiftiMesh

Watertight, smooth STL reconstruction from NIfTI segmentations.

Turn a multi-label .nii.gz segmentation into one clean, closed STL surface per label — solid, watertight, manifold, self-intersection-free. In csg mode, adjacent regions share their interface seam bit-identically, so the parts assemble seamlessly in 3D Slicer / Mimics.

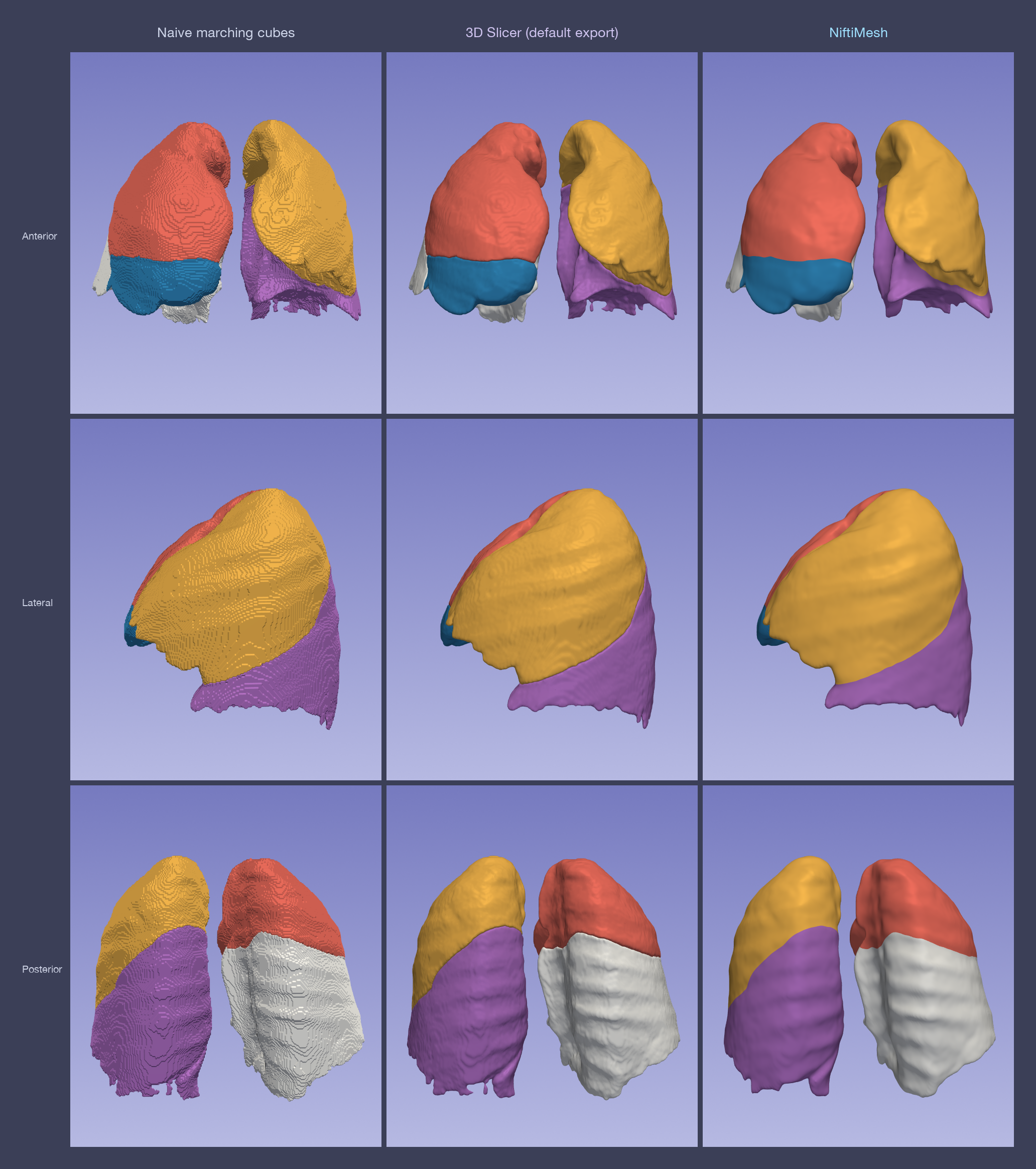

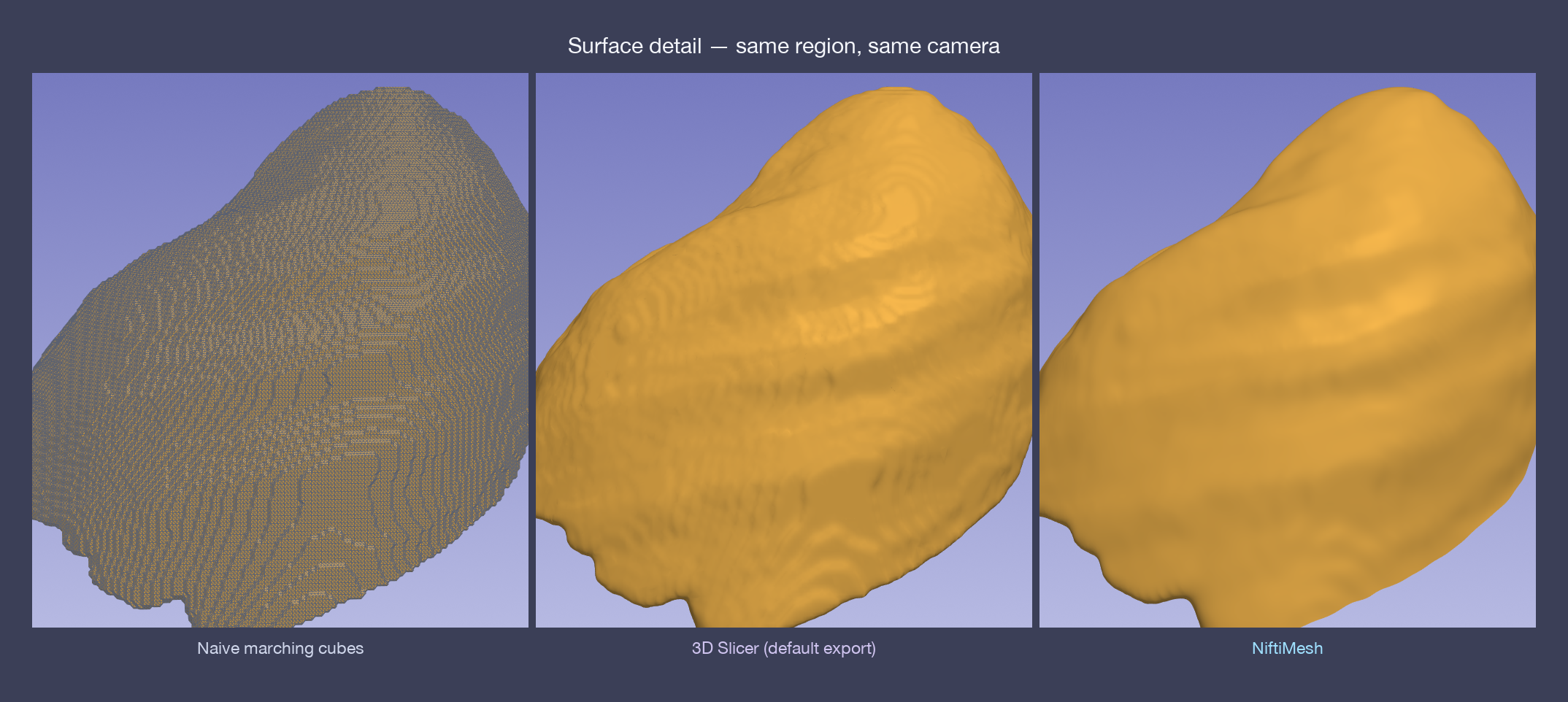

Left → right: naive marching cubes (voxel staircase) · a typical 3D Slicer default export · NiftiMesh (smooth, watertight, seamless).

What it's for

A multi-label segmentation volume → per-label STL meshes. Two modes:

• csg — for one structure split by internal interfaces: lung lobes / segments, Couinaud liver segments. Neighbouring labels share their cut seam exactly (no crack, no black line).
• independent — for disjoint organs (liver + spleen + kidneys, vessels): each label becomes its own closed, smoothed surface.

You define the output names — nothing is hard-coded to any anatomy.

Install

pip install "niftimesh[csg]"   # csg mode (needs meshlib)
pip install niftimesh          # independent + naive modes only

Python ≥ 3.9. NIfTI is read via nibabel (bundled) or SimpleITK if installed. Prebuilt wheels are also attached to each GitHub Release.

Usage

# names from a JSON file: {"1": "left_lower_lobe", "2": "left_upper_lobe", ...}
niftimesh seg.nii.gz out/ --mode csg --label-names names.json --suffix _3d

# omit --label-names to get label_1.stl, label_2.stl, ...
niftimesh organs.nii.gz out/ --mode independent

from niftimesh import nifti_to_stl

nifti_to_stl("seg.nii.gz", "out/", mode="csg",
             label_names={1: "left_lower_lobe", 2: "left_upper_lobe"})

# in-memory: numpy (z, y, x) label volume -> {label: vtkPolyData}
from niftimesh import reconstruct
meshes = reconstruct(seg, spacing=(0.84, 0.84, 1.0), mode="independent")

License

Apache 2.0 © 2026 Justin
