Nutate

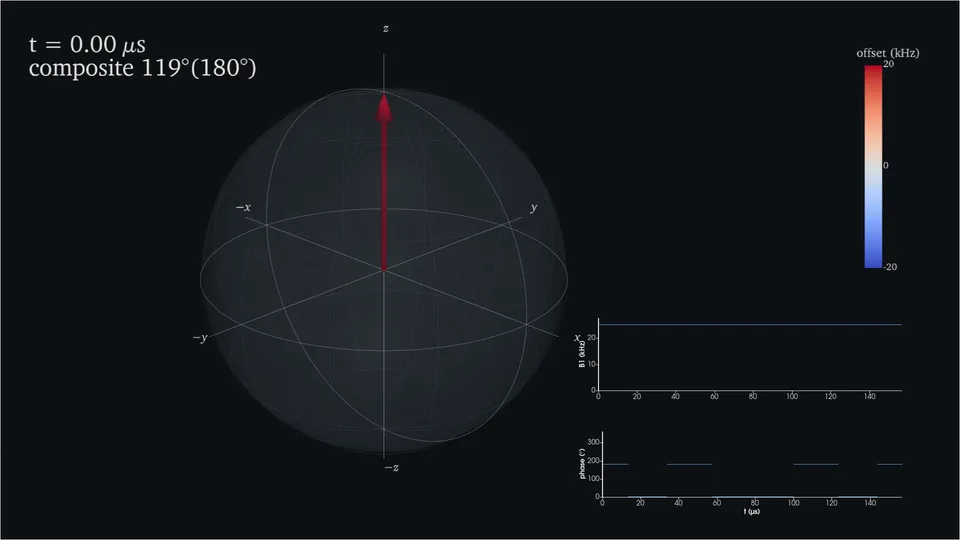

Bloch simulations of any pulse sequence, rendered as 3D Bloch-sphere videos.

Full-quality video (1080p):

https://github.com/user-attachments/assets/1848f607-e421-4923-b198-bb7745c69010

Nutate takes any pulse, given as a waveform (amplitude and phase, or I and Q) with its duration and Rabi frequency, whether it drives nuclear spins (NMR), electron spins (EPR/ESR) or a qubit. It simulates the Bloch vector in the rotating frame for many offsets at once, renders the trajectories with PyVista as MP4/GIF videos, PNG stills or an interactive viewer, and maps robustness to drive (B1) amplitude errors. Optional pulse families (chirps, hyperbolic-secant pulses, CHORUS, composite pulses) live in nutate.pulses.

Install

pip install nutate

Python ≥ 3.11. Video encoding uses the ffmpeg binary bundled with imageio-ffmpeg; no system ffmpeg or LaTeX needed.

Quickstart

A generator makes the pulse: a waveform normalised to 1 plus its duration and Rabi frequency ν1 (the drive amplitude, RF or MW, at waveform value 1). nt.run simulates it and writes the video and/or the B1 robustness figures.

import nutate as nt
from nutate.pulses.swept_frequency import chirp

pulse = chirp(10e-3, 20e3, 500, smoothing=10)  # pulse.amp (peak 1), .phase, .duration, .rabi
nt.run(pulse, 10e3, still=True, b1=True, out="output", name="chirp")
# output/chirp.mp4, chirp.png, chirp_b1_map.png, chirp_b1_surface.png, chirp_b1_phase.png

Units are SI throughout (seconds, hertz, radians); arguments in degrees end in _deg.

The package core holds the pulse type, nt.waveform (your own arrays) and nt.delay (free precession). Pulse families live in nutate.pulses:

• nutate.pulses.swept_frequency: chirp, hs, chorus (a list including its delay), CHORUS_CYCLE, phase_correction and chorus_phase_correction
• nutate.pulses.composite: composite (a list, one pulse per element) and PRESETS

pulse.with_rabi(ν1) changes the Rabi frequency and keeps the waveform.

Your own waveform

nt.waveform turns arrays from any other generator (an optimiser, a shape tool) into a pulse: amplitude and phase, or I and Q, normalised to 1. rabi is the Rabi frequency in Hz, or give t90, the hard 90° pulse length (rabi = 1/(4·t90)). Slight overshoot above 1 is simulated as given; a peak above 1.5 is an error.

p1 = nt.waveform(amp, phase, duration=2e-3, rabi=15e3)  # or phase_deg=...
p2 = nt.waveform(i=I, q=Q, duration=1e-3, t90=10e-6)
result = nt.run([p1, p2], 300e3, b1=True, out="output", name="my_pulse")

Sequences and delays

A sequence is a list, played back to back. Put nt.delay(duration, n_steps) between pulses for free precession (no drive); n_steps sets how finely the delay is sampled, i.e. how smoothly the video shows it.

sequence = [p1, nt.delay(500e-6, 100), p2]  # p1, 500 µs of free precession, then p2
nt.run(sequence, 300e3, out="output", name="echo")

nt.run options

• Offsets span ±bandwidth/2: n_offsets (31) for the video, b1_offsets (101) for the B1 map. Or pass offsets= (Hz) for both.
• video (on), still (last frame as PNG), b1 (off), show (interactive windows instead of files). Pulses in a list play back to back; phase_cycle= is passed through.
• video_options go to nt.render; those that apply also go to the still and the viewer:
  • offsets: draw only k evenly spaced offsets, or given indices
  • mode: "arrows", "ribbon" (a curve through all tips) or "both"
  • trail: fading tip trails, as a fraction of the sequence
  • inset / inset_phase: drive amplitude (and phase) vs time with a moving cursor
  • theme: "light" (default) or "dark"
  • camera=nt.Camera(orbit=90), style=nt.Style(...) (colours, sizes, font), duration, size
• B1 figures plot −My by default; component="z" for inversion. b1_scales (0.5–1.5) and rabi_ref (the highest ν1, for the Δ/Ω1(0) axis) can be changed.
• The result holds the trajectory, the B1 map, the phase sensitivity and the files written.

Lower level

import numpy as np

traj = nt.simulate([pulse], offsets=np.linspace(-5e3, 5e3, 31))
nt.render(traj, "chirp.mp4", duration=12)

nt.snapshot(...) writes a PNG still; nt.show(traj) opens an interactive window with a time slider. nt.plot_profiles(traj) and nt.plot_map(traj) make the 2D excitation profile and time–offset map plots.

B1 robustness

pulse = nt.waveform([1.0], [0.0], duration=10e-6, t90=10e-6)  # hard 90°, ν1 = 25 kHz
offsets = np.linspace(-100e3, 100e3, 101)  # Δ/Ω1(0) from −4 to 4
scales = np.linspace(0.5, 1.5, 101)  # Ω1 / Ω1(0)
bmap = nt.b1_map([pulse], offsets, scales)
nt.plot_b1_map(bmap, "y", sign=-1)  # contours over Δ/Ω1(0) × Ω1/Ω1(0)
nt.plot_b1_map(bmap, "y", sign=-1, surface=True)
nt.plot_b1_phase(scales, nt.b1_phase_sensitivity([pulse], scales))

Sequences whose phase varies quickly across the band, such as a single chirp, need dense offsets; examples/b1_chirp.py uses 1000, as the original script did.

simulate(..., b1=...) scales every drive amplitude (one factor, or one per offset); simulate_final returns only the final states, which keeps large grids small in memory. nutate.pulses.swept_frequency.phase_correction(sequence, bandwidth, ...) fits the first-chirp phase correction for any CHORUS-like sequence.

Examples

Each script generates its pulses and passes them to nt.run. Video scripts write output/<name>.mp4 and .png; the b1_* scripts (and waveform.py) write output/<name>_b1_map.png, _b1_surface.png and _b1_phase.png. To change what they produce, edit the nt.run call: show=True for interactive windows, out= for another folder, video_options={"theme": "dark"} for a dark video.

Conventions

• Rotating frame, no relaxation; initial magnetization (0, 0, 1).
• Each step rotates the magnetization by +α = 2π·sqrt(Ω² + Δ²)·dt (right-handed) about n = (sinθ cosφ, sinθ sinφ, cosθ) with θ = atan2(Ω, Δ), for drive amplitude Ω (waveform × ν1), phase φ and offset Δ — i.e. Rz(φ)·Ry(θ)·Rz(α)·Ry(−θ)·Rz(−φ). So an on-resonance 90° pulse with phase 0 takes z → −y.
• Profile phase is angle(My + i·Mx).

Headless rendering

Videos are rendered off-screen. On a server without a display, VTK needs an off-screen OpenGL context (OSMesa/EGL or a virtual display); see the off-screen rendering notes in the PyVista documentation.

Citation

If you use nutate in published work, please cite it; see CITATION.cff.

License

Apache License 2.0 — see LICENSE and NOTICE.
