oekaki 0.1.0

Lazy on demand subplots.

Oekaki

Lazy on demand subplots.

Features

• 1️⃣ You can draw subplots, wherever and whenever you want.
• 2️⃣ You can access mosaic subplots with Regex.
• 3️⃣ Oekaki warn about potentially misleading graphs. (No labels or units.) This feature can be ignored.
• 🍣 (Oekaki imports japanize-matplotlib if it's installed.)

Demo

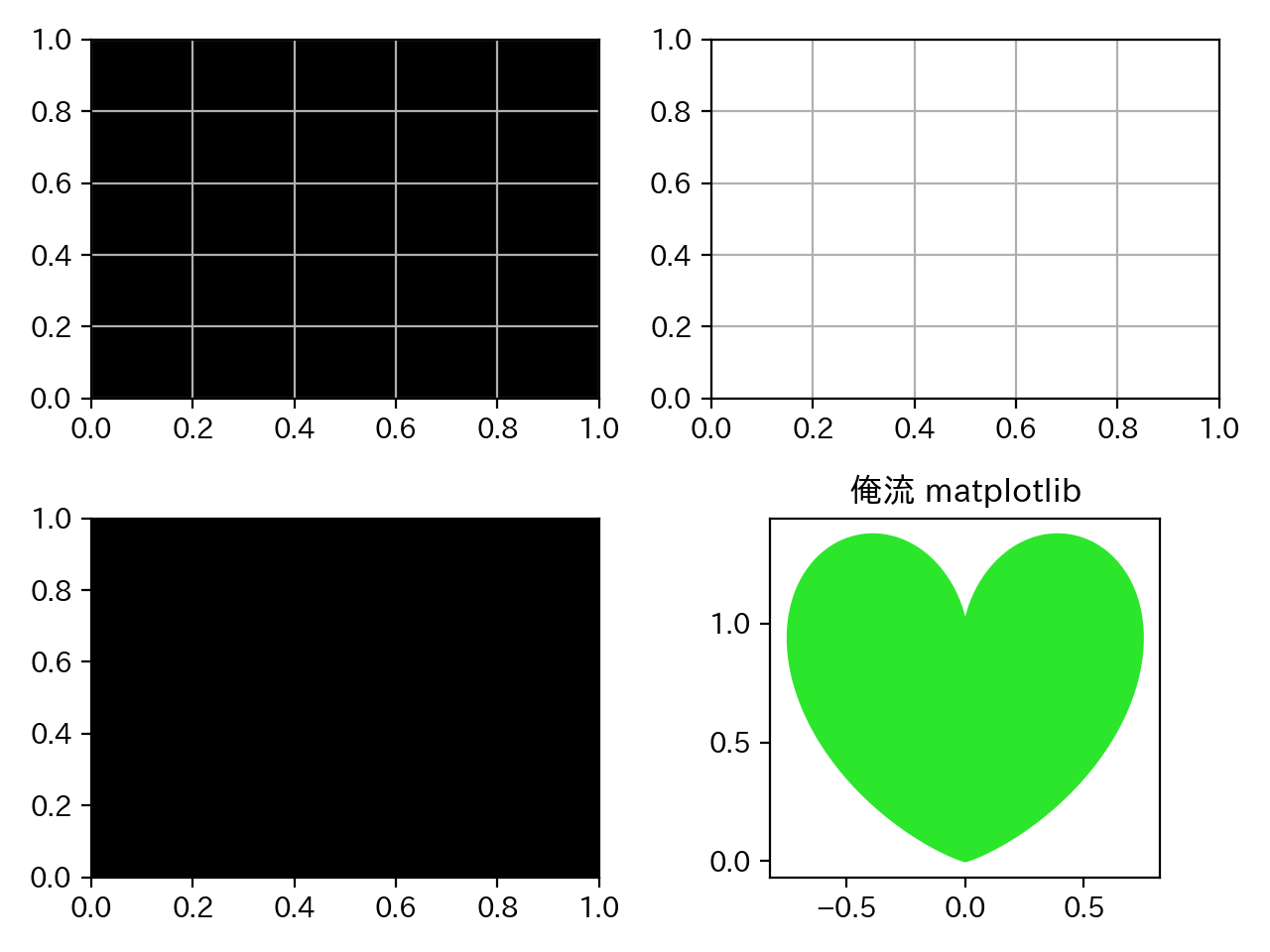

import numpy as np
import oekaki

# 1️⃣: lazy draw subplots
fig = oekaki.figure(tight_layout=True)

# 2️⃣: able to use regex search
fig["left"].set(facecolor="black")
fig["upper"].grid(True)

# 🍣 japanize
fig["lower right"].set(aspect="equal", title="俺流 matplotlib")

theta = np.linspace(0, np.pi, 300)
r = np.abs(np.tan(theta))**(1 / np.abs(np.tan(theta)))
fig["lower right"].fill(r * np.cos(theta), r * np.sin(theta), color="#2ce62c")
fig.show("""upper left | upper right
            lower left | lower right""")

3️⃣: This code raises the following warnings.

example/readme.py:12: MisleadingWarning:
lower right: No x-label.
lower right: No y-label.
  fig.show("""upper left | upper right

Requirement

• matplotlib
• seaborn

Installation

pip install oekaki

If you want to also install japanize-matplotlib, run below.

pip install "oekaki[ja]"

Usage

First, create a figure instance.

fig = oekaki.figure()

You can use all matplotlib's Axes API.

fig["plot"].plot(x, y)

You can also use some seaborn API through sns property. They must have ax argument.

fig["hist"].sns.histplot(data=data)

It is also possible to manipulate the subplots using regex. (This is implemented using re.Pattern.search.)

# `.*` means ALL
fig[".*"].grid(True)

Finally, let's draw it in (enhanced) Mosaic format!

fig.show("""hist | plot""")
fig.show("""hist
            plot""")

Note

Under construction.

Author

Under construction.

License

Under construction.
