Designed to be used with pipettor_package following similar structure to open-biohit
Project description
Biohit pipettor gui
A modern GUI application for controlling electronic pipettors with advanced
workflow capabilities. Currently, in use with Biohit but can be used with other pipettors as well.
See more in documentation
Features
- Interactive GUI with Custom Deck, slot, and labware. Easy definition and visualization.
- Works on both single and multi pipettor
- Direct implementation of labware based operations. eg: pick_tips, return_tips, add_medium, remove_medium.
- Workflow builder to build and run a list of operation
- Operation logging.
- Ability to save & load Workflow and Deck.
Download
Install via PyPI (Recommended for Developers)
See the installation guide in the documentation.
Working Tutorial

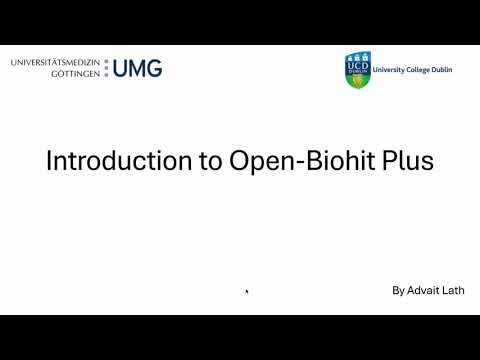

To see the Biohit Pipettor gui in action, watch the full walkthrough below:
Development
Built with: - Python - ttkbootstrap and Tkinter (Modern UI) - matplotlib (Data visualization)
License
Biohit Roboline Python Interface
To learn more about the default pipettor in use
