openmm-opes

On-the-fly Probability Enhanced Sampling (OPES) for OpenMM.

OPES is an enhanced sampling method that builds its bias from an on-the-fly estimate of the probability distribution along a few collective variables, instead of accumulating repulsive hills as metadynamics does. The bias soon becomes nearly static, so free energies converge quickly and reweighting is simple. It needs only an expected barrier height, a deposition stride and a kernel bandwidth. This package implements OPES in pure Python on top of OpenMM, in the spirit of openmm.app.Metadynamics, and is validated against PLUMED's OPES_METAD and OPES_METAD_EXPLORE.

Features

• OPES and OPES-explore, following Invernizzi and Parrinello, with fixed, adaptive or warm-up bandwidths and on-the-fly kernel compression.
• OPES and OPES-explore combined (OPES_COM, Ray and Rizzi), as a single CombinedOPES sampler that computes the collective variables once per step.
• Multiple walkers sharing one bias through a directory.
• Several samplers on one simulation, with extra biases folded into the reweighting, like PLUMED's EXTRA_BIAS.
• Reweighting tools: the reweighting constant c(t), and PLUMED's rct as a convergence check.
• Smoothing-corrected free energy surfaces, which remove the bias of the kernel density estimate and lower the noise of a single run.
• Periodic, unbounded or reflective collective variables, one to three of them.
• Checkpoints through getState and setState.

Installation

With conda, from the mdtools channel, with OpenMM and the other dependencies from conda-forge:

conda install -c conda-forge -c mdtools openmm-opes

Or with pip:

pip install openmm-opes

It needs Python 3.11 or later and OpenMM 8.1 or later.

Quick start

Alanine dipeptide in vacuum, biased along its backbone dihedrals φ and ψ. The structure is alanine-dipeptide.pdb from this repository.

import numpy as np
import openmm
from openmm import app, unit

from openmm_opes import OPES

pdb = app.PDBFile("alanine-dipeptide.pdb")
system = app.ForceField("amber14-all.xml").createSystem(
    pdb.topology,
    nonbondedMethod=app.NoCutoff,
    constraints=app.HBonds,
    hydrogenMass=4 * unit.amu,
)


def dihedral(*atoms):
    force = openmm.CustomTorsionForce("theta")
    force.addTorsion(*atoms, [])
    return app.BiasVariable(force, -np.pi, np.pi, 0.15, True, 101)


phi, psi = dihedral(4, 6, 8, 14), dihedral(6, 8, 14, 16)
sampler = OPES(
    system,
    [phi, psi],
    temperature=300 * unit.kelvin,
    barrier=50 * unit.kilojoules_per_mole,
    frequency=250,  # one kernel per ps
    varianceFrequency=None,  # fixed initial bandwidth, from biasWidth
    biasFactor=10,
)

integrator = openmm.LangevinMiddleIntegrator(
    300 * unit.kelvin, 1 / unit.picosecond, 4 * unit.femtoseconds
)
simulation = app.Simulation(pdb.topology, system, integrator)
simulation.context.setPositions(pdb.positions)
simulation.minimizeEnergy()

sampler.step(simulation, 2_500_000)  # 10 ns
fes = sampler.getFreeEnergy(correctSmoothing=True)  # kJ/mol on the 101 x 101 grid

CombinedOPES takes the same arguments plus an exploreBarrier, and OPES(..., exploreMode=True) gives OPES-explore. The quickstart covers bandwidths, multiple walkers, extra biases and the combined sampler.

Benchmarks

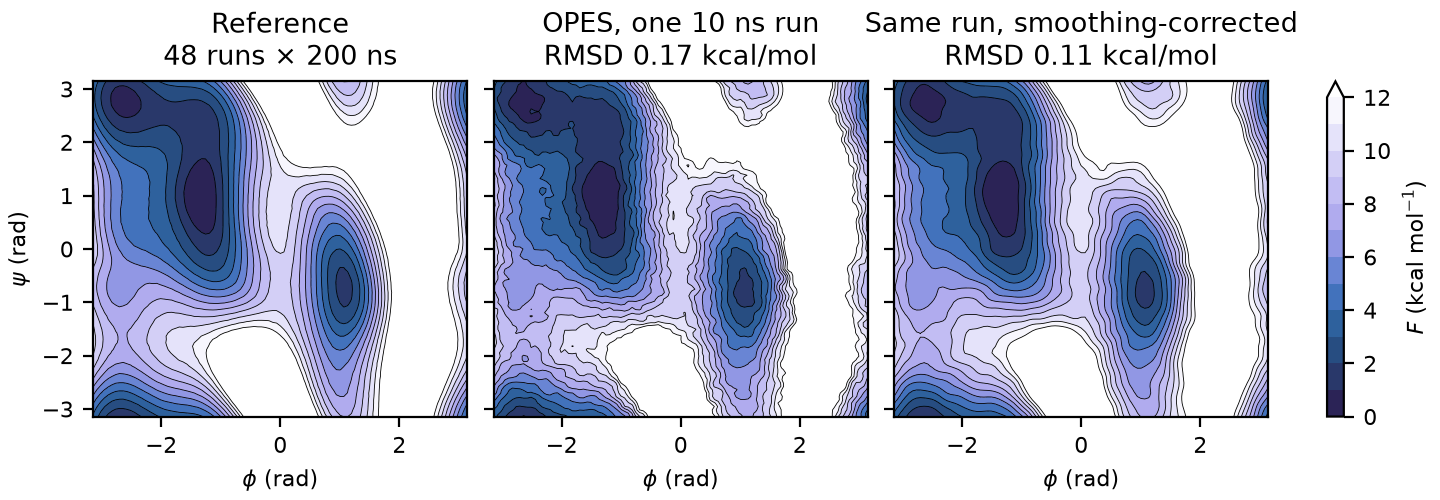

The free energy surface of alanine dipeptide in vacuum, left, from a reference computed for this benchmark. Next to it is the surface a single 10 ns OPES run reports, before and after the smoothing correction. Its RMS deviation from the reference, where the reference is below 5 kcal/mol, drops from 0.17 to 0.11 kcal/mol, typical of the 16 runs in the benchmark.

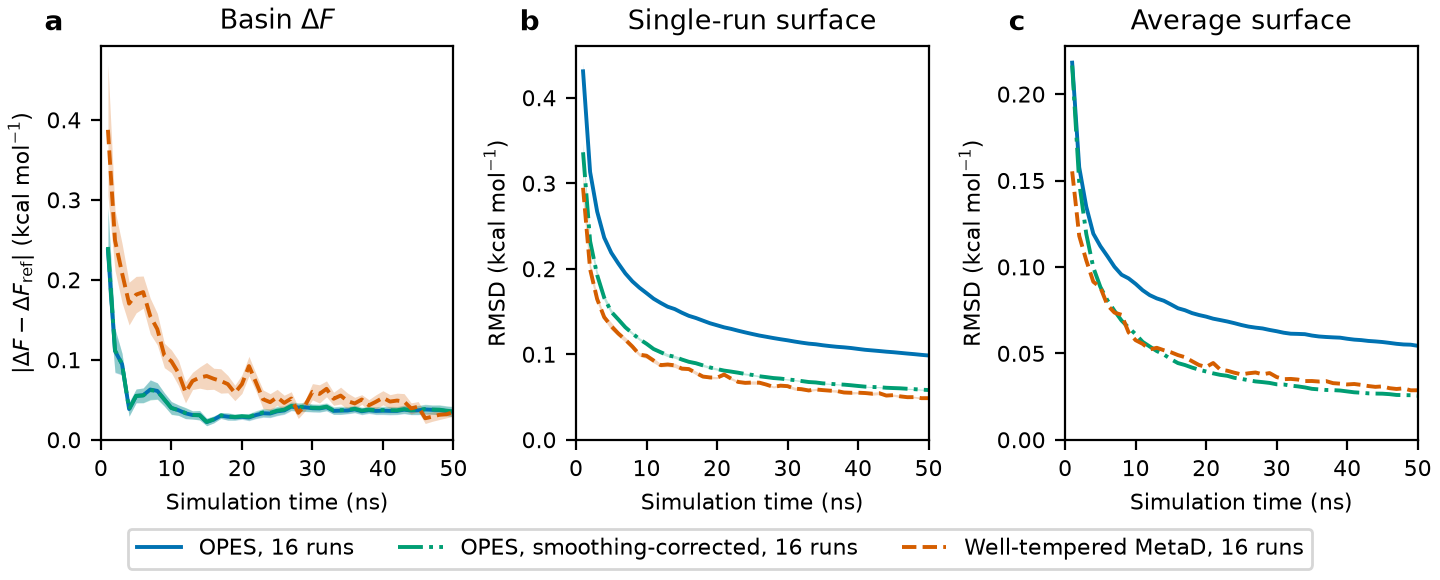

For alanine dipeptide in vacuum, OPES converges the free energy difference between basins several times faster than OpenMM's well-tempered metadynamics, based on 16 independent runs of each method evaluated against an accurate reference surface. With the smoothing correction (getFreeEnergy(correctSmoothing=True)), OPES also achieves comparable accuracy in the full free energy surface.

The alanine dipeptide benchmark includes convergence results, single-run comparisons, and the reference surface. Additional benchmarks comparing this implementation with PLUMED's OPES are available in benchmarks/plumed.

Documentation

• Quickstart: a runnable example and the main options.
• Theory: how the code maps onto the published equations, and where it departs from them.
• API reference.

Citing

If you use openmm-opes, please cite the papers behind the methods you use:

• OPES: M. Invernizzi and M. Parrinello, J. Phys. Chem. Lett. 11, 2731 (2020), doi:10.1021/acs.jpclett.0c00497.
• OPES-explore: M. Invernizzi and M. Parrinello, J. Chem. Theory Comput. 18, 3988 (2022), doi:10.1021/acs.jctc.2c00152.
• OPES and OPES-explore combined: D. Ray and V. Rizzi, J. Chem. Theory Comput. 21, 58 (2025), doi:10.1021/acs.jctc.4c01231.
• Smoothing correction: M. C. Jones, O. Linton and J. P. Nielsen, Biometrika 82, 327 (1995).

Origin

This library packages and hardens the prototype implementation developed in craabreu/opes-simulations, porting its OPES and OnlineKDE classes into a tested, documented package.

License

MIT
