optical-table 1.0.2

Optable — Ray tracing on an Optical table

A simple ray tracing and visualization tool for freespace optics.

dedicated to phys students working with freespace optics.

For documentation see online documentation on Read The Docs.

For examples of use check Examples.

Installation

pip install optical_table

or install from source:

git clone https://github.com/tim4431/optable.git
cd optable
pip install -e .

Example

Gaussian beam tracing

import numpy as np, matplotlib.pyplot as plt
from optable import *

wl = 780e-9
w0 = 10e-6

r0 = [
    Ray([-10, 0, 0], [1, 0, 0], wavelength=wl, w0=w0),
    Ray([-10, 2, 0], [1, 0, 0], wavelength=wl, w0=w0),
    Ray([-10, 4, 0], [1, 0, 0], wavelength=wl, w0=w0),
    Ray([-10, 6, 0], [1, 0, 0], wavelength=wl, w0=w0),
    Ray([-10, 9, 0], [1, 0, 0], wavelength=wl, w0=w0),
    Ray([-10, 21, 0], [1, 0, 0], wavelength=wl, w0=w0).RotZ(-np.pi / 4),
]

m0 = Mirror([0, 0, 0]).RotZ(np.pi / 6)
l0 = Lens([0, 2, 0], radius=0.8, focal_length=5)
l1 = Lens([0, 4, 0], radius=0.8, focal_length=10)
l2 = Lens([0, 6.5, 0], radius=0.8, focal_length=10)
slab0 = GlassSlab([0, 9, 0], n1=1, n2=2, thickness=5)
m1 = Mirror([0, 11, 0]).RotZ(-np.pi / 2)

rays = r0
components = [m0, l0, l1, l2, slab0, m1]

table = OpticalTable()
table.add_components(components)
table.ray_tracing(rays)

fig, ax0 = plt.subplots(1, 1, figsize=(12, 6))
table.render(
    ax0,
    type="Z",
    gaussian_beam=True,
    spot_size_scale=1,
    roi=[-15, 30, -10, 20],
)
plt.show()

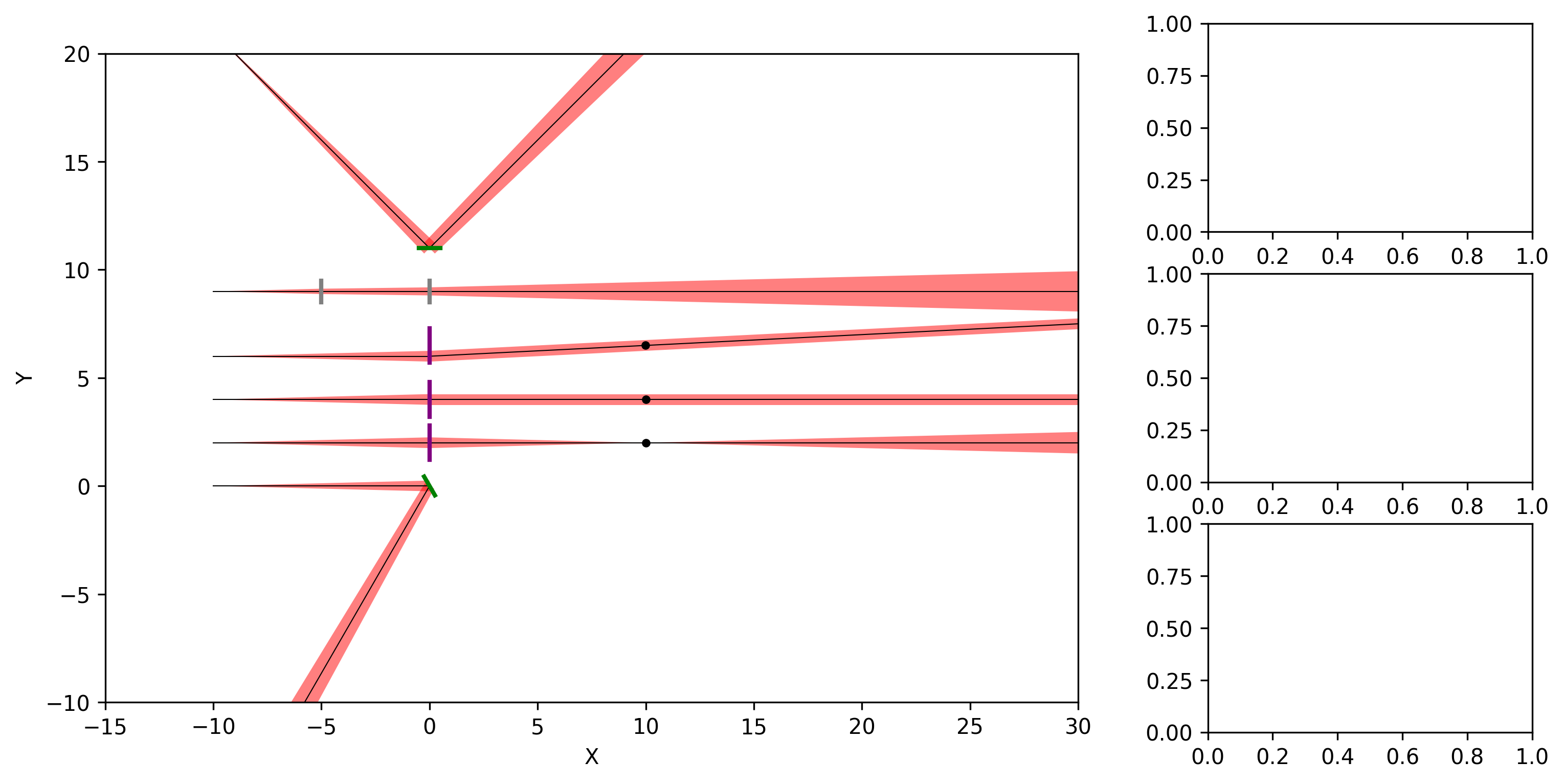

Result
