orbital-viz 0.1.1

Visualization tool for molecular electronic structures.

OrbitalViz

Visualise molecules and molecular orbitals (MOs) interactively in Python.

---

Installation

pip install orbital_viz

Requires Python ≥ 3.11.

---

Quick start

From a Molden file

from orbital_viz import parse_molden_to_dict, BasisGTO, read_molden_c_matrix, plot_molecular_orbital

# Parse geometry and basis set
data = parse_molden_to_dict("molecule.molden")
basis = BasisGTO(**data)

# Read MO coefficients
C = read_molden_c_matrix("molecule.molden", basis.n_basis)

# Plot MO index 5 (zero-based)
fig = plot_molecular_orbital(basis, C, n=5)
fig.show()

From a custom basis (e.g. PyBEST output)

from orbital_viz import BasisGTO, plot_molecular_orbital
import numpy as np

basis = BasisGTO(
    atoms=[6, 6],                         # Carbon, Carbon
    coordinates=[[-0.67, 0, 0], [0.67, 0, 0]],  # Å
    number_of_primitives=[3, 3],
    contraction=[0.154, 0.535, 0.444, 0.154, 0.535, 0.444],
    Alpha=[71.6, 13.0, 3.53, 71.6, 13.0, 3.53],
    shell_types=[0, 0],
    shell_to_atom=[0, 1],
)

C = np.load("mo_coefficients.npy")   # shape (n_basis, n_mo)
fig = plot_molecular_orbital(basis, C, n=0, isovalue=0.04, dark_bg=True)
fig.show()

---

API reference

parse_molden_to_dict(filepath)

Parses a standard Molden file and returns a dictionary ready to pass directly into BasisGTO.

data = parse_molden_to_dict("molecule.molden")
# keys: atoms, coordinates, number_of_primitives,
#       contraction, Alpha, shell_types, shell_to_atom

---

read_molden_c_matrix(filepath, n_basis)

Reads the MO coefficient matrix from a Molden file.

Returns an np.ndarray of shape (n_basis, n_mo).

---

BasisGTO

Contracted GTO basis set for a molecule. Handles Cartesian and spherical (solid-harmonic) AOs up to arbitrary angular momentum.

BasisGTO(
    atoms,                  # list[int]  – atomic numbers
    coordinates,            # list[list[float]]  – XYZ positions in Å
    number_of_primitives,   # list[int]  – primitives per shell
    contraction,            # list[float]  – contraction coefficients (flat)
    Alpha,                  # list[float]  – exponents (flat)
    shell_types,            # list[int]  – angular momentum per shell (0=s,1=p,…)
    shell_to_atom,          # list[int]  – atom index per shell
)

Key attributes: atoms, coordinates, n_atoms, n_basis.

---

plot_molecular_orbital(Basis, mo_coeffs, n, **kwargs)

Renders MO n as an interactive Plotly 3-D figure.

Parameter	Default	Description
grid_points	50	Grid resolution per axis — increase for smoother surfaces
isovalue	0.05	ψ value at which isosurfaces are drawn
padding	2.0	Extra space (Å) around the molecule bounding box
opacity	0.45	Isosurface opacity (0–1)
atom_scale	0.25	Scale factor on VDW radii for atom spheres
bond_radius	0.08	Bond cylinder radius (Å)
title	None	Figure title; defaults to "MO #n"
dark_bg	False	Dark background (great for glowing orbital renders)
show_labels	True	Show atom labels

Returns a plotly.graph_objects.Figure. Call .show() to render in Jupyter or .write_html("out.html") to save.

---

Examples

See the examples/ directory for Jupyter notebooks:

• ethylene_from_pybest.ipynb — ethylene MOs from PyBEST output

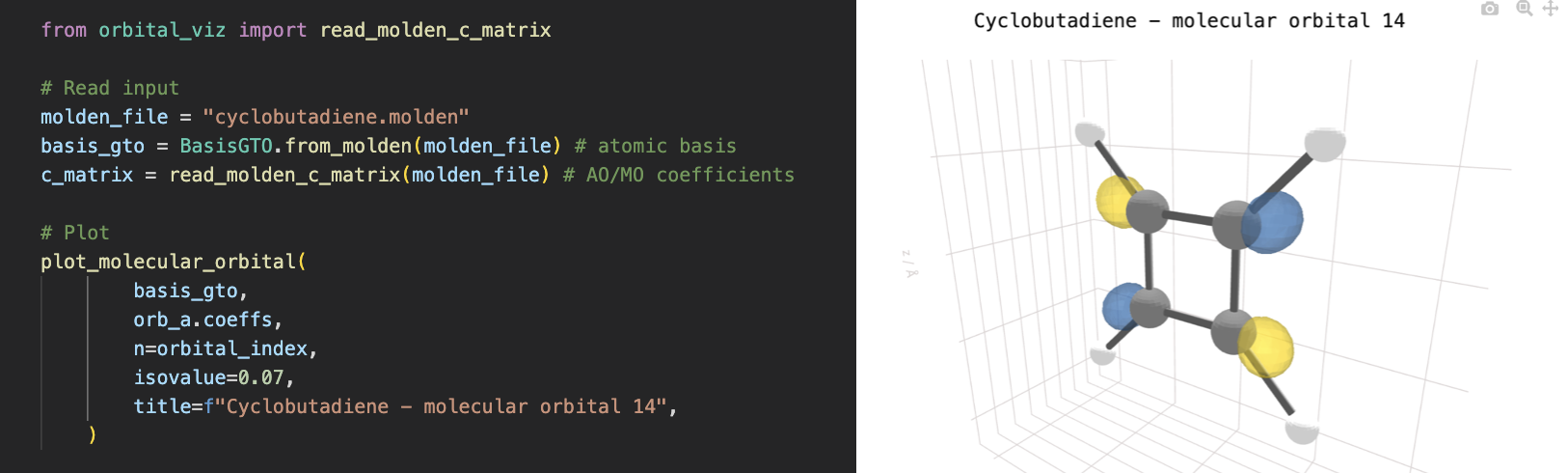

• cyclobutadiene_from_molden.ipynb — cyclobutadiene MOs from a Molden file

---

Dependencies

• NumPy
• SciPy
• Plotly

---

License

MIT
