ostrace

Stream, inspect and export iOS device logs — on Windows, macOS and Linux.

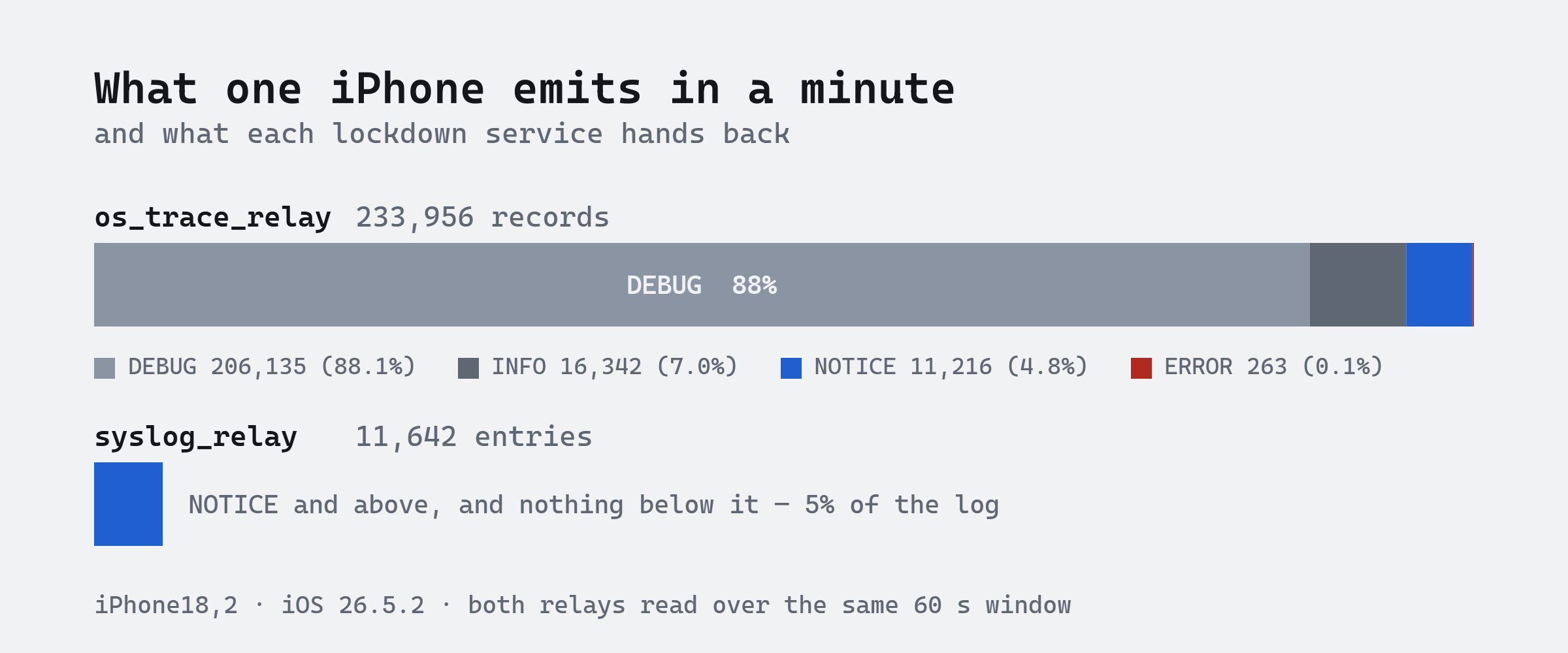

ostrace reads Apple's unified log over com.apple.os_trace_relay, the same service Console.app uses. That means structured records: subsystem, category, thread id and the emitting library, at DEBUG level and above — not just the NOTICE-tier text that the legacy syslog_relay path returns. Reading both services from one iPhone18,2 over the same minute, os_trace_relay delivered 233,956 records and syslog_relay 11,642: 222,477 of them — 95% — reach one service and not the other.

Why

Both relays were read at the same time, from one process, over the same minute — the same device delivers 5,140 records in one 20-second window and 36,763 in another, so measuring them one after the other compares the device's mood rather than the two services.

What syslog_relay returns is the NOTICE tier and above, and nothing below it. Across three runs it matched that boundary to within 1.5%, and once exactly. Tools built on it — idevicesyslog among them — therefore never receive the DEBUG and INFO records, which are the ones that matter when you are debugging your own app. Roughly 90% of the log is on the other side of that line.

The ratio itself is not the claim: it moved between 9.1× and 20.1× across those runs, with how much DEBUG the device happened to be emitting. What did not move is which tiers arrive.

This compares two services, not two applications. Console.app, Xcode's device console and pymobiledevice3 syslog live all read os_trace_relay, the same one ostrace does, and they see the same records — the difference there is the tool, not the data. The comparison above is against the text path, which is what idevicesyslog and the single-file predecessor this project replaces were built on.

Separately, 96.8% of records in the reference capture carry a subsystem and category that the text-based pipeline discards — measured between 80% and 97% across the captures in tests/fixtures/ and since.

os_trace_relay is still an ordinary lockdown service on iOS 26: no RemoteXPC tunnel, no administrator privileges.

Install

pipx install "ostrace[gui]"

pipx (or uv tool install) is the recommended route. Files installed by a package manager are never quarantined by macOS, so Gatekeeper never enters the picture. Leave off [gui] for the command line alone, which is a much smaller install.

A note on install size: ostrace depends on pymobiledevice3, which pulls in 90 distributions of its own — measured, not estimated — and the GUI extra brings PySide6. The full install is in the hundreds of megabytes. This is documented rather than hidden; see docs/adr/0002.

The viewer

ostrace-gui

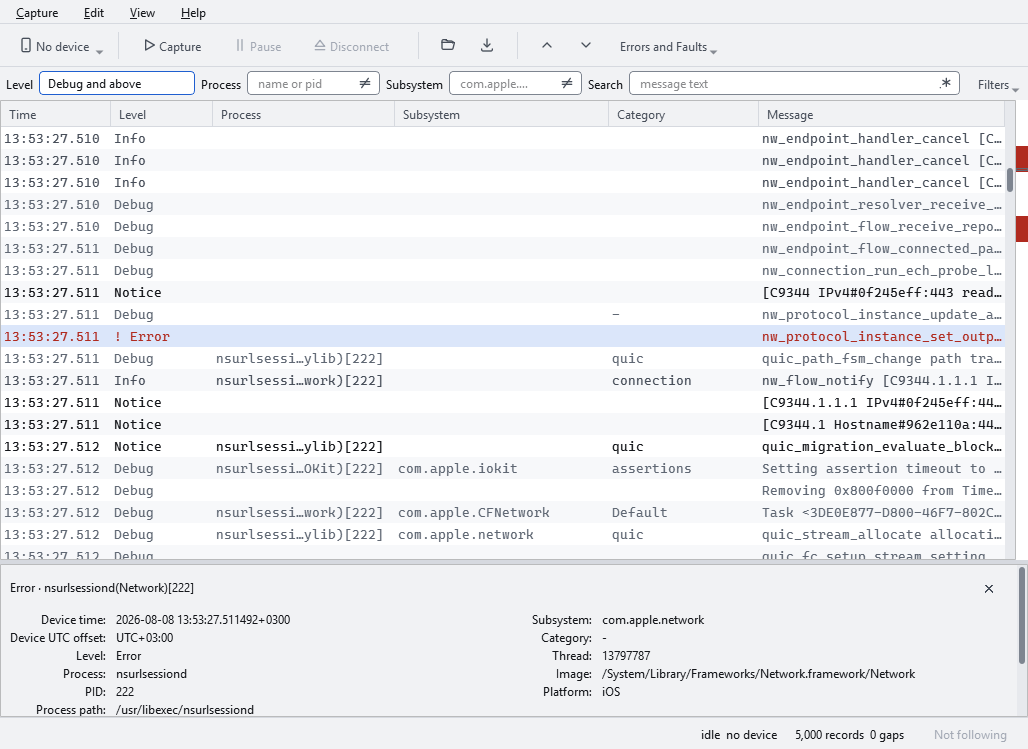

Capture streams from an attached device; Open reads a capture from disk. Either way the records go into a virtualised table coloured by severity, with every field of the selected row in the pane below — including the two that routinely get confused, the process executable and the library that emitted the line.

A few things it does deliberately:

• Pause freezes the view and nothing else. The capture keeps running and keeps writing every record to the session file, so nothing is lost by looking away. Disconnect is the control that releases the device, and it is named after its consequence rather than called "stop".
• A gap is a row. When the device disconnects mid-capture, the hole in the log appears in the table where it happened, in position, and it survives every filter. A filter says which records you want; a gap says whether the answer is complete, and hiding one to satisfy the other would make the view lie about the capture.
• The strip beside the table marks every error, gap and mark across the whole capture, not just the visible part. Clicking jumps there. It is the only thing that will tell you about a discontinuity forty thousand rows above where you are reading.
• Filters keep your place. Changing a filter anchors the selection and the viewport to the record you were reading, not to a row number, and falls back to the nearest survivor when that record is filtered away.

The command line

ostrace doctor                    # why can't I see my device?
ostrace devices --verbose         # list what is attached
ostrace capture --duration 60     # stream to a session file
ostrace export CAPTURE            # turn it into something readable

ostrace capture writes a session directory under your data directory and prints the path. --max-records and --duration both stop it; so does Ctrl-C, cleanly. If the device disconnects mid-capture it reconnects and records a gap rather than pretending the log is continuous.

Start with doctor if anything is not working. Almost every problem here is environmental rather than a bug, and it checks the causes in the order they actually occur:

[ ok ] ostrace      0.2.0 on Python 3.13.14 (win32)
[ ok ] usbmux       Apple Mobile Device Service on 127.0.0.1:27015
[FAIL] devices      none connected
               Connect the device over USB and unlock it. A charge-only cable
               gives exactly this symptom.

What a script can rely on

devices and doctor exit 1 when they find nothing. "No devices connected" is both the answer and a failure, and a script waiting for a phone to appear should not have to read English to notice that it has not.

--quiet means a different thing on each command that has one, because they are answering different questions:

• ostrace capture --quiet drops the progress counter, which was on stderr. The record count and the path still go to stdout — those are the result, not progress.
• ostrace export --quiet prints only the destination. The notes saying what the export left out stay on stderr regardless: they are the bad news, and a flag about stdout is not permission to hide it.

Both commands leave the path they wrote as the last line of stdout.

Exporting

ostrace export needs no device, and the viewer's export dialog offers the same formats. It reads a session directory or a bare capture file and writes beside it, named after it.

ostrace export capture.ostrace                         # a bundle beside it
ostrace export capture.ostrace -f trace                # what led to each error
ostrace export capture.ostrace -f ai-report --budget-tokens 20000

Everything except the bundle is a summary, and each one states what it left out — the gaps in the capture, the patterns that did not fit, the anchors it could not reach. An export that quietly stops reads as complete, and a reader then draws conclusions from an absence that is an artefact of the export rather than a fact about the device.

Using it as a library

Everything the command line does is importable, and reading a capture costs nothing that talking to a device would cost. No import listed below loads Qt or pymobiledevice3 — 90 distributions, measured — including the one that speaks to a phone: the device library is reached from inside the call that opens the relay, so it arrives when you connect rather than when you import. That is also why there is deliberately no flat re-export at the top of the package. One line there would put the whole device stack behind every offline use.

from ostrace.storage import open_capture

capture = open_capture("2026-08-12T13-04-19")
for item in capture:  # records and gaps, in the order they arrived
    ...

Below 1.0.0 these names are not frozen, but they are the supported surface: if one moves, the CHANGELOG says so. Anything not listed here is internal, ostrace.gui included.

What this is not

• There are no downloadable binaries. Install from PyPI; that is also what keeps macOS from quarantining anything.

• Nothing is code-signed. It does not need to be on the install route above.

• macOS has now been run by hand, once. Every test including the eleven that need a real iPhone passes on macOS 26.3.1, and the assumptions that were marked unverified in the source have been checked. That is one pass on one machine, not a support commitment: that machine drove a single non-Retina display, so nothing here has yet been seen at the 2× device pixel ratio most Macs run at. Reports are still welcome.

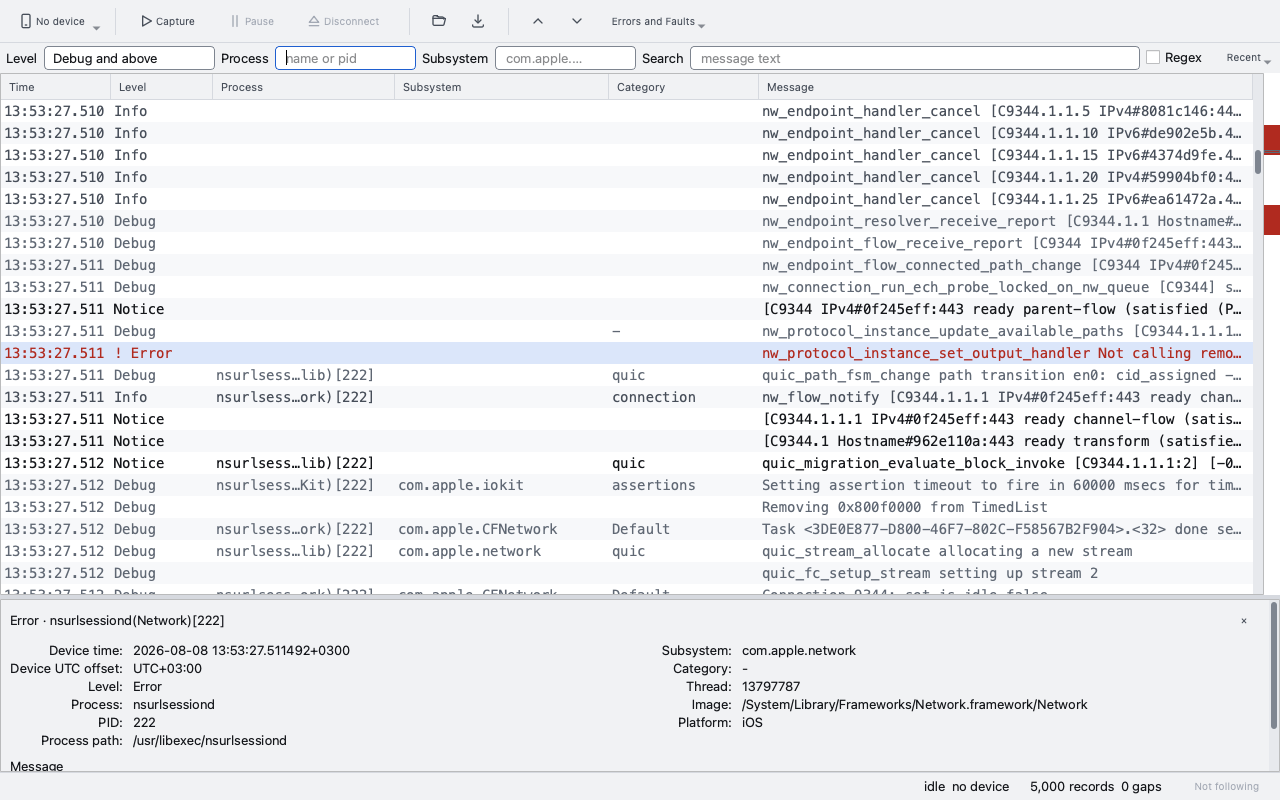

  The same capture on macOS. The window carries no menu bar of its own: there it belongs to the screen.

  This pair is from 0.1.2 and the Windows pair above is from 0.2.0, so the filter bar differs between them: 0.2.0 moved the Regex checkbox inside the Search field and put a ≠ in Process and Subsystem. A macOS screenshot has to be rendered on a Mac under the cocoa plugin — the offscreen plugin resolves the interface font to Qt's generic Sans Serif, which is right about layout and wrong about the one thing anybody looks at a macOS screenshot for — so this one waits for a Mac rather than being regenerated in CI.

• Only iOS is supported. The device layer is written around lockdown and os_trace_relay.

Documentation

Licence

GPL-3.0-or-later. See LICENSE.

ostrace imports pymobiledevice3, which is GPL-3.0-or-later; under the standard FSF reading that makes a combined work, so matching the licence is the clean answer rather than a reluctant one. Reasoning in docs/adr/0003.

The application mark — src/ostrace/gui/icons/app.svg and the card built from it — is under the same licence as everything else here, so nothing stops you redistributing it. The request is only that a fork which changes behaviour draws its own, because an icon in a taskbar is how somebody tells one program from another and there is no way to check which one they got.

Acknowledgements

ostrace is a viewer on top of pymobiledevice3 by doronz88, which does the genuinely hard part: speaking Apple's lockdown and usbmux protocols in pure Python.
