Outie

Turns each face of a triangle mesh to point out, even when the mesh is open.

Outie is A Simple Method for Correcting Facet Orientations in Polygon Meshes Based on Ray Casting (PDF) by Kenshi Takayama, Alec Jacobson, Ladislav Kavan and Olga Sorkine-Hornung, 2014, ported from libigl's reorient_facets_raycast to Rust and Embree. All credit goes to them and libigl's contributors. For a geometry processing library, use libigl. To only turn faces, outie is small, fast and has wheels for every system.

I personally use it on city massing datasets like Toronto's 3D Massing, drawn by many people in tools that hide which way faces point, and often not closed, so the usual repairs fail. With faces pointing out, a model needs no two-sided materials, and everything just works the way it should.

Figure 1. One mass, 29,878 triangles, as published and as each method leaves it, with the time each took.

Table 1. The methods of Figure 1, libigl's and outie's with the same settings.

Use

pip install outie

import outie

# vertices: corner positions, n by 3   [[0, 0, 0], [1, 0, 0], [1, 1, 0], ...]
# faces:    triangles, m by 3          [[0, 2, 1], [0, 3, 2], ...]
faces = outie.reorient(vertices, faces)  # the same faces, each turned to point out

As in libigl's function, faces are triangles, and removing duplicate triangles, which the paper's command does with -u, is left to the caller.

To know which faces turned, the paper's function gives it per face, with the component each was decided with:

flip, component = outie.reorient_facets_raycast(vertices, faces)  # [False, True, ...], [0, 1, ...]

outie.measure_backfacingness(vertices, faces)  # the paper's measure: 0 when no face shows its back

Differences from libigl

• Speed. libigl's function finds every hit along each ray, though the vote uses only the first. Stopping at the first takes its C++ from 26 s to 2.5 s on Figure 1's mass. Outie does that and casts on every core.
• Names. vertices and faces for libigl's V and F, and component throughout for what the paper, and libigl in places, also call a patch. The options keep libigl's names.
• Defaults. facet_wise=True, as the paper's results are made. libigl's Python binding defaults to False.

Results

The data is 60 masses from the City of Toronto's 3D Massing, 318 to 49,118 triangles each, in data/.

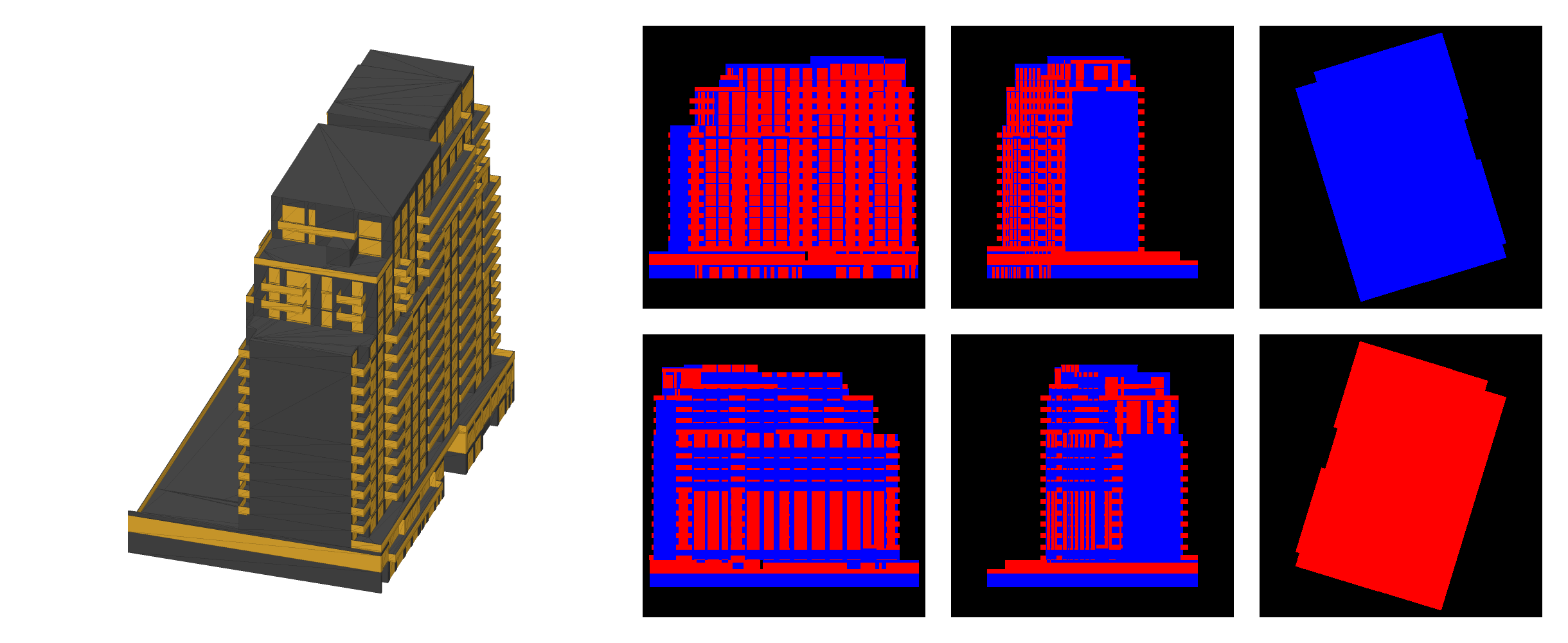

Figure 2. Backfacingness: the share of a mesh, seen from six sides, that shows the backs of faces, blue.

Table 2. Apple M1 Max, 10 cores. use_parity=True is slower because each ray counts every face it passes, not just the first it hits.

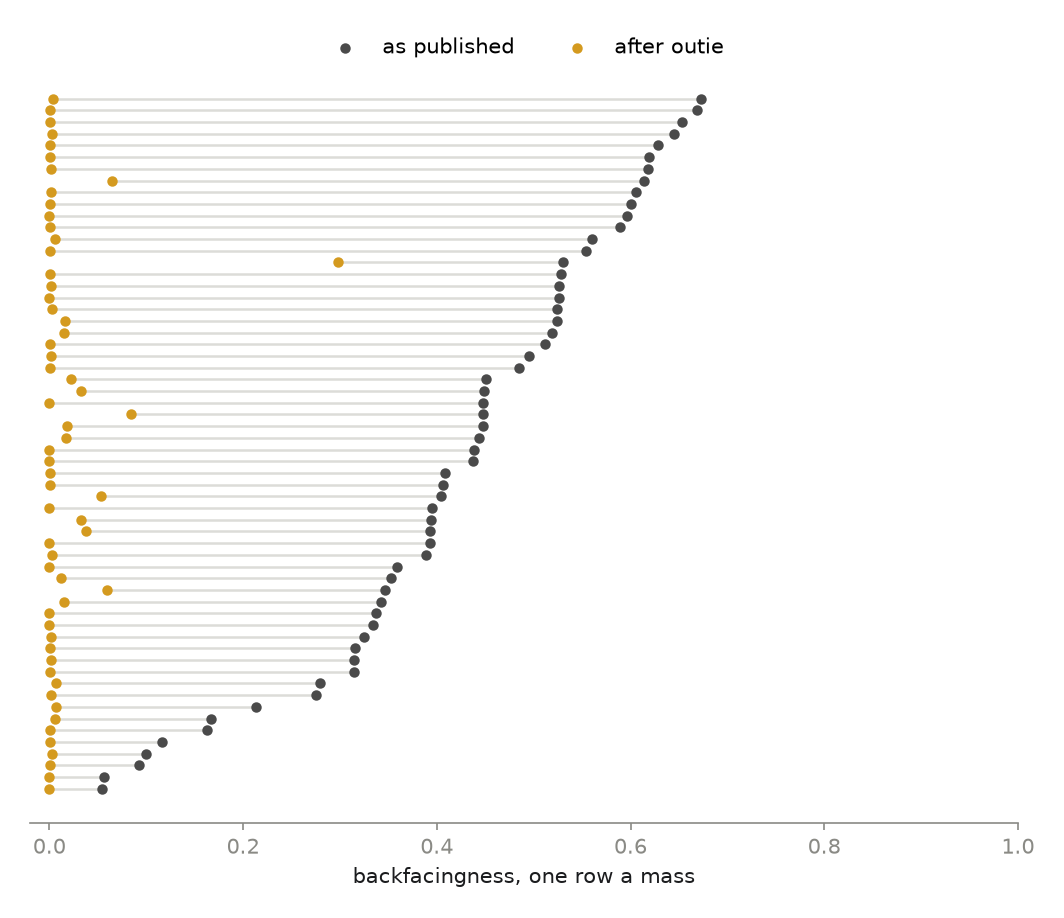

Figure 3. Every mass, as published and after outie. The few left high are mostly floorless masses: the view from beneath sees into them whichever way their faces turn. Seen from above, the worst, at 0.30, falls to 0.07, and the next four to under 0.05.

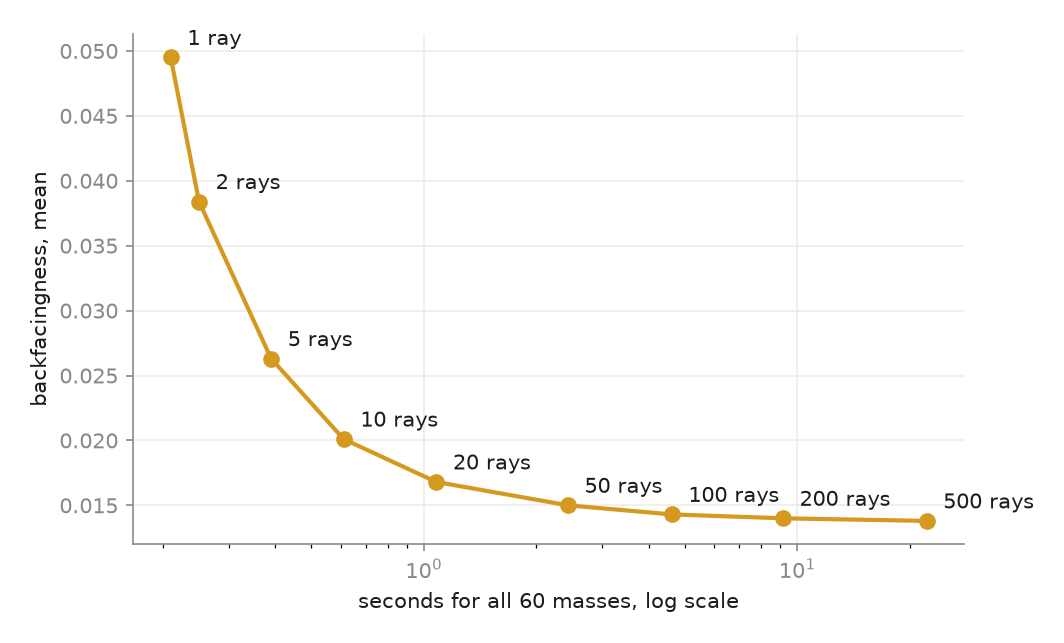

Figure 4. Rays a face against backfacingness and time, all 60 masses, with rays_minimum=1 so each setting's count is what it says.

Figure 5. The three masses outie improves most.

Figure 6. The three masses outie leaves worst: mostly thin, single-sided parts, where neither way round is better.

Figure 7. The largest mass, as published and after, whole above and cut open below: faces left inside a model are turned too, though not all of them correctly.

Method

Figure 8. How the default and use_parity=True decide. facet_wise=False is Figure 9.

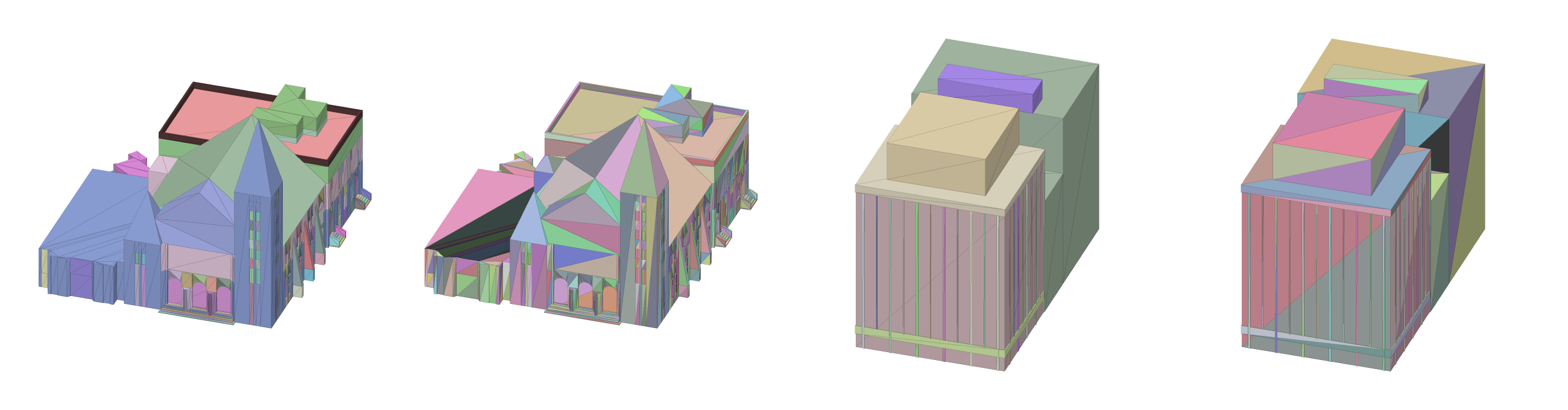

Figure 9. facet_wise=False, left of each pair, against the default, right. As the paper found, how well joined faces vote together depends on how a model was built: the first building is joined badly, so one vote turns whole wrong groups, and deciding each face alone is better. The second is built cleanly, so joining works.

Acknowledgements

• Kenshi Takayama, Alec Jacobson, Ladislav Kavan and Olga Sorkine-Hornung, for the method and its code.
• libigl, whose code outie ports.
• Embree, which casts the rays.
• The City of Toronto. Contains information licensed under the Open Government Licence - Toronto.

Citation

@article{Takayama2014Orientation,
  author  = {Kenshi Takayama and Alec Jacobson and Ladislav Kavan and Olga Sorkine-Hornung},
  title   = {A Simple Method for Correcting Facet Orientations in Polygon Meshes Based on Ray Casting},
  journal = {Journal of Computer Graphics Techniques (JCGT)},
  volume  = {3},
  number  = {4},
  pages   = {53--63},
  year    = {2014}
}

Licence

MPL-2.0, as libigl's. The wheels carry Embree, under Apache-2.0, LICENSE-EMBREE. The paper is under CC BY-ND 3.0, the data under the Open Government Licence - Toronto.
