OutlineImage - Detailed outline images from a folder

OutlineImage writes a detailed outline image for each picture in a folder. The default file is PNG, in an output folder next to those pictures. Supported inputs are webp, png, jpg, and jpeg.

On a terminal, starting it with no arguments opens a text menu. The menu does not convert images by itself, and it does not call pip.

Features

• Text menu on a terminal: outline, system-log, language, self-management, and Exit
• The first row shows the current folder and a local clock (HH:MM:SS) when the row has room
• Numbered rows line up. A rounded input box sits along the bottom, as wide as the terminal, with the name and version on the status line under the box
• outline (1) lists 1 current folder, each subfolder, and 0 back. The chosen folder is converted to outline images
• The typed verb outline converts a folder in the terminal and does not draw the menu. With no folder, it uses the current directory
• system-log (3) opens view-log, clear-log, and log-folder. language (4) picks the menu language. self-management (8) opens version, about, and the pip lifecycle rows
• Console script outline-image and module entry python -m OutlineImage
• Typed verbs: help, version, about, outline, self-install, version-check, self-update, self-uninstall
• Checkout script ./convert.py runs the same conversion

Advantages

1. A folder in, outlines out. outline-image outline converts images in the current directory and does not draw the menu. On the menu, row 1 outline asks for the current folder or a subfolder, then writes PNG outlines in that folder's output directory. With no arguments on a terminal, the text menu opens and waits. With no terminal and no verb, the program prints help and returns 0. There is no --json.
2. Built-in languages. Row 4 lists thirteen languages: English, Simplified Chinese, Traditional Chinese, Spanish, Arabic, French, Portuguese, Russian, German, Japanese, Korean, Dutch, and Greek. The choice is saved for the next run. The note on row 1 follows the menu language.
3. Lifecycle and diagnostics. version-check, self-update, self-install, and self-uninstall are menu rows 84–87 and typed verbs. self-uninstall on the command line needs --force. They call pip and do not use root. system-log (3) views a log, clears a log, and shows the log folder. about (83) stays in English.

How an outline is made

An outline here is a new picture: white lines on a black background. The lines follow the shape of the object, and they also follow the parts you can see on it, such as a hole, a ridge, a seam, a pad, or a slot. The file is written in an output folder next to the photo. Its name is the photo's name plus _detailed_outline.

Four libraries do this work. They install with the program. You do not open them yourself.

Pillow opens the photo. A phone photo is often larger than the line drawing needs to be. If the long side is longer than 1600 pixels, Pillow shrinks the photo until that side is 1600. The shrink uses Lanczos resampling, which keeps a real edge from turning into a smear.

rembg cuts the object out of the background. It uses a small neural network named ISNet general-use (isnet-general-use). The network looks at the photo and decides, pixel by pixel, which pixels belong to the object and which pixels are the table, the wall, or anything else behind it. The result is the same photo with a transparent background. The first conversion may download that model. Later conversions use the copy already on the computer.

NumPy holds those pixels as a grid of numbers, so the next step can measure them.

OpenCV finds the lines and draws them. It is a computer-vision library. The outer shape comes from the transparent cutout: OpenCV traces the boundary of the object and draws that boundary as a thin white line. A hole is traced too when the cutout is actually transparent there. A blob only a few pixels across is left out.

What the program looks for inside the object

The program looks at color as well as brightness. A hole in bright plastic can be about as light as the plastic, so a test that only asks "is this darker?" misses the rim. The rim is still a different color.

OpenCV converts the cutout into a color system called CIELAB, often shortened to LAB. Each pixel becomes three plain facts:

• how light or dark it is (brightness)
• where it sits between green and red
• where it sits between blue and yellow

The last two are color, kept apart from brightness. The program searches for a sharp change in brightness, then searches again for a sharp change in each color fact. A part that matches the object in brightness can still be drawn when its color differs. The color search is allowed to be more sensitive than the brightness search, because a same-brightness color change is often a real part, such as a hole rim or a seam. On the phone stand in the Screenshots section, that is what keeps the hole, the knob ridges, the pads, and the hinge seam in the drawing.

Before that search, the area outside the object is filled with a typical color of the object. The outer shape is then drawn once, from the cutout, and the inner search stays one pixel inside the object so it does not draw that same rim a second time.

The surface is smoothed a little with a bilateral filter. That filter softens grain, dust, and the fine texture of the material, and it tries to leave a real seam sharp. Brightness is smoothed a bit more than color.

How sensitive each photo is

The line finder is the Canny method in OpenCV. Canny keeps a pixel when the change there is strong enough, and it links those pixels into a line. Two numbers tell it what "strong enough" means. A lower pair draws faint lines. A higher pair ignores them.

One pair for every photo is a poor fit. A plain surface needs a sensitive setting, or a hinge seam disappears. A scratched photo needs a cautious setting, or every scuff becomes a line.

Each photo therefore picks its own pair, and the pick stays inside a safe range. OpenCV's Sobel filter measures how fast the picture changes from one pixel to the next. The program looks at those measurements on the object only, and it takes a high point in that list: the 90th percentile, stronger than about nine tenths of the pixels and weaker than the strongest scratches. The high cut starts from that point. The low cut is forty percent of the high cut. Both cuts are then clipped so they cannot leave the safe range. A quiet surface lands on the sensitive end, so a faint seam still appears. A busy or high-contrast photo lands on the cautious end, so scuffs stay out. The safe range for color sits lower than the safe range for brightness.

Cleaning the lines

A real seam is a run of pixels. A speck of dust is a few pixels. OpenCV groups touching edge pixels, which are called connected components, and drops a group that is shorter than a real seam. That cleanup runs for the brightness lines, for the color lines, and once more after the lines are combined.

A closing step then fills a one-pixel break, so a seam does not fall into dashes. Tiny holes in the cutout's transparency are filled the same way, and tiny spikes of transparency are removed, so a speck of background does not become a fake hole. Pixels that are only faintly transparent are treated as outside the object.

The white lines and the outer shape are combined on a black picture and saved. The usual file is PNG.

What was changed so the lines improved

The first drawing looked only at brightness. It used one Canny setting for every photo, with cuts at 40 and 120, after a stronger smooth. On a bright object, a hole, a knob ridge, a hinge seam, or a pad can be as light as the plastic around it. Those parts dropped out. Small dirt marks could remain, because short specks were kept.

Three changes are what the program uses now.

1. Color as well as brightness. The two LAB color facts are searched too, and their safe range stays more sensitive than brightness. A part that matches the plastic in brightness still gets a line when its color differs.
2. A sensitivity that follows the photo. The Sobel measurement replaces the single pair of cuts. A plain surface is more sensitive. A scratched surface is less sensitive. Both stay inside the safe range.
3. Specks are thrown away. Short edge fragments are dropped. Dust and a one-pixel sparkle stay out of the drawing. A one-pixel gap in a real seam is closed.

A line is drawn where the photo itself changes. When a rim matches the plastic in both brightness and color, the photo has no edge there, and a short gap can remain. The program leaves that gap. Guessing a circle or an oval on those gaps was tried and was not kept: a guessed oval replaced a real slot and cut across real ridges. The drawing stays with the edges the photo actually has.

Quick Installation

Python dependencies: ChronicleLogger>=1.3.1, numpy>=2.3.0, Pillow>=12.1.0, opencv-python-headless>=5.0.0.93, and rembg>=2.0.85 (required). Pip installs them with OutlineImage. The first outline run may download the isnet-general-use model. No external media tool is required.

PyPI (registry)

pip install OutlineImage

This installs the console entry outline-image and the package OutlineImage. Packaging name SSOT is pyproject.toml [project].name = OutlineImage. This tree is 1.0.1. The PyPI badge above shows the live index.

Local install (checkout)

From a checkout (editable / unreleased work):

git clone https://github.com/cloudgen/OutlineImage.git
cd OutlineImage
python3 -m venv venv
source venv/bin/activate   # Windows: venv\Scripts\activate
pip install -e .

Main menu

After install, on a terminal, outline-image with no arguments prints this screen. The verb is bold and the note after the colon is italic. 9 leaves. 0 on a submenu goes back. After a command finishes, the main menu is shown again. A number that is not on the list prints an error and lets you choose again.

Picture of the English menu. Current directory /tmp/clips. The rows are the text the menu paints. The frame is the 80-column box.

$ outline-image
Path: /tmp/clips                                                       12:06:45

1. **outline**        : *convert images in a chosen folder to outlines*
3. **system-log**     : *view, clear, and the log folder*
4. **language**       : *display language for this menu*
8. **self-management**: *version, about, and pip lifecycle*
9. **Exit**           : *leave*




╭─────────────────────────────────────────────────────────────────────────────╮
│ >                                                                           │
╰─────────────────────────────────────────────────────────────────────────────╯
  OutlineImage 1.0.1  │  main menu  │  Up/Down  •  Enter

system-log (3):

Path: /tmp/clips                                                       12:06:45

31. **view-log**  : *list a log file and show it*
32. **clear-log** : *empty one log file*
33. **log-folder**: *show the log folder*
 0. **Back**      : *return to the main menu*




╭─────────────────────────────────────────────────────────────────────────────╮
│ >                                                                           │
╰─────────────────────────────────────────────────────────────────────────────╯
  OutlineImage 1.0.1  │  system-log  │  Up/Down  •  Enter

language (4). The short on each language row is that language’s own name. Numbers 40 and 54–59 are not printed. 0 goes back and does not save.

Path: /tmp/clips                                                       12:06:46

41. **English**   : *use English for this menu*
42. **简体中文**      : *use 简体中文 for this menu*
43. **繁體中文**      : *use 繁體中文 for this menu*
44. **Español**   : *use Español for this menu*
45. **العربية**   : *use العربية for this menu*
46. **Français**  : *use Français for this menu*
47. **Português** : *use Português for this menu*
48. **Русский**   : *use Русский for this menu*
49. **Deutsch**   : *use Deutsch for this menu*
50. **日本語**       : *use 日本語 for this menu*
51. **한국어**       : *use 한국어 for this menu*
52. **Nederlands**: *use Nederlands for this menu*
53. **Ελληνικά**  : *use Ελληνικά for this menu*
 0. **Back**      : *return to the main menu*

╭─────────────────────────────────────────────────────────────────────────────╮
│ >                                                                           │
╰─────────────────────────────────────────────────────────────────────────────╯
  OutlineImage 1.0.1  │  language  │  Up/Down  •  Enter

self-management (8):

Path: /tmp/clips                                                       14:05:09

82. **version**       : *show the installed version*
83. **about**         : *version and this computer*
84. **version-check** : *compare this install with pip*
85. **self-update**   : *upgrade this package with pip*
86. **self-uninstall**: *remove this package with pip*
87. **self-install**  : *install this package with pip*
 0. **Back**          : *return to the main menu*

╭─────────────────────────────────────────────────────────────────────────────╮
│ >                                                                           │
╰─────────────────────────────────────────────────────────────────────────────╯
  OutlineImage 1.0.1  │  self-management  │  Up/Down  •  Enter

Choose a number, or type the command name in the box. The block caret appears in that box while it is focused.

Usage

outline-image
# or
python -m OutlineImage

On a terminal, that opens the main menu above. It does not convert images yet, and it does not call pip. With no terminal, the same command prints help and returns 0.

outline (1) opens a folder list: 1 current folder, then each subfolder, and 0 back. The chosen folder is converted. Outline files are PNG by default, named <stem>_detailed_outline.png, in that folder's output directory. Any key on the result page returns to the main menu. The typed verb converts a folder in the terminal and does not draw the menu:

outline-image outline
outline-image outline photos
outline-image outline --format png

outline-image help
outline-image version
outline-image about
outline-image outline
outline-image version-check
outline-image self-update
outline-image self-install
outline-image self-uninstall --force

version prints OutlineImage 1.0.1 and does not call pip. about shows one English page: the product identity, a host check of this computer, and a star box. It does not call pip. outline converts the current directory when no folder is given and does not draw the menu. help prints usage.

version-check runs python -m pip index versions OutlineImage. self-update runs python -m pip install --upgrade OutlineImage. self-install runs python -m pip install OutlineImage. self-uninstall runs python -m pip uninstall -y OutlineImage and needs --force on the command line. Those pip verbs do not use sudo. Empty arguments do not install or update.

Exit codes: non-zero for an unknown verb, a missing folder, a failed image, a pip failure, or a menu that cannot open. Menu Exit (9) returns 0. outline returns 0 when the folder exists and every image is written.

Import for scripts (thin entry):

from OutlineImage import main
# interactive session; a terminal opens the text menu

Screenshots

Each heading is the file name. The paragraph is what that picture shows: the words on the screen, the characters in the input box, or the scene. Package 1.0.0. These menu pictures are captures of this program. Row 1 is outline. source-photo.png and outline-result.png are not text-menu captures. The package index can fetch a picture only after that file is on the public main branch.

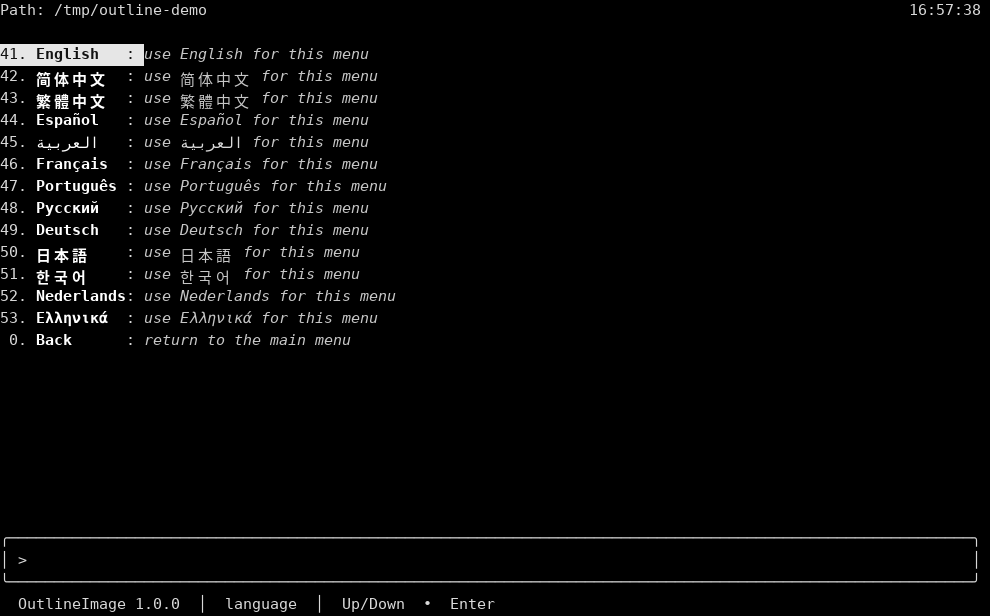

Row 4 has opened the language list. 41 English is highlighted, with the note "use English for this menu." The other rows are 42 简体中文, 43 繁體中文, 44 Español, 45 العربية, 46 Français, 47 Português, 48 Русский, 49 Deutsch, 50 日本語, 51 한국어, 52 Nederlands, and 53 Ελληνικά. Each note says to use that language for this menu. Arabic on row 45 reads right to left, and the number stays on the left. 0 Back says "return to the main menu." The path label is Path. The path row names the current directory. The clock is 16:57:38 on the right of that row. The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and language.

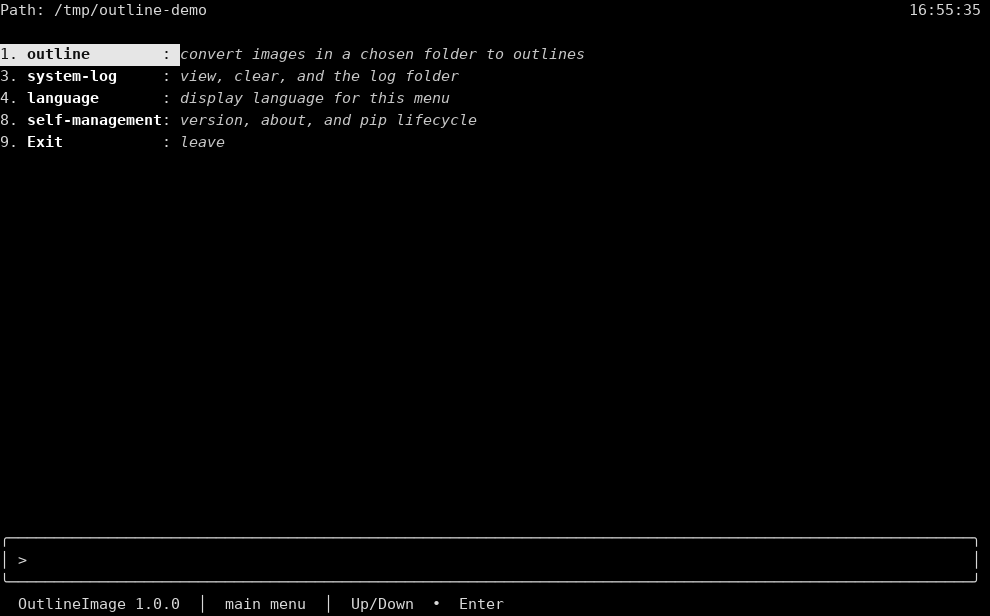

English main menu. There is no saved-language line above the box. The path label is Path. The path row names the current directory. The clock is 16:55:35 on the right of that row. 1 outline is highlighted: "convert images in a chosen folder to outlines." Then 3 system-log "view, clear, and the log folder," 4 language "display language for this menu," 8 self-management "version, about, and pip lifecycle," and 9 Exit "leave." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and main menu.


Simplified Chinese main menu. The line above the box says 菜单语言是简体中文. The path label is 路径. The path row names the current directory. The clock is 16:55:38 on the right of that row. 1 outline is highlighted and stays outline: "把所选文件夹中的图像转为轮廓." 3 is 系统日志 "查看、清空，以及日志文件夹," 4 is 语言 "此菜单的显示语言," 8 is 自我管理 "版本、关于，以及 pip 生命周期," and 9 is 离开 "离开." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and 主菜单.

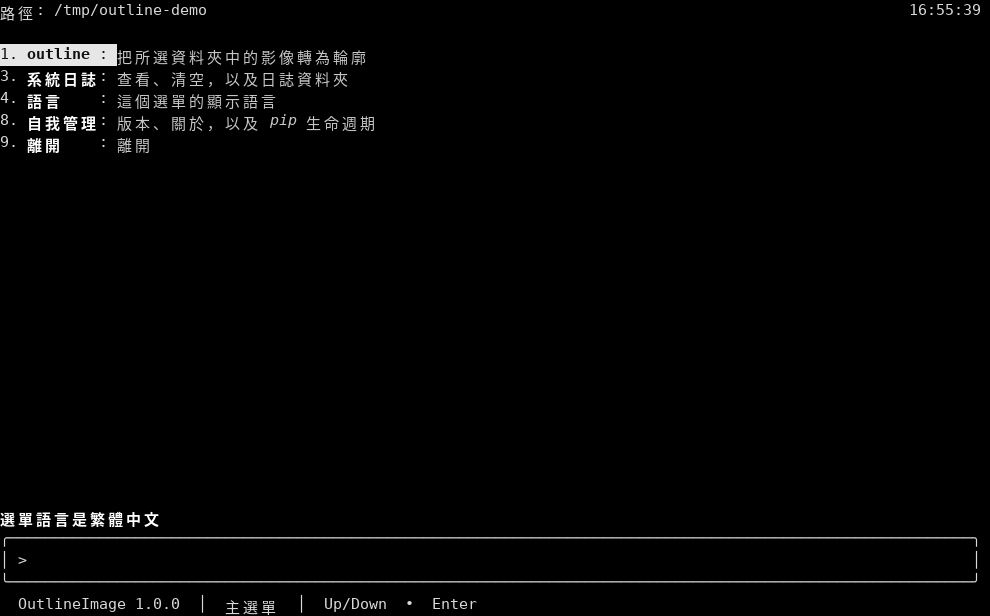

Traditional Chinese main menu. The line above the box says 選單語言是繁體中文. The path label is 路徑. The path row names the current directory. The clock is 16:55:39 on the right of that row. 1 outline is highlighted and stays outline: "把所選資料夾中的影像轉為輪廓." 3 is 系統日誌 "查看、清空，以及日誌資料夾," 4 is 語言 "這個選單的顯示語言," 8 is 自我管理 "版本、關於，以及 pip 生命週期," and 9 is 離開 "離開." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and 主選單.


Spanish main menu. The line above the box says El idioma del menú es español. The path label is Ruta. The path row names the current directory. The clock is 16:55:40 on the right of that row. 1 outline is highlighted and stays outline: "convierte las imágenes de una carpeta elegida en contornos." 3 is registro "ver, vaciar y la carpeta de registro," 4 is idioma "idioma de este menú," 8 is autogestión "versión, acerca de y el ciclo de pip," and 9 is Salir "salir." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and menú principal.

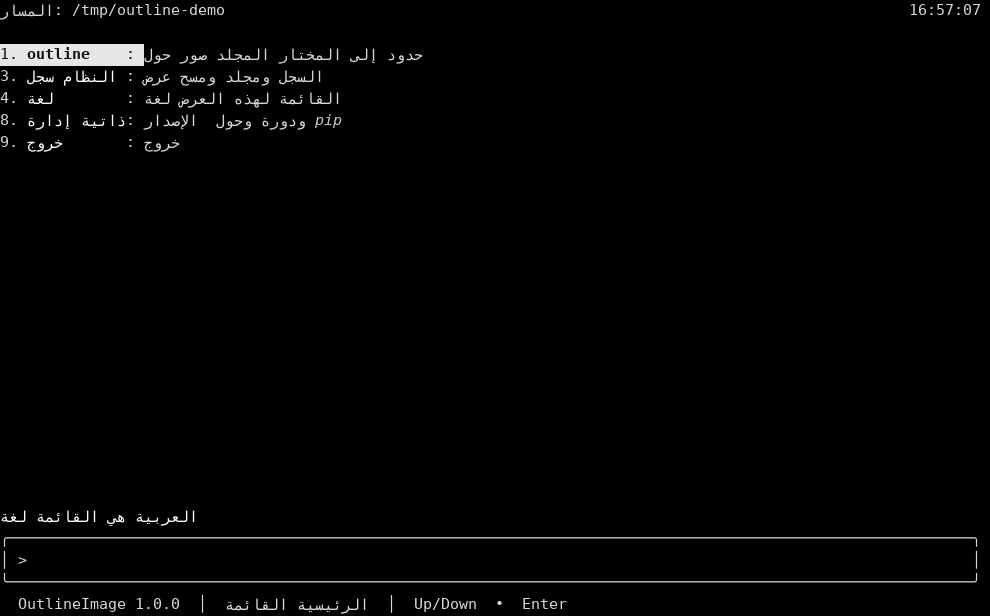

Arabic main menu. The line above the box says لغة القائمة هي العربية. The path label is المسار. The path row names the current directory. The clock is 16:57:07 on the right of that row. The numbers stay on the left. Arabic phrases are shaped and read right to left. 1 outline is highlighted and stays outline: "حوّل صور المجلد المختار إلى حدود." 3 is سجل النظام "عرض ومسح ومجلد السجل," 4 is لغة "لغة العرض لهذه القائمة," 8 is إدارة ذاتية "الإصدار وحول ودورة pip," and 9 is خروج "خروج." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and القائمة الرئيسية.


French main menu. The line above the box says La langue du menu est le français. The path label is Chemin. The path row names the current directory. The clock is 16:55:41 on the right of that row. 1 outline is highlighted and stays outline: "convertit les images d'un dossier choisi en contours." 3 is journal "voir, vider et le dossier du journal," 4 is langue "langue d'affichage de ce menu," 8 is autogestion "version, à propos et le cycle pip," and 9 is Quitter "quitter." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and menu principal.


Portuguese main menu. The line above the box says O idioma do menu é português. The path label is Caminho. The path row names the current directory. The clock is 16:55:42 on the right of that row. 1 outline is highlighted and stays outline: "converte as imagens de uma pasta escolhida em contornos." 3 is registo "ver, esvaziar e a pasta de registo," 4 is idioma "idioma deste menu," 8 is autogestão "versão, acerca de e o ciclo do pip," and 9 is Sair "sair." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and menu principal.

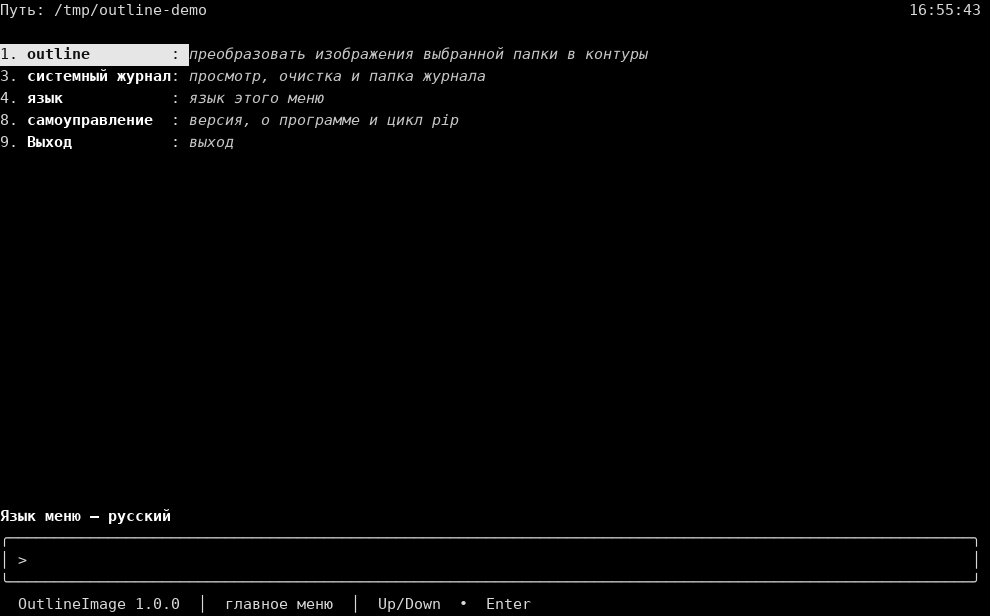

Russian main menu. The line above the box says Язык меню — русский. The path label is Путь. The path row names the current directory. The clock is 16:55:43 on the right of that row. 1 outline is highlighted and stays outline: "преобразовать изображения выбранной папки в контуры." 3 is системный журнал "просмотр, очистка и папка журнала," 4 is язык "язык этого меню," 8 is самоуправление "версия, о программе и цикл pip," and 9 is Выход "выход." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and главное меню.

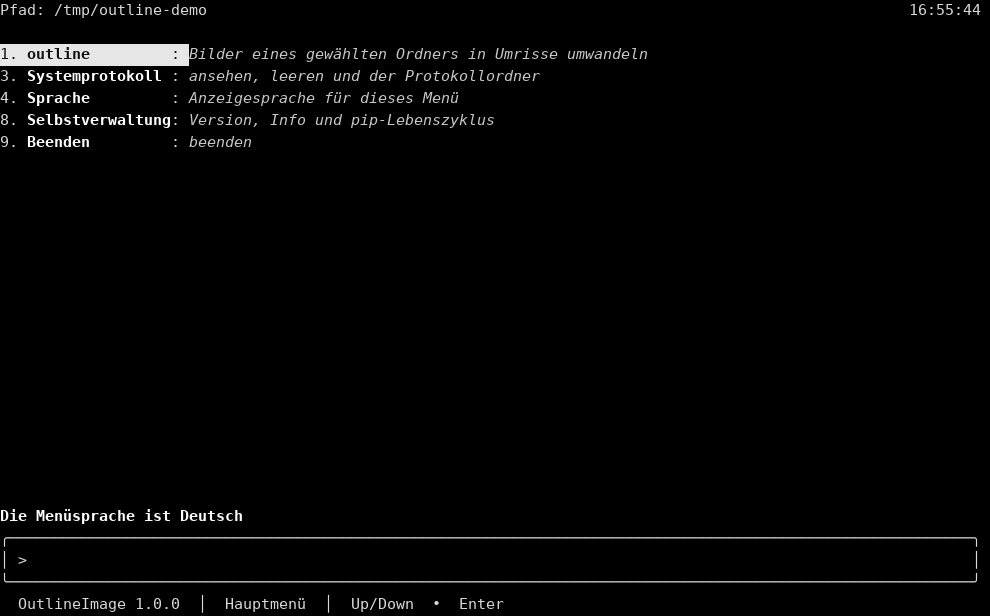

German main menu. The line above the box says Die Menüsprache ist Deutsch. The path label is Pfad. The path row names the current directory. The clock is 16:55:44 on the right of that row. 1 outline is highlighted and stays outline: "Bilder eines gewählten Ordners in Umrisse umwandeln." 3 is Systemprotokoll "ansehen, leeren und der Protokollordner," 4 is Sprache "Anzeigesprache für dieses Menü," 8 is Selbstverwaltung "Version, Info und pip-Lebenszyklus," and 9 is Beenden "beenden." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and Hauptmenü.

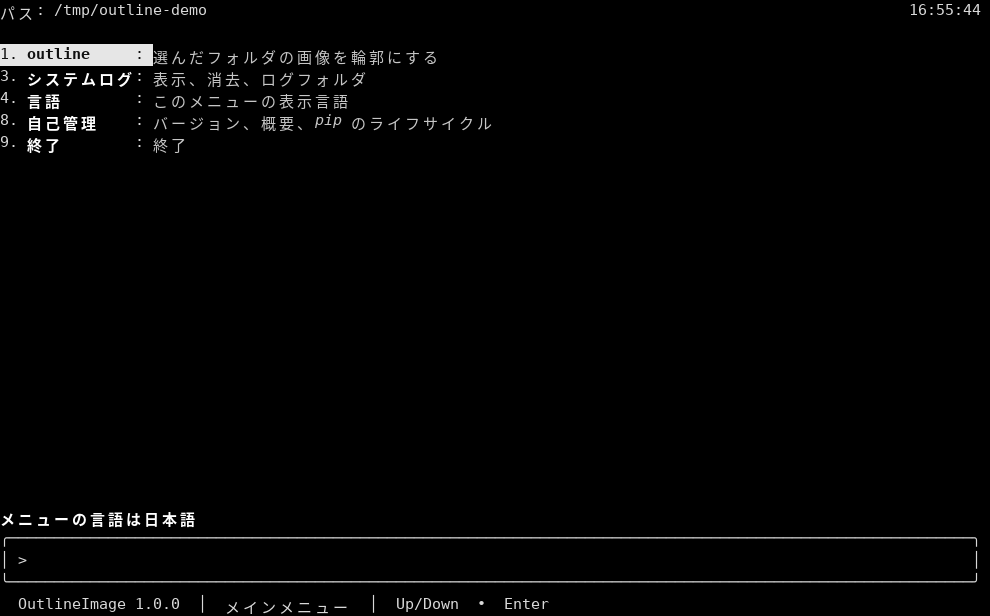

Japanese main menu. The line above the box says メニューの言語は日本語. The path label is パス. The path row names the current directory. The clock is 16:55:44 on the right of that row. 1 outline is highlighted and stays outline: "選んだフォルダの画像を輪郭にする." 3 is システムログ "表示、消去、ログフォルダ," 4 is 言語 "このメニューの表示言語," 8 is 自己管理 "バージョン、概要、pip のライフサイクル," and 9 is 終了 "終了." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and メインメニュー.

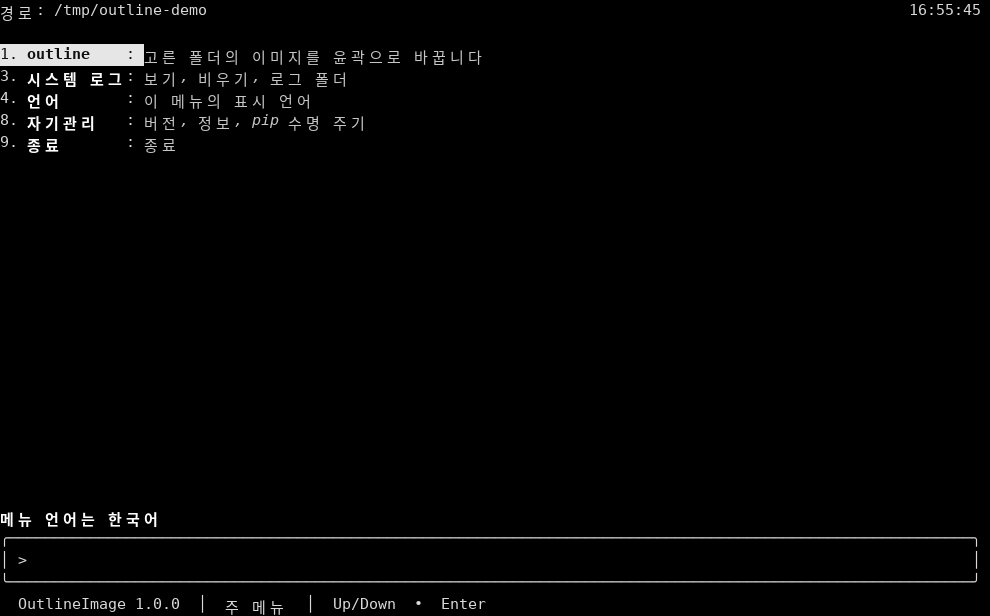

Korean main menu. The line above the box says 메뉴 언어는 한국어. The path label is 경로. The path row names the current directory. The clock is 16:55:45 on the right of that row. 1 outline is highlighted and stays outline: "고른 폴더의 이미지를 윤곽으로 바꿉니다." 3 is 시스템 로그 "보기, 비우기, 로그 폴더," 4 is 언어 "이 메뉴의 표시 언어," 8 is 자기관리 "버전, 정보, pip 수명 주기," and 9 is 종료 "종료." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and 주 메뉴.

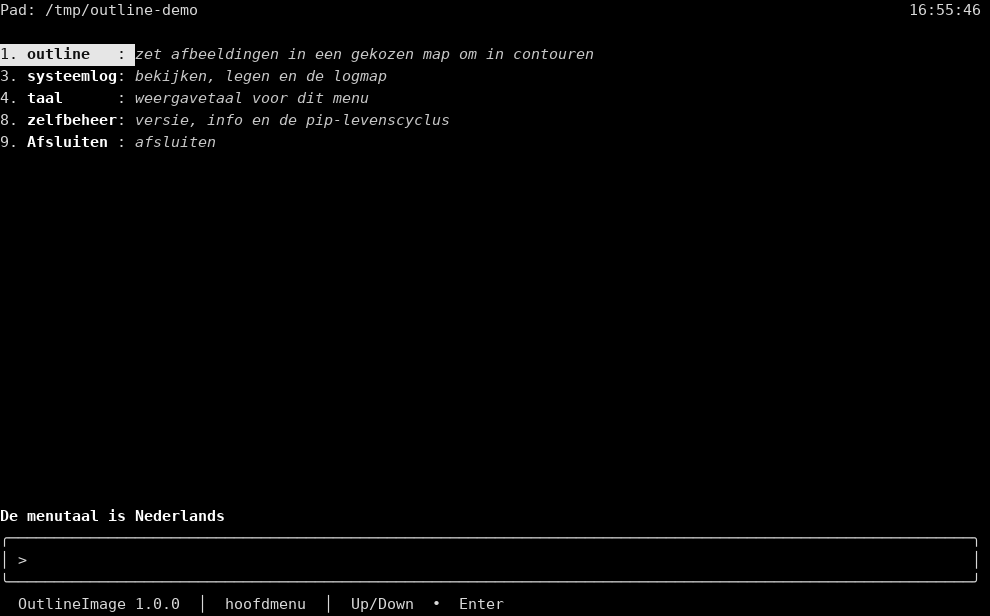

Dutch main menu. The line above the box says De menutaal is Nederlands. The path label is Pad. The path row names the current directory. The clock is 16:55:46 on the right of that row. 1 outline is highlighted and stays outline: "zet afbeeldingen in een gekozen map om in contouren." 3 is systeemlog "bekijken, legen en de logmap," 4 is taal "weergavetaal voor dit menu," 8 is zelfbeheer "versie, info en de pip-levenscyclus," and 9 is Afsluiten "afsluiten." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and hoofdmenu.

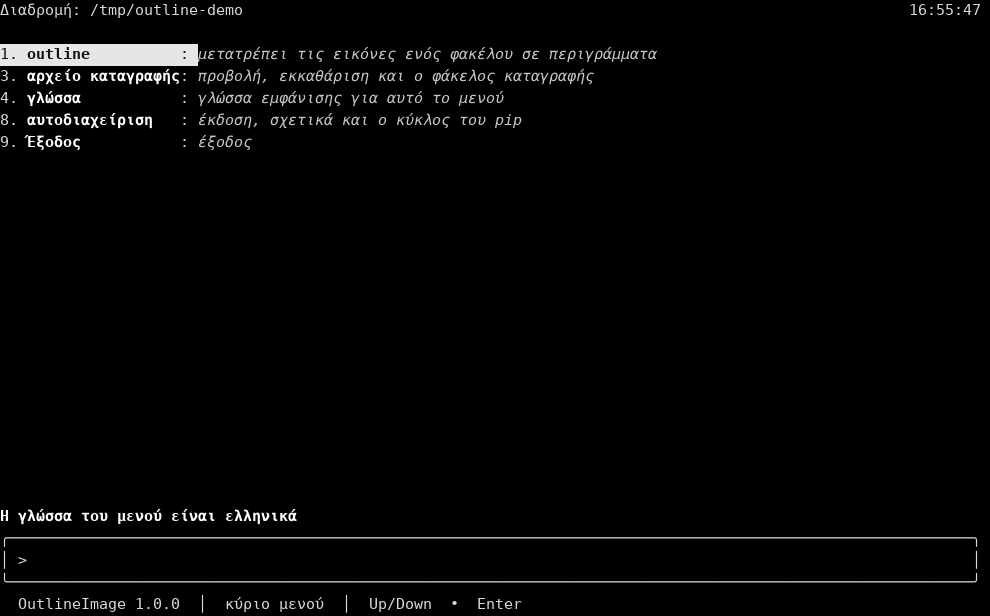

Greek main menu. The line above the box says Η γλώσσα του μενού είναι ελληνικά. The path label is Διαδρομή. The path row names the current directory. The clock is 16:55:47 on the right of that row. 1 outline is highlighted and stays outline: "μετατρέπει τις εικόνες ενός φακέλου σε περιγράμματα." 3 is αρχείο καταγραφής "προβολή, εκκαθάριση και ο φάκελος καταγραφής," 4 is γλώσσα "γλώσσα εμφάνισης για αυτό το μενού," 8 is αυτοδιαχείριση "έκδοση, σχετικά και ο κύκλος του pip," and 9 is Έξοδος "έξοδος." The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and κύριο μενού.

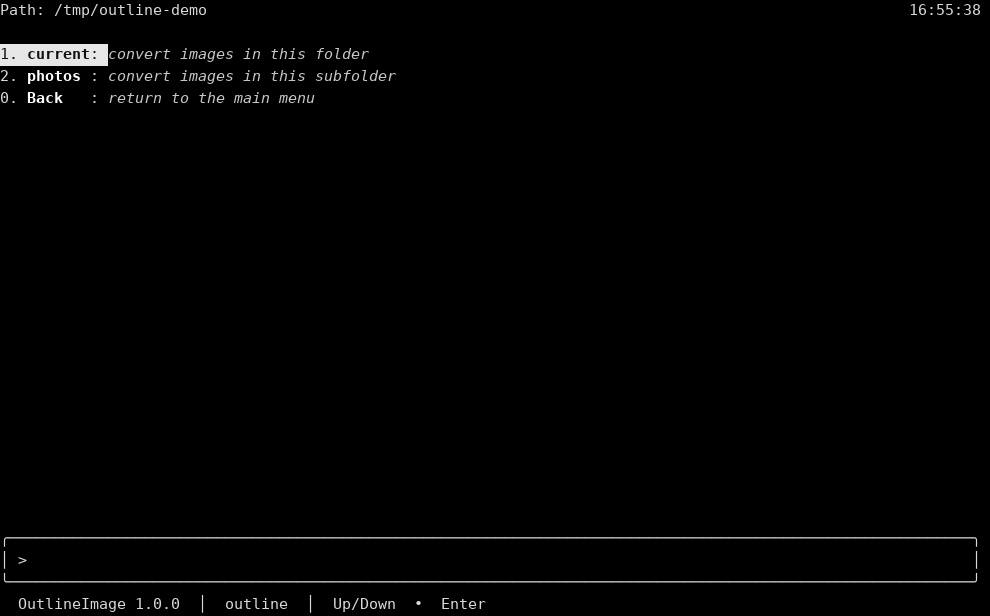

Row 1 outline has opened the folder board. 1 current is highlighted: "convert images in this folder." 2 photos says "convert images in this subfolder." 0 Back says "return to the main menu." The path label is Path. The path row names the current directory. The clock is 16:55:38 on the right of that row. The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and outline.

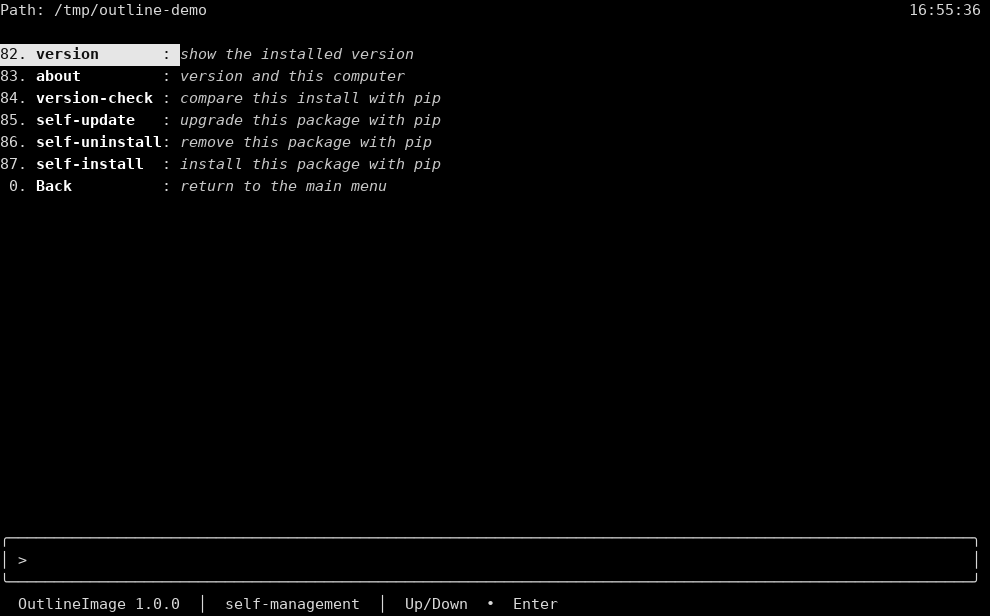

Row 8 has opened self-management. 82 version is highlighted: "show the installed version." Then 83 about "version and this computer," 84 version-check "compare this install with pip," 85 self-update "upgrade this package with pip," 86 self-uninstall "remove this package with pip," 87 self-install "install this package with pip," and 0 Back "return to the main menu." The path label is Path. The path row names the current directory. The clock is 16:55:36 on the right of that row. The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and self-management.

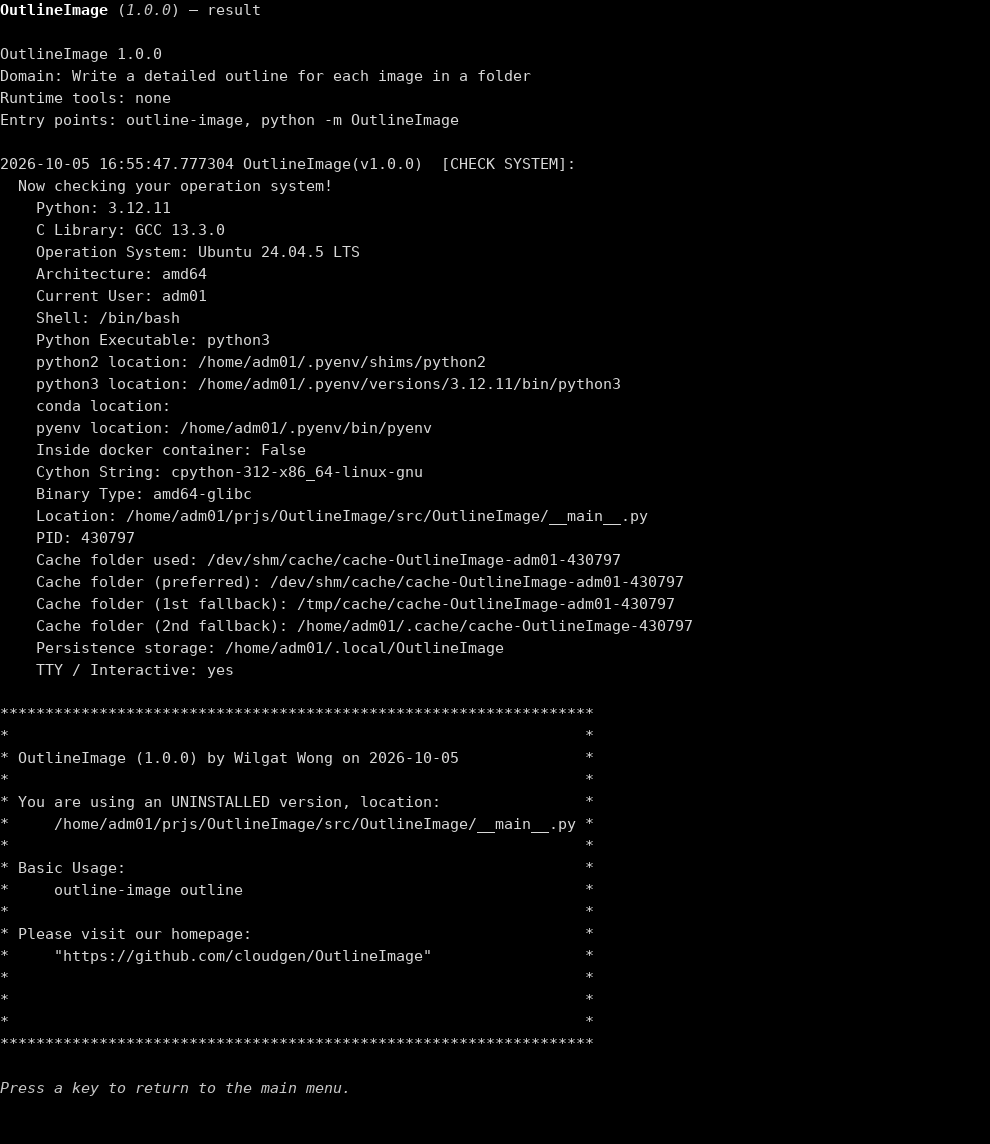

about (83) on the result page. The title is OutlineImage (1.0.0) — result. The page prints OutlineImage 1.0.0, Domain: Write a detailed outline for each image in a folder, Runtime tools: none, and Entry points: outline-image, python -m OutlineImage. The host check is stamped 2026-10-05 16:55:47.777304 and headed [CHECK SYSTEM]:. Visible lines include Python 3.12.11, C Library GCC 13.3.0, Ubuntu 24.04.5 LTS, amd64, the current user, the shell /bin/bash, Inside docker container: False, Cython String: cpython-312-x86_64-linux-gnu, Binary Type: amd64-glibc, and TTY / Interactive: yes. The star box says OutlineImage (1.0.0) by Wilgat Wong on 2026-10-05, You are using an UNINSTALLED version, Basic Usage: then outline-image outline, and Please visit our homepage: then "https://github.com/cloudgen/OutlineImage". The footer says Press a key to return to the main menu. There is no input box and no clock. The page stays in English.

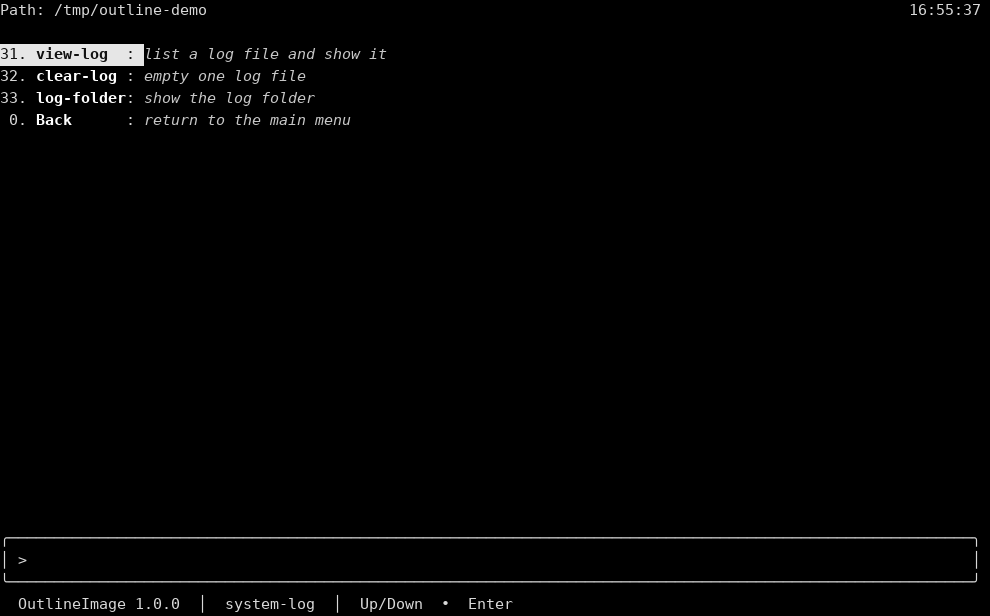

Row 3 has opened system-log. 31 view-log is highlighted: "list a log file and show it." Then 32 clear-log "empty one log file," 33 log-folder "show the log folder," and 0 Back "return to the main menu." The path label is Path. The path row names the current directory. The clock is 16:55:37 on the right of that row. The input box shows > and is otherwise empty. The status line says OutlineImage 1.0.0 and system-log.

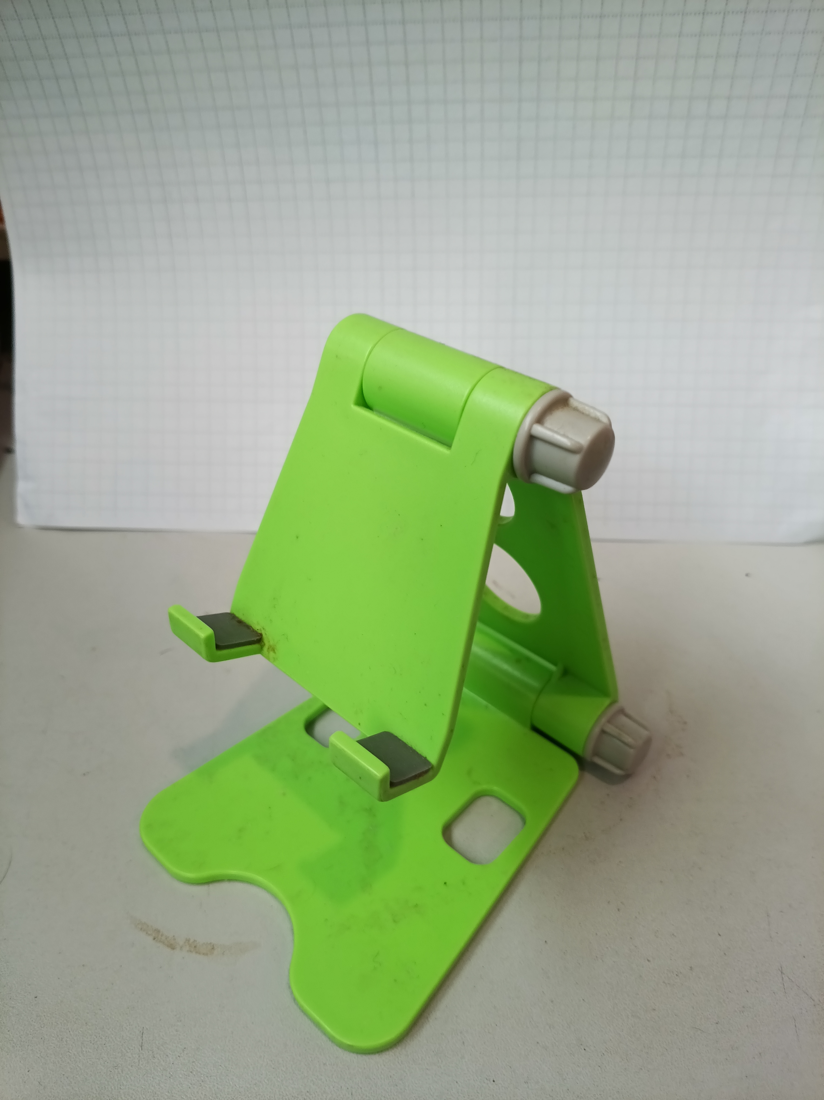

A photograph, not a text-menu capture. A bright green plastic phone stand, with a grey hinge knob and two dark pads, sits on a pale surface. A round hole and a slot are cut into the stand. Behind it is a white board with a fine grid.

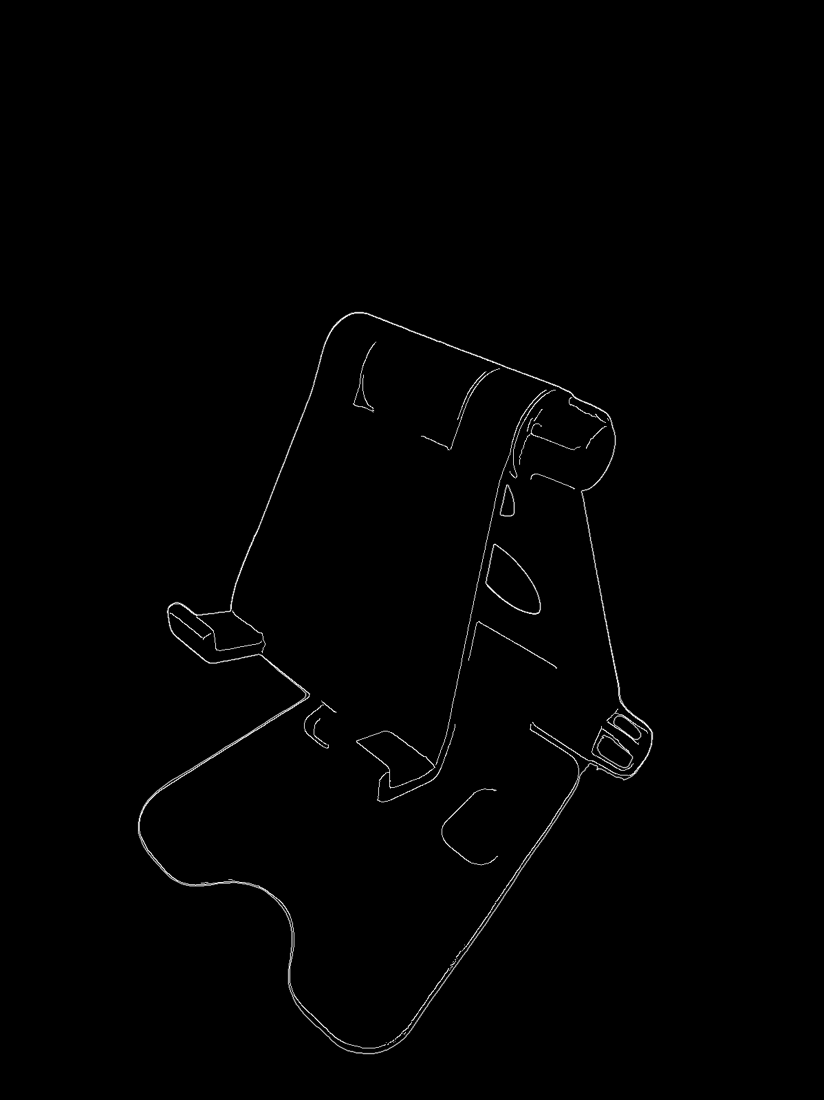

A generated outline image, not a text-menu capture. White contour lines on a black field draw the same phone stand: the back plate, the hinge knob, the two pads, the round hole, and the slotted base.

Examples

cd /path/to/folder/with/images
outline-image

outline-image version

version prints OutlineImage 1.0.1 and does not call pip. A run that is not the text menu can also print ChronicleLogger status lines above that. The text menu keeps those lines off the screen.

outline-image outline

That converts images in the current directory to PNG outlines in output/ and does not draw the menu. On a terminal, row 1 asks for the current folder or a subfolder, then does the same conversion. ./convert.py is the same conversion from a checkout.

Platform Compatibility

Platform	Status
Linux	Primary; tested development path
macOS	Supported when CPython is on PATH
Windows	Supported when CPython is on PATH (venv activate differs)
Architectures	Any with CPython

The text menu needs a terminal. With no terminal and no verb, the program prints help and returns 0. It does not wait.

Related Projects

• OutlineImage on GitHub — this program’s source
• OutlineImage on PyPI — this program on PyPI
• AnimeDlp — command-line downloader for anime video sites
• ChronicleLogger — status logger this program depends on (ChronicleLogger>=1.3.1)
• VideoSpeed — cuts, changes speed, and boomerangs a clip. That program is not this one
• CIAO — Caution, Intentional, Anti-fragile, Over-engineered
• CIAO-Lite — short agent contract
• safe-rm — guarded rm

Contributing

1. Keep product law under docs/requirements/ in sync when behavior changes.
2. Prefer small, CIAO-safe changes. The outline conversion lives in src/OutlineImage/outline.py. ./convert.py calls that module.
3. Version dual SSOT: bump pyproject.toml and src/OutlineImage/__init__.__version__ together.
4. Open issues and pull requests on GitHub.

License

MIT — see LICENSE.md. Also declared in pyproject.toml.

Last Update

2026-10-07 — 1.0.1. The public source is https://github.com/cloudgen/OutlineImage. The package name is OutlineImage and the console script is outline-image. outline writes a detailed outline image for each picture in a folder. The default file is PNG in that folder's output directory. The lines come from brightness and from color, short specks are dropped, and each photo picks its own sensitivity inside a safe range. How an outline is made explains that method in plain language. Menu row 1 lists 1 current folder, each subfolder, and 0 back, then runs that conversion. The Screenshots section shows captures of this program. Version badge matches pyproject.toml and __version__. ChronicleLogger>=1.3.1, numpy>=2.3.0, Pillow>=12.1.0, opencv-python-headless>=5.0.0.93, and rembg>=2.0.85 are required.
