Panel VegaFusion

WORK IN PROGRESS. PROOF OF CONCEPT WORKING.

The Panel VegaFusion pane allows you to create interactive big data apps based on the Altair plotting library and the Vega visualization specification.

VegaFusion provides serverside acceleration for the Vega visualization grammar.

Panel makes it easy to create powerful data apps using the tools you know and ❤️. Member of the HoloViz ecosystem.

Install

pip install panel-vegafusion

Example

import altair as alt
import panel as pn
from panel_vegafusion import VegaFusion
from panel_vegafusion.utils import get_plot, ALTAIR_BLUE, get_theme

pn.extension(template="fast")

theme=get_theme()
alt.themes.enable(theme)

plot=get_plot() # Can be replaced any Altair plot or Vega Specification

component = VegaFusion(plot, height=800).servable()

pn.state.template.param.update(
    site="Panel VegaFusion", title="Interactive BIG DATA apps with CROSSFILTERING for Altair and Vega",
    accent_base_color=ALTAIR_BLUE, header_background=ALTAIR_BLUE,
)

You can serve the application via panel serve 'name_of_file.py or panel serve 'name_of_notebook.ipynb.

Todo

This needs to be done before alpha release

• Fix all errors in invoke test.all
• Make python package installable (and release it)
• Implement way to get rid of the user having to serve the assets manually via --static dist=./src-js/dist.
• [] Get things working on Binder

License - AGPLv3 - IMPORTANT

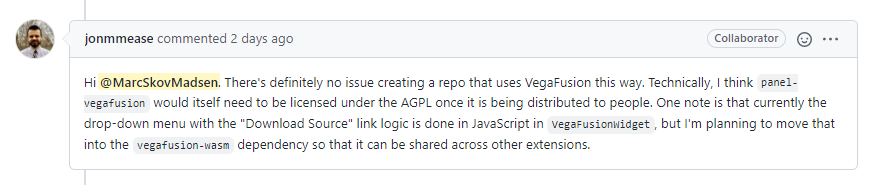

This Panel Vegafusion project is AGPLv3 Licensed because VegaFusion is AGPLv3 licensed and requires the author to provide this application's source code upon request.

SO PLEASE INVESTIGATE THE LEGAL ASPECTS ON YOUR OWN. YOU WILL BE USING THIS PROJECT AT YOUR OWN RISK ANYWAYS! 👍

References

• VegaFusion Github | VegaFusion documentation
• Panel Docs | Panel Discourse | Awesome Panel
• DataShader | hvplot | HoloViews

Issues Identified

• vegafusion/vegafusion #64 - Support Vega-Embed Themes
• Bokeh Discourse - Cannot bokeh build extension with wasm dependency
• bokeh/ipywidgets_bokeh #46 - Not working with VegaFusionWidget
• holoviz/param #597 - Add edit_readonly
• holoviz/panel #3149 - Object of type Chart is not JSON serializable
• vegafusion/vegafusion #62 - Please support Panel
• vegafusion/vegafusion #63 - Please provide simple .js build
• vegafusion/vegafusion #68 - Provide VegaFusionRunTime from the vegafusion package
• vegafusion/vegafusion #66 - Please support events
• vegafusion/vegafusion #67 - Uncaught (in promise) out of memory

Develop

Install for development

git clone https://github.com/MarcSkovMadsen/panel-vegafusion.git
conda create -n panel_vegafusion -c conda-forge python=3.9 nodejs
conda activate panel_vegafusion
pip install -e .[all]
cd src-js
npm install --save-dev webpack-cli
npm install
cd ..

Build

Javascript package

invoke build.js

Python package

invoke build.package

Test

invoke test.all

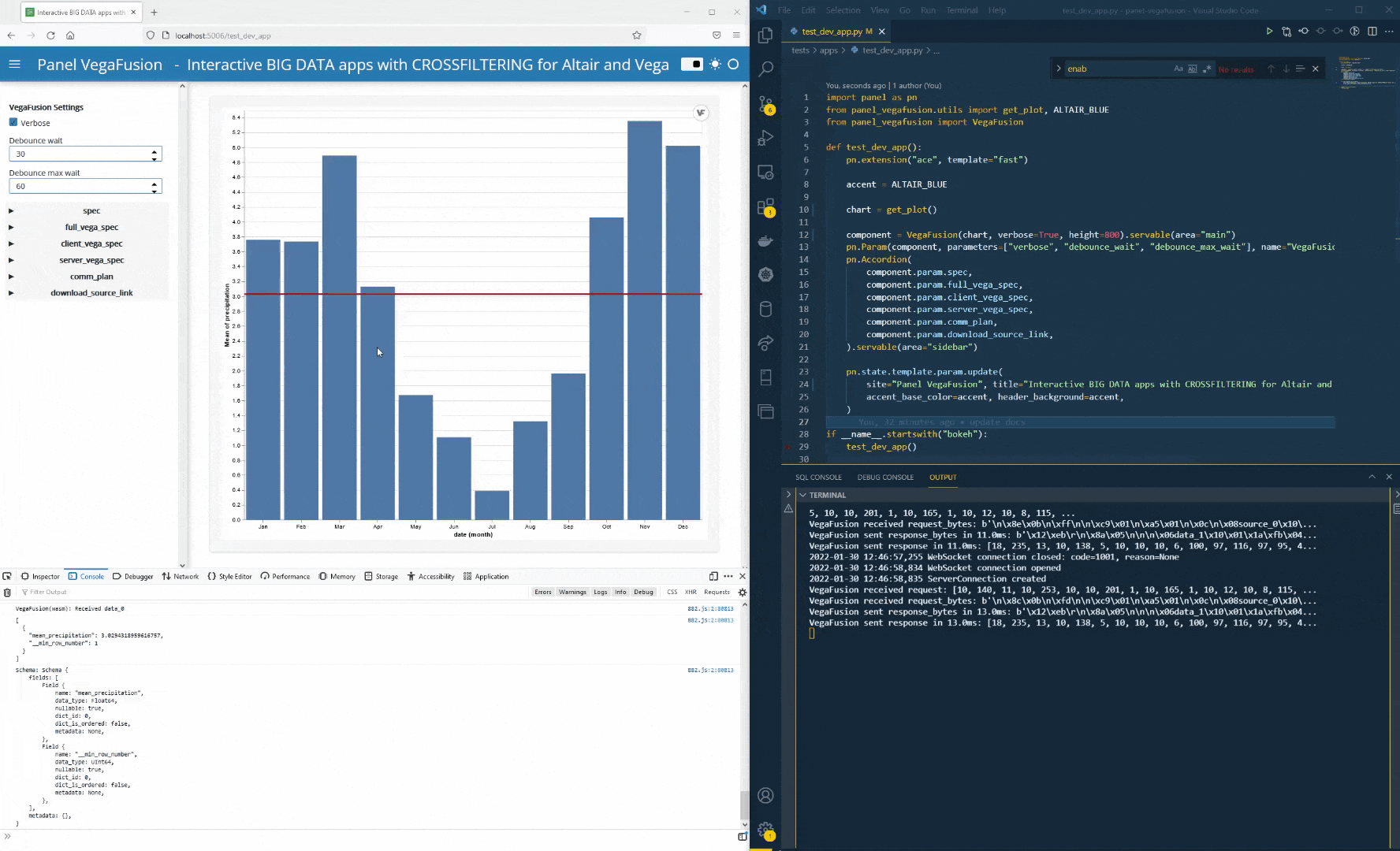

Serve Dev App

For now you can serve an example with hot reload via

panel serve 'tests/apps/test_dev_app.py' --autoreload --show

Serve Example Apps

For now you can serve an example with hot reload via

panel serve 'examples/*.py' --autoreload --show

Reference

You can also find inspiration in the original Jupyter VegaFusion reference example via

jupyter lab tests/reference_example.ipynb

Release Python Package

Before releasing please make sures you have

• updated all version numbers
• build all packages
• run all tests with succes

python -m twine upload dist/*<VERSION>*

to deploy the package 📦.

If you want to upload to testpypi first you can do so by adding --repository testpypi.
