Django based patch status monitoring tool for linux systems

Project description

Patchman

Summary

Patchman is a Django-based patch status monitoring tool for linux systems. Patchman provides a web interface for monitoring the package updates available for linux hosts.

How does Patchman work?

Patchman clients send a list of installed packages and enabled repositories to the Patchman server. The Patchman server updates its package list for each repository and determines which hosts require updates, and whether those updates are normal or security updates. The web interface also gives information on potential issues, such as installed packages that are not from any repository.

Hosts, packages, repositories and operating systems can all be filtered. For example, it is possible to find out which hosts have a certain version of a package installed, and which repository it comes from.

Patchman does not install update packages on hosts, it determines and displays what updates are available for each host.

yum, apt and zypper plugins can send reports to the Patchman server every time packages are installed or removed on a host.

Installation

See the installation guide for installation options.

Usage

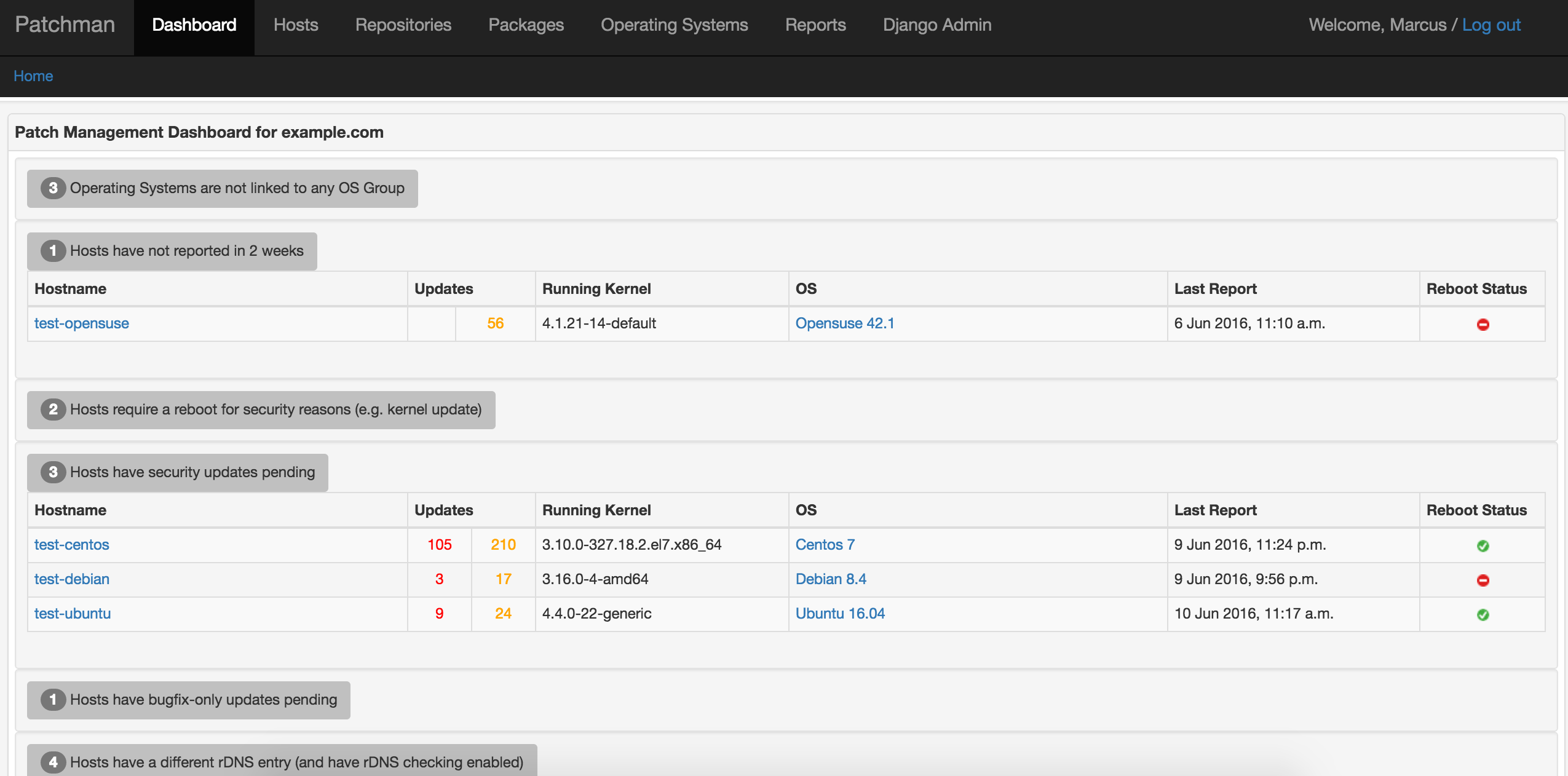

The web interface contains a dashboard with items that need attention, and various pages to manipulate hosts, repositories, packages, operating systems and reports.

To populate the database, simply run the client on some hosts:

$ patchman-client -s http://patchman.example.org

This should provide some initial data to work with.

On the server, the patchman command line utility can be used to run certain maintenance tasks, e.g. processing the reports sent from hosts, downloading repository update information from the web. Run patchman -h for a rundown of the usage:

$ sbin/patchman -h
usage: patchman [-h] [-f] [-q] [-r] [-R REPO] [-lr] [-lh] [-u] [-A] [-H HOST]
                [-p] [-c] [-d] [-n] [-a] [-D hostA hostB]

Patchman CLI tool

optional arguments:
  -h, --help            show this help message and exit
  -f, --force           Ignore stored checksums and force-refresh all mirrors
  -q, --quiet           Quiet mode (e.g. for cronjobs)
  -r, --refresh-repos   Refresh repositories
  -R REPO, --repo REPO  Only perform action on a specific repository (repo_id)
  -lr, --list-repos     List all repositories
  -lh, --list-hosts     List all hosts
  -u, --host-updates    Find host updates
  -A, --host-updates-alt
                        Find host updates (alternative algorithm that may be
                        faster when there are many homogeneous hosts)
  -H HOST, --host HOST  Only perform action on a specific host (fqdn)
  -p, --process-reports
                        Process pending reports
  -c, --clean-reports   Remove all but the last three reports
  -d, --dbcheck         Perform some sanity checks and clean unused db entries
  -n, --dns-checks      Perform reverse DNS checks if enabled for that host
  -a, --all             Convenience flag for -r -A -p -c -d -n
  -D hostA hostB, --diff hostA hostB
                        Show differences between two hosts in diff-like output
  -e, --errata          Download CentOS errata from https://cefs.steve-
                        meier.de/

Dependencies

Server-side dependencies

python3-django
python3-django-tagging
python3-django-extensions
python3-django-bootstrap3
python3-djangorestframework
python3-debian
python3-rpm
python3-progressbar
python3-lxml
python3-defusedxml
python3-requests
python3-colorama
python3-magic
python3-humanize

The server can optionally make use of celery to asynchronously process the reports sent by hosts.

Client-side dependencies

The client-side dependencies are kept to a minimum. rpm and dpkg are required to report packages, yum, dnf, zypper and/or apt are required to report repositories. These packages are normally installed by default on most systems.

deb-based OS's do not always change the kernel version when a kernel update is installed, so the update-notifier-common package can optionally be installed to enable this functionality. rpm-based OS's can tell if a reboot is required to install a new kernel by looking at uname -r and comparing it to the highest installed kernel version, so no extra packages are required on those OS's.

Concepts

The default settings will be fine for most people but depending on your setup, there may be some initial work required to logically organise the data sent in the host reports. The following explanations may help in this case.

There are a number of basic objects - Hosts, Repositories, Packages, Operating Systems and Reports. There are also Operating System Groups (which are optional) and Mirrors.

Host

A Host is a single host, e.g. test01.example.org.

Operating System

A Host runs an Operating System, e.g. CentOS 7.7, Debian 10.1, Ubuntu 18.04

Package

A Package is a package that is either installed on a Host, or is available to download from a Repository mirror, e.g. strace-4.8-11.el7.x86_64, grub2-tools-2.02-0.34.el7.centos.x86_64, etc.

Mirror

A Mirror is a collection of Packages available on the web, e.g. a yum, yast or apt repo.

Repository

A Repository is a collection of Mirrors. Typically all the Mirrors will contain the same Packages. For Red Hat-based Hosts, Repositories automatically link their Mirrors together. For Debian-based hosts, you may need to link all Mirrors that form a Repository using the web interface. This may reduce the time required to find updates. Repositories can be marked as being security or non-security. This makes most sense with Debian and Ubuntu repositories where security updates are delivered via security repositories. For CentOS security updates, see the Erratum section below.

Report

A Host creates a Report using patchman-client. This Report is sent to the Patchman server. The Report contains the Host's Operating System, and lists of the installed Packages and enabled Repositories on the Host. The Patchman server processes and records the list of Packages and Repositories contained in the Report.

Operating System Group (optional)

An OSGroup is a collection of OS's. For example, an OSGroup named "Ubuntu 18.04" would be comprised of the following OS's:

Ubuntu 18.04.1
Ubuntu 18.04.2
Ubuntu 18.04.5

Likewise, an OSGroup named "CentOS 7" would be made up of the following OS's:

CentOS 7.5
CentOS 7.7.1511

Repositories can be associated with an OSGroup, or with the Host itself. If the use_host_repos variable is set to True for a Host, then updates are found by looking only at the Repositories that belong to that Host. This is the default behaviour and does not require OSGroups to be configured.

If use_host_repos is set to False, the update-finding process looks at the OSGroup that the Host's Operating System is in, and uses the OSGroup's Repositories to determine the applicable updates. This is useful in environments where many hosts are homogeneous (e.g. cloud/cluster environments).

Erratum

Errata for CentOS can be downloaded from https://cefs.steve-meier.de/ . These errata are parsed and stored in the database. If a PackageUpdate contains a package that is a security update in the errata, then that update is marked as being a security update.
