pejmanai-msca 0.0.3

A Python package that creates a high-quality Gantt chart to visualize project timelines, work packages, milestones, and deliverables

Gantt Chart Creator for MSCA Fellowship

• This Python application creates a high-quality Gantt chart to visualize project timelines, work packages, milestones, and deliverables. It uses Plotly for interactive visualization and supports exporting the chart as a PNG image. The tool is tailored for projects, such as those funded by the Marie SkÅ‚odowska-Curie Actions (MSCA) fellowship.

Features

• Interactive Gantt chart creation.
• Customizable colors for milestones and deliverables.
• Annotations for explaining work packages.
• Option to save the chart as a high-quality PNG file.

Installation

To use this application, you need to have Python installed. You also need the following Python packages:

• plotly
• kaleido

• You can install these packages using pip: pip install plotly kaleido

Usage

• To create a Gantt chart, call the create_gantt_chart function with the appropriate parameters.

Function Signature

def create_gantt_chart(work_packages, milestone_color, deliverable_color, annotation_text, start_date, finish_date, project_title, save=False):

Parameters

• work_packages: List of dictionaries, each representing a task with 'Task', 'Start', 'Finish', and 'Type'.
• milestone_color: Color code (e.g., hex color) for milestones.
• deliverable_color: Color code (e.g., hex color) for deliverables.
• annotation_text: Text for the annotation explaining work packages.
• start_date: Start date for the x-axis in 'YYYY-MM-DD' format.
• finish_date: Finish date for the x-axis in 'YYYY-MM-DD' format.
• project_title: Title of the project to be displayed at the top of the chart.
• save: Boolean, if True, the chart is saved as a high-quality PNG file.

Contact

• Email: [e-mail]
• Website: https://giltech-megoldasok.com/

License

• This project is licensed under the MIT License

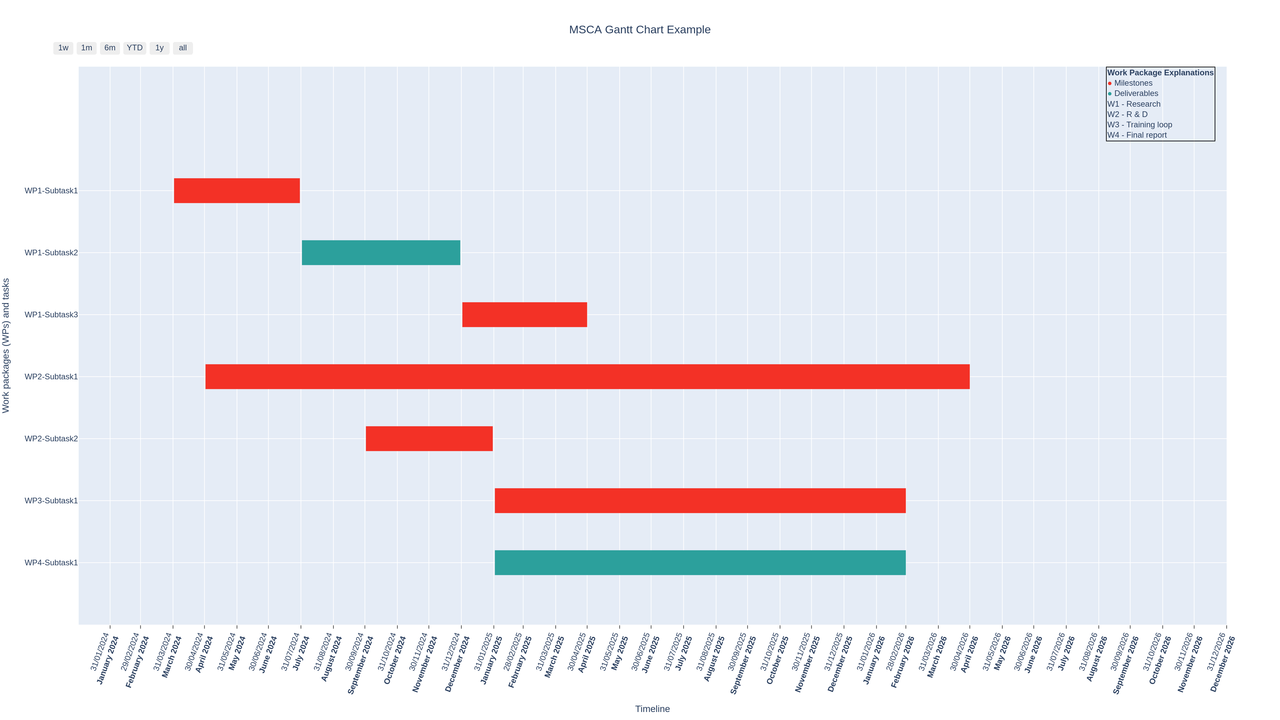

Example output

• Here is an example of how to use the create_gantt_chart function:

Gantt Chart Example code and inputs

Below is an example of how to use the create_gantt_chart function from the pejmanai_msca.gantt_chart module:

from pejmanai_msca.gantt_chart import create_gantt_chart

work_packages = [
    {"Task": "WP1-Subtask1", "Start": "2024-04-01", "Finish": "2024-07-30", "Type": "M1"},
    {"Task": "WP1-Subtask2", "Start": "2024-08-01", "Finish": "2024-12-30", "Type": "D1"},
    {"Task": "WP1-Subtask3", "Start": "2025-01-01", "Finish": "2025-04-30", "Type": "M2"},
    {"Task": "WP2-Subtask1", "Start": "2024-05-01", "Finish": "2026-04-30", "Type": "M3"},
    {"Task": "WP2-Subtask2", "Start": "2024-10-01", "Finish": "2025-01-30", "Type": "M4"},
    {"Task": "WP3-Subtask1", "Start": "2025-02-01", "Finish": "2026-02-28", "Type": "M5"},
    {"Task": "WP4-Subtask1", "Start": "2025-02-01", "Finish": "2026-02-28", "Type": "D2"}
]

milestone_color = '#f33126'
deliverable_color = '#2ca09c'

annotation_text = (
    "<span style='color:#f33126;'>&#9679;</span> Milestones<br>"
    "<span style='color:#2ca09c;'>&#9679;</span> Deliverables<br>"
    "W1 - Research<br>"
    "W2 - R & D<br>"
    "W3 - Training loop<br>"
    "W4 - Final report"
)

project_title = "MSCA Gantt Chart Example"

create_gantt_chart(work_packages, milestone_color, deliverable_color, annotation_text, '2024-01-01', '2026-12-31', project_title, save=True)```
