Penguins: an Easy, NPE-free Gateway to Unpacking and Illustrating NMR Spectra

Project description

GitHub Actions Build Status CodeCov coverage PyPI version License

Penguins: an Easy, NPE-free Gateway to Unpacking and Illustrating NMR Spectra

penguins is a Python 3 package intended mainly for generating publication-quality plots of NMR spectra in a programmatic, reproducible fashion.

Install

python -m pip install penguins

(It's a good idea to use a virtual environment.)

Example

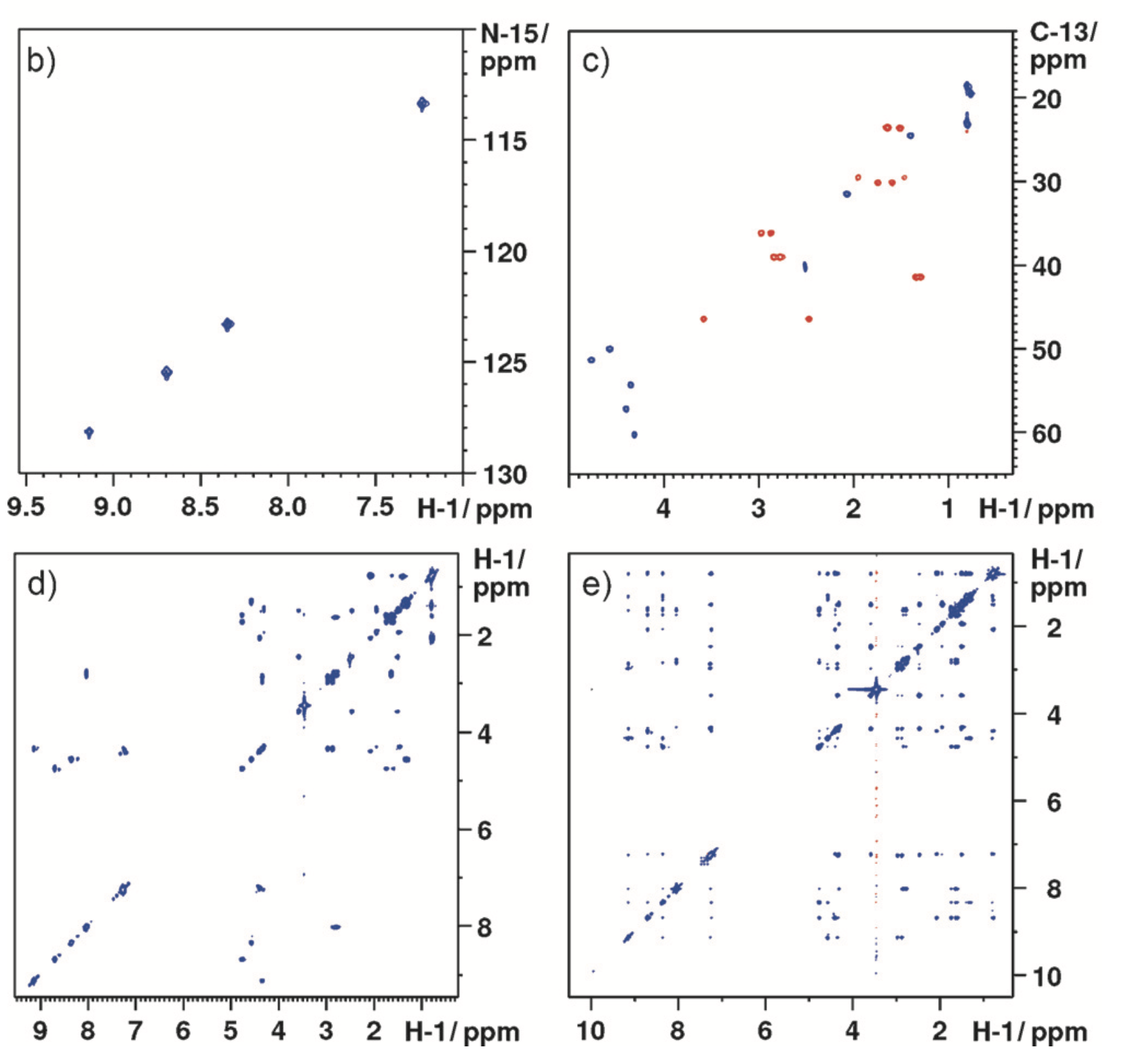

As an example of the output, here's Figure 2 from Angew. Chem. Int. Ed. 2017, 56 (39), 11779–11783:

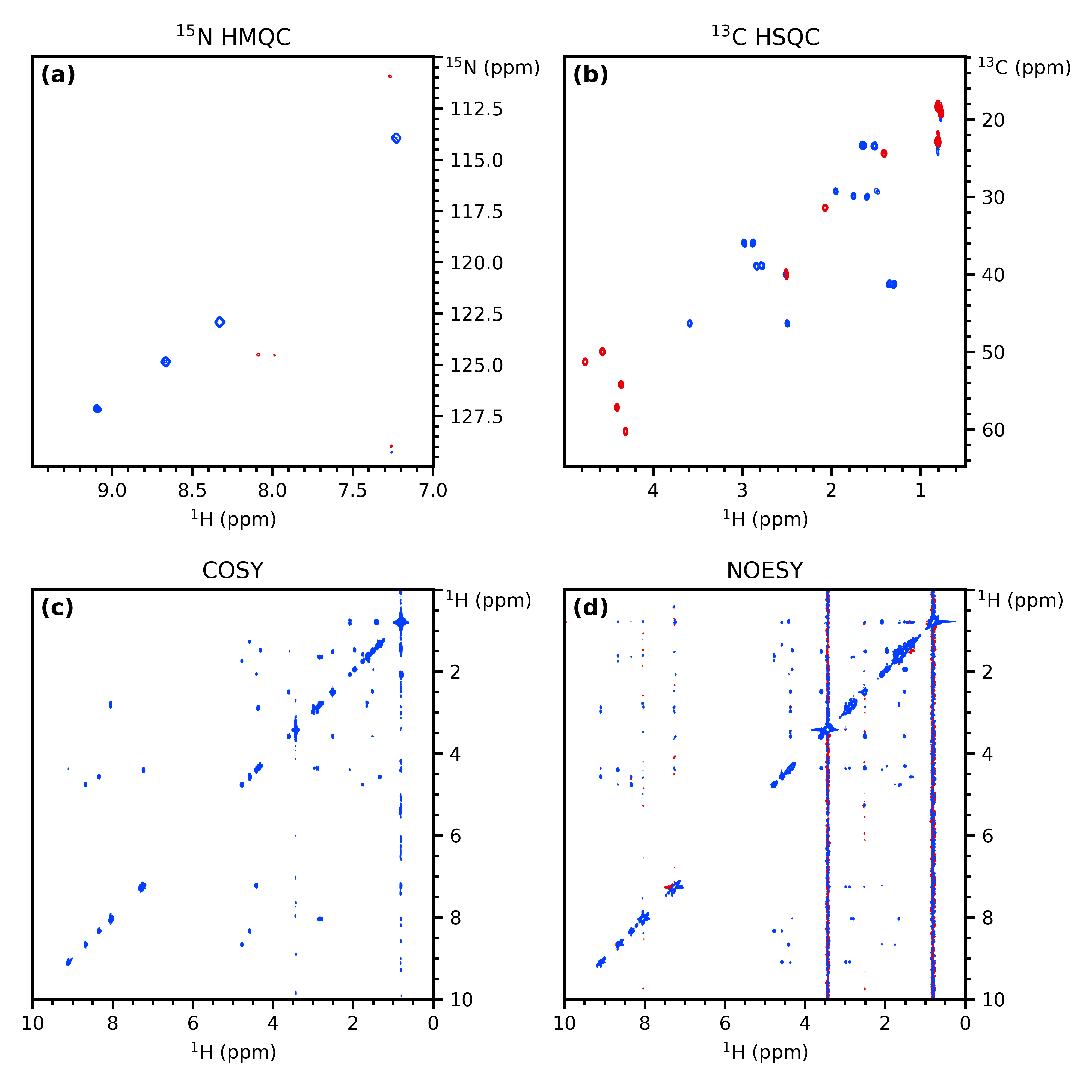

And here's a similar plot that can be done in under 20 lines of PEP8-compliant code using penguins (it's the same compound, but not the same data):

import penguins as pg

hmqc, hsqc, cosy, noesy = (pg.read("penguins-testdata", expno)
                           for expno in range(22001, 22005))

fig, axs = pg.subplots2d(2, 2)
hmqc.stage(axs[0, 0], levels=7e3, f1_bounds="110..130", f2_bounds="7..9.5")
hsqc.stage(axs[0, 1], levels=4e4, f1_bounds="12..65", f2_bounds="0.5..5")
cosy.stage(axs[1, 0], levels=8e5)
noesy.stage(axs[1, 1], levels=1e5)

titles = [r"$^{15}$N HMQC", r"$^{13}$C HSQC", "COSY", "NOESY"]
for ax, title in zip(axs.flat, titles):
    pg.mkplot(ax, title=title)
    pg.ymove(ax, pos="topright")

pg.label_axes(axs, fstr="({})", fontweight="semibold", fontsize=12)
pg.cleanup_axes()
pg.show()

Get started

Documentation can be found at https://yongrenjie.github.io/penguins. There are tutorial-type articles intended for entirely new users; I'm working on documentation beyond that, but it's not my main job, so it's a little slow.

Note that penguins is still in development, so the interface should not be assumed to be (too) stable. For now, I am working directly on the master branch, and rebasing/force pushing may occur without warning.


(The 'NPE' in the name stands for the "billion-dollar mistake", i.e. the NullPointerException familiar to TopSpin users.)
