Petritype

Typed, executable, visual Petri nets in Python.

Petritype turns Petri nets into a practical tool for building and visualising data processing pipelines. Places are typed containers, transitions are real Python functions, and tokens are your actual data — Pydantic models, dataclasses, primitives, whatever you need. Types are enforced at runtime, so wiring errors surface immediately rather than silently propagating.

Early stage — contributions and feedback welcome.

Core Idea

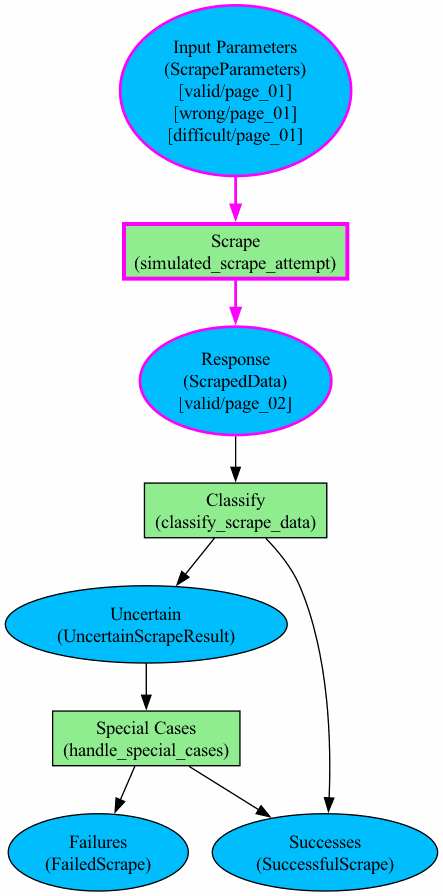

A Petri net has two kinds of nodes connected by directed edges:

• Places (blue ovals) — typed containers that hold tokens
• Transitions (green rectangles) — functions that consume tokens from input places and produce tokens into output places

A transition can only fire when all of its input places have tokens available. When it fires, it pops tokens from input places, calls its function, and routes the result to output places based on type matching. The current set of tokens across all places represents the live state of the system.

Petritype adds a type system on top of this: each place declares the Python type it accepts, and every token is checked against that type. This means the graph itself encodes the shape of your data pipeline — what types flow where, what each function expects, and where different outcomes end up.

Quickstart

import asyncio
from petritype.core.executable_graph_components import (
    ExecutableGraphOperations,
    FunctionTransitionNode,
    ListPlaceNode,
    ArgumentEdgeToTransition,
    ReturnedEdgeFromTransition,
)

# 1. Define your types and functions
def double(x: int) -> int:
    return x * 2

# 2. Build the graph
graph = ExecutableGraphOperations.construct_graph([
    ListPlaceNode('Input', int, [1, 2, 3]),
    ArgumentEdgeToTransition('Input', 'Double', 'x'),
    FunctionTransitionNode('Double', double),
    ReturnedEdgeFromTransition('Double', 'Output'),
    ListPlaceNode('Output', int),
])

# 3. Execute
graph, fired = asyncio.run(
    ExecutableGraphOperations.execute_graph(graph, stop_after_n_firings=3)
)

print(graph.place_named('Output').tokens)  # [2, 4, 6]

construct_graph takes a flat list of places, transitions, and edges in any order — it sorts them out. Execution runs an async loop: find fireable transitions, select one, fire it, repeat.

Key Features

Runtime type checking

Places declare types. Tokens are validated on entry. If a transition returns a str but the output place expects int, you get an immediate error — not a silent downstream failure.

ListPlaceNode('Scores', float, [0.95, 0.87])   # only accepts float tokens
ListPlaceNode('Labels', str, ['cat', 'dog'])     # only accepts str tokens

Type matching also governs output routing: when a transition has multiple output places, the result is sent to the place whose type matches.

Static structure checks

For pipeline-shaped nets you can prove termination before running anything: construct_graph(..., expect_acyclic=True) (or ExecutableGraphCheck.assert_acyclic(graph)) rejects token cycles at build time, naming the offending path (P1 → T1 → P2 → T2 → P1). Acyclicity alone is not termination — a source transition that consumes no tokens fires forever in a perfectly acyclic net — so pair it with ExecutableGraphCheck.assert_no_source_transitions(graph); a net that passes both provably quiesces. Nets that are cyclic or source-fed on purpose get run-time bounds instead (error_after_n_firings).

Failure semantics

If a transition body raises, the firing fails with TransitionFailedError. The tokens it consumed are not put back: the body may have mutated them before failing, and a place should never silently hold corrupted tokens — a visible loss beats invisible corruption. The consumed tokens ride along on the error:

try:
    await ExecutableGraphOperations.execute_graph(graph)
except TransitionFailedError as e:
    e.transition_name   # 'Charge Card'
    e.consumed          # {'order': <the consumed token>}
    e.__cause__         # the original exception

Expected failures are the body's job: catch them and return an error token, and type-based routing (e.g. -> Receipt | FailedOrder) delivers it to an error-handling place. If your tokens are immutable or bodies don't mutate them before failing, restore_tokens_on_failure=True (on construct_graph or per execute_graph call) opts into putting consumed tokens back.

Async execution

Transition functions can be async. The execution loop handles both sync and async functions transparently.

async def fetch(url: str) -> str:
    async with aiohttp.ClientSession() as session:
        async with session.get(url) as resp:
            return await resp.text()

FunctionTransitionNode('Fetch', fetch)

Guards, priorities, and transition selectors

Each transition can carry two optional callables. Both receive the live graph, so they can read the whole marking:

• guard — a firing condition the engine enforces in every execution mode: a transition whose guard returns False is not fireable, regardless of available tokens. Guards run on every fireable-discovery sweep, so keep them cheap, side-effect-free predicates over the marking.
• priority — a selection hint: the default selector fires the highest-priority fireable transition. Unset scores 0.0; ties fall back to definition order. tie_break (on construct_graph or the graph) picks which end: "first_declared" (default) runs a FIFO pipeline in batches, every token through stage one before any reaches stage two, while "last_declared" lets each token flow through before the next enters.

# Guard: BatchProcess is not fireable until the pool is full
def batch_ready(graph) -> bool:
    return len(graph.place_named('Pool').tokens) >= 10

# Priority: drain the longest queue first
def queue_pressure(graph) -> float:
    return len(graph.place_named('Queue').tokens)

FunctionTransitionNode('BatchProcess', batch_process, guard=batch_ready)
FunctionTransitionNode('Drain', drain, priority=queue_pressure)

For full control over what fires next, replace the selector itself — a function from the fireable transitions to the one to fire:

graph.transition_selector = my_selector   # (graph, fireable) -> transition or None

The older activation_function field is deprecated: the engine never consulted it, so use guard or priority instead. It remains visible to custom selectors until removed.

A selector is just a callable over the fireable transitions, so round-robin, bottleneck-aware and other policies are a few lines each.

Visualisation

Needs the viz extra: pip install 'petritype[viz]', plus the Graphviz dot binary on your PATH (brew install graphviz / apt install graphviz).

Built-in Graphviz rendering shows the graph structure, types, and current token state — including read arcs (dashed) and, in concurrent runs, in-flight transitions highlighted while their bodies run. The example notebooks (marimo) step through and animate execution live.

from petritype.plotting.rustworkx_graph import RustworkxGraph
from petritype.plotting.simple_graphviz import SimpleGraphvizVisualization

# The renderer draws a rustworkx view of the net, built once from the graph
pydigraph = RustworkxGraph.from_executable_graph(graph)

# Static graph image
SimpleGraphvizVisualization.graph(pydigraph)

# Step-by-step animation, inside a notebook (`display` comes from marimo/IPython)
async for step, diagram, fired in SimpleGraphvizVisualization.animate_execution_generator(
    graph, pydigraph
):
    display(diagram)

Output distribution

When a transition has multiple output places, tokens are routed by type matching. For custom routing logic, provide an output distribution function:

def route_result(result) -> dict[str, Any]:
    if result.score > 0.9:
        return {'Approved': result}
    else:
        return {'NeedsReview': result}

FunctionTransitionNode(
    'Classify', classify,
    output_distribution_function=route_result,
)

Token copying

When a transition produces a token that matches multiple output places by type, Petritype raises an error by default — this prevents accidental duplication. If you want the same token to be sent to multiple output places (via deepcopy), enable token copying when constructing the graph:

graph = ExecutableGraphOperations.construct_graph([...], allow_token_copying=True)

This is useful when the same piece of data needs to flow down multiple independent paths — for example, a configuration token consumed by both a planning stage and a data-fetching stage.

List-mode transitions

If a transition argument is typed as list[T] and the input place holds tokens of type T, all tokens are passed as a list in a single call — useful for batch operations.

def summarise(items: list[str]) -> str:
    return f"Processed {len(items)} items"

# All str tokens from 'Items' are passed at once
ArgumentEdgeToTransition('Items', 'Summarise', 'items')

Read arcs — non-consuming reads

A transition can read a place without consuming its tokens — useful for parameters, toggles, or guard state, kept as visible, pokable nodes. Both require a token to be present for the transition to be fireable, but firing never consumes it:

• SnapshotEdge — the transition receives a deep-copy; the place is untouched.
• MutateEdge — the transition receives the live tokens and may modify them in place.

from petritype.core.executable_graph_components import SnapshotEdge, MutateEdge

SnapshotEdge('Multiplier', 'Scale', 'factor')   # Scale reads Multiplier, never consumes it
MutateEdge('Counter', 'Scale', 'tally')          # Scale increments Counter in place

Read arcs render dashed, distinct from the solid consuming / producing arrows.

Decorator for registration

Mark functions as Petri net factories with execution mode metadata, useful for discovery and orchestration tooling.

from petritype import petri_net

@petri_net(name="data-pipeline", mode="batch")
def data_pipeline() -> ExecutableGraph:
    return ExecutableGraphOperations.construct_graph([...])

@petri_net(name="health-check", mode="cron", schedule="*/5 * * * *")
def health_check() -> ExecutableGraph:
    return ExecutableGraphOperations.construct_graph([...])

Modes: manual (default), 24/7 (continuous), batch (run once), cron (scheduled).

Runtime — observable, interactive nets

Beyond running a net to completion, petritype.runtime turns a net into a live object you can watch and poke while it runs — for monitoring, real-time simulations, or interactive tools. The graph is the single source of truth; a Runner (a set of functions, no objects to construct) drives it via a passive RunContext the caller owns.

from petritype.runtime import Runner, RunContext, ExecutionMode, Extend

ctx = RunContext(graph=graph, mode=ExecutionMode.CONCURRENT, observers=(render,))
await Runner.run_to_completion(ctx)   # or Runner.step(ctx) / Runner.run_indefinitely(ctx, tick=0.1)

• One definition, two execution modes — SEQUENTIAL fires one transition fully before the next; CONCURRENT runs independent transitions' bodies as overlapping tasks (wall-clock ≈ max instead of sum). Selected by RunContext.mode — the only line that changes.
• Observation — observers are plain callables handed the live graph after each state change, so any renderer (a marimo notebook, a web frontend) can redraw at its own pace. In-flight transitions are exposed via graph.in_flight, so a renderer could for example highlight them by changing their colour while their bodies run. To know what fired since you last looked, snapshot graph.fired_counts and diff it at the next notification with fired_since(previous, current) — lossless in every mode, unlike graph.last_fired, which names only one completion per concurrent batch.
• Interactive input — write to a running net by putting typed commands on RunContext.inbox, drained between steps: Extend / SetTokens (places), SetParam / Enable / Disable (transitions). A UI only ever produces commands — the runner is the only thing that mutates the net.
• Real-time — run_indefinitely(ctx, tick=...) drives the net on an internal clock until ctx.stop, surviving idle ticks, so you can inject input live.
• Limits — Runner.run(ctx, stop_after_n_firings=N) paces: it always returns a RunSummary whose quiesced flag tells "stopped by the limit, call again to continue" from "nothing left to fire". RunContext.error_after_n_firings is a run-wide fuse for nets that should quiesce quickly: TooManyFiringsError is raised before the net fires past it (a net that fires exactly n and quiesces is fine).
• Offload — mark a blocking / CPU-bound body FunctionTransitionNode(..., execution="thread") and it runs in a thread pool, so it never freezes the loop (and parallelises in concurrent mode).
• Control-map — bind UI widgets to nodes declaratively with {name: ControlSpec}, kept off the net; petritype.marimo_controls renders them and feeds their values to the inbox (needs the marimo extra: pip install 'petritype[marimo]').
• Token ids and events — every token carries a stable integer id (place.token_ids, handed out once and never reused), and with record_events=True the graph records Fired, Failed, Added, Removed, Mutated, Toggled and ParamChanged for graph.drain_events(): what fired, what it consumed and produced, by id, in both execution modes. Off by default, so existing programs see no change.

Runnable examples: examples/execution_modes/ (sequential vs concurrent, animated) and examples/interactive/ (live parcel sorters, a read-arc scaler) — open with uv run --extra examples marimo edit <notebook>.

Net protocol — run a net as a process

python -m petritype.runner --module your.nets            # serve on stdin/stdout
python -m petritype.runner --describe --module your.nets # list the nets it carries

petritype.runner serves the nets a module declares with @petri_net over the net protocol: newline-delimited JSON on stdin and stdout, the same protocol the Rust port's petritype-runner speaks. A host or viewer — petritype-server, the Bevy visualiser, a test harness — therefore drives either runtime the same way: describe, load, get_state, step, start/stop, inject, enable/disable, set_param, get_token, get_log, with fired, added, toggled and the other notifications as the net changes. A print in a body goes to stderr; stdout belongs to the protocol. No extra is needed: the runner is the standard library plus pydantic. Conformance is checked by the recorded transcripts under tests/protocol/, which are written to run against both runtimes.

When to Use This

Petritype is useful when you have stateful data processing where:

1. Data flows through multiple stages with different representations — the typed places make the shape of each stage explicit.
2. Outcomes are not easily predictable — different result types route to different places, making branching logic visible in the graph rather than hidden in conditionals.
3. You need to reason about complex processes — the graph is both the implementation and the documentation.

It has been particularly useful for processes involving many calls to stateful external data sources, where the data flow paths depend on responses and not all paths can be known in advance.

When Not to Use This

1. Simple pipelines — if your processing is a straightforward chain of pure functions, the Petri net overhead adds complexity without benefit.
2. Order-sensitive processing with shared state — each transition firing mutates the graph in place. If the order matters and is hard to control, this can be a source of bugs.
3. Complex net dynamics — cycles, deadlocks, and infinite loops are all possible in Petri nets and can be difficult to debug. Use the formalism with care.

Background: What is a Petri Net?

A Petri net is a bipartite directed graph used to model concurrent processes. It was originally developed by Carl Adam Petri in 1962 and has been applied across chemistry, logistics, manufacturing, protocol verification, and many other fields.

The graph has two types of nodes — places and transitions — connected by directed edges (arcs). Places hold tokens representing the state of the system. A transition is fireable when all its input places contain at least one token (and its guard, if any, passes). Petri net texts say "enabled" for what this library calls "fireable"; "enabled" here is the on/off switch set by the Enable / Disable commands. When a transition fires, it removes tokens from its inputs and adds tokens to its outputs.

What makes Petri nets powerful is that they can model concurrency, synchronisation, and resource contention in a way that is both formally analysable and visually intuitive.

Petritype builds on this foundation by making places typed (so tokens must match a declared Python type) and making transitions executable (so they call real functions). The result is a system where the Petri net is not just a model of your process — it is your process.

Installation

pip install petritype

Or with uv:

uv add petritype

Requires Python 3.12+. The base install is deliberately light — pydantic only. Optional features live behind extras:

The viz extra also needs the Graphviz dot binary on your PATH (brew install graphviz / apt install graphviz).

Examples

See the examples/ directory:

• Caching — database retrieval with cache fallback, demonstrating typed routing for cache hits vs misses
• ML Training — multi-step model training pipeline with evaluation and retraining loops
• Time Series — statistical processing of time series data

The notebooks live in the repository — they are not part of the pip package — so run them from a clone:

git clone https://github.com/olenive/petritype
cd petritype
uv run --extra examples marimo edit examples/toy/parcel_distribution.py
